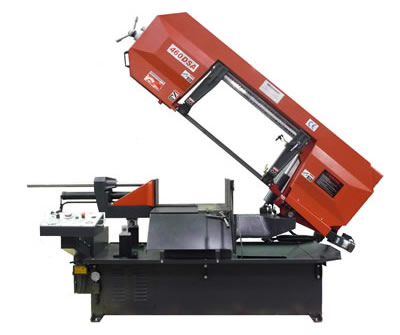

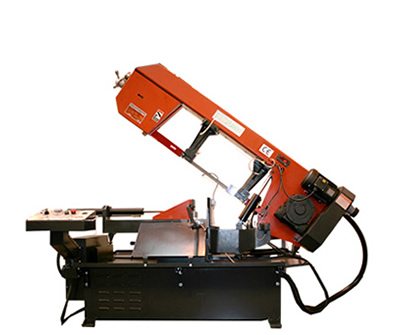

These two very similar machines, the Waytrain UE460DSA and Waytrain UE331 bandsaws, are heavy duty semi automatic horizontal bandsaws. Ideal for tough, substantial cutting jobs with their heavy duty features, mitre cutting to 60° twinned with the semi-automatic feed it makes handling the workpiece much more manageable. These two heavy duty bandsaw machines are designed for fast accurate cutting of solids, sections and tubes.
The Similarities
Nobody wants to be wasting valuable time in the workshop but as important as time is equally so is accuracy. Both these two Waytrain bandsaws have many of the same features;
- Easy to use controls with DRO head height setting
- Full stroke hydraulic vice
- Electrical controls with overloads & PC
- Swarf brush driven from drive wheel
- Easily adjustable 60° - 0 - 60° mitre
- Full stroke hydraulic vice
- Vice pressure reduction
- 26-80 m/min blade speed
- Laser cutting line
The Differences
The main difference between these two machines is the cutting capacity. The maximum cutting capacity at 90° for the UE331DSA bandsaw is 330mm and the UE460DSA bandsaw can cut material up to 460mm. The capacity chart below indicates the maximum capacity of each machine when mitre cutting and cutting rectanglular material.
They also use different size bandsaw blades. The UE331 has the typical 34mm blade that is normally found on these types of bandsaws. However the UE460 has a 41mm blade width giving a remarkably larger beam strength, noticed particularly when cutting large diameters or wide sections.
Waytrain UE331 | Waytrain UE460 | |||
---|---|---|---|---|
90° | 330mm | 485mm x 320mm | 460mm | 600mm x 440mm 650mm x 300mm |
45° Right/Left | 315mm | 315mm x 315mm | 460mm | 460mm x 460mm |
60° Right/Left | 215mm | 195mm x 315mm | 330mm | 330mm x 330mm |
Material Handling Systems
Prosaw can provide complete materials handling systems for the UE331 and UE460 bandsaws including free running or roller conveyors and powered conveyors, measuring systems. For more information please visit the materials handling systems product page.
