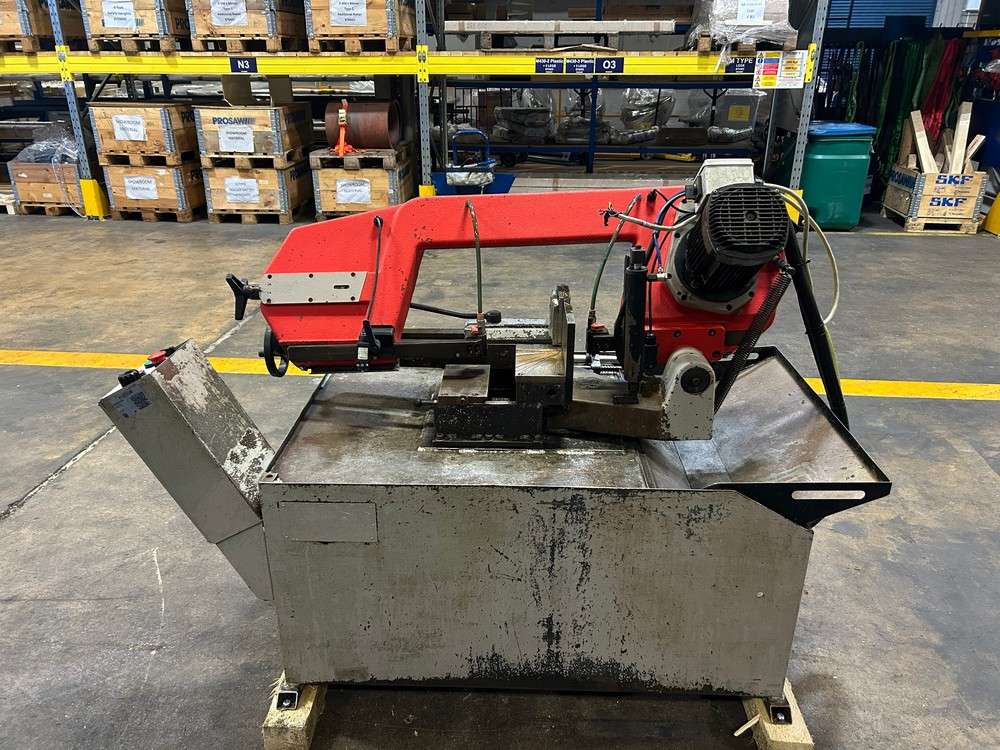

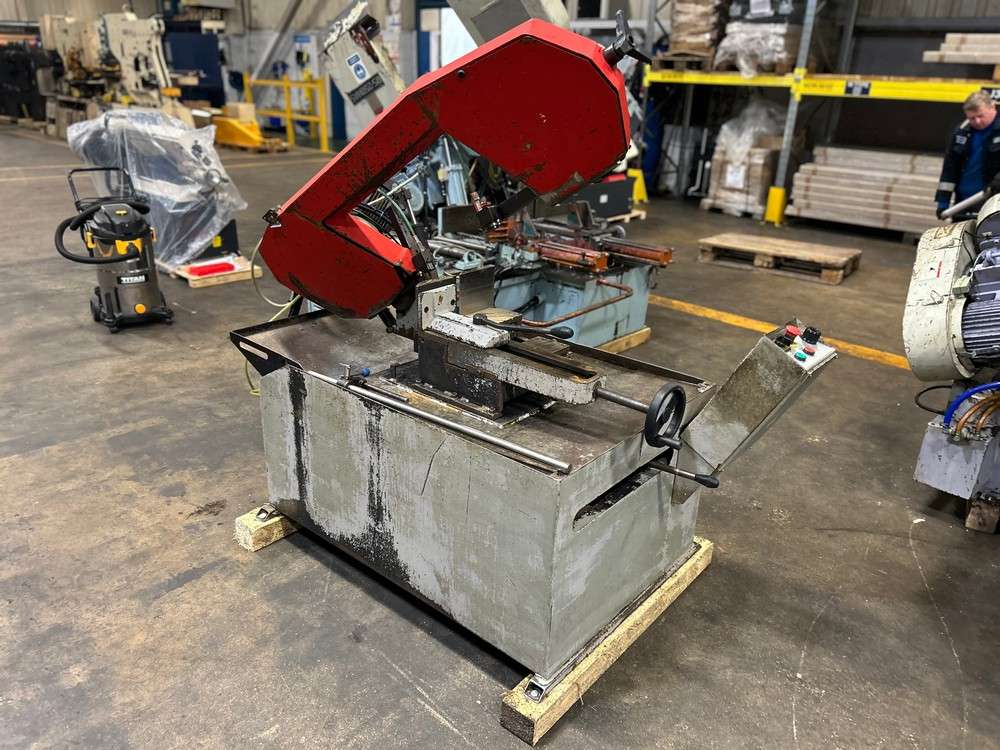

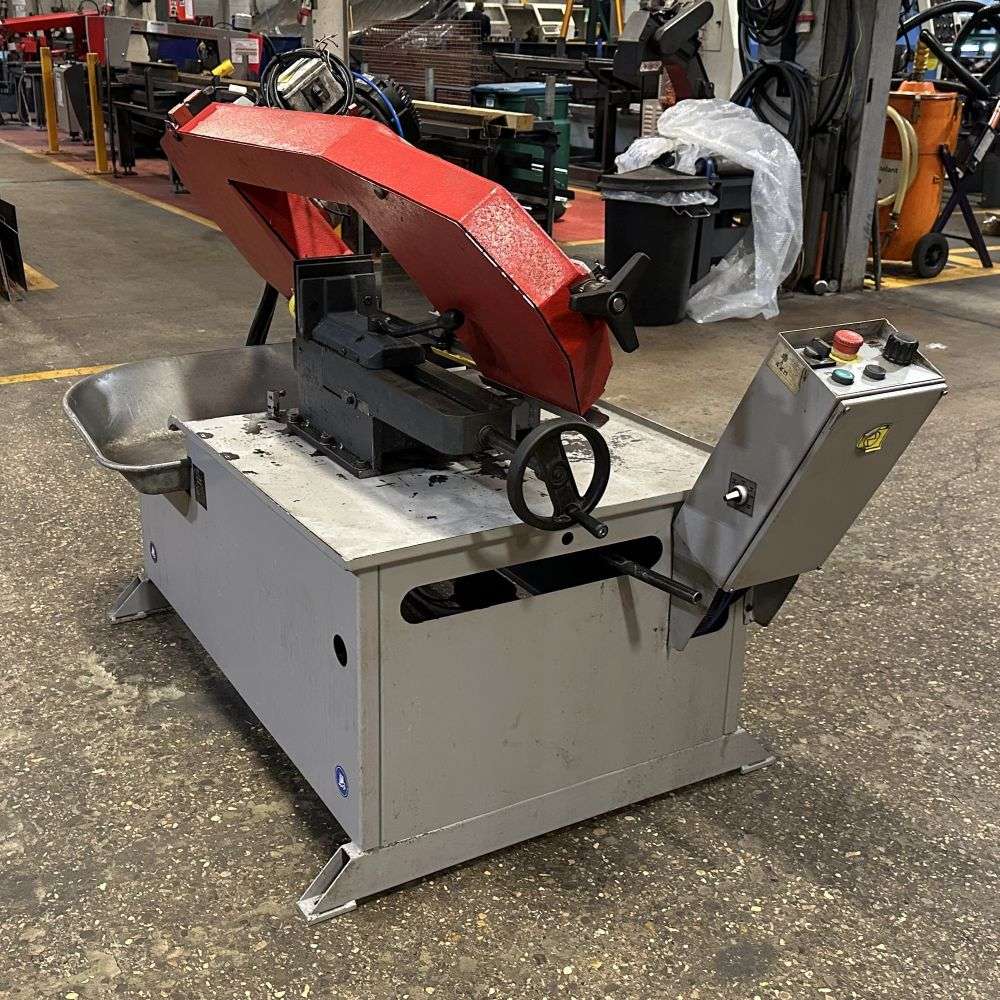

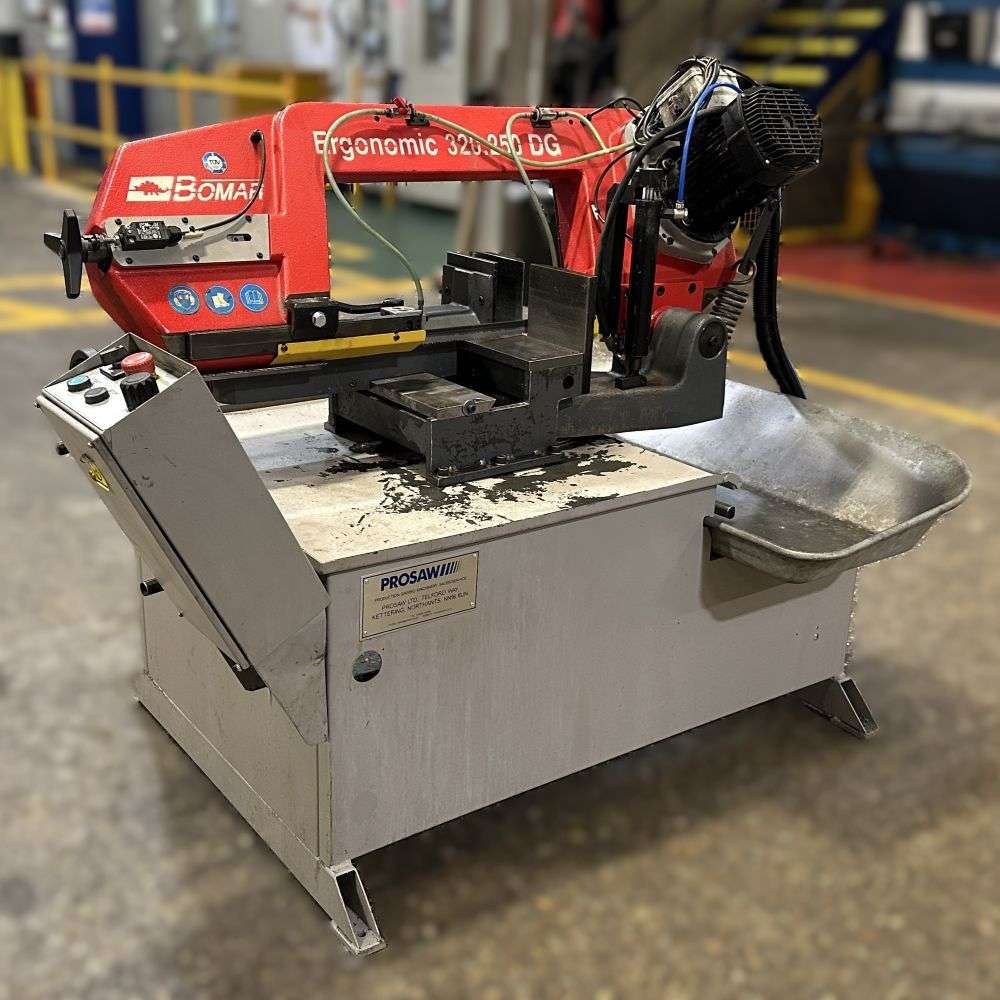

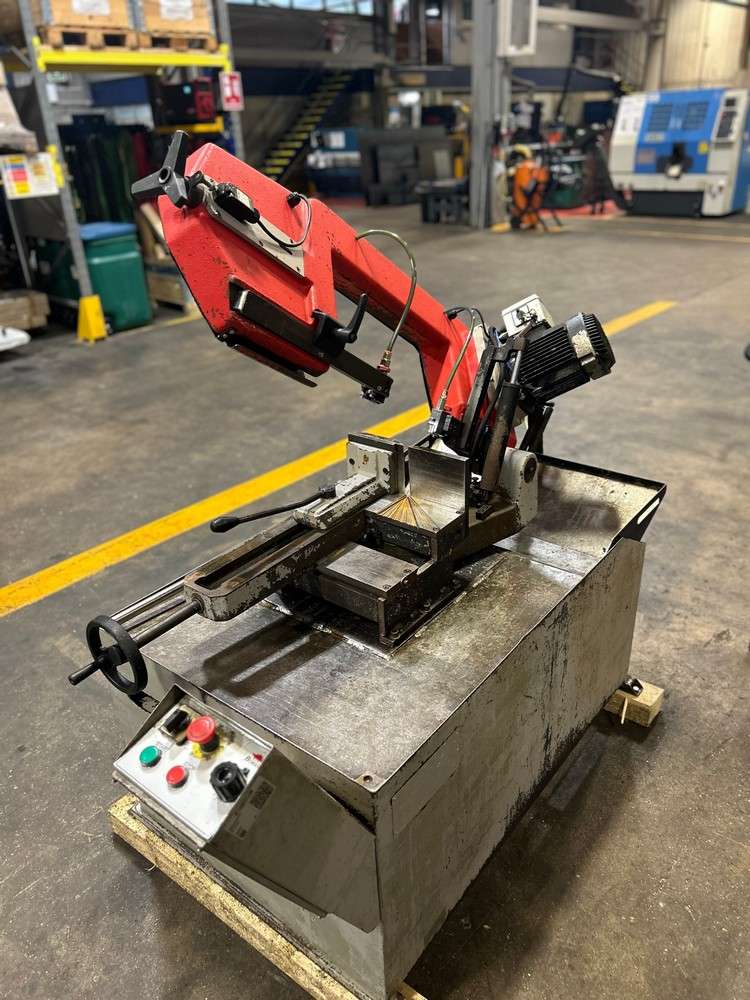

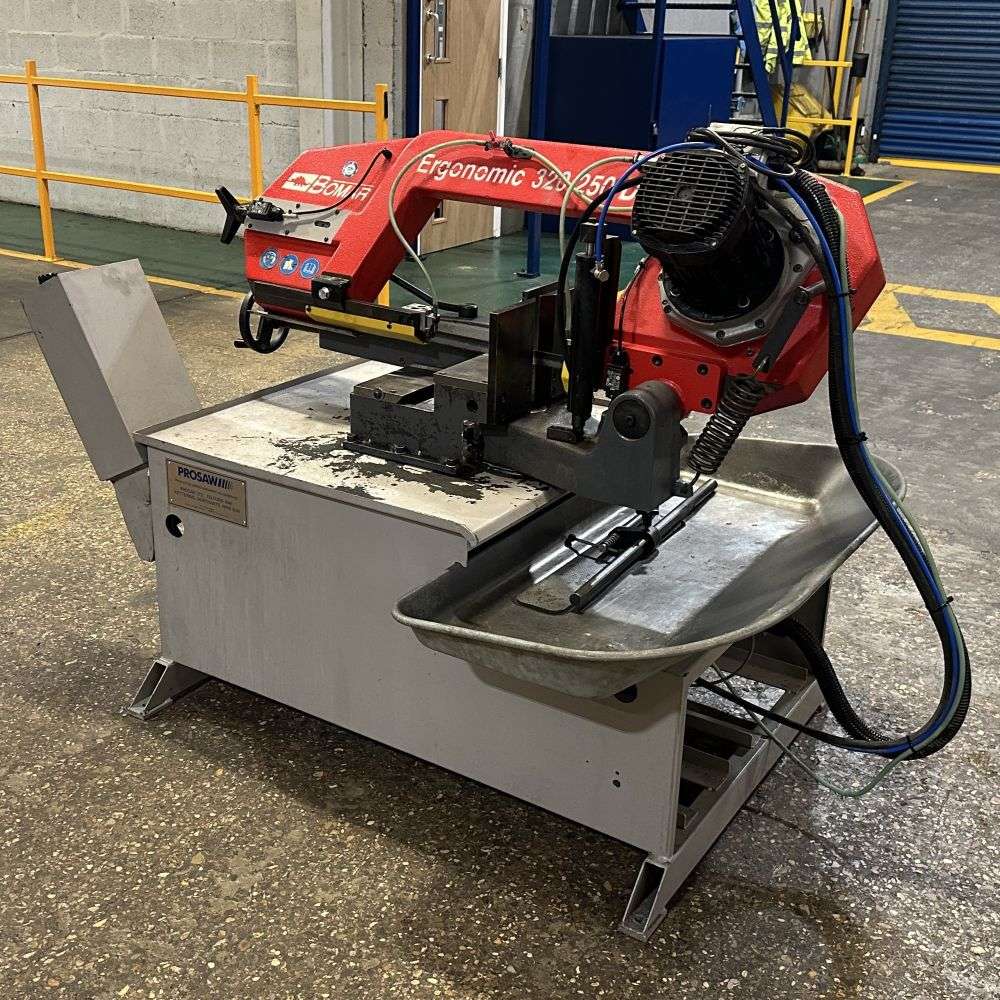

Used Bomar 320.250DG Manual Bandsaw

Machine Subcategory

Manual Bandsaw

Flexible manual bandsaw designed for easy, accurate cutting of sectional material.

Fast mitre set up to 60° with hydraulic controlled saw-bow downfeed

Hydraulic saw bow control - smooth consistent downfeed through material
Bow - heavy duty one-piece cast bow

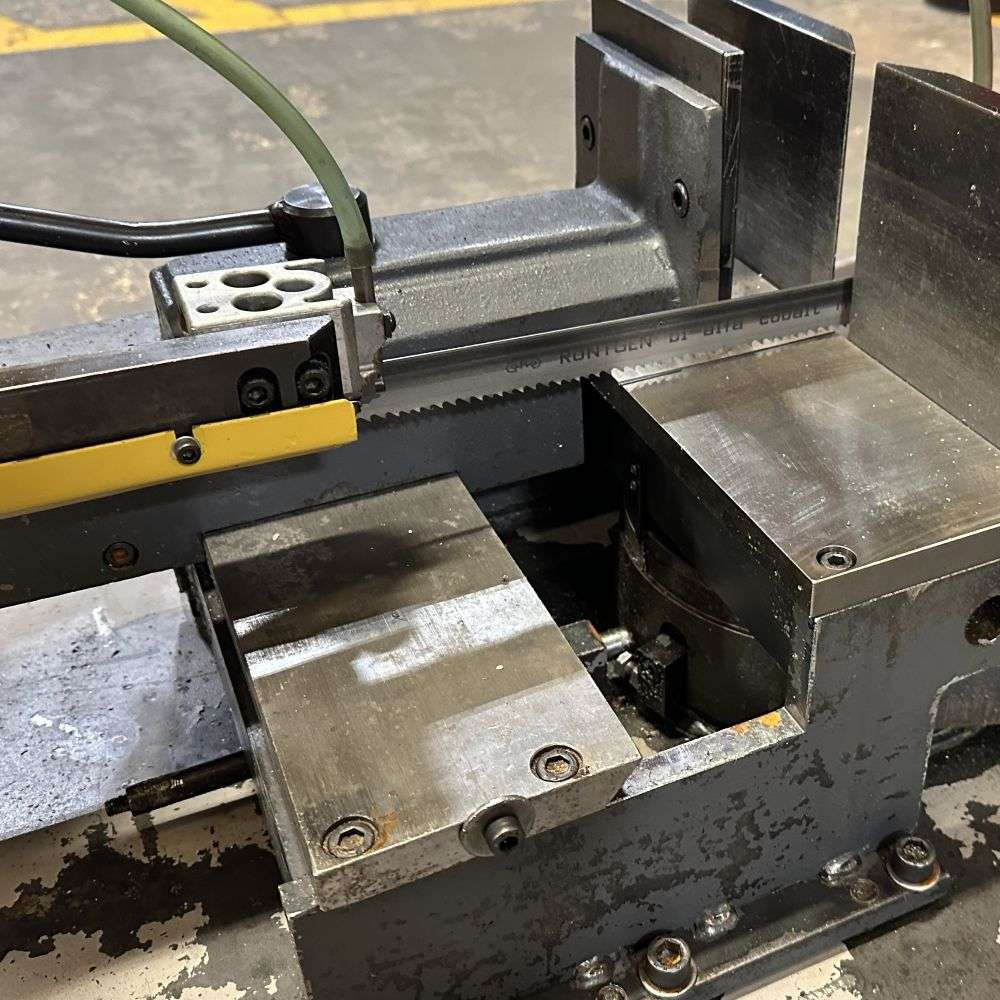

Vices - substantial vices, quick set lever operation
Mitre vices - easy lateral movement on dove-tail slide when mitring
Mitre setting from operator’s position, bow rotates 45-90-60°, material does not move
Mitre scale - easy to read, enables operator to set precise mitre angle
Blade guidance - tungsten carbide pads and roller bearings
Blade tensioning - heavy duty blade tensioning unit, with automatic stop if blade breaks
Motor - heavy duty, 3 phase with overload protection
Coolant - independent sealed unit re-circulating from machine base
Coolant supply - delivered through both guide arms directly to cutting area
Guide arms - moveable guide arm adjustable according to section size
Gearbox - heavy duty, larger than standard, gear train
Blade speed - two speeds, 35 & 70 m/min
Blade size - 2910 x 0.9 x 27mm

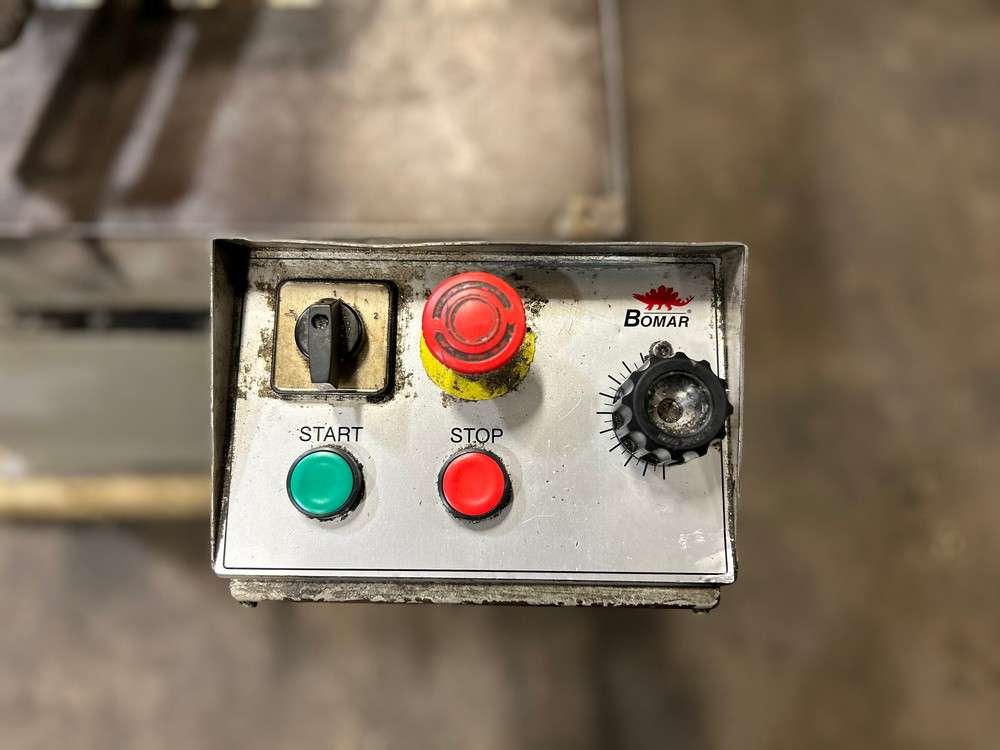

Safety - comprehensive guarding interlocks on drum covers, low voltage controls
Length stop - 500mm included
