Machine Subcategory

Vertical bandsaw


Vertical band saw with the ability to mitre from 60° left to 60° right.
Its standard 6° degree fixed canted head, recommended when cutting larger beams, structural steel, and bundles of square tubing allows for more efficient cutting and improved blade life.

A heavy duty vertical saw, the V-25 efficiently cuts both solid and structural material and is extremely versatile for many different types of sawing applications.

Standard Specification

  • 6° canted head allows for efficient cutting and improved blade life
  • Control provides hydraulic powered mitring from 60° left to 60° right
  • Digital angle display
  • Two full stroking hydraulic vises
  • Powered movable guide arm

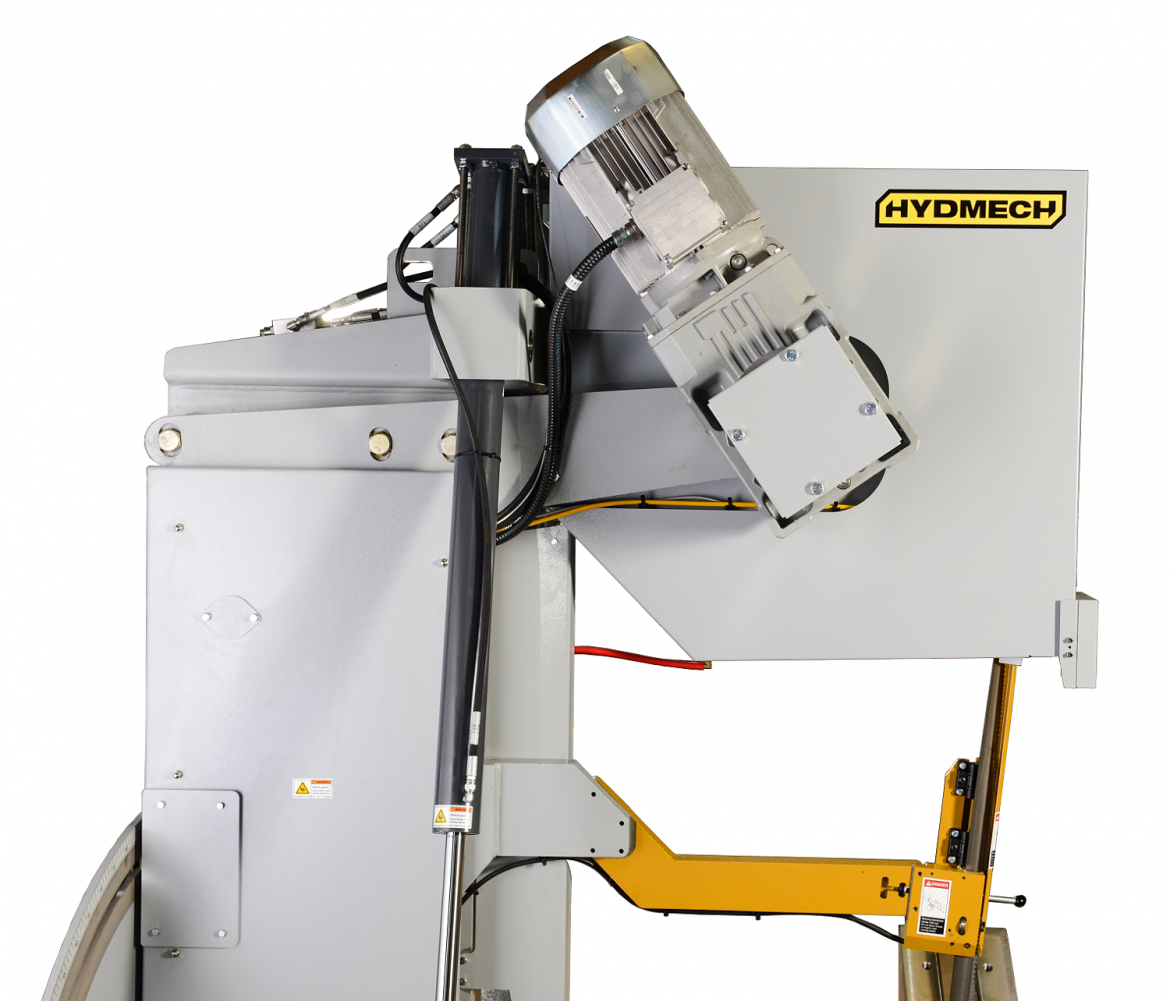

  • 10 HP VFD. True direct blade drive – no belts/pulleys
  • Cast iron band wheels
  • Replaceable blade brush
  • Robust steel base
  • Easy access electrical panel and hydraulics
  • Blade breakage switch
  • Hydraulic band tensioning with digital readout
  • Replaceable carbide guide inserts
  • 3 HP hydraulic pump provides system pressure
  • Safety door interlocks
  • Flood coolant with wash down hose
  • Laser light
  • Work light
  • Variable vice pressure

Optional Features

  • Chip bucket with pump
  • Hydraulic overhead bundling
  • Mist lubrication
  • Pop-up feed roller
  • Tall square vice inserts
  • Hydraulic chip conveyor
  • Hydraulically positioned datum line vertical rollers
  • Bridge/interface bracket
  • Powered bridge/interface bracket
  • Idler conveyors
  • Powered conveyors

Get in touch +44 (0)1536 410999

protected by reCAPTCHA

HYDMECH V25 Technical Specifications

Manufacturer Hydmech
Machine Type Bandsaw
Dimensions 6413mm × 41mm × 1.3mm
Table Height 1117mm
Motor 7.5kW
Weight 4545 kgs net
90°45° Left45° Right60° Left60° Right
Round Section (mm) 635mm 533mm 368mm 342mm
Rectangular Section Horizontal (mm) 762x635mm 533x635mm 368x635mm 342x635mm
