Yilmaz KD350D

Machine Subcategory

Manual Circular Saws

Overview

The YILMAZ KD 350D is designed for the straight or angular cutting operations of aluminum and PVC materials by means of Ø 350mm diameter saw blade.

Standard Specification

Ø 350 mm saw blade running at 3,000 rpm
2.2 kW motor
Location points at 45°-30°-22.5°-15°-0° both left and right
Pivoting range from 45° left to 45° right infinitely adjustable
Aluminium saw body with stand made of Sheet steel
Solid construction allows for ease of adjustment to the required cutting angles
2 x manual horizontal clamps as standard

Optional Features

Additional saw blade Ø 350 mm
Swarf Extractor
Rollerways
Measure stop

Get in touch +44 (0)1536 410999

Name

Email

Company

Address

Post Code

Telephone

Message

protected by reCAPTCHA

PrivacyTerms

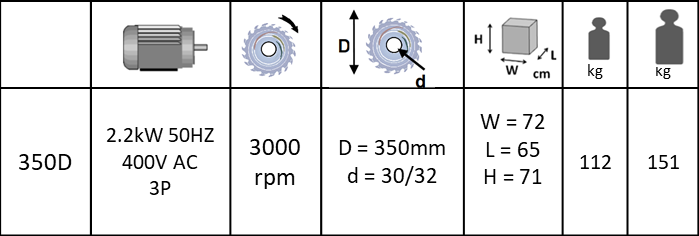

Yilmaz KD350D Technical Specifications

Manufacturer	Yilmaz
Machine Type	Circular
Operation Type	Manual
Material Type	Section
Materials	Aluminium
Dimensions	350mm × 30/32mm ×
Motor	2.2 kW
Material Type(s)	Section
Material(s)	Non-Ferrous

PDF Download

Download Datasheet

Download the datasheet for the Yilmaz KD350D
