MEP Tiger 352 NC 5.0

Machine Subcategory

Automatic Circular Saw

Overview

The MEP TIGER 352 NC 5.0 is a heavy duty vertical column action automatic circular saw designed for high-volume straight and mitre cutting, sections & solids.

The hydro-pneumatic operation of the saw head provides a smooth vertical downfeed rate for fast cutting and optimum blade life. It has mitre cutting capabilities in both directions and has speed optimization for best torque with invertor & mechanical gear change

Standard Specification

Designed for high-volume straight and mitre cutting, sections & solids.

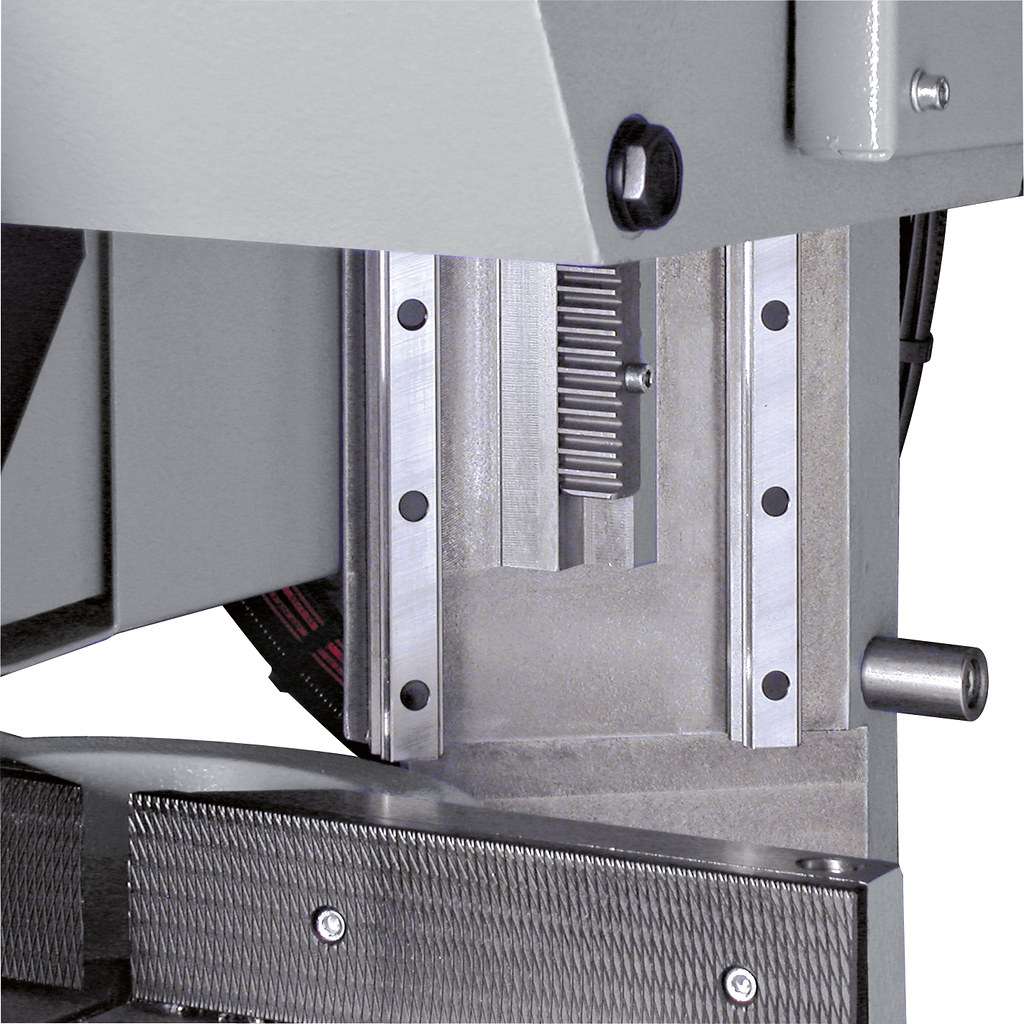

Column action cutting on linear guides
Operates in automatic and semi-automatic modes
-45° to +60° range.
350mm HSS blade with 3.0 kW motor
Horizontal and vertical pneumatic clamping of the workpiece for precise cutting
600mm Bar feeder with ball screw and stepper motor
Speed optimization for best torque with invertor & mechanical gear change

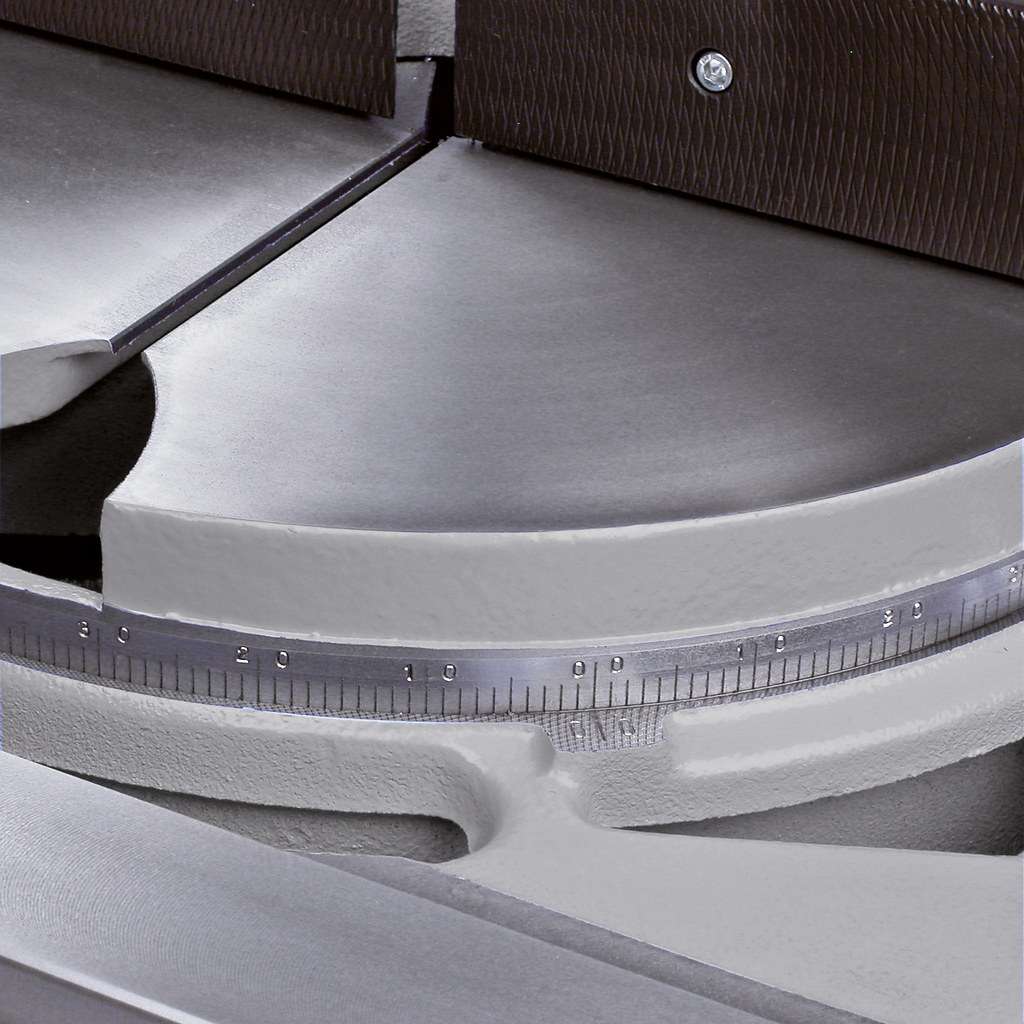

Rotating table on a center pin with axial bearing
which allows high precision on the angle set
Interlocked safety guards
Windows-based industrial PC with 7’’ LCD colour touch screen HMI mounted on articulated arm

Optional Features

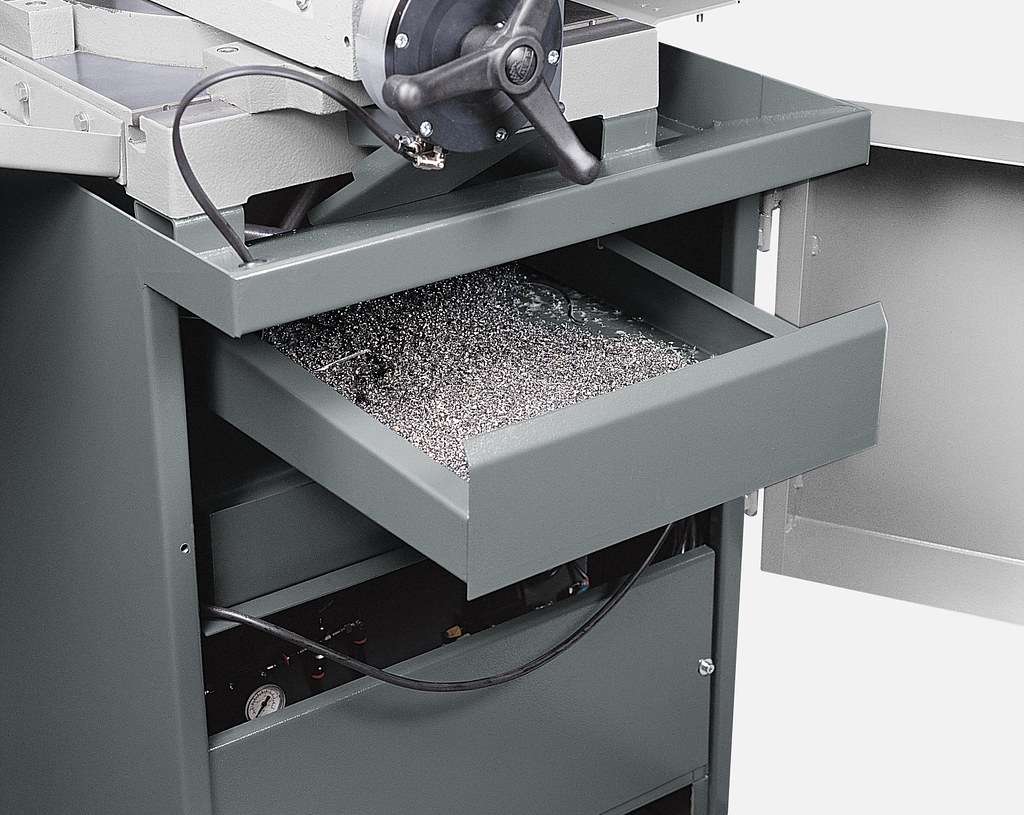

Swarf extraction

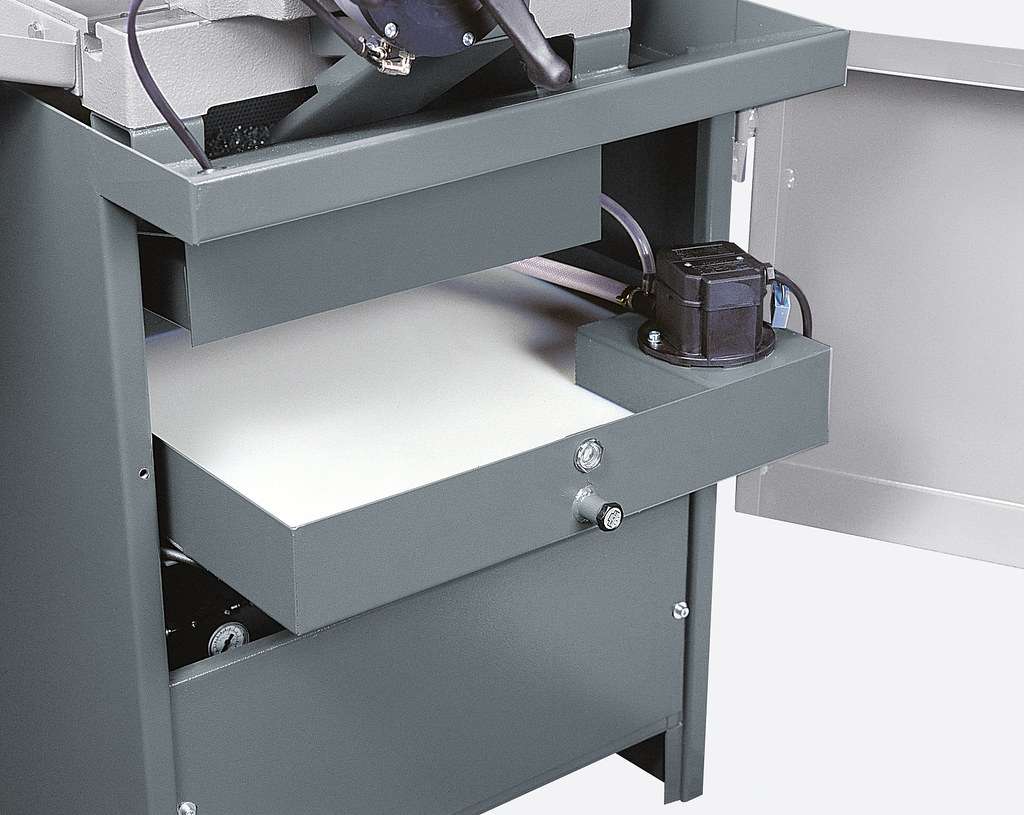

Mist spray lubrication
Roller tables

Get in touch +44 (0)1536 410999

Name

Company

Address

Post Code

Telephone

Message

protected by reCAPTCHA

PrivacyTerms

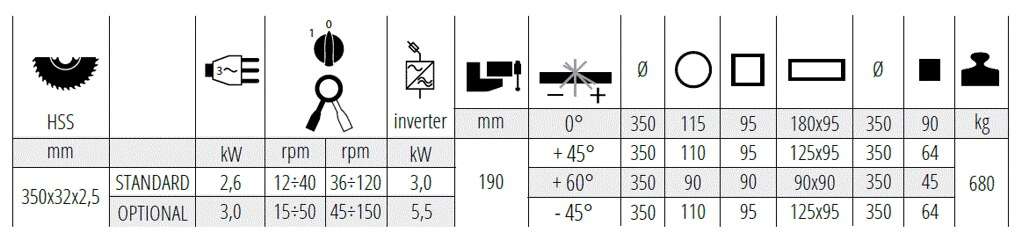

Machine Type	Circular
Dimensions	350mm × 32mm × 2.5mm

	90°	45° Left	45° Right	60° Left	60° Right
Round Section (mm)	115mm	110mm	110mm		90mm
Rectangular Section Horizontal (mm)	180x95mm	125x95mm	125x95mm
Square Section (mm)	95mm	95mm	95mm		90mm
