BOMAR AL600
Machine Subcategory
Semi-Automatic Circular Saw
Overview
Bomar AL600 Semi-Automatic Non Ferrous Upstroking Saw. Manual Mitre facility and 4 point clamping as standard.
Standard Specification
- Very heavy duty
- Vibration free cutting
- Large work table
- Precise variable control of the blade feed
- Blade rises from beneath saw bed and fully retracts at end of cut
- Mitre cutting by rotating the saw bed up to 60° left and right

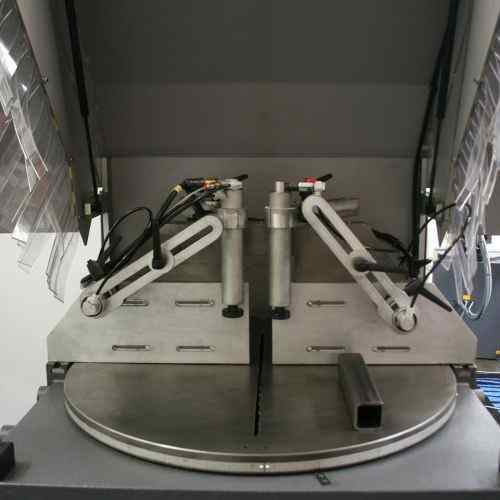

- 2 vertical & 2 horizontal pneumatic clamps securely hold irregular shaped material
- Adjustable back fence to give increased capacity
- Cutting height set by variable control
- Mist spray lubrication with adjustable level
- Noise reducing, interlocked safety hood safely encloses cutting area
- Input & output extensions guards mounted on the hood, inhibit access to the blade
- Large door at the front of the machine for easy blade change and cleaning
- Large, removable swarf tray
BOMAR AL600 Technical Specifications
| Manufacturer | BOMAR |
|---|---|
| Machine Type | Circular Saw |
| Operation Type | Semi-Automatic |
| Material Types | Aluminium, Non-Ferrous, PVC, Sections |
| Material | Section |
| Blade Size | 600mm × 30mm × 4.0mm |
| Blade Speed | 1,650 RPM (51 m/sec) |
| Table Height | 1070mm |
| Motor | 5.5kW |
| Weight | 620 |

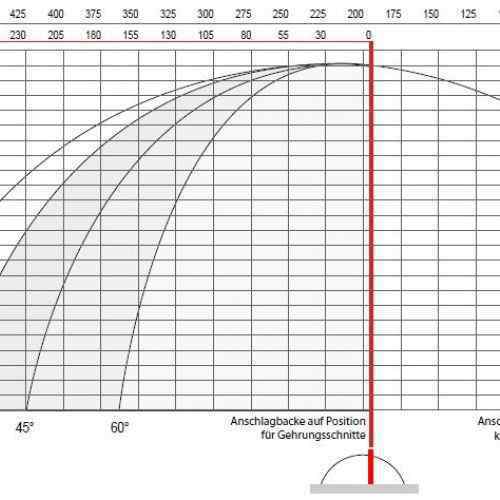

| 90° | 45° Left | 45° Right | 60° Left | 60° Right | |
| Round Section (mm) | 205mm | 180mm | 145mm | 145mm | |
| Rectangular Section Horizontal (mm) | 500x50mm | 215x50mm | 155x50mm | 155x50mm | |
| Rectangular Section Vertical (mm) | 125x455mm | 50x225mm | 40x225mm | 40x225mm | |
| Square Section (mm) | 175x175mm | 155x155mm | 125x125mm | 125x125mm |
