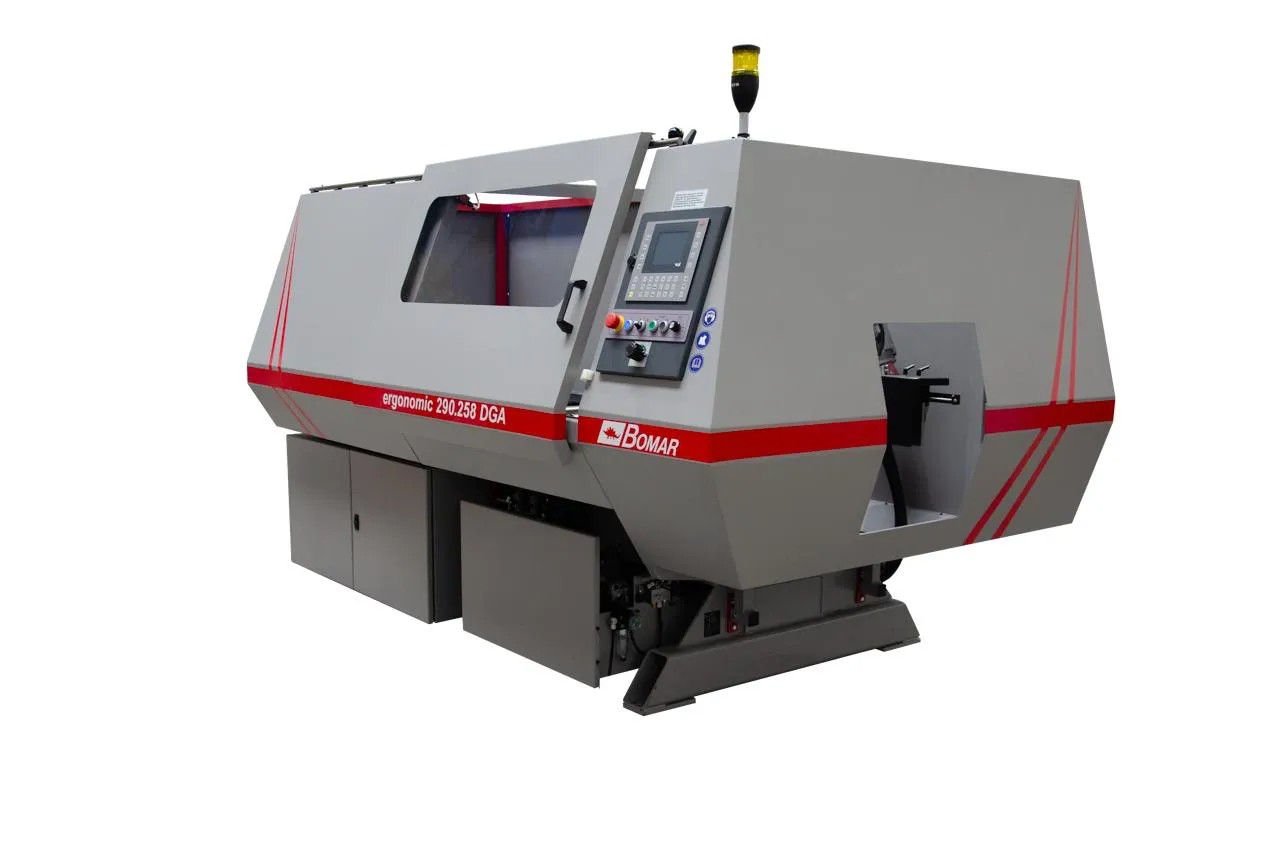

The Bomar Ergonomic 290.258DGANC is a fully enclosed, fully automatic mitre cutting band saw with hydraulic raise/lower of the saw arm, a hydraulic vice and motorized, linear guided material feed (max. 1500 mm per stroke). It offers a two-sided mitre range from −45° to +60° with automatic swivel positioning of the saw arm.

A frequency-converted, stepless drive is fitted, and material-height detection shortens cycle times via a rapid approach right up to the material.

It is designed for automated medium to high quantity cutting of steel sections with straight and mitre cuts.

• Robust, one piece, cast iron saw bow

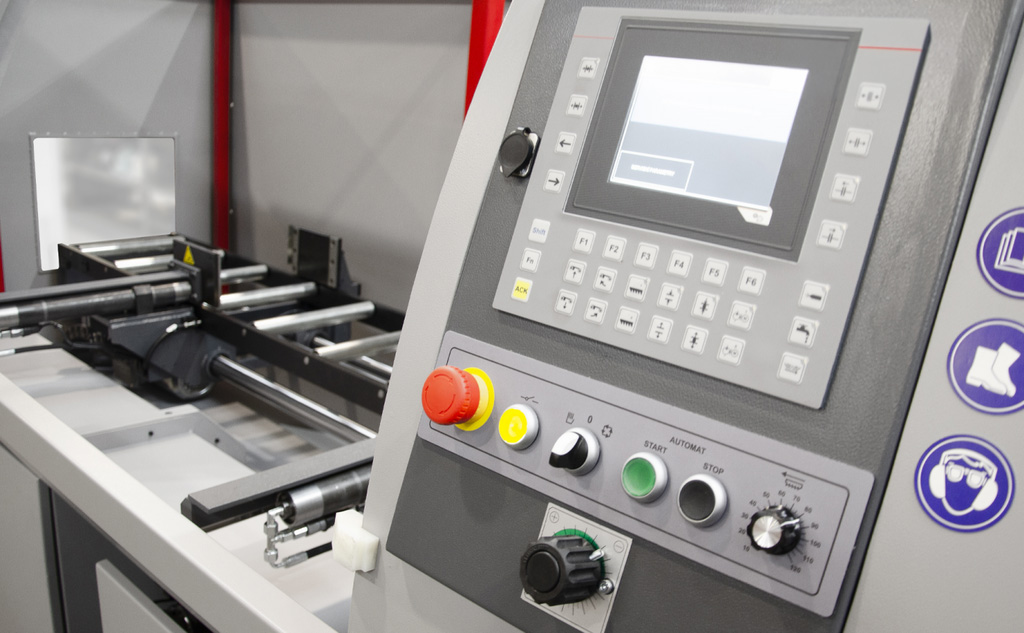

• NC Controls
• 99 lines for programming, fault diagnostics, machine status report
• Automatic rotation of mitre angle
• Positive hydraulic downfeed with automatic pressure sensing control

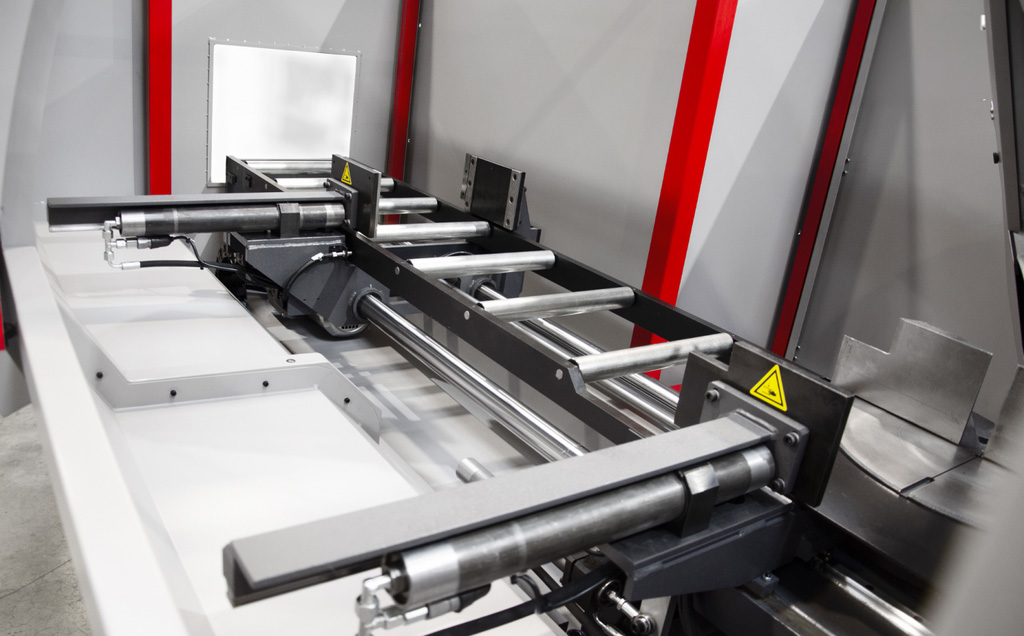

• 1500mm single pass vice feed length, multiple feed for longer lengths
• Fast approach ‘T Bar’ to reduce cycle times
• Tungsten Carbide pads and roller bearings for accurate cuts
• Swarf brush assembly for cleaning blade
• Heavy duty blade tensioning unit with indicator
• Heavy duty, 3 phase motor
• Recirculating coolant pump
• Moveable guide arm adjustable according to section size
• Heavy duty gear train
• Steplessly variable blade speed 20-120 m/min
