BOMAR Ergonomic 320.258GANC
Machine Subcategory
Automatic, Single Mitre, Horizontal Bandsaw
Overview
The Bomar Ergonomic 320.258GANC is an automatic mitre bandsaw with NC controls ideal for sections and small solid material. Simple robust controls on a large, clear display. Automatic regulation of the feed pressure into the cut adapts to the material shape, and band speed is steplessly adjustable from 20 to 120 m/min. The feeding length is 600 mm.
Fast cycle times and short remnants make this machine an ideal partner for series production.
Standard Specification
- Heavy duty one piece bow
- Simple robust controls
- Hydraulic down feed with automatic speed regulation

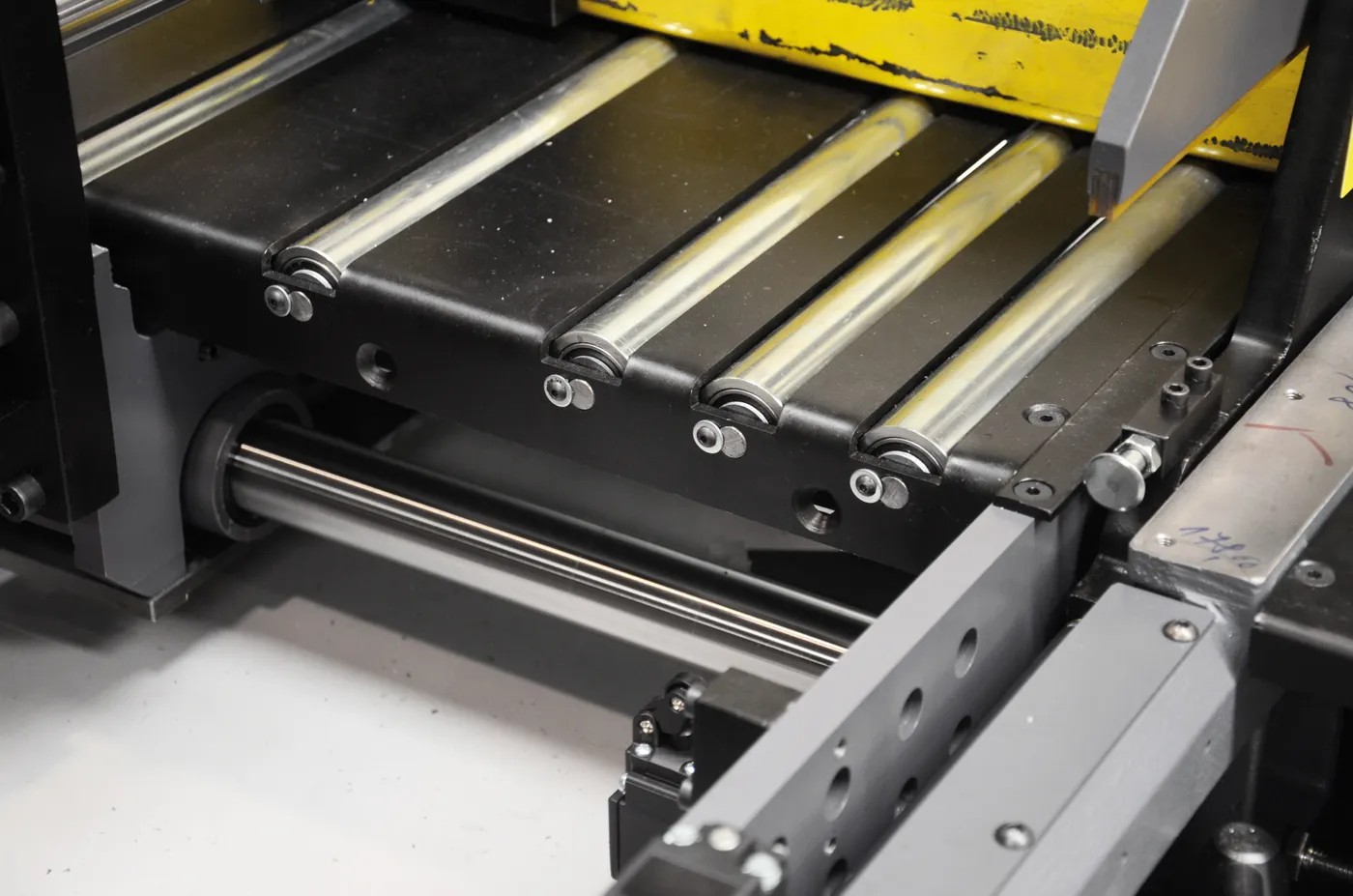

- Automatic multiple stroke vice feed with 600mm single pass length
- Ability to store up to 40 programs
- Heavy duty gearbox unit
- Blade speed range from 20 & 120 m/min
- Recirculating coolant pump

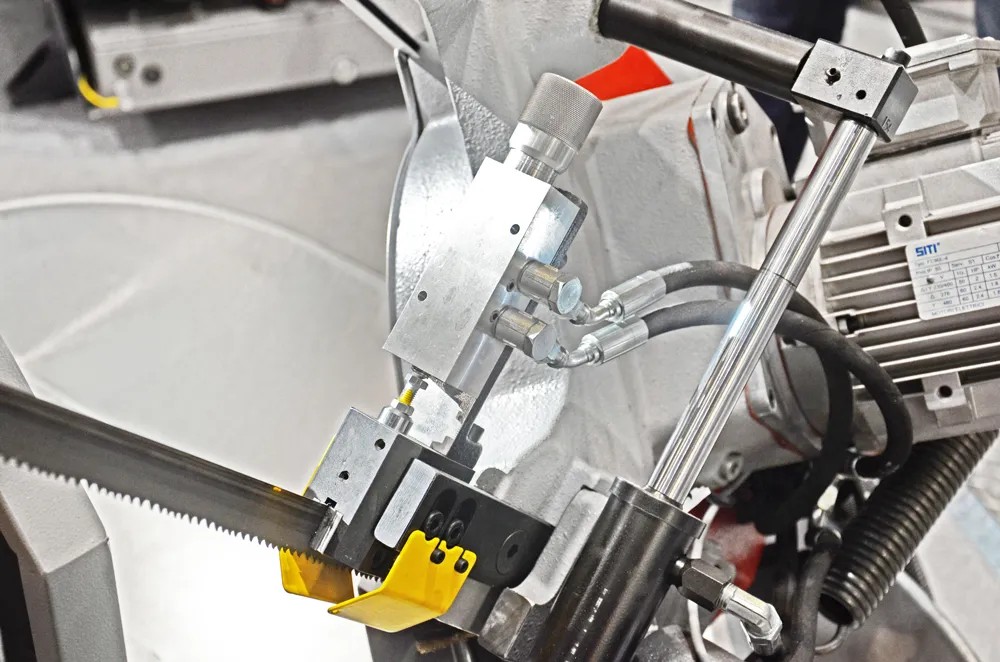

- Carbide blade guides
- Comprehensive safety specification, guarding interlock, low voltage controls

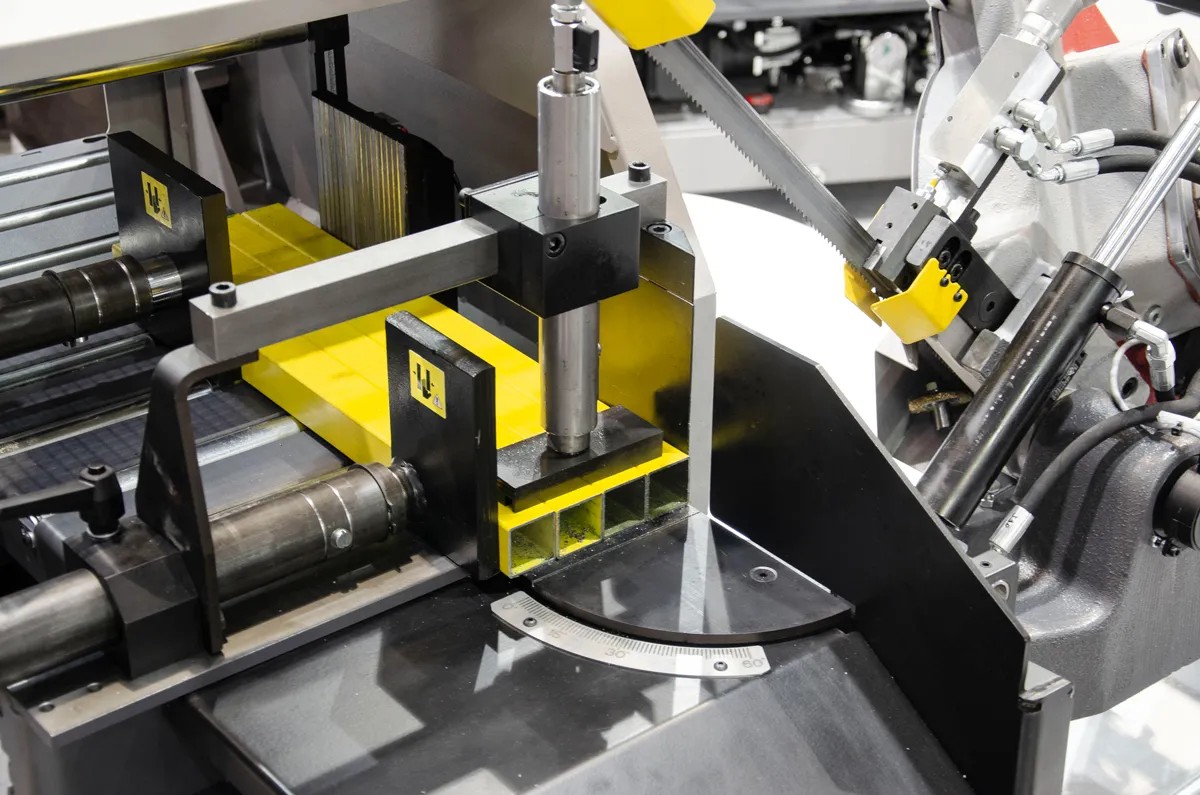

- Manual setting of mitre angle
Optional Features

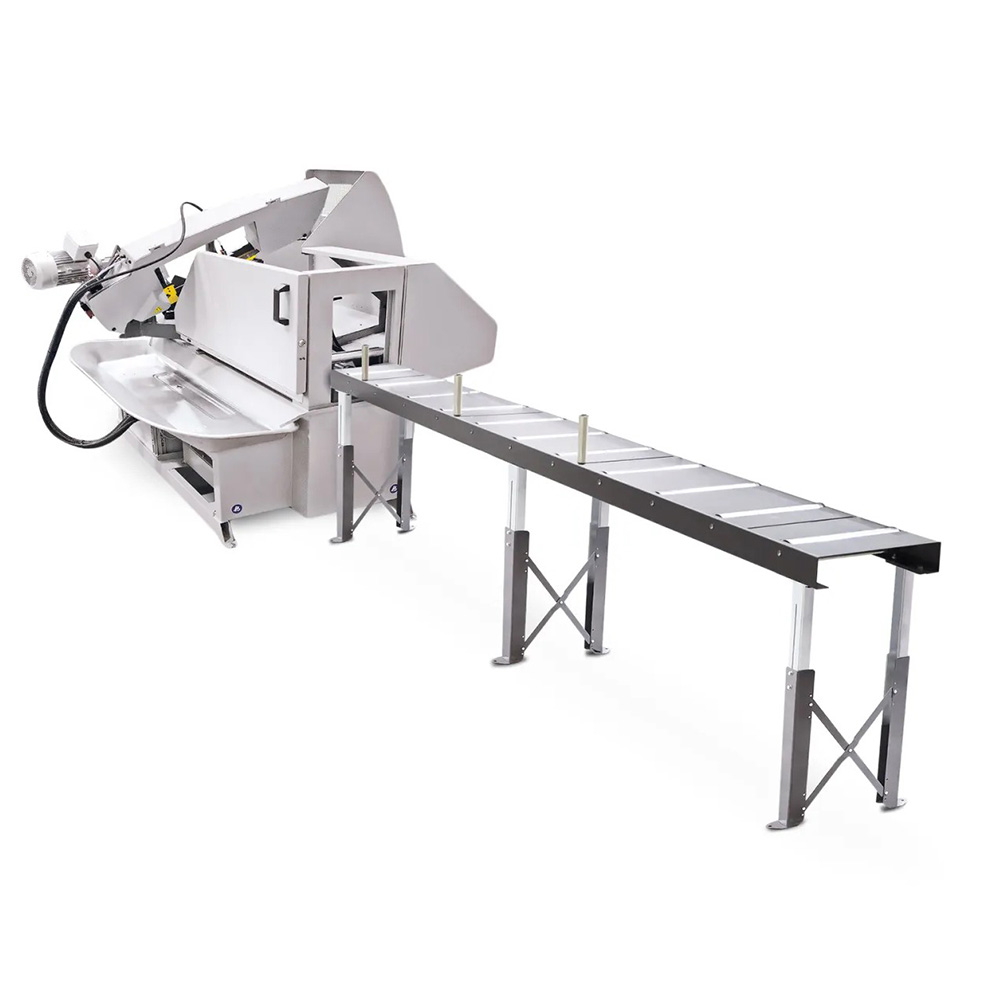

- M-Type Roller Conveyors
- Mist Spray Lubrication

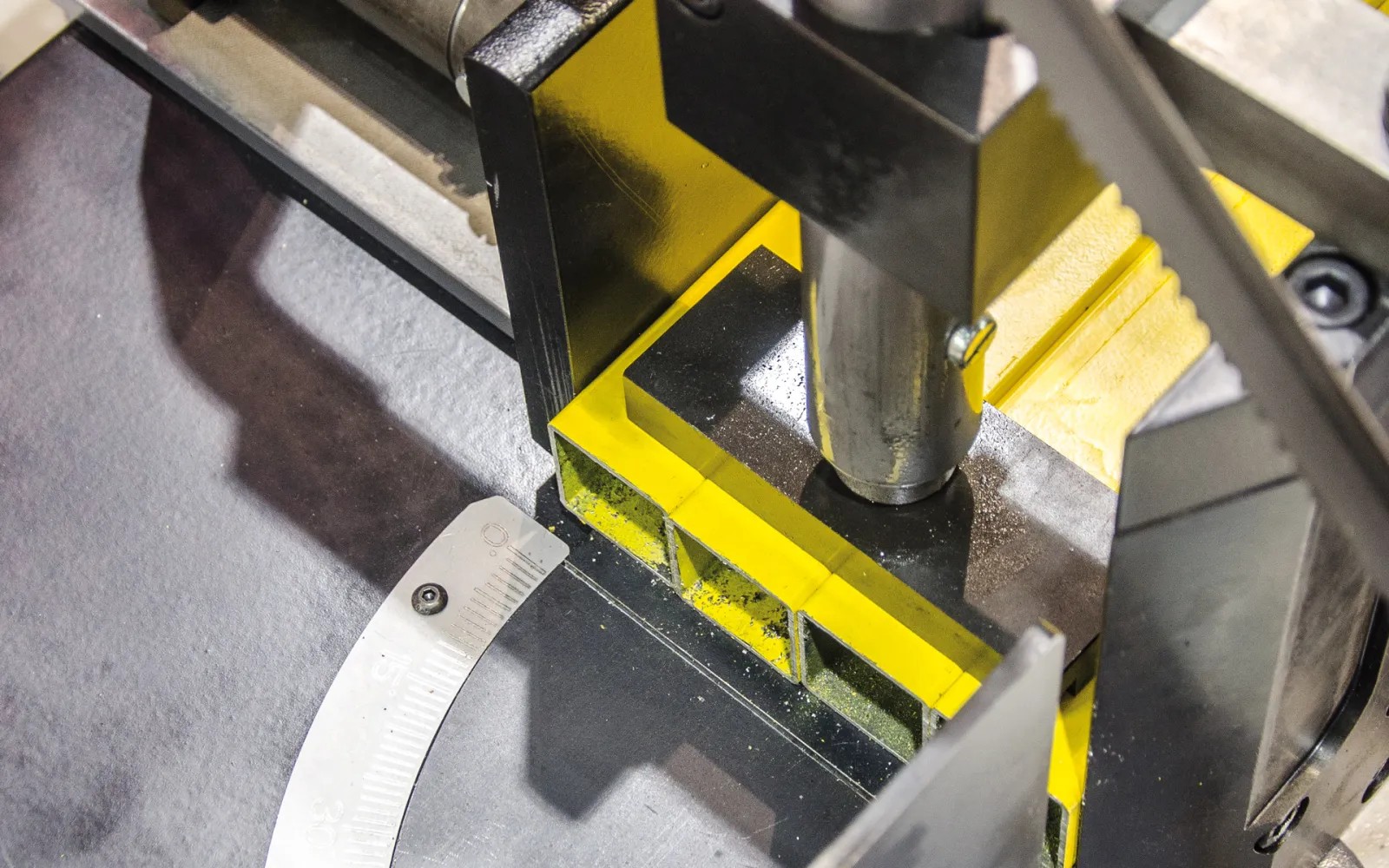

- Hydraulic Top Clamp
- Laser Line
BOMAR Ergonomic 320.258GANC Technical Specifications
| Manufacturer | BOMAR |
|---|---|
| Machine Type | Bandsaw |
| Operation Type | Automatic |
| Material Type | Sections |
| Material | Section |
| Blade Size | 2910mm × 27mm × 0.9mm |
| Blade Speed | Inverter controlled varaible speed 20 ~ 120 m/min |
| Motor | 1.5kW |
| Feeding Stroke | 600mm |
| Weight | 650 |
| Machine Dimensions | 2050mm × 2650mm × 1750mm |
| 90° | 45° Left | 45° Right | 60° Left | 60° Right | |
| Round Section (mm) | 258mm | 210mm | 135mm | ||
| Rectangular Section Horizontal (mm) | 320x100mm | 210x100mm | 135x100mm | ||
| Rectangular Section Vertical (mm) | 275x250mm | 185x245mm | 135x110mm | ||
| Square Section (mm) | 250mm | 195mm | 110mm |
* Pictures may show optional extras *
