BOMAR Proline 420.350H

Machine Subcategory

Semi-Automatic Horizontal Bandsaw

Overview

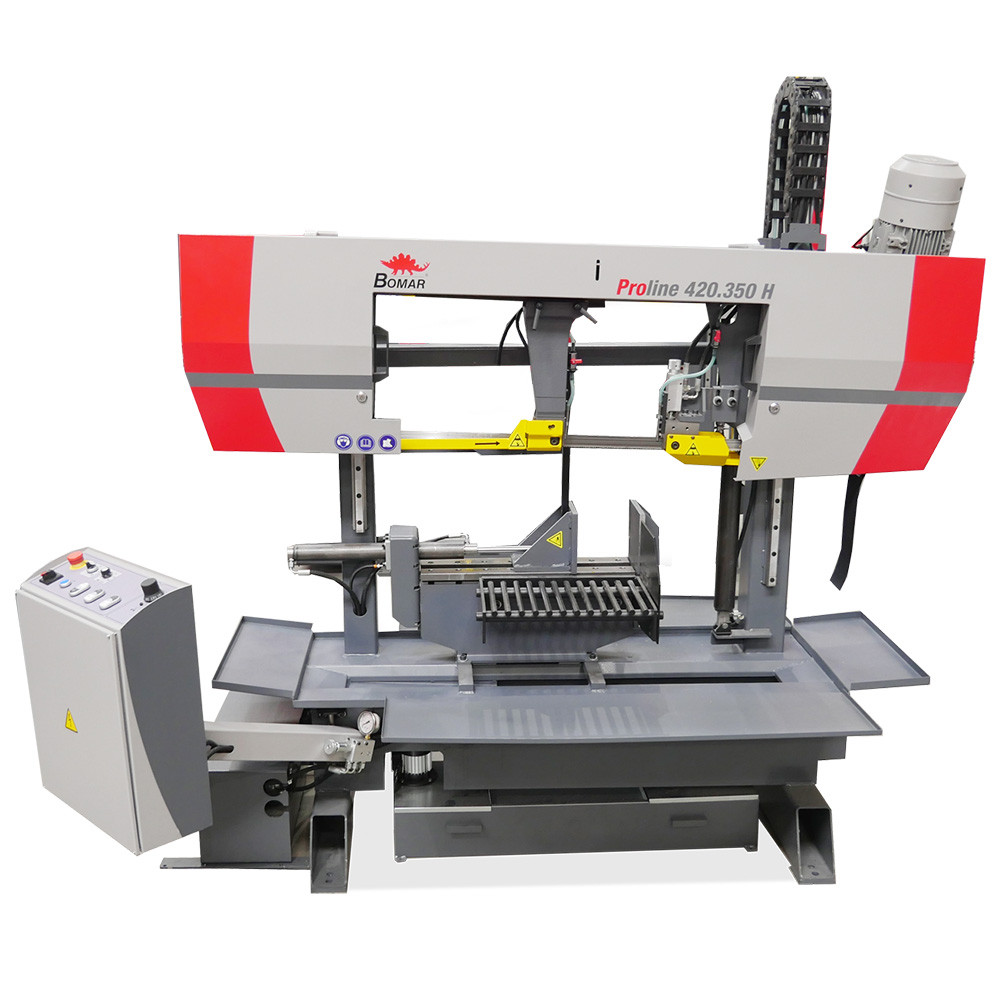

The BOMAR Proline 420.350H is a semi-automatic twin-column band saw for straight (90°) cuts. The saw arm runs on two robust columns and is mounted play-free on one side in a pre-tensioned linear guide.

The rigid arm and a 2° band tilt reduce cutting times and extend band life.

Material clamping is via a split full-stroke vice, material feed is manual, and band speed is steplessly adjustable from 20 to 120 m/min with automatic feed-pressure regulation.

Standard Specification

Powerful 3 kW drive motor
Twin Column Design

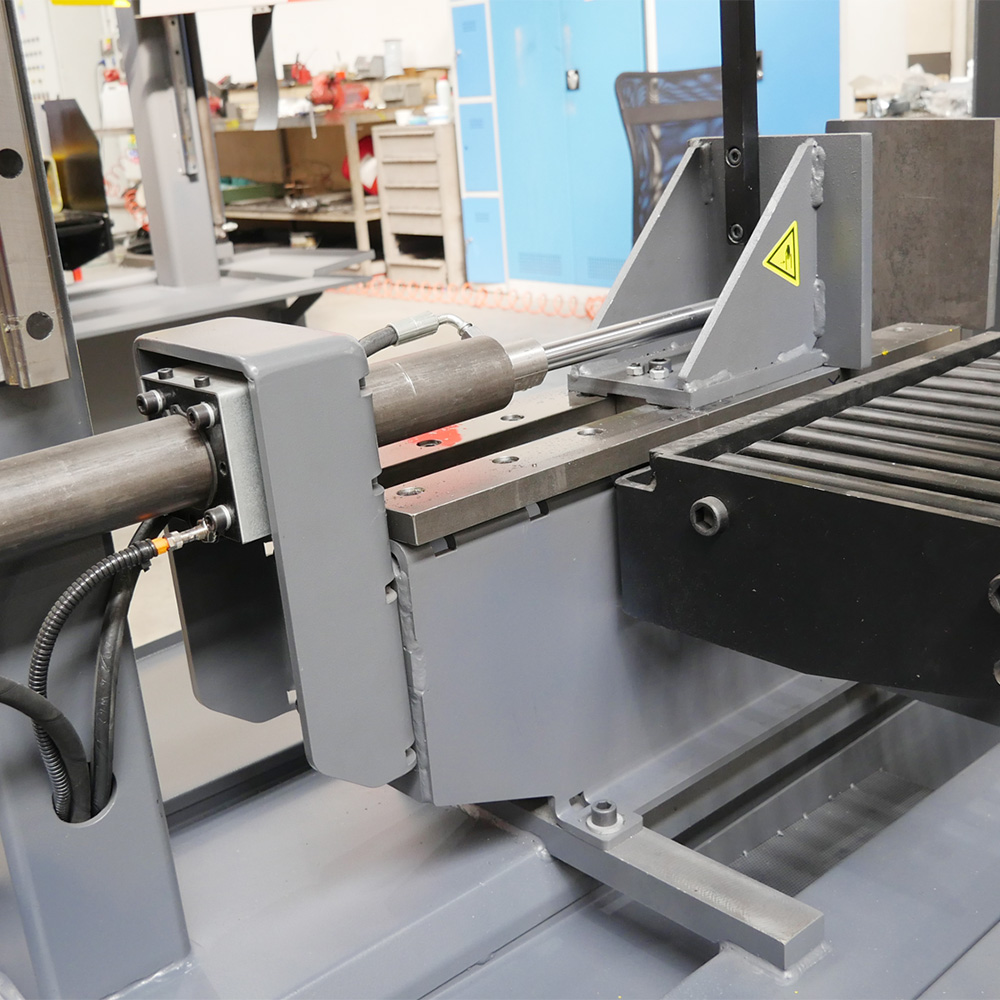

Long stroke hydraulic split vice
Powered bow raise
Control box mounted on pedestal
Simple, robust push button controls
Variable blade speed 20 - 120 m/min
34 mm blade width
Bed Height – 780 mm

BOMAR Proline 420.350H Technical Specifications

Manufacturer	BOMAR
Machine Type	Bandsaw
Operation Type	Semi-Automatic
Material Types	Aluminium, Ferrous, Non-Ferrous
Material	Section
Blade Size	47780 x 34 x 1.1
Blade Speed	20 - 120 m/min
Table Height	780 mm
Motor	3.0 kW
Machine Dimensions	2325 x 1197 x 1997

	90°	45° Left	45° Right	60° Left	60° Right
Round Section (mm)	350
Rectangular Section Horizontal (mm)	420 x 350
Rectangular Section Vertical (mm)
Square Section (mm)	350 x 350
