BOMAR Workline 410.280DG
Machine Subcategory

Manual Horizontal Bandsaw

Overview

The Bomar Workline 410.280DG is a manual mitre bandsaw ideal for the general fabricator or production of steel structures. Mitre cutting in both directions to 60° with a large easy-to-read angular scale. This machine also has a digital readout of the mitre angle and variable blade speed to cope with a wide variety of cutting applications. There is also an innovative clamping device with the Quick-Release-System.

Standard Specification
  • 2 way mitre – 60° right, 60° left

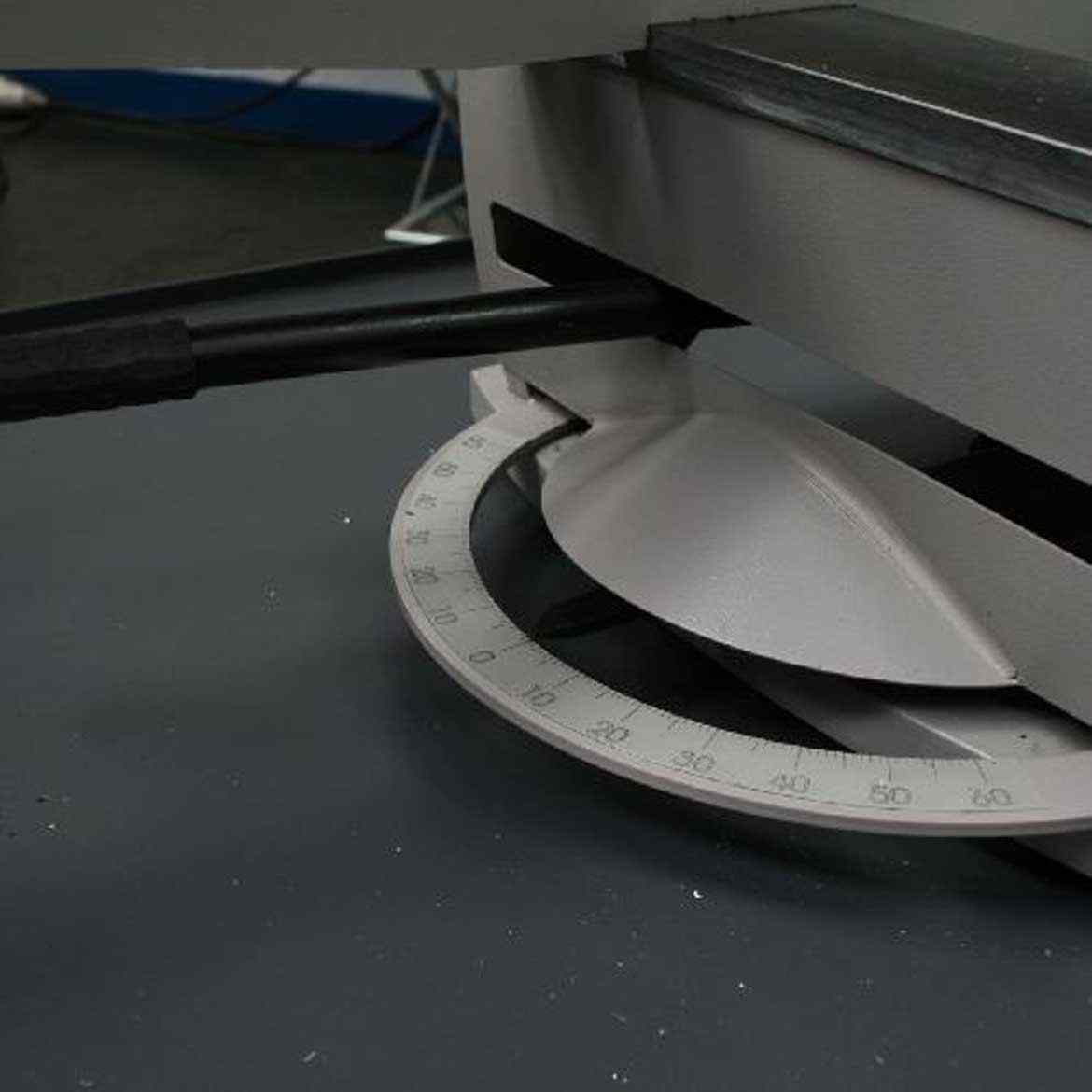

  • Easy to read mitre scale

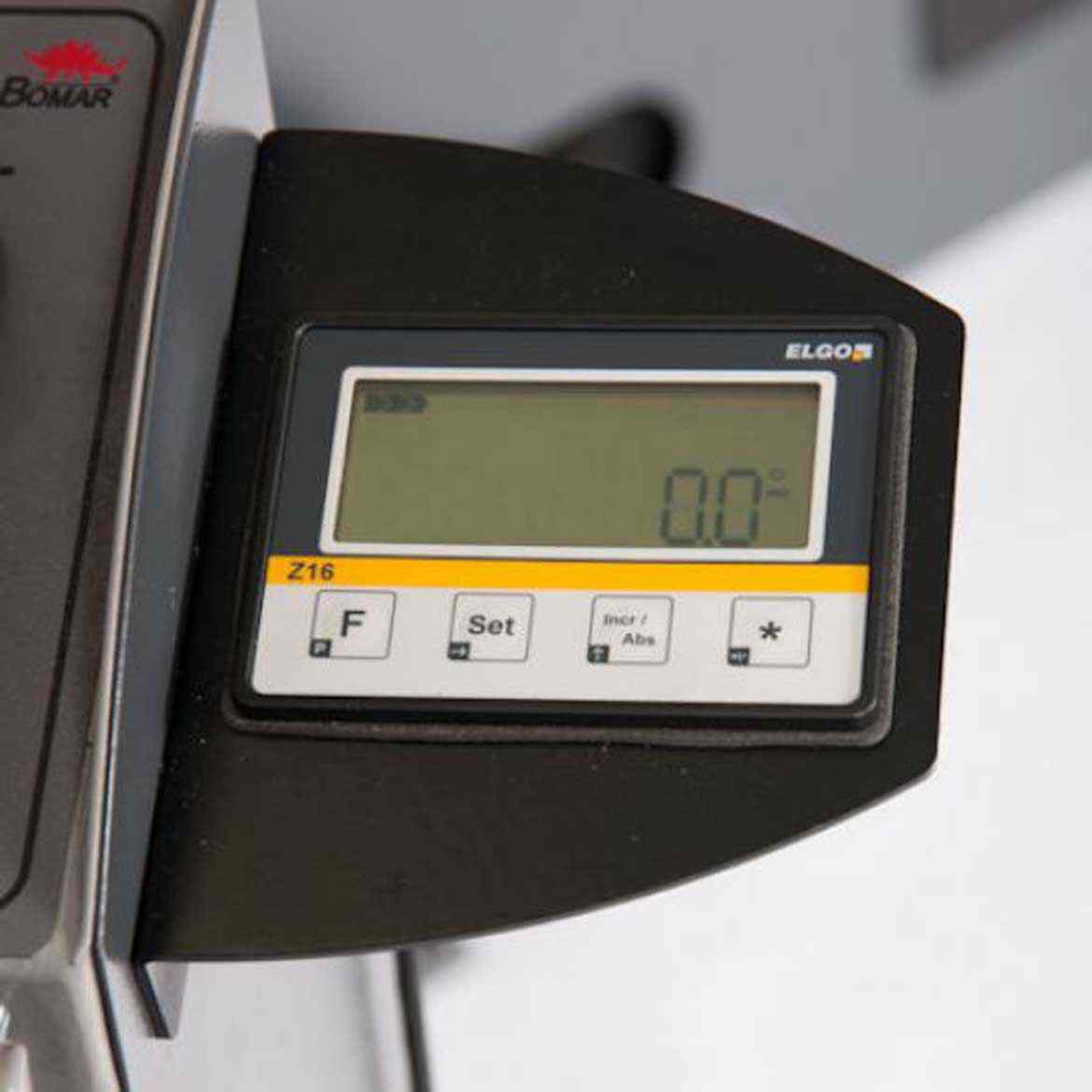

  • DRO for mitre angle
  • Precision hydraulic down feed control
  • Pivoting control panel
  • Simple, robust push button controls
  • Variable blade speed 20 to 120 m/min

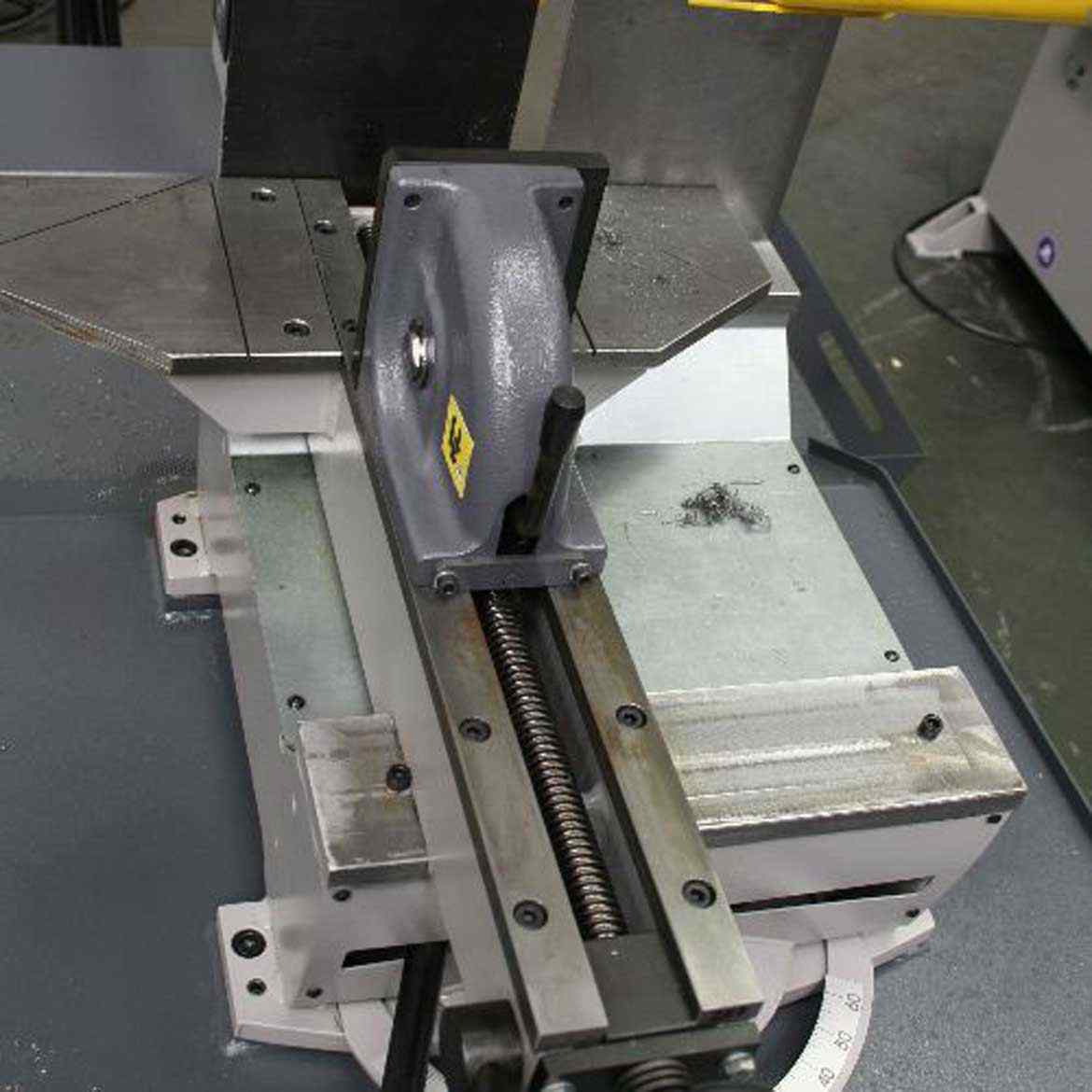

  • Quick release vice mechanism
  • Dovetail sliding vice for bow rotation
  • Blade width 27mm
  • Bed height: 756mm
Get in touch +44 (0)1536 410999
BOMAR Workline 410.280DG Technical Specifications
Manufacturer Bomar
Machine Type Manual Horizontal Bandsaw
Blade Size 3800mm × 27mm × 0.9mm
Blade Speed Inverter controlled varaible speed 20 ~ 120 m/min
Table Height 756mm
Motor 1.5kW
SKU: 63 Category:
