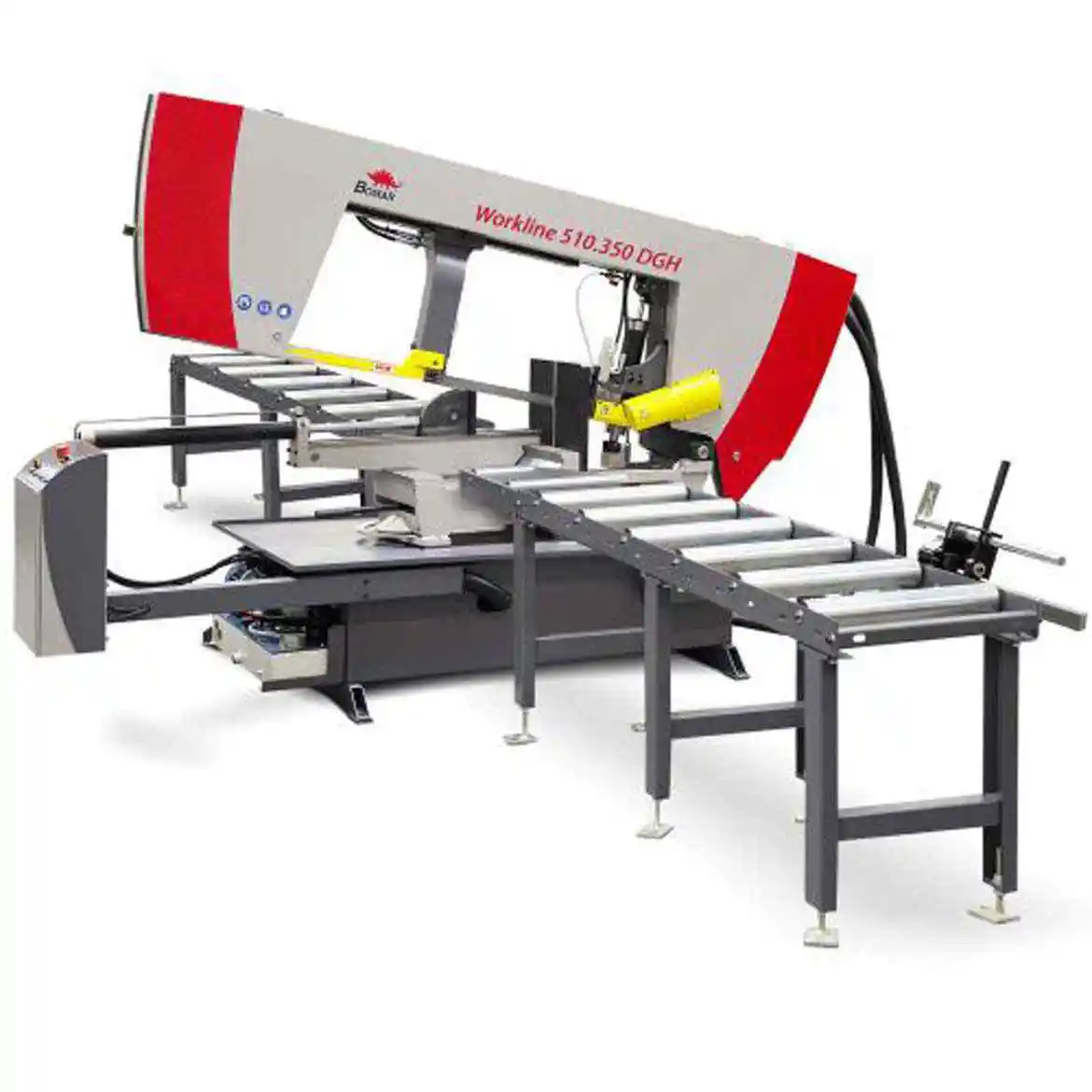

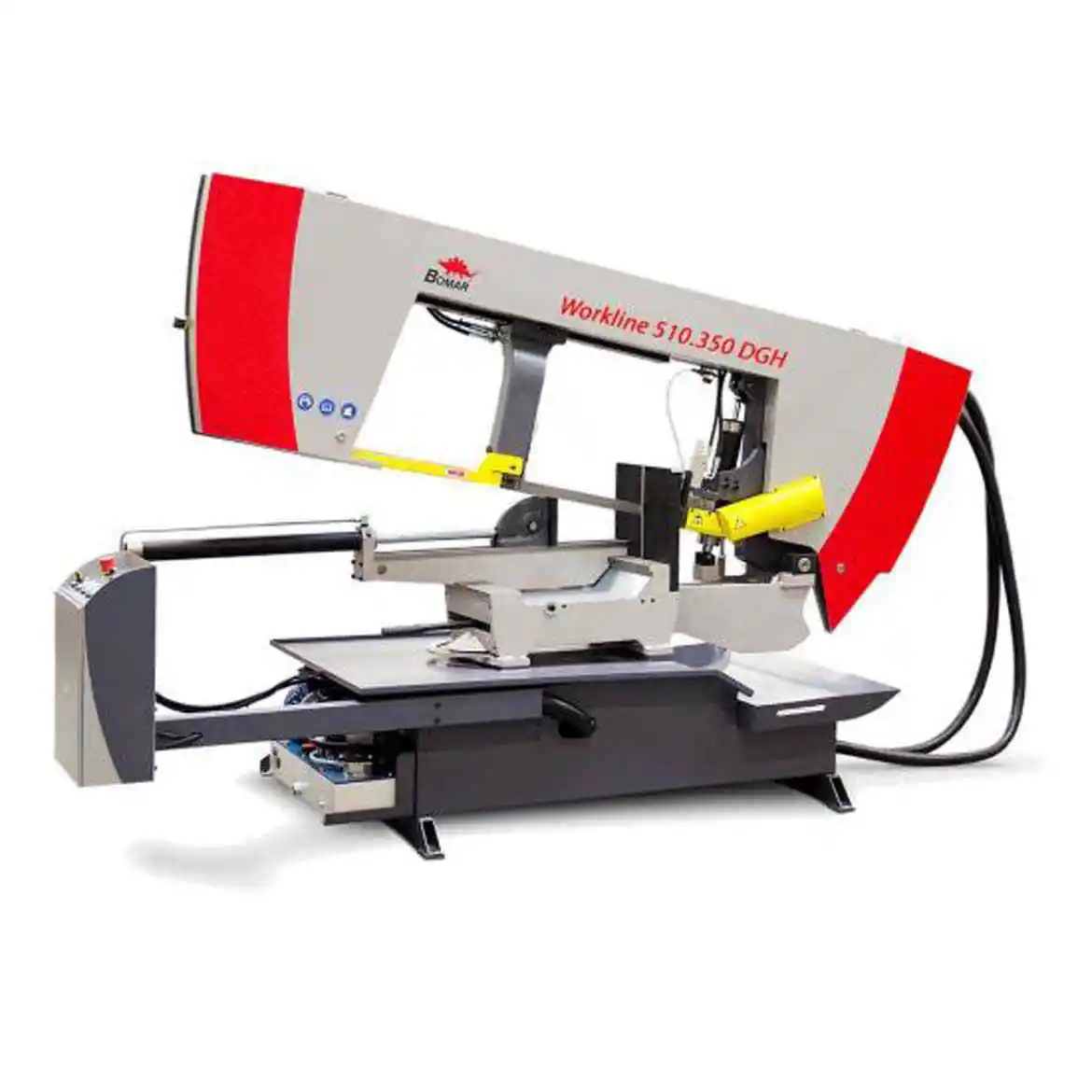

BOMAR Workline 510.350DGH

Machine Subcategory

Semi-Automatic Horizontal Bandsaw

Overview

The Bomar Workline 510.350DGH is a semi-automatic mitre bandsaw ideal for the general fabricator or production of steel structures. Mitre cutting in both directions to 60° with a large easy-to-read angular scale. This machine also has a digital readout of the mitre angle, an adjustable hydraulic pressure regulation downfeed valve and variable blade speed to cope with a wide variety of cutting applications.

Standard Specification

2 way easy mitre cutting – 60° right, 60° left
Easy to read mitre scale
DRO for mitre angle
Full stroke hydraulic vice
Powered bow raise
Adjustable back off valve for optimising downfeed speed relative to material mass
Control box mounted on swinging arm
Simple, robust push button controls
Variable blade speed 20 to 120m/min
Dovetail sliding vice for mitre cutting
34mm blade width
Bed height: 761mm

Optional Features

Laser line
Mist spray lubrication
Vice pressure reduction
X550 Heavy duty roller conveyors
XRA Measuring
Mitre infill sections L & R

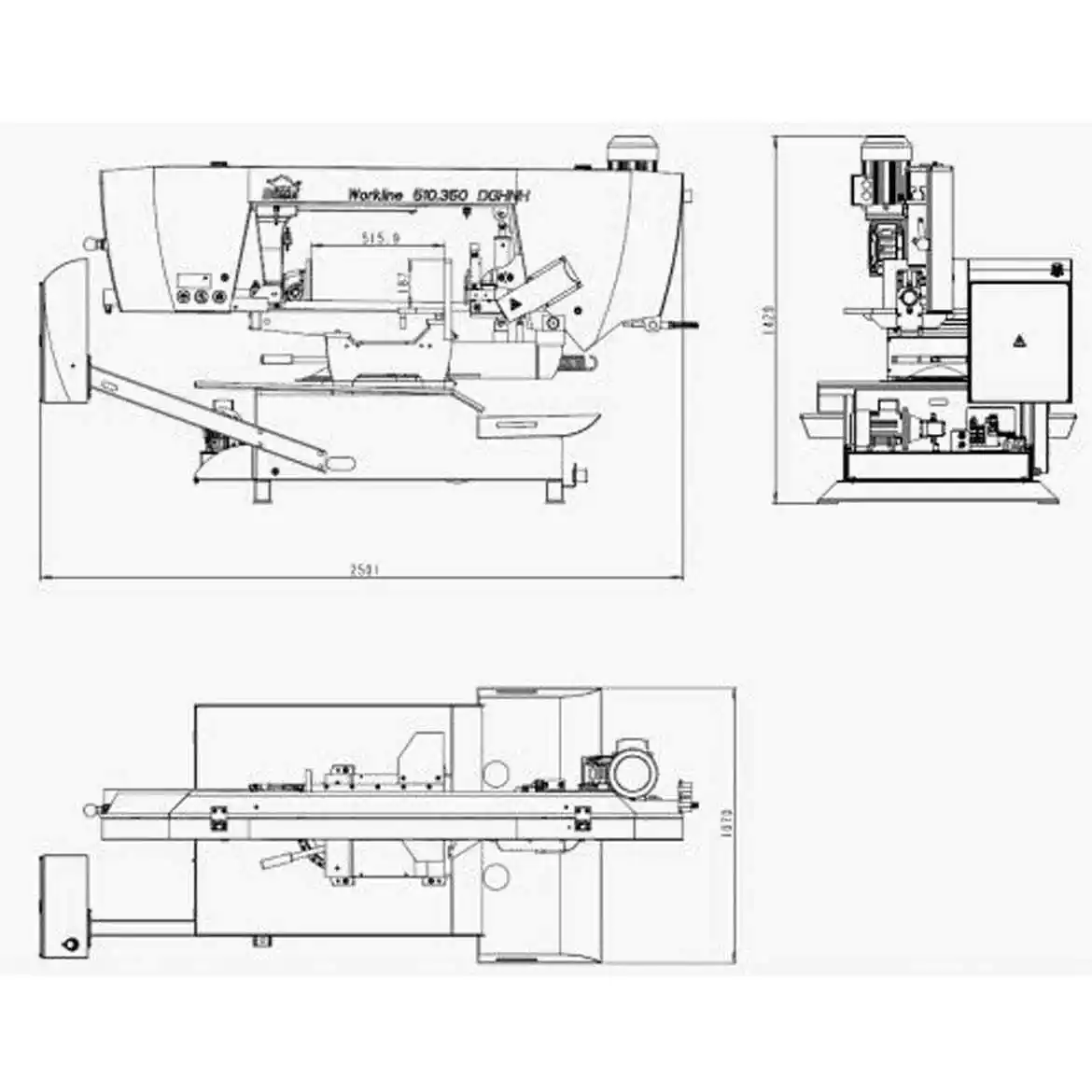

BOMAR Workline 510.350DGH Technical Specifications

Manufacturer	BOMAR
Machine Type	Bandsaw
Operation Type	Semi-Automatic
Material Type	Sections
Material	Section
Blade Size	4780 × 34 × 1.1 mm
Blade Speed	Inverter controlled varaible speed 20 ~ 120 m/min
Table Height	761 mm
Motor	3.0 kW

	90°	45° Left	45° Right	60° Left	60° Right
Round Section (mm)	350	350	350	270	250
Rectangular Section Horizontal (mm)	510 x 350	415 x 100	400 x 100	280 x 100	260 x 100
Rectangular Section Vertical (mm)	510 x 350	360 x 350	340 x 350	220 x 350	220 x 350
Square Section (mm)	350	350	340	260	240
Capacity Solid 90 Round	250 mm
Capacity Solid 90 Square	250 mm
