BOMAR Workline 610.450DGH

Machine Subcategory

Semi-Automatic Horizontal Bandsaw

Overview

The Bomar Workline 610.450DGH is a semi-automatic mitre bandsaw ideal for the general fabricator or production of steel structures. Mitre cutting in both directions to 60° with a large easy-to-read angular scale. This machine also has a digital readout of the mitre angle, an adjustable hydraulic pressure regulation downfeed valve and variable blade speed to cope with a wide variety of cutting applications.

Standard Specification

2 way easy mitre cutting – 60° right, 60° left
Easy to read mitre scale
DRO for mitre angle
Full stroke hydraulic vice
Powered bow raise
Adjustable back off valve for optimising downfeed speed relative to material mass

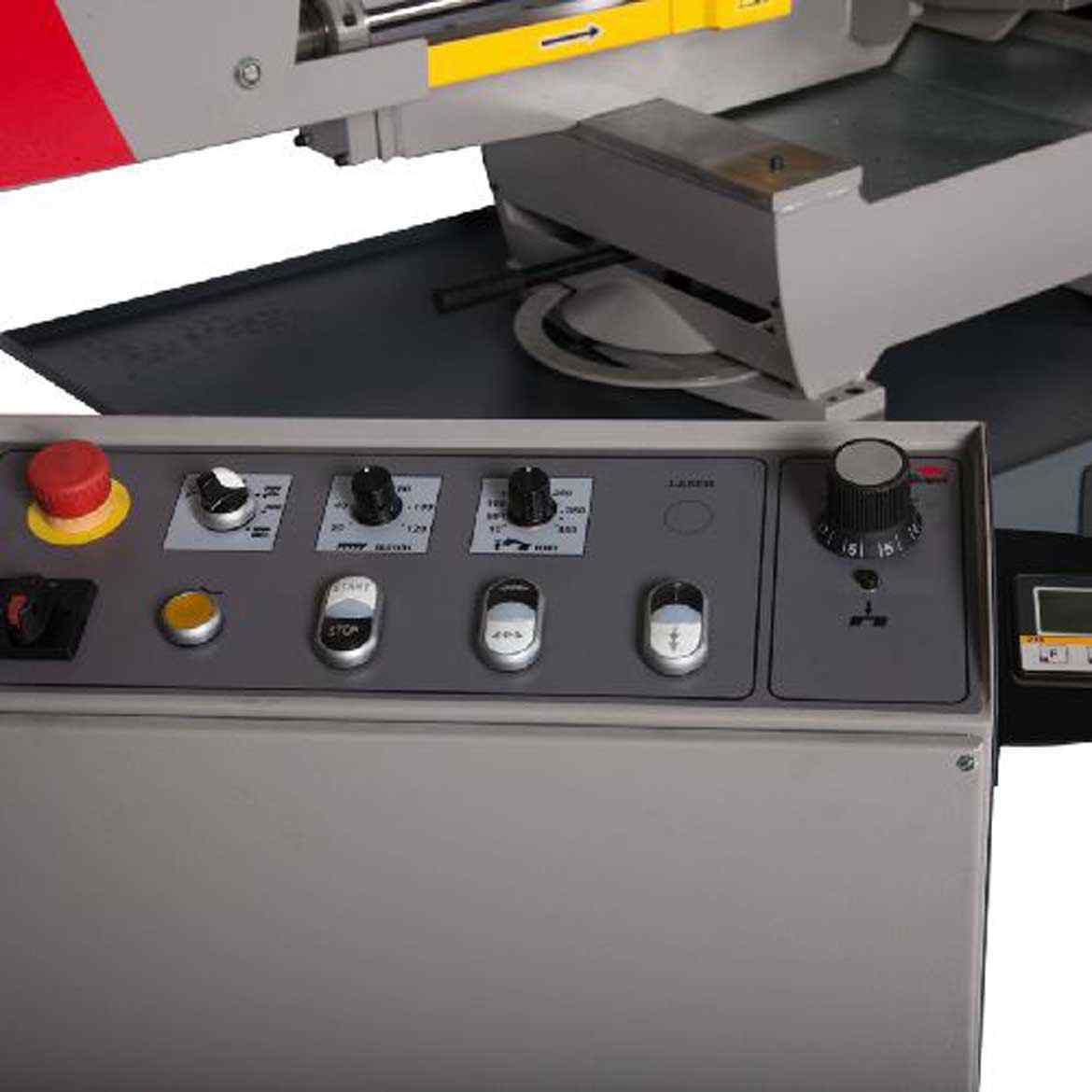

Control box mounted on swinging arm

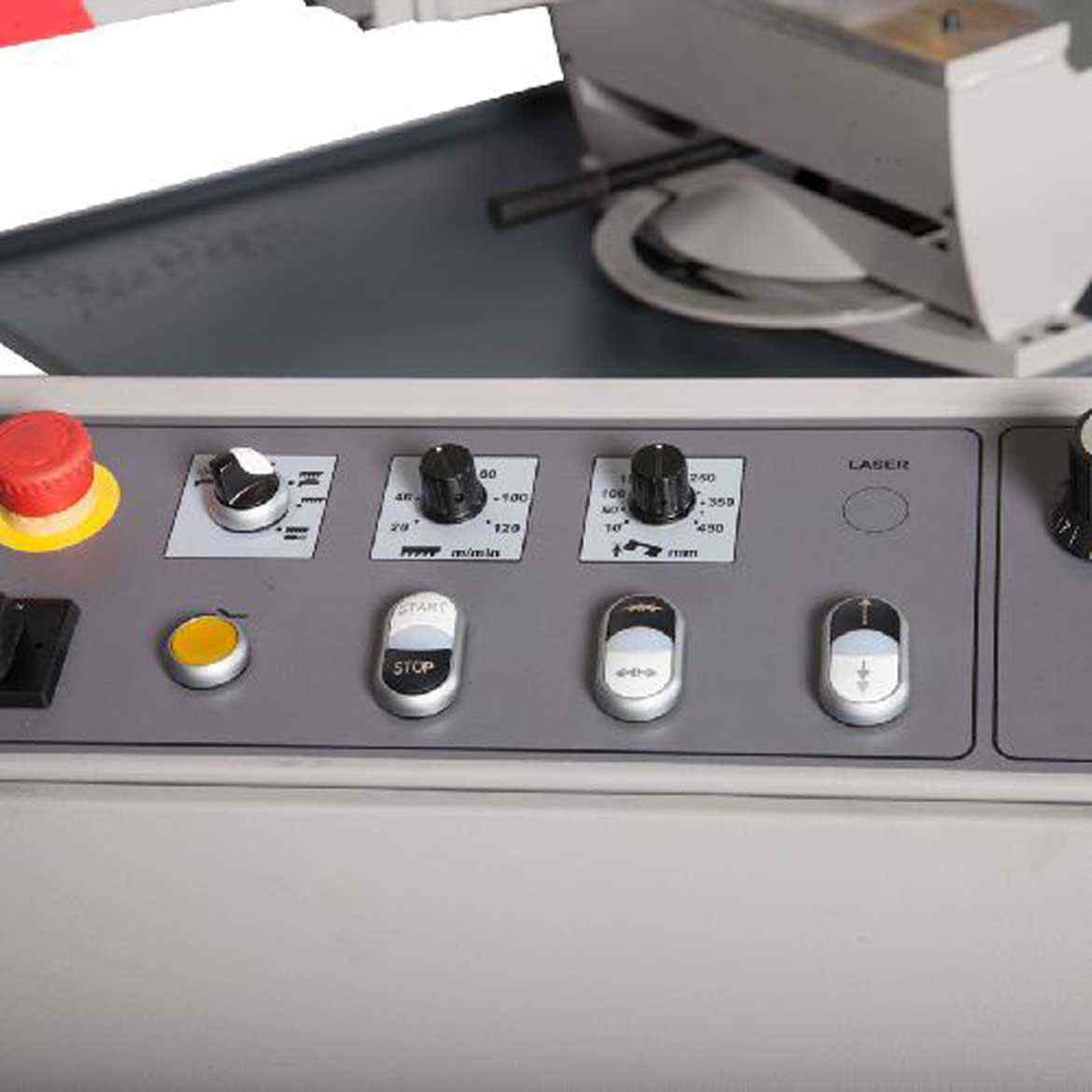

Simple, robust push button controls
Variable blade speed 20 to 120 m/min
Dovetail sliding vice for mitre cutting
34mm blade width
Bed height: 781 mm

Optional Features

Laser line
Mist spray lubrication
Vice pressure reduction
X650 Heavy duty roller conveyors
XRA Measuring
Mitre infill sections L & R

BOMAR Workline 610.450DGH Technical Specifications

Manufacturer	BOMAR
Machine Type	Bandsaw
Operation Type	Semi-Automatic
Material Type	Sections
Material	Section
Blade Size	5200 × 34 × 1.1 mm
Blade Speed	Inverter controlled varaible speed 20 ~ 120 m/min
Power Input	3.6 kW (Total connected load)
Table Height	781 mm
Motor	3 kW

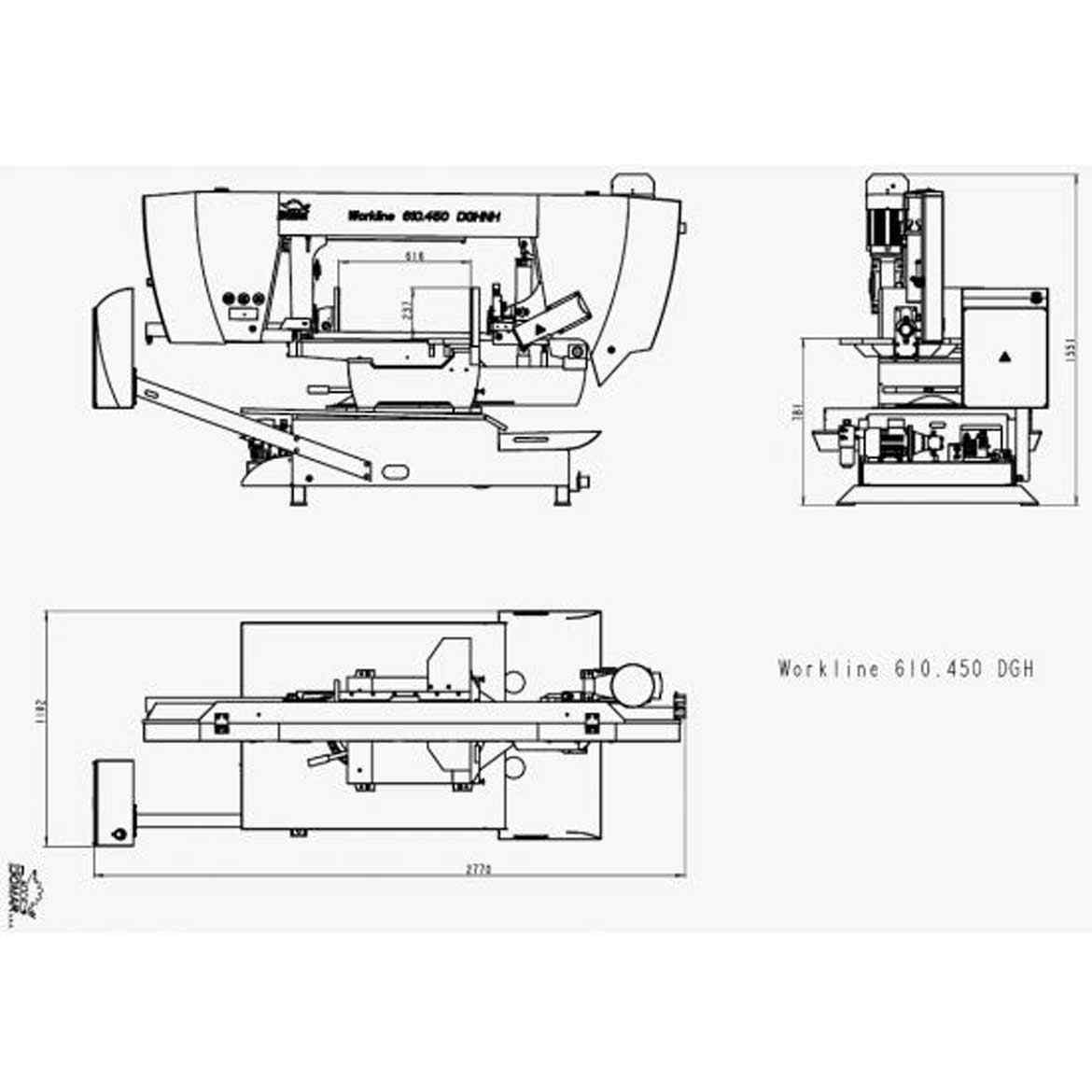

Machine Dimensions	2770 × 1100 × 1480 mm

	90°	45° Left	45° Right	60° Left	60° Right
Round Section (mm)	450	450	450	340	310
Rectangular Section Horizontal (mm)	610x450	500x100	480x100	350x100	320x100
Rectangular Section Vertical (mm)	610x450	380x450	410x450	220x450	260x450
Square Section (mm)	450	420	420	320	300
Capacity Solid 90 Round	250
Capacity Solid 90 Square	250
