The GEKA Alfa 500 is a CNC-controlled, automated line for punching, marking and shearing flat bar. This machine is versatile and functional for any job involving a large amount of flat bars, especially for construction industry base plates and end plates.

Flat bars up to 12 metres in length are positioned and secured by means of an automated carriage unit employing pneumatic rollers. This line is equipped with a triple-head punching unit for diameters up to 40mm and a shearing station for over-sized material up to 500mm in width, with a thickness up to 20mm.

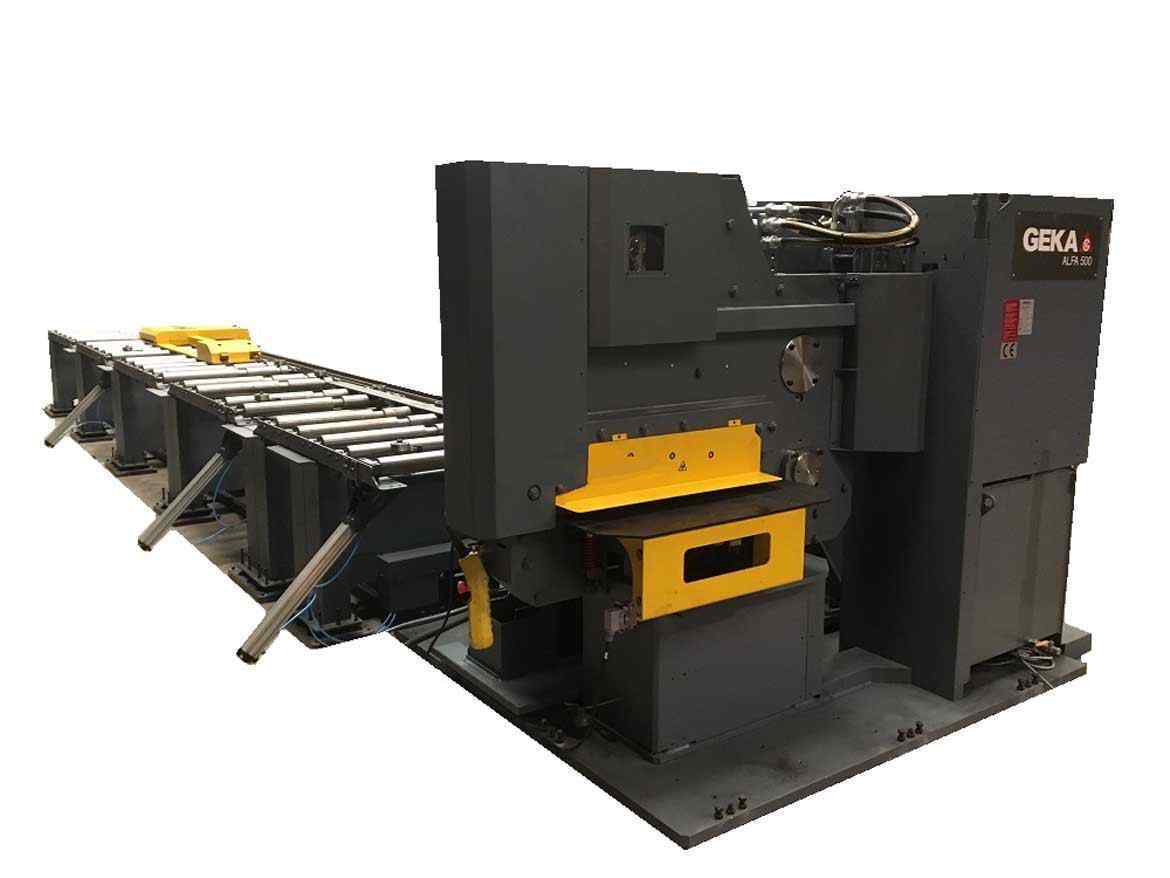

INPUT CONVEYOR UNIT
Rack & pinion servo drive carriage
Flat bars are pushed and clamped by the carriage
Pneumatic clamping guides
Side rollers

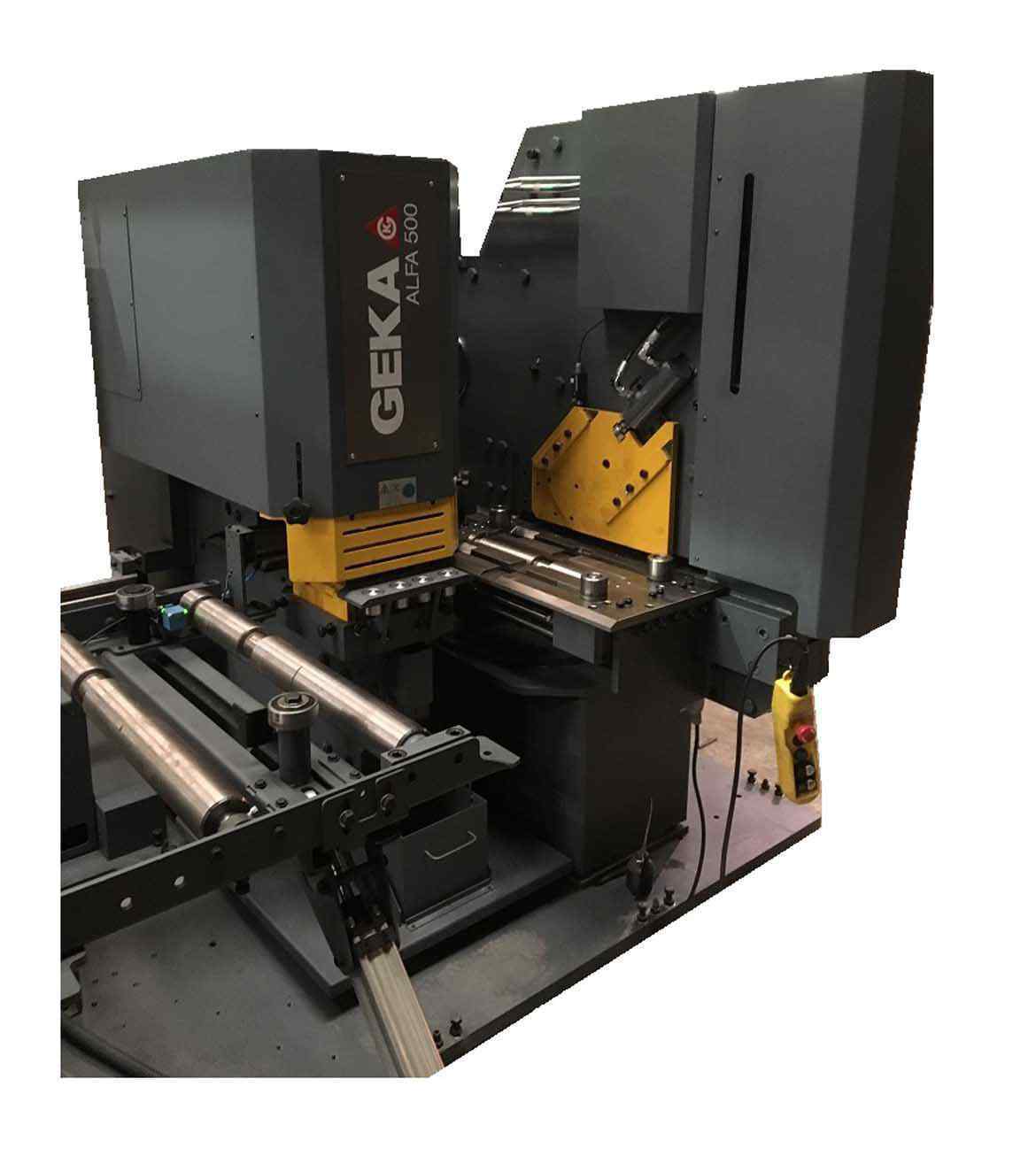

PUNCHING UNIT
Accommodates three different, independently selectable punches
Diameter up to 40mm
Hydraulic hold down
Servo motor and spindle-driven horizontal positioning along Y-Axis

SHEARING UNIT
Flat bar single cut
Hydraulic hold down and clamping guides

USER-INTERFACE
PC on Windows platform
Network Connectivity
USB ports
Graphic interfaces
Remote Assistance via internet
