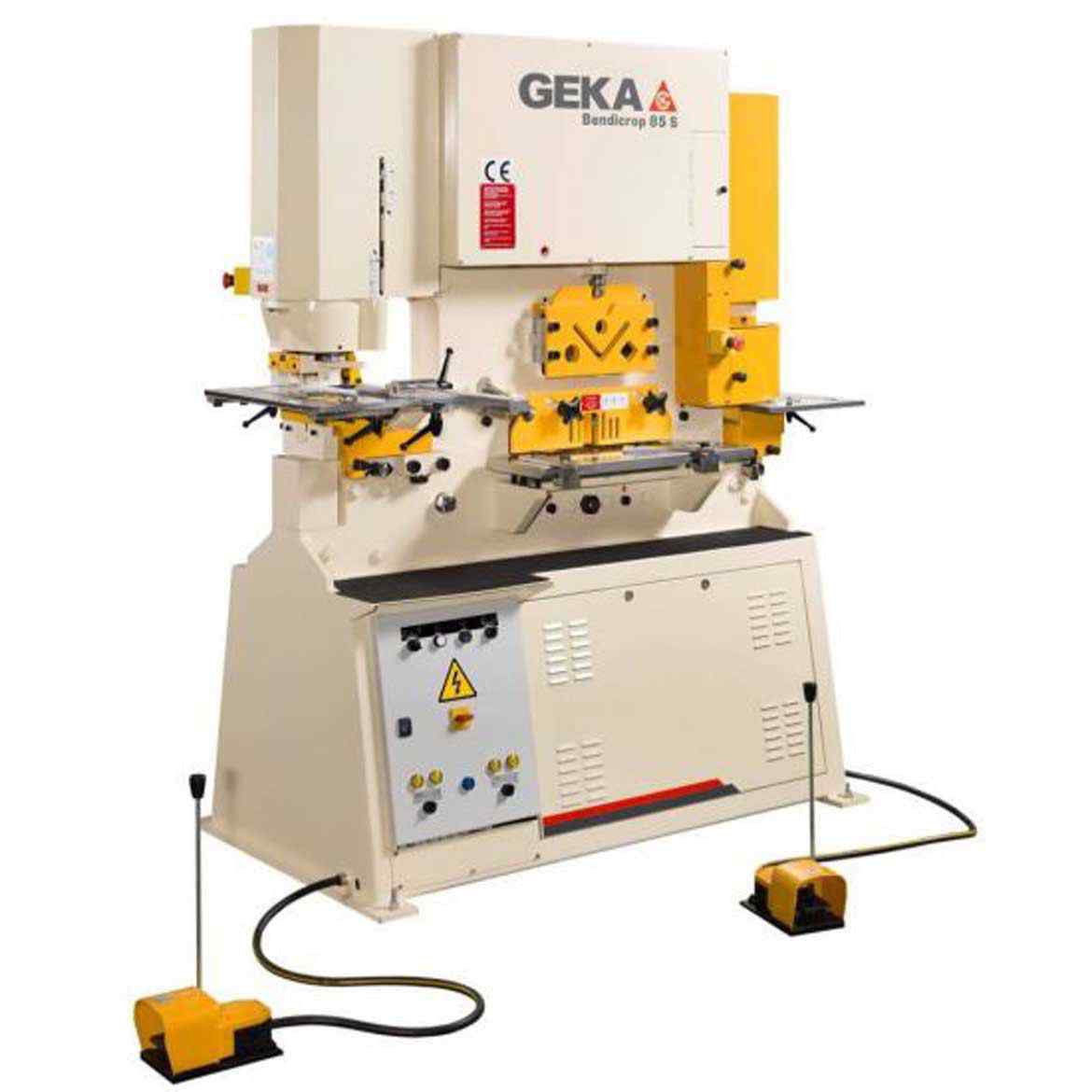

Exclusive and UNIQUE from Geka, the GEKA Bendicrop 85S is a twin cylinder 85 tonne steelworker with 6 workstations. This hydraulic ironworker machine is fitted with a bending station and a system to avoid distortions when cutting plates.

Thanks to the blade holder's vertical movement, the machine has an excellent performance in all its SIX work stations:

Punching
Vee Notching
Shear for flat bars
Angle cutting
Cutting of round and square bars

+ Bending as standard

Fitted with an anti torque system to reduce deformation when shearing flat bars.

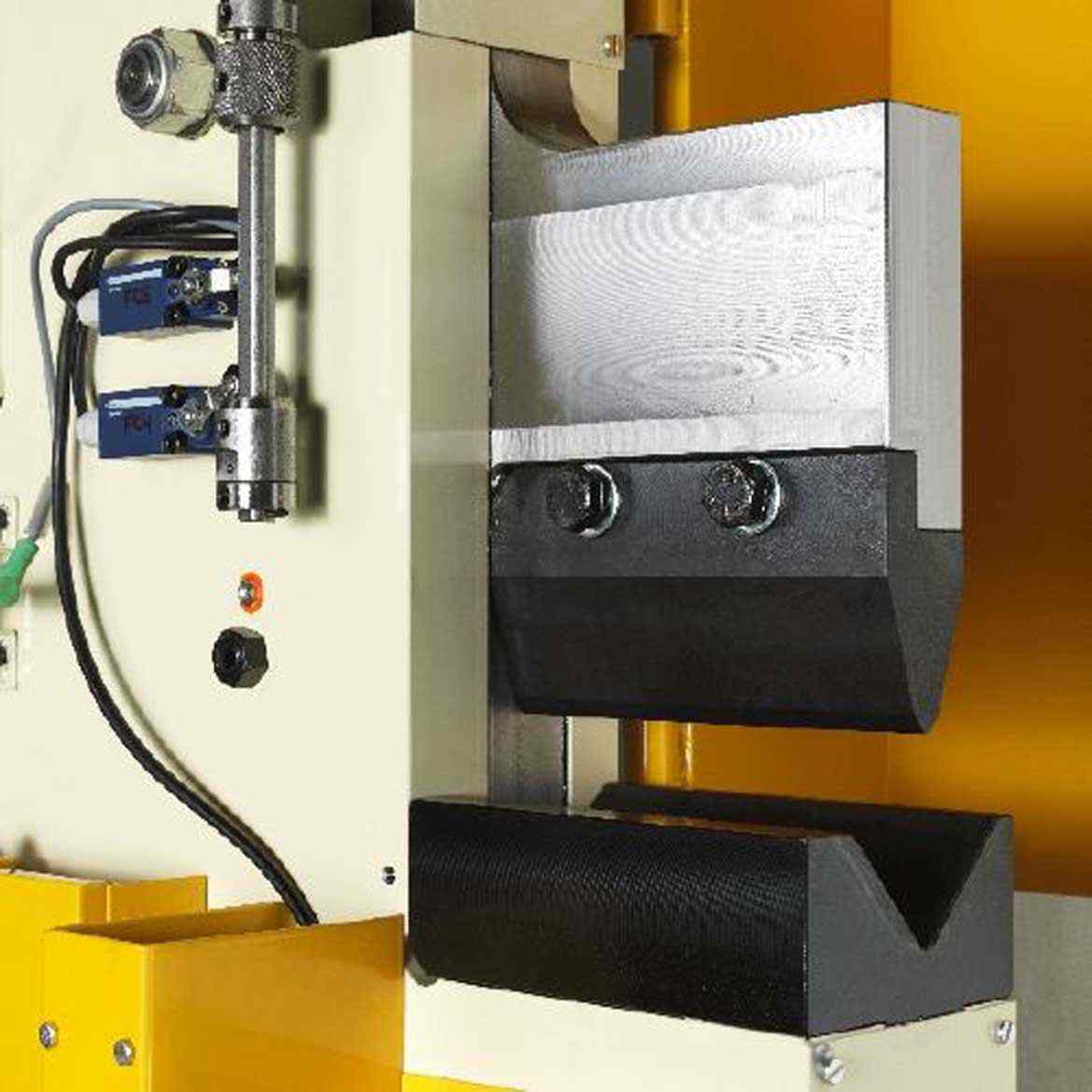

The BENDICROP model is fitted with a touch and cut length stop and is delivered with two V-shaped bending dies of 50mm and 90mm width.

Permanently fitted bending station complying with CE standards.

Goose neck die-holder for punching of angle and channel sections on flanges and web.

Quick tool change

Angle shearing without loss of material.

Flat bar and plate shearing system with minimum deformation & mitre shearing up to 45º.
Triangular notching with table.
