GEKA Gamma Roller 150 and 160

Machine Subcategory

Automatic Lines

Overview

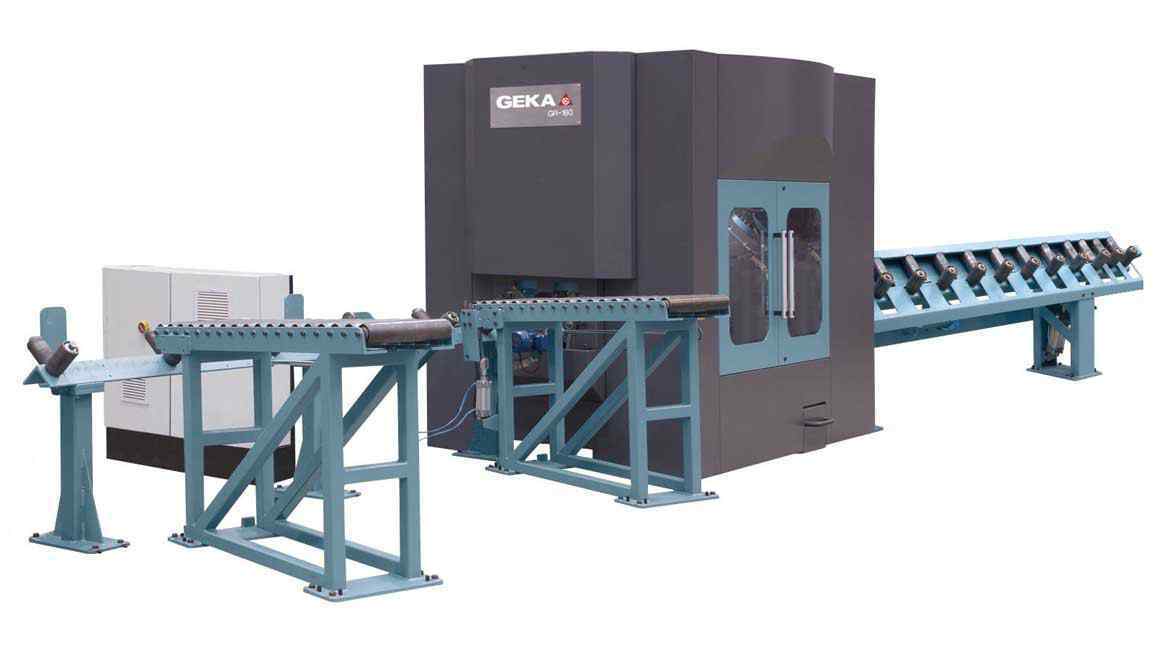

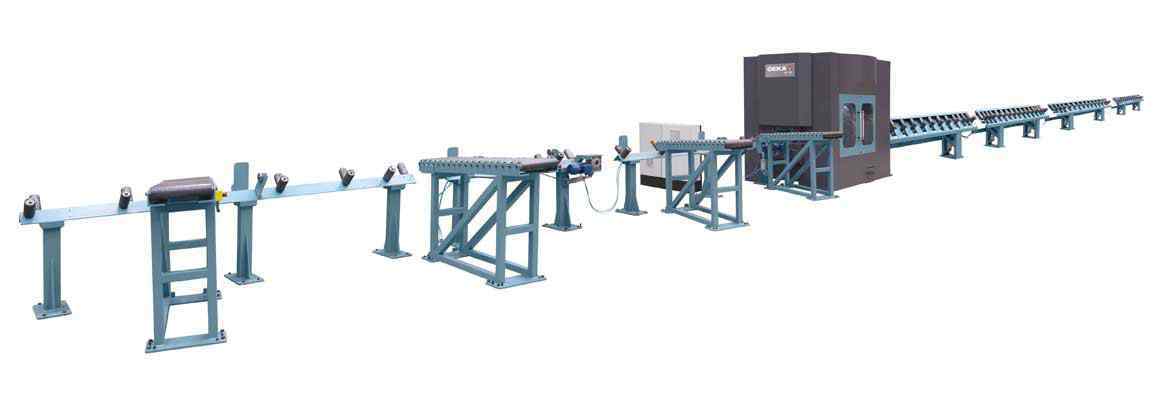

The GEKA Gamma Roller 150 and 160 product lines are a complete automatic solution for punching, marking (standard on ALPS 160) and shearing of angles for medium and large sized steel profiles.

Standard Specification

Minimum angle 35x35x4mm
Maximum angle 150x150x15mm or 160x160x16mm
Minimum Flat Bar 50x5mm
Maximum Flar Bar 150x15mm or 160x16mm
Minimum channel 60x30mm
Maximum channel 120x60mm
Marking Cassette Characters 5x10 size typeface
No of Punches 6 (3/wing)
Maximum Diameter 31mm
Punching Force 730 kn
Shear station tonnage 1900 kn or 2500 kn
Feeder Speed Programmable up to 36 m/min

Optional Features

Automatic side loader
Software line PRO
Automatic unloading system
Automatic waste system
Marking System (standard on ALPS 160)

GEKA Gamma Roller 150 and 160 Technical Specifications

Manufacturer	GEKA
Operation Type	Automatic
Steel Flatbarshear	160 x 16mm (ALPS 160 only)
Punching	Double Punch DPS 150 - 31 through 15mm, Triple Punch ALPS 160 - 31 through 16mm
Steel Angle Shear 90	150x150x15mm (DPS 150), 160x160x16mm (ALPS 160)
Steel Angle Shearing Tonnage	190 tonnes (DPS 150), 250 tonnes (ALPS 160)
Punching Power	60 tonnes (DPS 150), 73 tonnes (ALPS 160)
