GEKA Sigma 1000 CNC
Machine Subcategory
Drilling Machine
Standard Specification
- Minimum height - 100 mm
- Maximum height - 1,000 mm
- Useful length - 12,000 mm (longer on request)

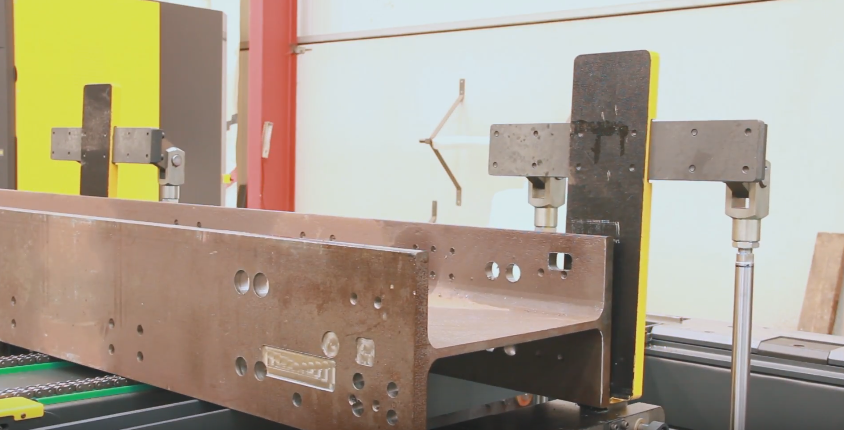

- Type of profiles - Beams, channels, angles, flat steel
- Maximum length - 12.000 mm
- Max. weight - 7.500 Kg
- Spindle power - 18 kW (peak power), 13 kW (nominal power)
- Spindle speed - 3000 rpm
- Spindle depth - 280 mm

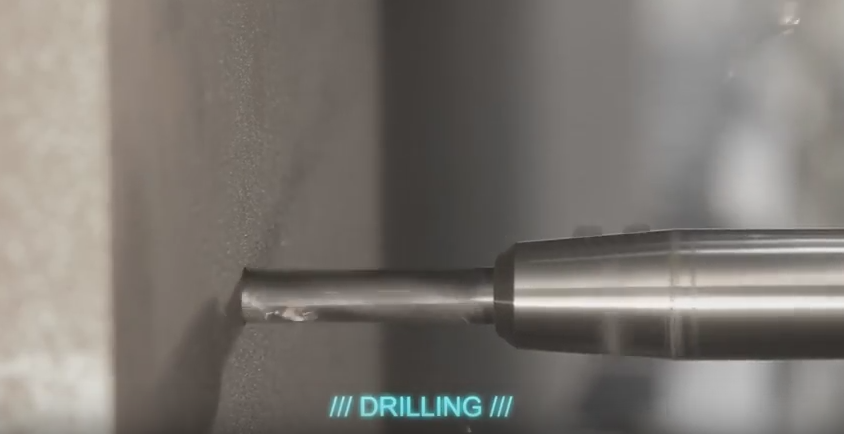

- HSS drill diameter - 40 mm
- Carbide drill diameter - 40 mm
- Number of tools - 5
- Tool holder - ISO DIN 69871 (SK 40 / ISO 40)

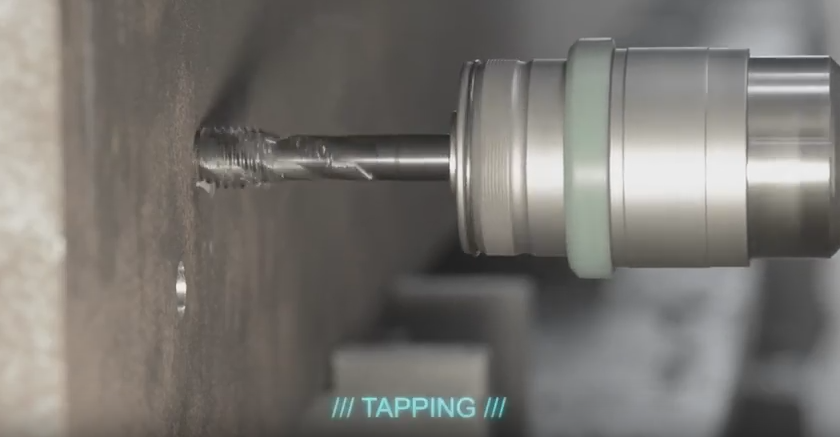

- Tapping - M33
- Lubrication - Internal / external
Optional Features

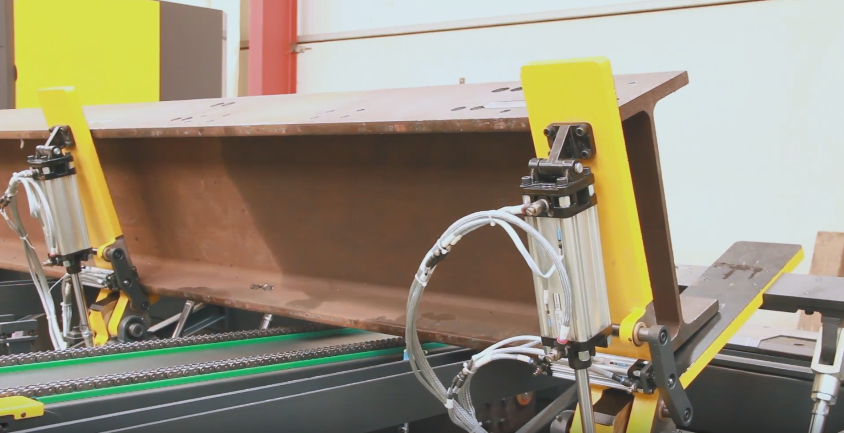

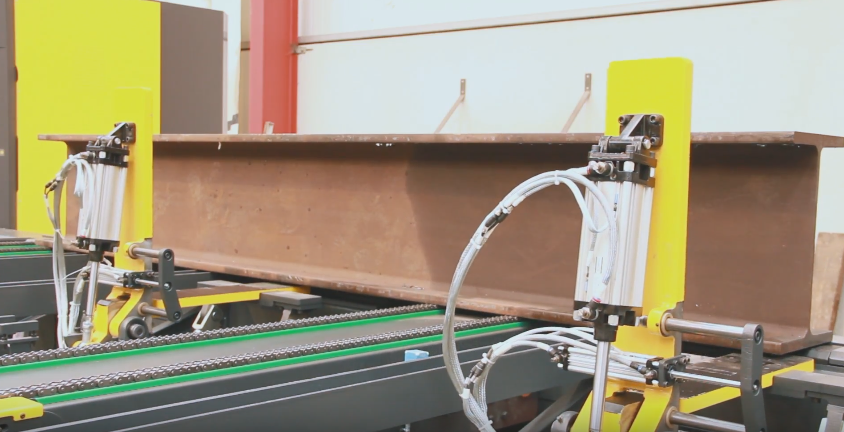

- Automatic infeed of the profiles for faster operations.
- Rotating unit

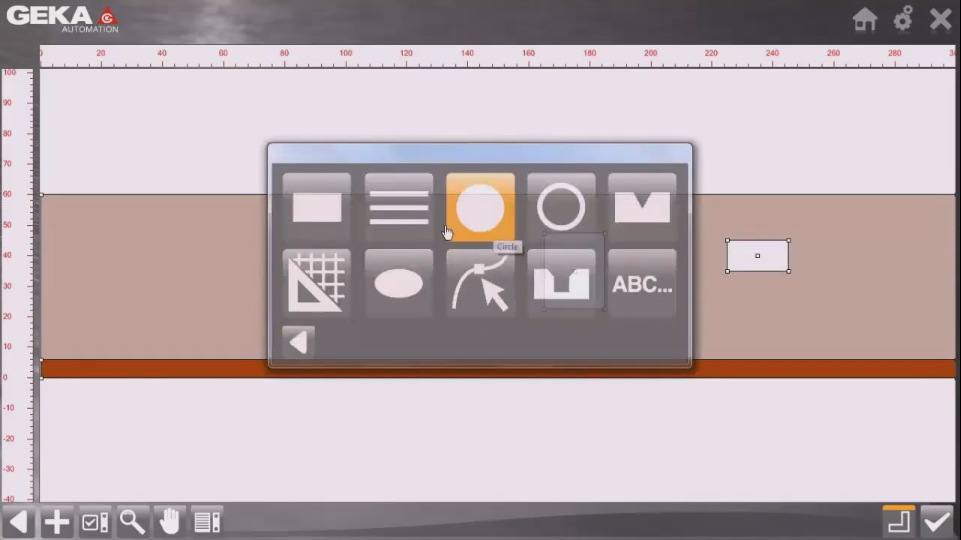

- LinePro software

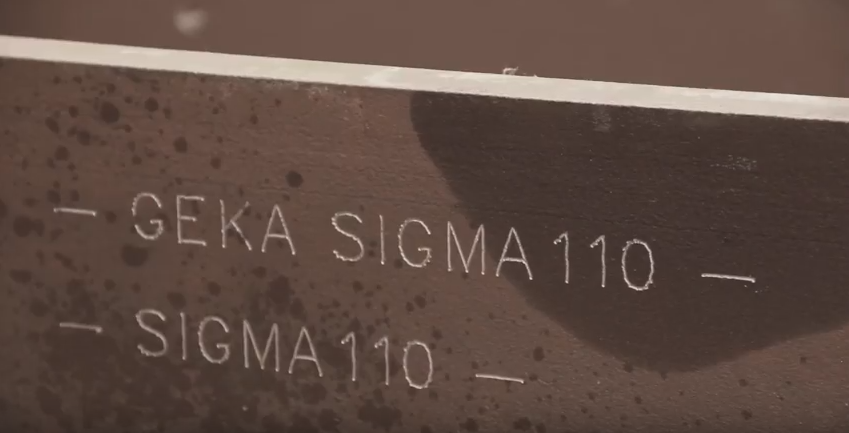

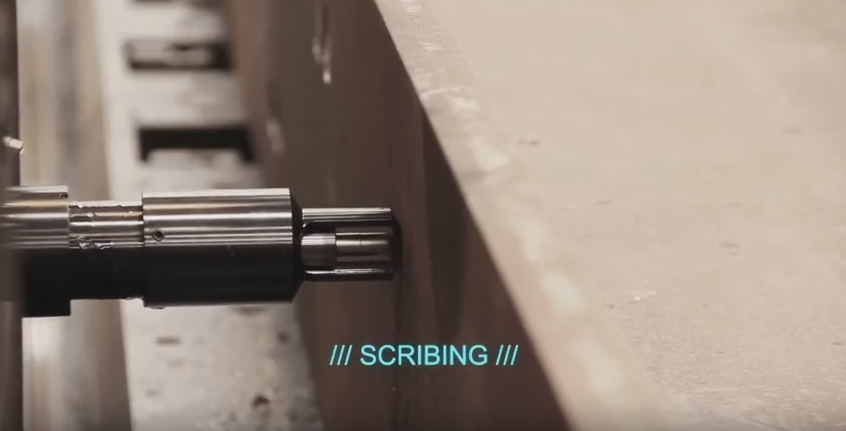

- Scribing tool
- Magnetic clamps for processing flat bars
GEKA Sigma 1000 CNC Technical Specifications
| Manufacturer | GEKA |
|---|---|
| Operation Type | Automatic |
| Material | Section |
| Length | 12 metres |
| Width | 1 metre |
