Gentiger GT-A4H

Machine Subcategory

CNC High Speed Automatic Bandsaw

Overview

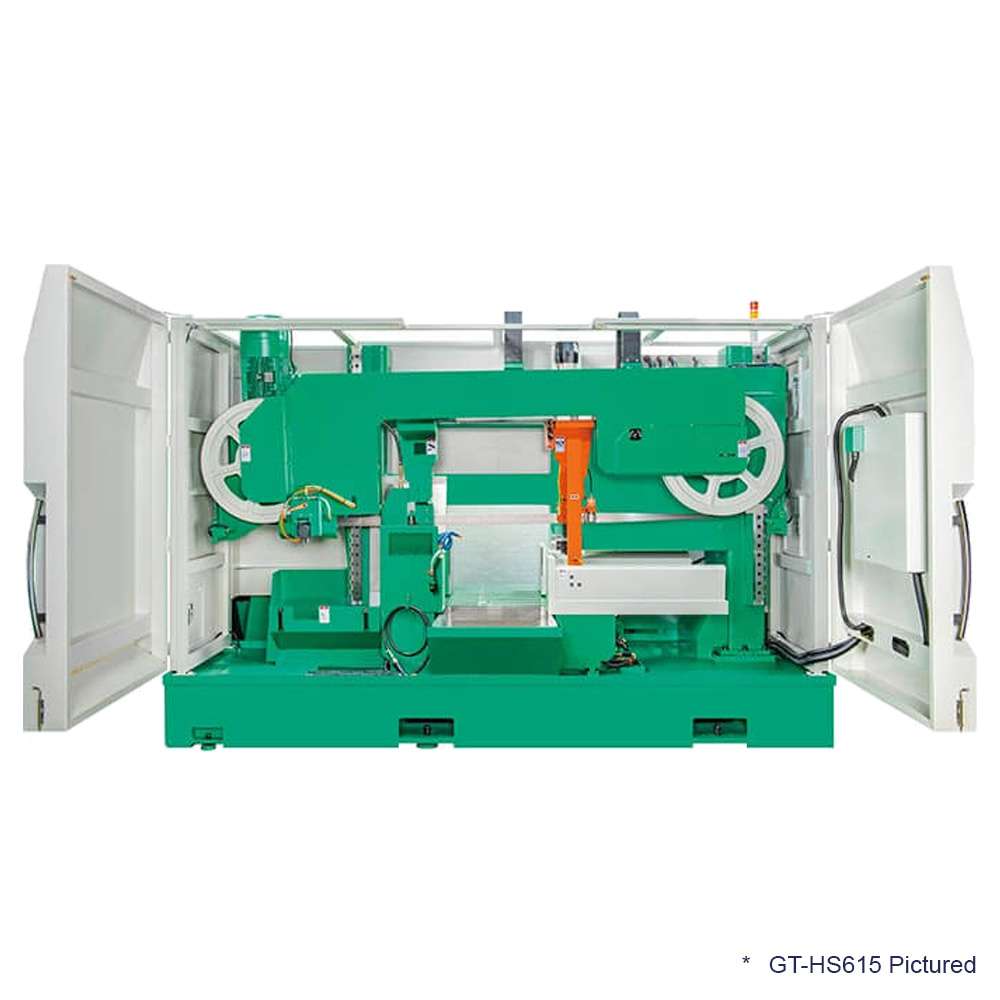

The GENTIGER GT-A4H is a CNC High-Speed Horizontal Band Saw Machine featuring a twin column machine structure. This structure design enables the machine to exhibit exceptional stability and smoothness in high-speed cutting.

Standard Specification

Automatic feed system with servo controlled cutting feed
lnvertor controlled variable blade speed

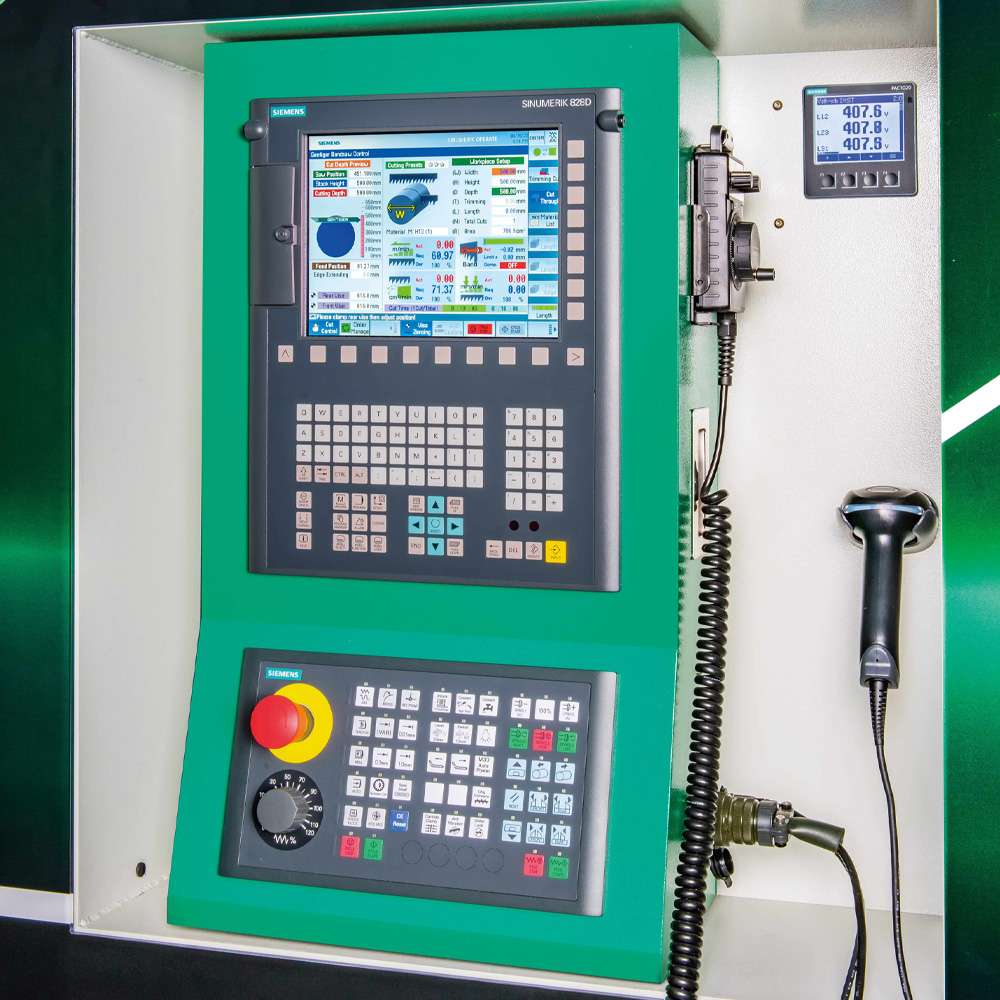

Swiveling control box with HMI
Material and sawblade database
Graphical conversation for cutting mode control
One-piece bed and roller type material feed
Hydraulic blade vibration suppressing mechanism
Cutting data record check export function
Cutting data remote reading export function
Link chain type and screw type chip conveyor
IE3 high efficiency spiral bevel gear reducer
Highly rigid hydraulic blade tension mechanism
Hydraulic blade vibration suppressing mechanism
Roller type linear guideways and blocks on the entire machine

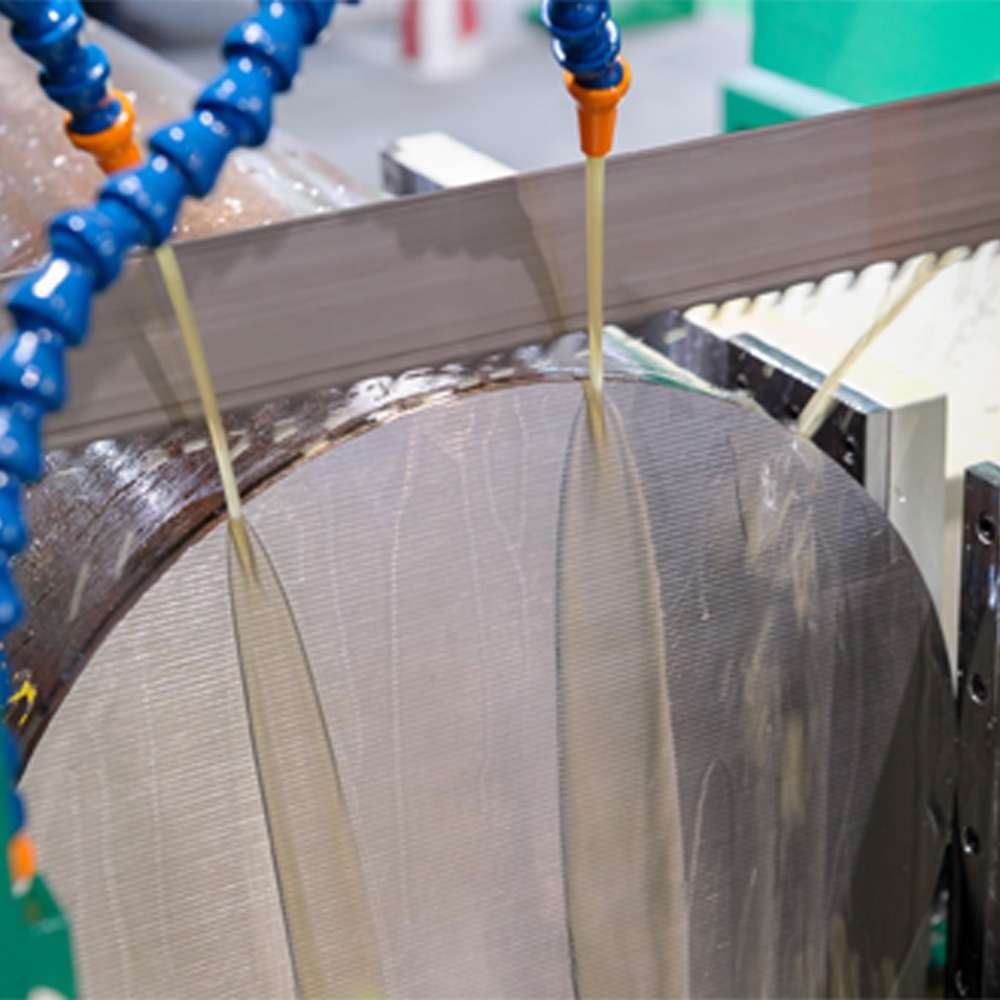

High pressure blade washing and chip removing device
Blade breakage detecting stop device
Laser sensor for elevation system
Hydraulic blade clamping device
Compliant fully enclosed splashguard

Optional Features

Electrical hand-wheel for precise sizing adjustment
Process bar code scanning import operation interface
Cutting line automated connection function
Front guard door device
CE front guard door device
Motorized material magazine
Multi-function power meter

Gentiger GT-A4H Technical Specifications

Manufacturer	GENTIGER
Machine Type	Bandsaw
Operation Type	Automatic
Material Types	Ferrous, Nickel Alloys, Solids
Material	Solid
Blade Size	6900 × 54 × 1.6 mm
Blade Speed	10 - 150 M/min
Motor	11 kW
Coolant Motor	0.75 Low & 1.75 High
Coolant Tank	300 Litres
Weight	7000
Machine Dimensions	3300 × 2300 × 2100 mm
