Gentiger GT-A6H
Machine Subcategory
CNC High Speed Automatic Bandsaw
Overview

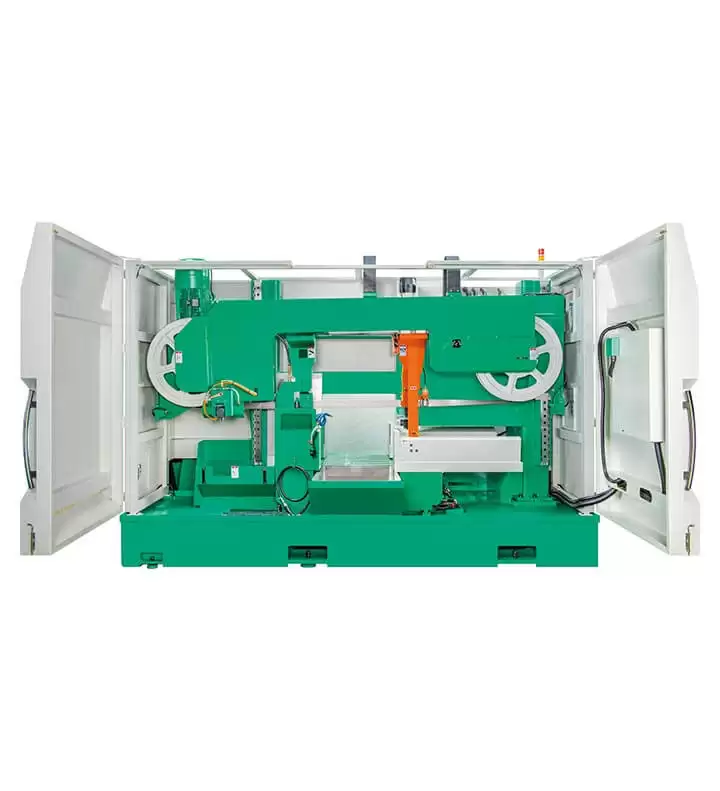

The GENTIGER GT-A6H is a CNC High-Speed Horizontal Band Saw Machine featuring a twin column machine structure. This structure design enables the machine to exhibit exceptional stability and smoothness in high-speed cutting.
Standard Specification
- Automatic feed system with servo controlled cutting feed
- lnvertor controlled variable blade speed

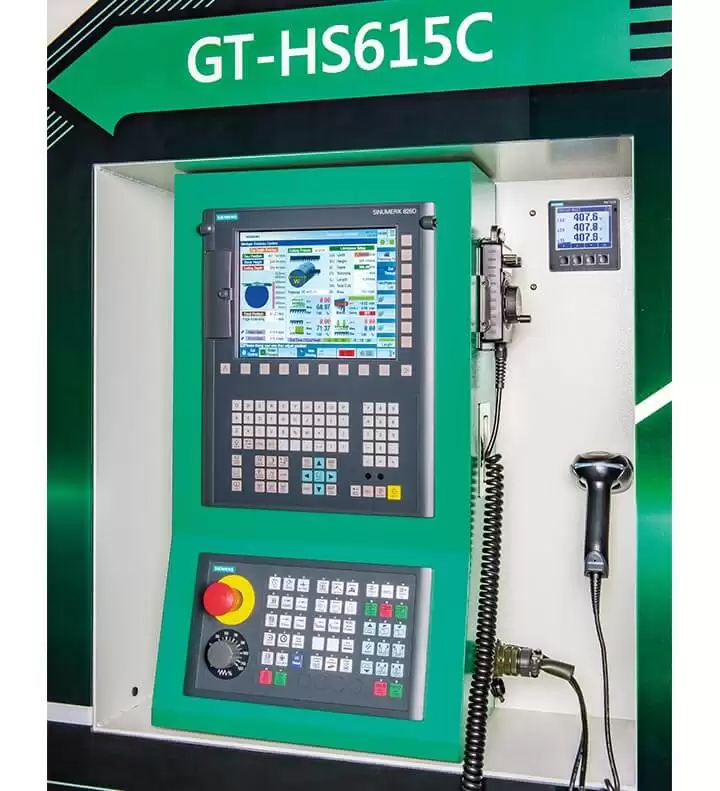

- Swiveling control box with HMI
- Material and sawblade database
- Graphical conversation for cutting mode control
- One-piece bed and roller type material feed
- Hydraulic blade vibration suppressing mechanism
- Cutting data record check export function
- Cutting data remote reading export function
- Link chain type and screw type chip conveyor
- IE3 high efficiency spiral bevel gear reducer
- Highly rigid hydraulic blade tension mechanism
- Hydraulic blade vibration suppressing mechanism

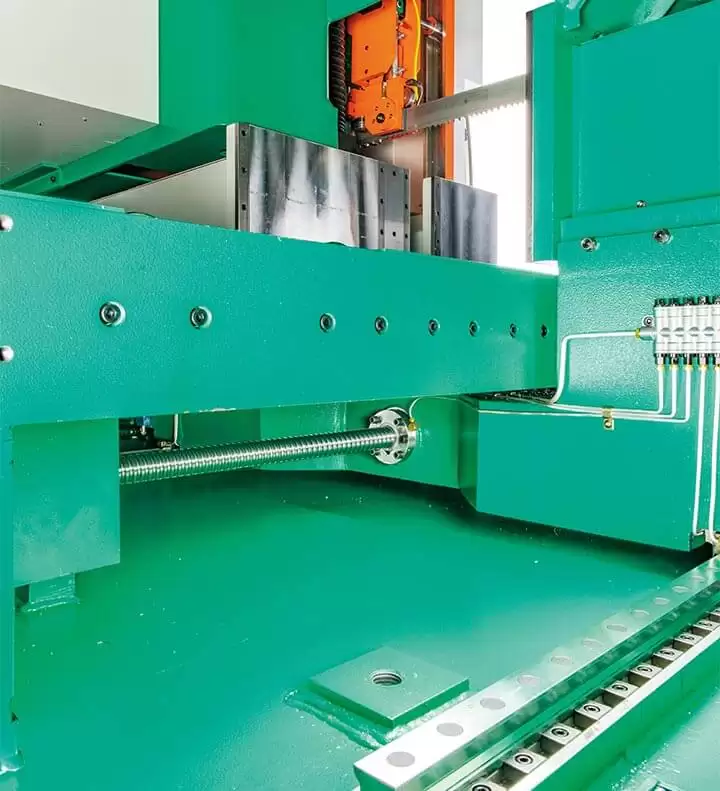

- Roller type linear guideways and blocks on the entire machine
- High pressure blade washing and chip removing device
- Blade breakage detecting stop device
- Laser sensor for elevation system
- Hydraulic blade clamping device
- Compliant fully enclosed splashguard
Optional Features
- Electrical hand-wheel for precise sizing adjustment
- Process bar code scanning import operation interface
- Cutting line automated connection function
- Front guard door device
- CE front guard door device
- Motorized material magazine
- Multi-function power meter
Gentiger GT-A6H Technical Specifications
| Manufacturer | GENTIGER |
|---|---|
| Machine Type | Bandsaw |
| Operation Type | Automatic |
| Material Types | Aluminium, Ferrous, Nickel Alloys, Non-Ferrous, Solids |
| Material | Solid |
| Blade Size | 8000 × 67 × 1.6 mm |
| Blade Speed | 10 ~ 150 m/min |
| Motor | 15 kW |
| Coolant Motor | 1.75 kW |
| Coolant Tank | 300 Litres |
| Weight | 9000 |
| Machine Dimensions | 3800 × 2300 × 2500 mm |
| Capacity Solid 90 Round | 615 mm | ||||
| Capacity Solid 90 Rec | 615 x 615 mm | ||||
| Capacity Solid 90 Square | 615 x 615 mm | ||||
