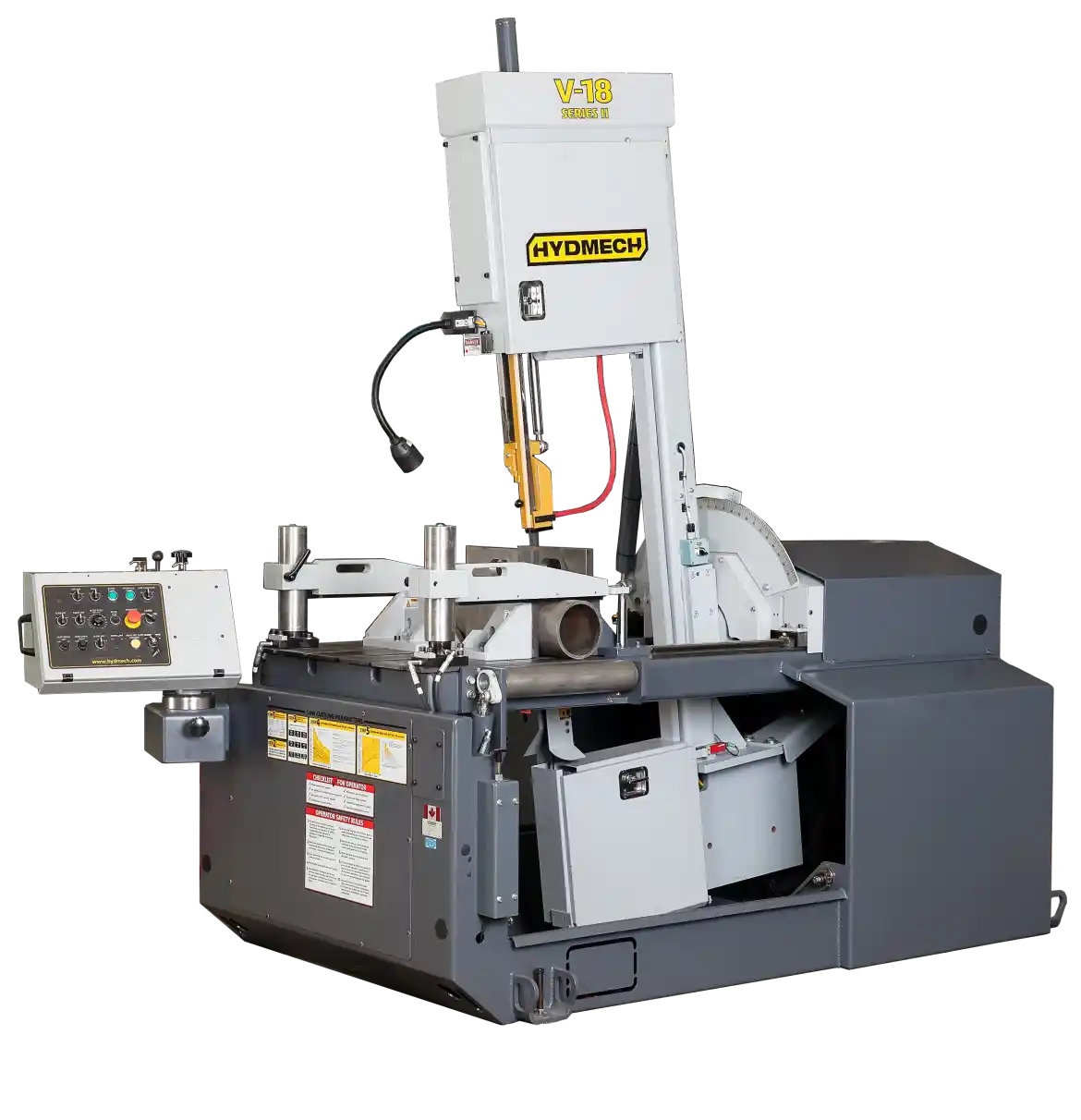

A manual vertical band saw with the ability to mitre from 45° left to 45° right.
A 2 HP driven hydraulic pump supplies system pressure through three position directional valves controlling all vice, head advance/retract, blade tension, and guide arm movement.

Its optional 6° degree fixed canted head, recommended when cutting larger beams, structural steel, and bundles of square tubing allows for more efficient cutting and improved blade life.

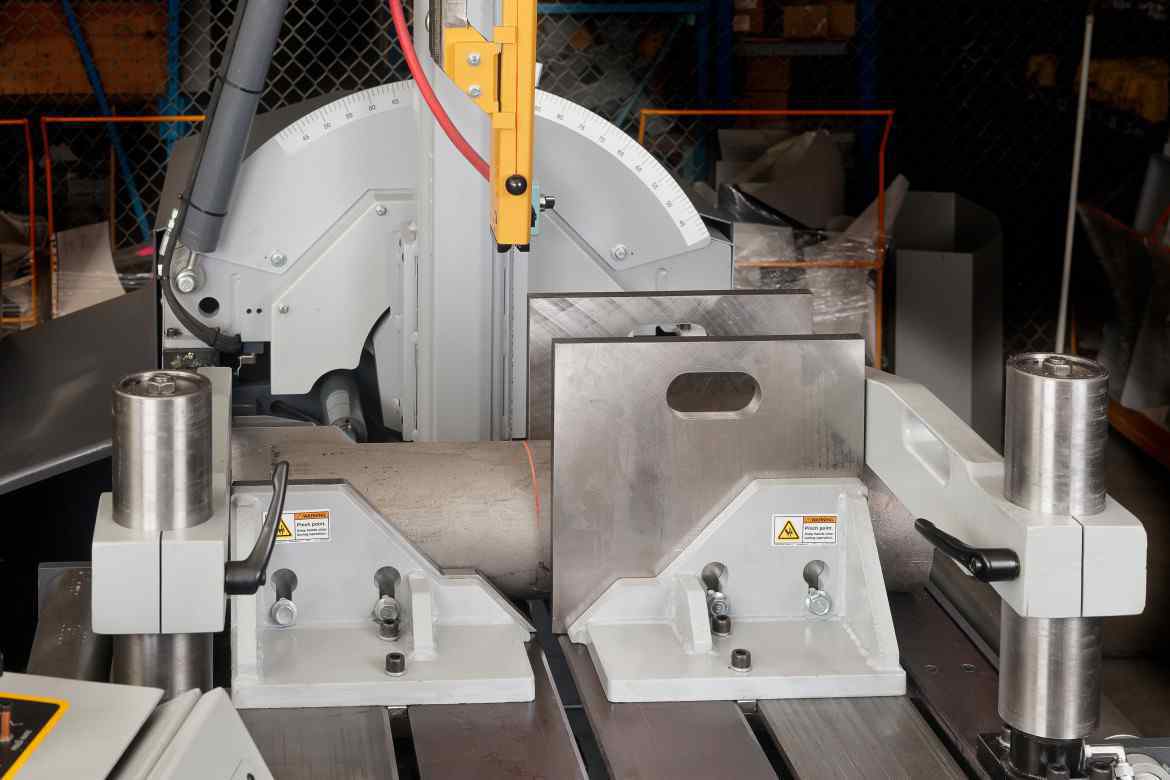

• Two full stroking hydraulic vices
• Select left or right side control panel
• Powered movable guide arm

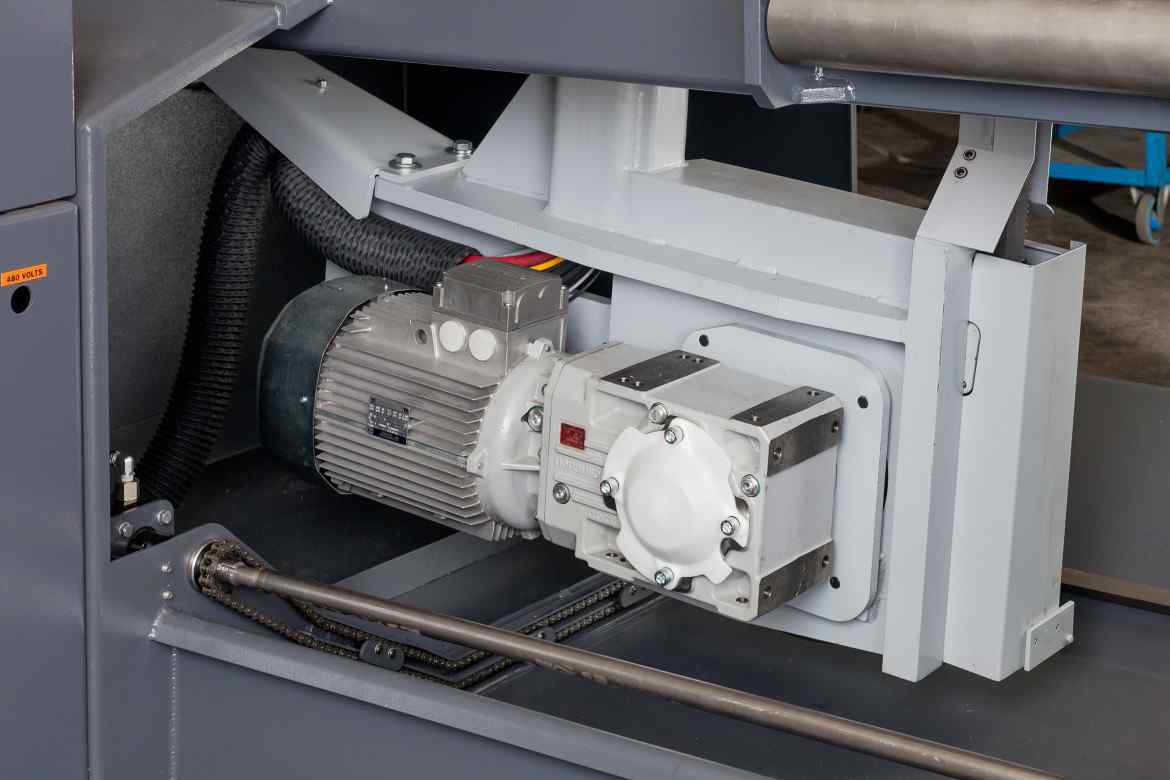

• 7.5 HP True direct blade drive – no belts/pulleys
• Hydraulic positive down feed
• Cast iron band wheels
• Replaceable blade brush
• Robust steel base
• Easy access electrical panel and hydraulics
• Blade breakage switch
• Hydraulic band tensioning with digital readout
• Replaceable carbide guide inserts
• 2 HP hydraulic pump provides system pressure
• Safety door interlocks
• Flood coolant with wash down hose
• Laser light and work light
• Variable vise pressure

• Fixed 6° canted head
• Chip bucket
• Hydraulic overhead bundling clamps
• Digital angle display
• Mist lubrication
• Non-driven pop-up lift roller
• Drag chain chip conveyor
• Tall square vise inserts
• Hydraulic chip conveyor
• Idler & powered conveyors
