ILERI TEKNIK DT315DXS
Machine Subcategory
Semi-Auto Circular Saws
Overview

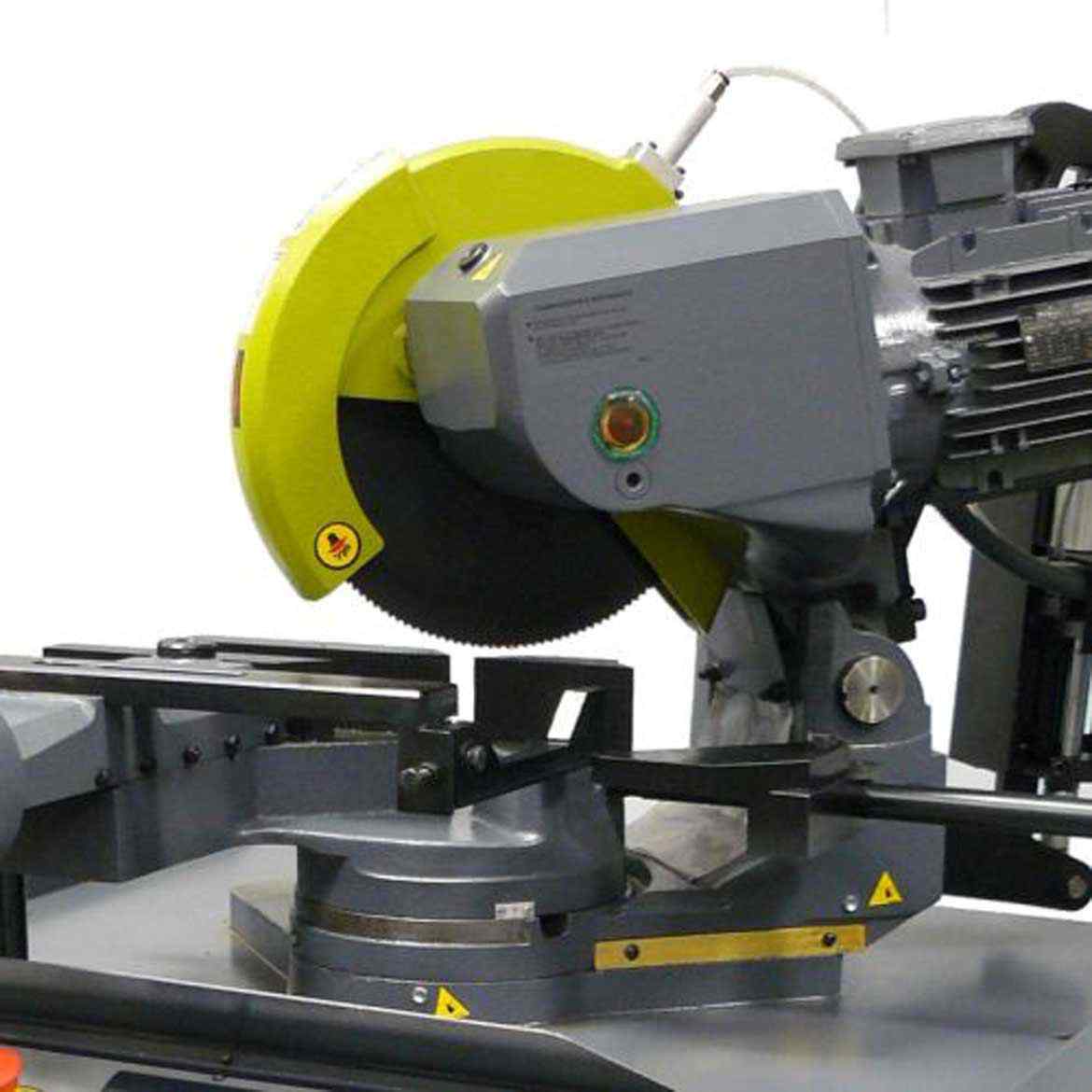

The Ileri Teknik DT 315DXS is a heavy duty semi-automatic circular saw designed for fast cutting with programmable powered mitre positioning between 45° Left and 45° Right. Especially useful for production work requiring opposing mitres.
Standard Specification
- Very heavy duty
- Foot switch or push button actuation
- Automatic mitre ±45°
- Automatic head stroke, can be adjusted to material height
- Hydro-pneumatic operation of saw head, smooth descent for optimum cut
- Heavy duty gearbox with double set of helical gears
- Robust, double hinged pivot
- Pneumatic vice
- Anti-burr device to grip material on both sides of the cut

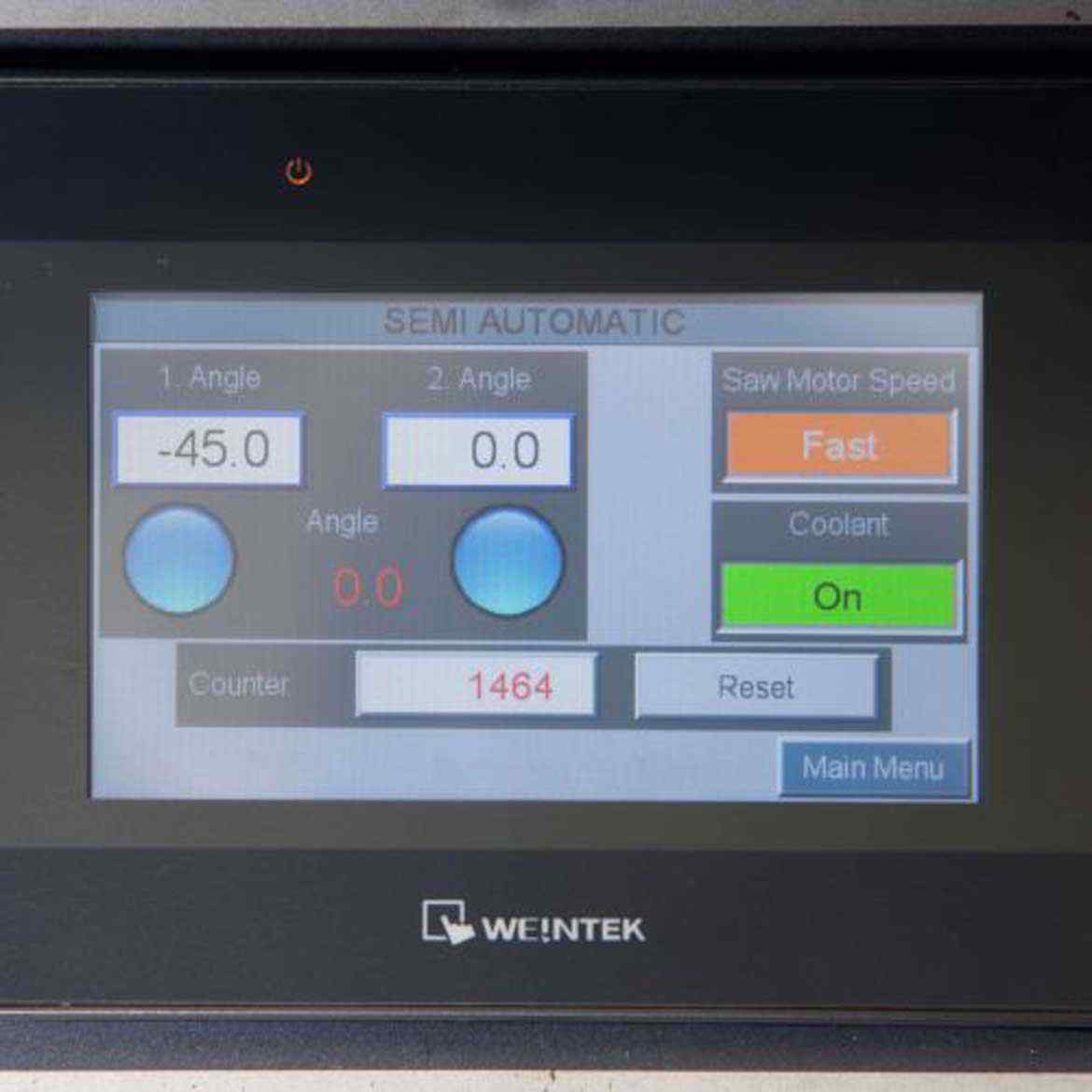

- PLC colour touch screen display
- Save and load Programs in the memory
- 2 Speed main motor
- Large, square, integral base for stability
- Spray mist blade lubrication
Get in touch +44 (0)1536 410999
ILERI TEKNIK DT315DXS Technical Specifications
| Manufacturer | Ileri Teknik |
|---|---|
| Machine Type | Circular |
| Blade Size | 315mm × 32mm bore |
| Blade Speed | 40 & 80 r.p.m. |
| Motor | 2.2kW |
| Weight | 460 |
| Material Type(s) | Section |
| 90° | 45° Left | 45° Right | 60° Left | 60° Right | |
|---|---|---|---|---|---|
| Round Section (mm) | 90mm | 85mm | 85mm | ||
| Rectangular Section Horizontal (mm) | 11x60mm | 80x50mm | 80x50mm | ||
| Square Section (mm) | 80x80mm | 70x70mm | 70x70mm |
