ILERI TEKNIK DT315S
Machine Subcategory

Manual Circular Saws

Overview

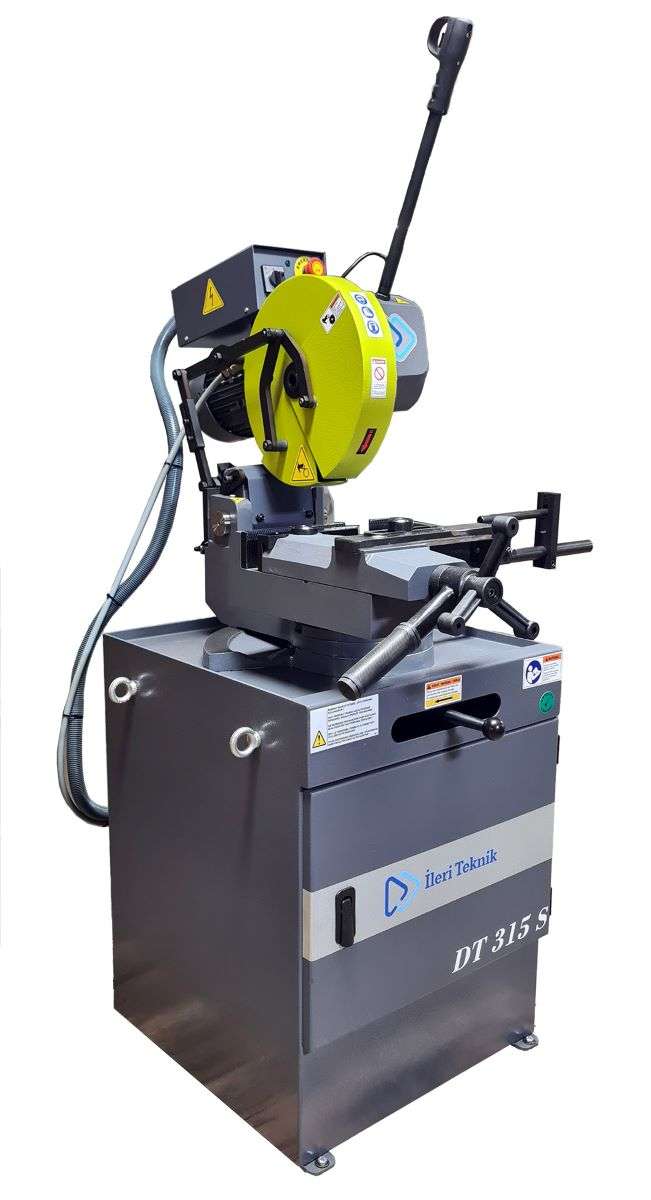

This heavy duty Ileri Teknik DT315S is operated by a pull down handle and offers easy mitre cutting for general cutting requirements in the workshop or toolroom. It features a rapid clamp lever vice with anti burr system and has two cutting speeds to cope with a range of materials from mild steel to stainless.

Standard Specification
  • Very heavy duty
  • Nickel bronze gear with precision ground & hardened worm drive screw
  • Robust, double hinged pivot
  • Low voltage switch within the pull-down handle grip
  • Double counterbalance springs

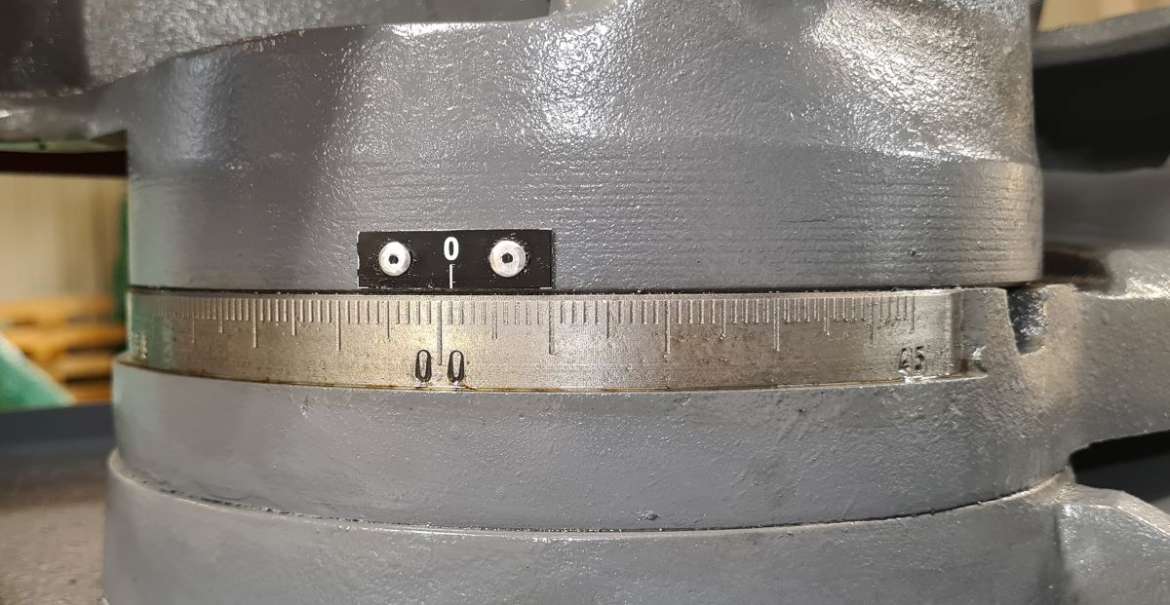

  • Easy, positive ±45° mitre

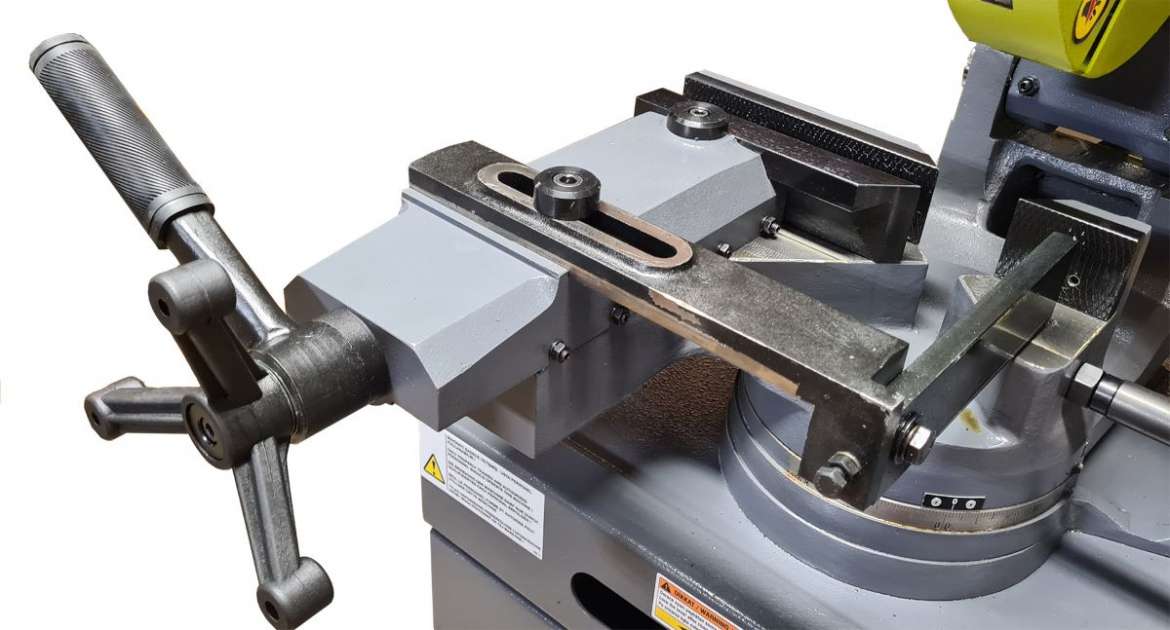

  • Rapid clamp lever vice with anti burr system
  • 2 speed main motor
  • Adjustable bar stop 400mm
  • Large, square, integral base for stability
  • Internal electric coolant pump

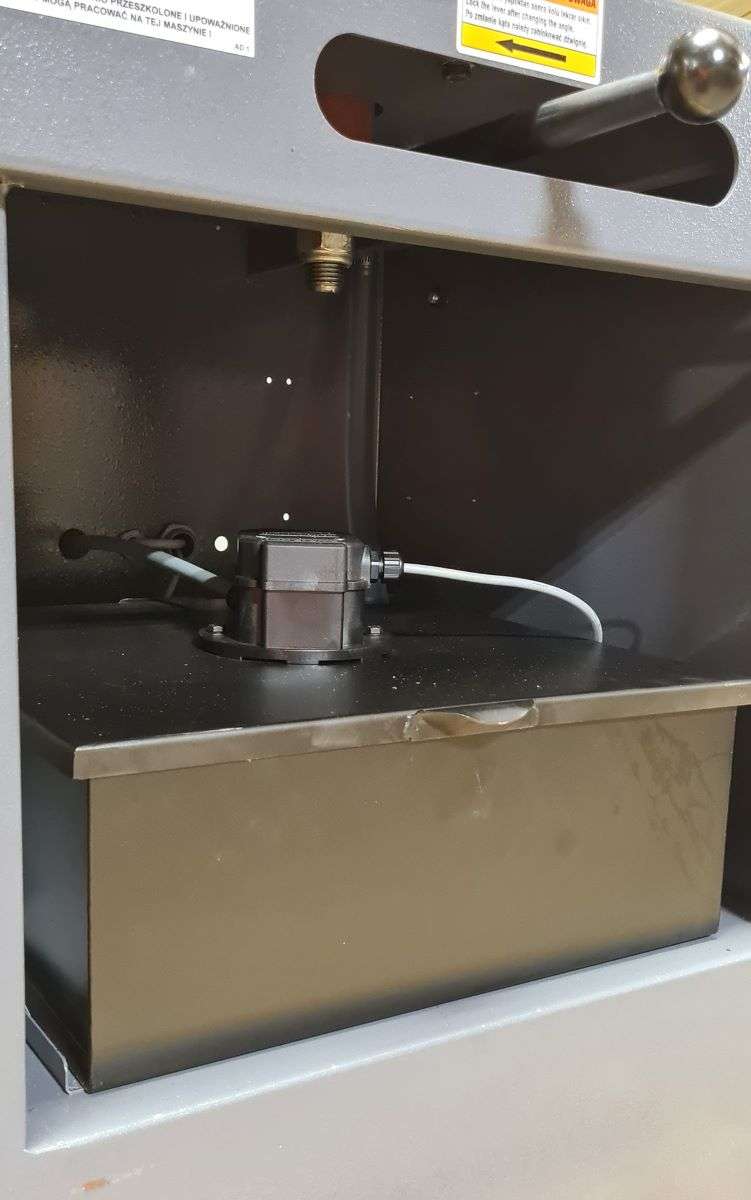

  • Coolant tank with integral chip tray
Get in touch +44 (0)1536 410999
ILERI TEKNIK DT315S Technical Specifications
Manufacturer Ileri Teknik
Machine Type Circular
Blade Size 315mm × 32mm bore
Blade Speed 32mm bore
Motor 1.8kW
Coolant Motor 0.06kW
Weight 200
Material Type(s) Section
90° 45° Left 45° Right 60° Left 60° Right
Round Section (mm) 105mm 90mm
Rectangular Section Horizontal (mm) 120x60mm 90x60mm
Square Section (mm) 85x85mm 80x80mm
SKU: 304 Category:
