ILERI TEKNIK LCS350
Machine Subcategory

Semi-Auto Circular Saws

Overview

The Ileri Teknik LCS 350 is a heavy duty vertical column action semi-automatic circular saw designed for fast cutting of heavier steel sections and solid bars. The hydro-pneumatic operation of the saw head provides a smooth vertical downfeed rate for fast cutting and optimum blade life. It has mitre cutting capabilities in both directions and is fitted with a cutting speed regulator.

Standard Specification
  • Very heavy duty build for continuous production

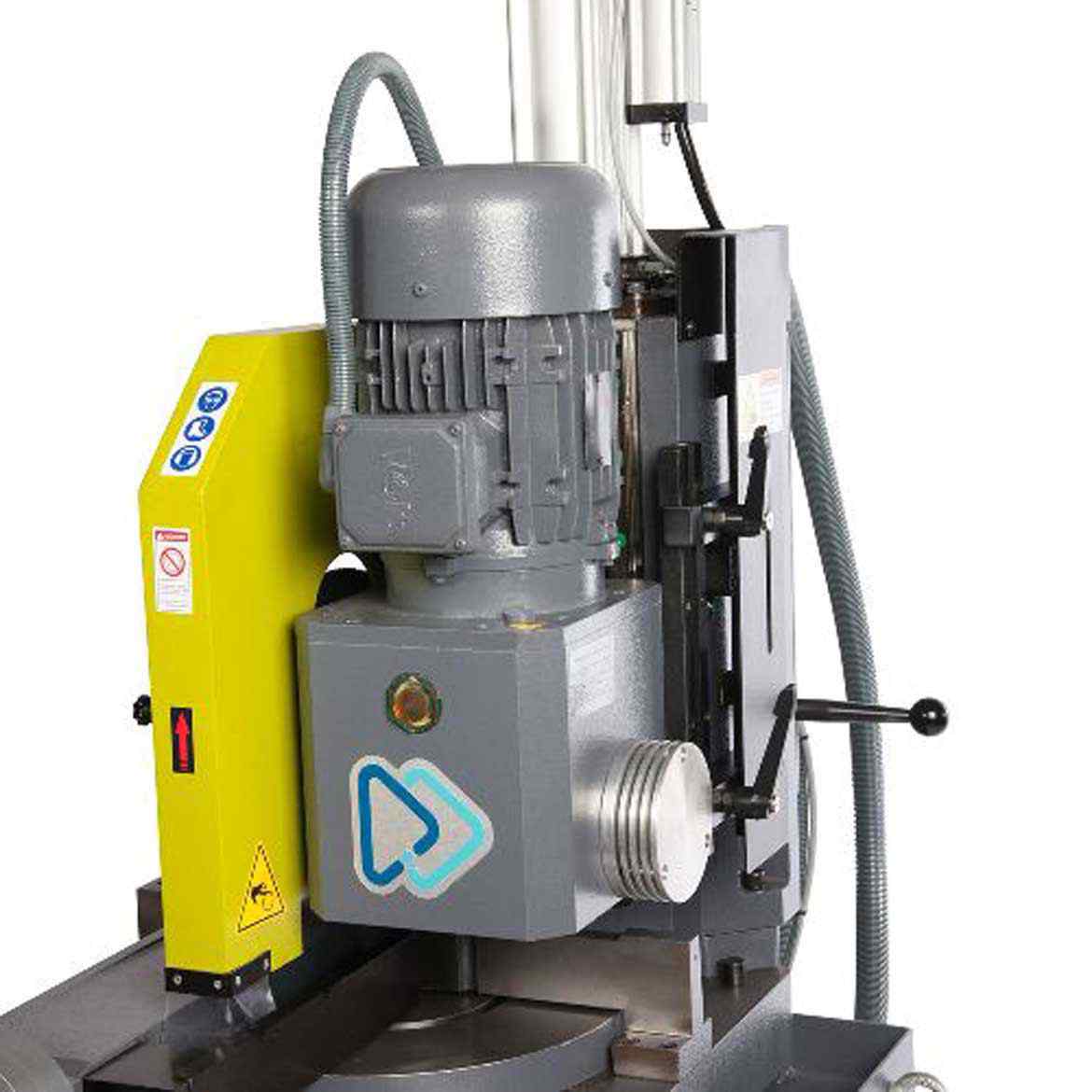

  • Hydro-pneumatic operation of saw head, smooth descent for optimum cut
  • Precise control of saw head descent speed
  • Easily adjusted cutting head stroke
  • Heavy duty, helical gearbox
  • Head descends on hardened linear guides
  • Back lash reduction for prolonged blade life
  • Easy, positive 45° left /60° right mitre
  • Anti-burr clamping system
  • 2 Speed main motor
  • Large, square, integral base for stability
  • Internal recirculating coolant pump
Get in touch +44 (0)1536 410999
ILERI TEKNIK LCS350 Technical Specifications
Manufacturer Ileri Teknik
Machine Type Circular
Blade Size 350 or 370mm × 32mm bore
Blade Speed 36 & 72 r.p.m.
Motor 3kW
Coolant Motor 0.06kW
Weight 460
Material Type(s) Section, Solid
90° 45° Left 45° Right 60° Left 60° Right
Round Section (mm) 110mm 110mm 110mm 90mm
Rectangular Section Horizontal (mm) 160x90mm 120x80mm 120x80mm 80x80mm
Square Section (mm) 90x90mm 90x90mm 90x90mm 80x80mm
