Ileri Teknik Smart 350 LM 600
Machine Subcategory
Automatic Circular Saw
Overview

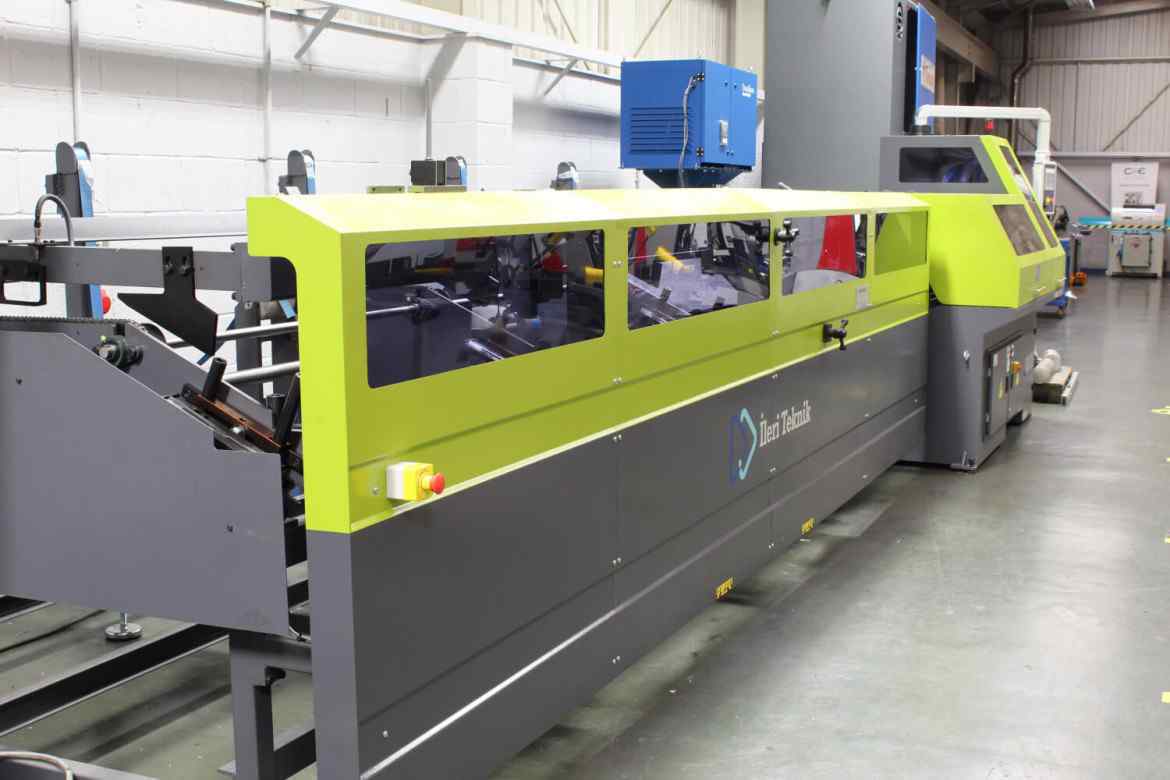

This Ileri Teknik SMART 350 LM 600 machine is a Fully Automatic Straight Cutting Sawing Machine, complete with Bundle Loader for High Production Cutting of Tubes.
Contact us now for further details.
Standard Specification
- Fully automatic machine for straight tube cutting

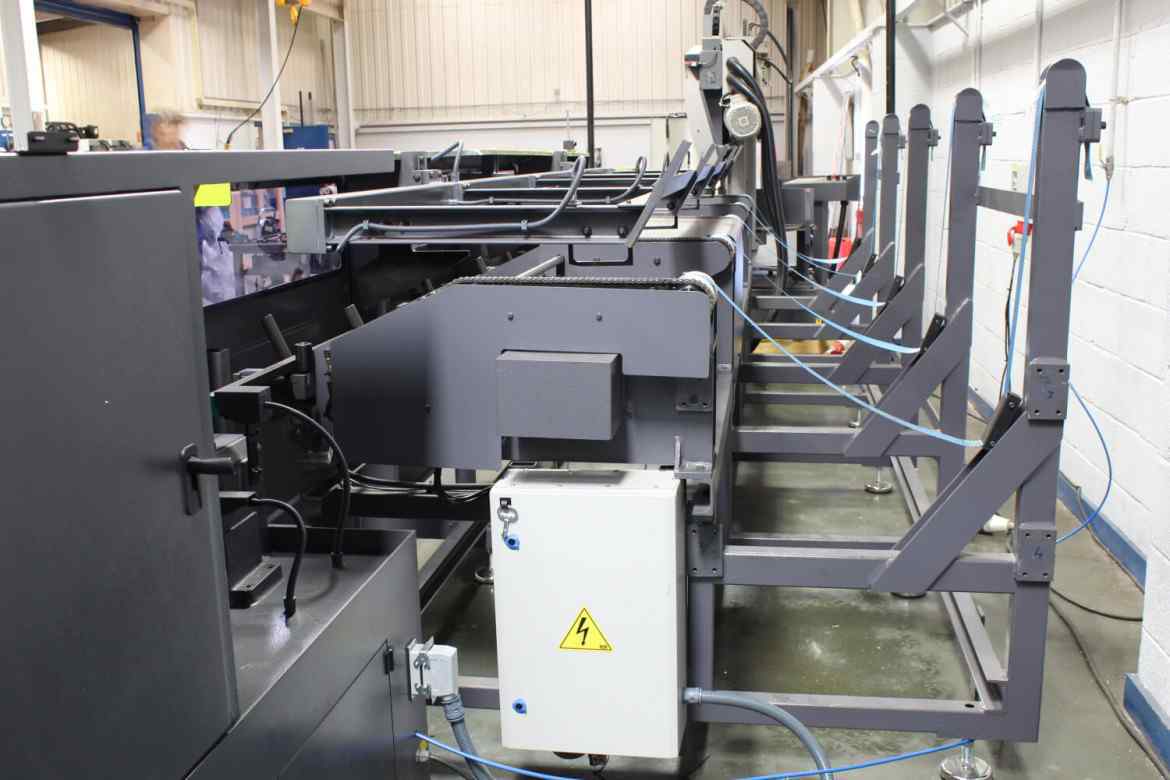

- Complete with LM600 - (6000 mm Bundle loader)
- Servo motor controlled material feeding system with ball screw
- Servo motor controlled vertical cutting system with ball screw
- PLC controlled colour type touch screen display
- Heavy duty, helical gear and worm gear sets in gearbox
- Head descends on hardened roller type linear guides
- Back lash reduction for prolonged blade life
- 200 programs to save all parameters for repetitive cutting orders
- Invertor controlled Variable blade speed from 20 rpm to 100 rpm
- 1000mm feeding length
- Multi feeding for over 1000mm cut lengths
- 10 different cutting length adjustment in one material
- ± 0.2 mm cutting length precision
- Coolant tank with box to collect chips and electric pump for blade
- Lubrication and cooling
- Cuts all material types
- Fully enclosed safety cabinet
Ileri Teknik Smart 350 LM 600 Technical Specifications
| Manufacturer | ILERI TEKNIK |
|---|---|
| Machine Type | Circular Saw |
| Operation Type | Automatic |
| Material Types | Ferrous, Sections |
| Material | Section |
| Blade Size | 350 x 32bore |
| Blade Speed | 20~100 RPM |
| Table Height | 960 mm |
| Motor | 4 kW |
| Coolant Motor | 0.9 kW |
| Feeding Stroke | 1,000 mm |
| Weight | 2500 |
| Machine Dimensions | 7500 x 2300 x 1850 |
| 90° | 45° Left | 45° Right | 60° Left | 60° Right | |
| Round Section (mm) | 90 | ||||
| Rectangular Section Horizontal (mm) | 80 x 80 | ||||
| Rectangular Section Vertical (mm) |
|||||
| Square Section (mm) | 80 x 80 |
