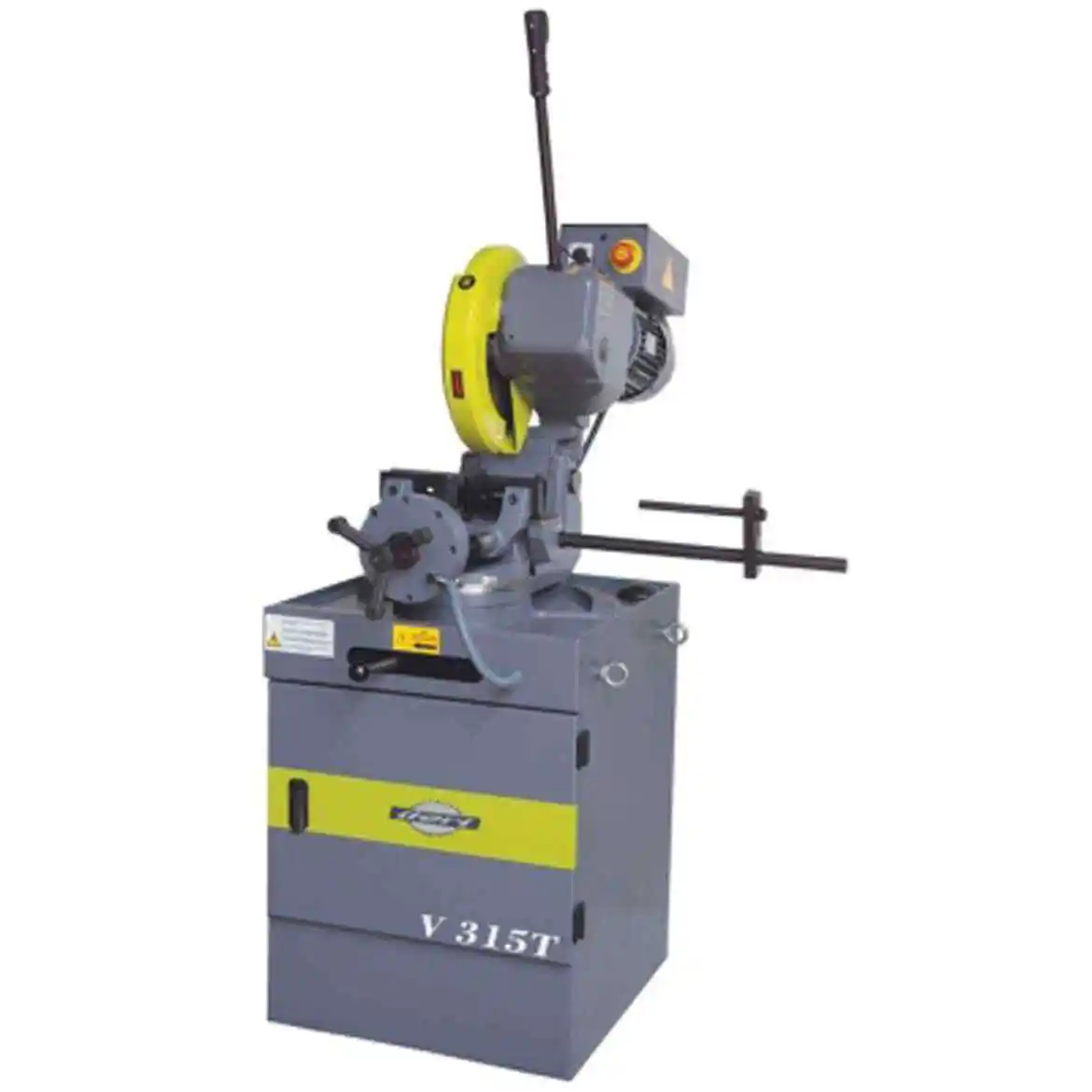

ILERI TEKNIK V315T
Machine Subcategory

Manual Circular Saws

Overview

This heavy duty Ileri Teknik V315T is operated by a pull down handle and offers easy mitre cutting for general cutting requirements in the workshop or toolroom. It features a self-centring double split vice to grip material on both sides and has two cutting speeds to cope with a range of materials from mild steel to stainless.

Standard Specification
  • Very heavy duty
  • Nickel bronze gear with precision ground & hardened worm drive screw
  • Robust, double hinged pivot
  • Low voltage switch within the pull-down handle grip
  • Double counterbalance springs
  • Easy, positive ±45° mitre
  • Double split vice to grip material on both sides
  • Self-centring of vice optimises cutting position
  • Pneumatic vice closes as blade starts
  • 2 Speed main motor
  • Adjustable bar stop 400mm
  • Pneumatic vice for batch production
  • Large, square, integral base for stability
  • Internal electric coolant pump
  • Coolant tank with integral chip tray
Get in touch +44 (0)1536 410999
ILERI TEKNIK V315T Technical Specifications
Manufacturer Ileri Teknik
Machine Type Circular
Blade Size 315mm × 32mm bore
Blade Speed 45 & 90 r.p.m.
Motor 1.8kW
Coolant Motor 0.06kW
Weight 210
Material Type(s) Section
90° 45° Left 45° Right 60° Left 60° Right
Round Section (mm) 105mm 90mm
Rectangular Section Horizontal (mm) 120x60mm 90x60mm
Square Section (mm) 85x85mm 80x80mm
SKU: 56 Category:
