JLH H-420PRO Plus
Machine Subcategory
Automatic Bandsaw
Overview

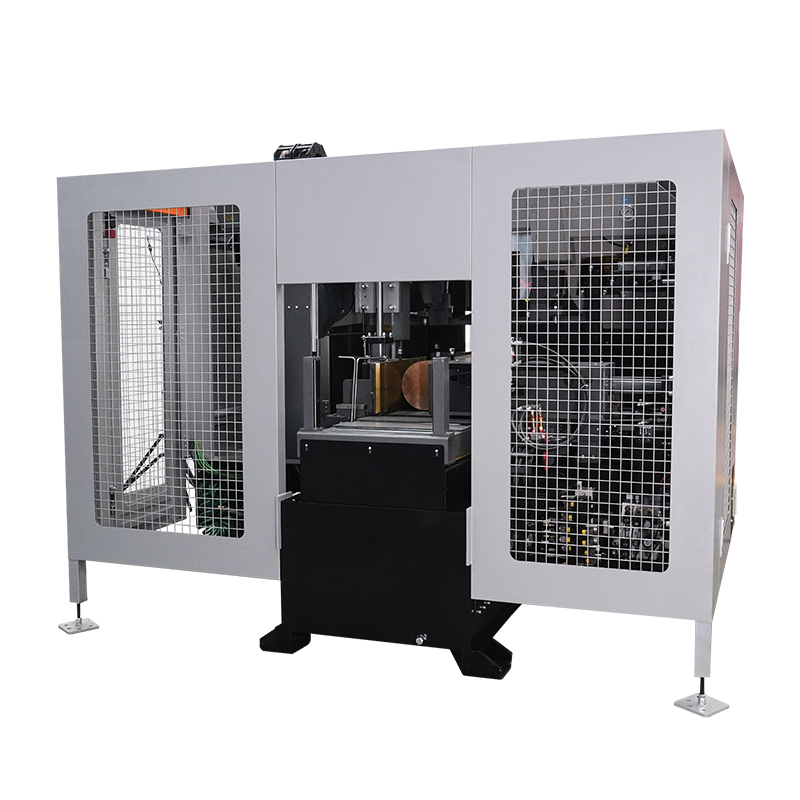

The JLH H-420PRO Plus is a Heavy duty, vice feed automatic bandsaw complete with fully enclosed guarding.
Standard Specification
- Fully enclosed guarding

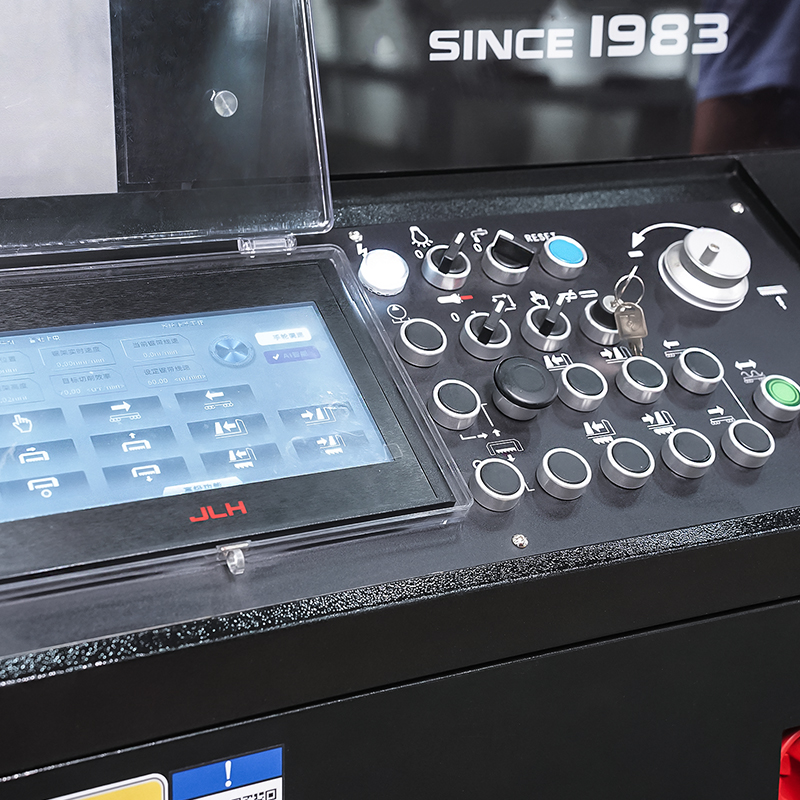

- NC controls for cutting length via 10” touch screen HMI, up to 100 programs can be saved
- Pre-programmed feed and pressure controls relative to the grade of the material.
- Multi pass to facilitate the cutting of components that are longer than the 500mm material feed stroke

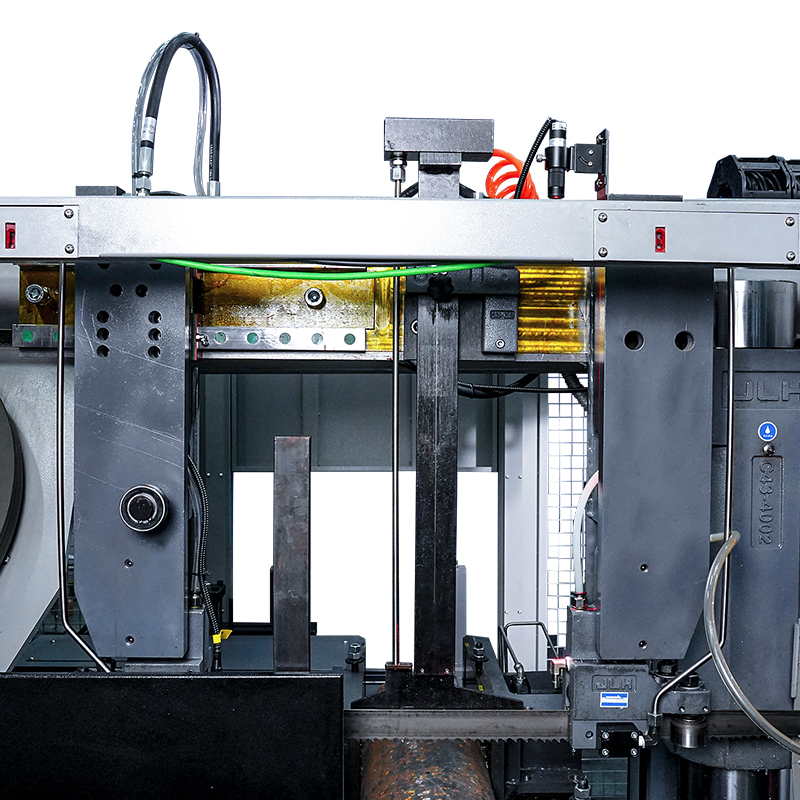

- Split front vice to minimise burr by securing both sides of the material either side of the blade
- Blade monitor to automatically stop the machine in the event of a blade break/jam.
- LED worklight
- Automatic swarf conveyor
- 41 mm wide blade
- Cuts solids including stainless steel and sections

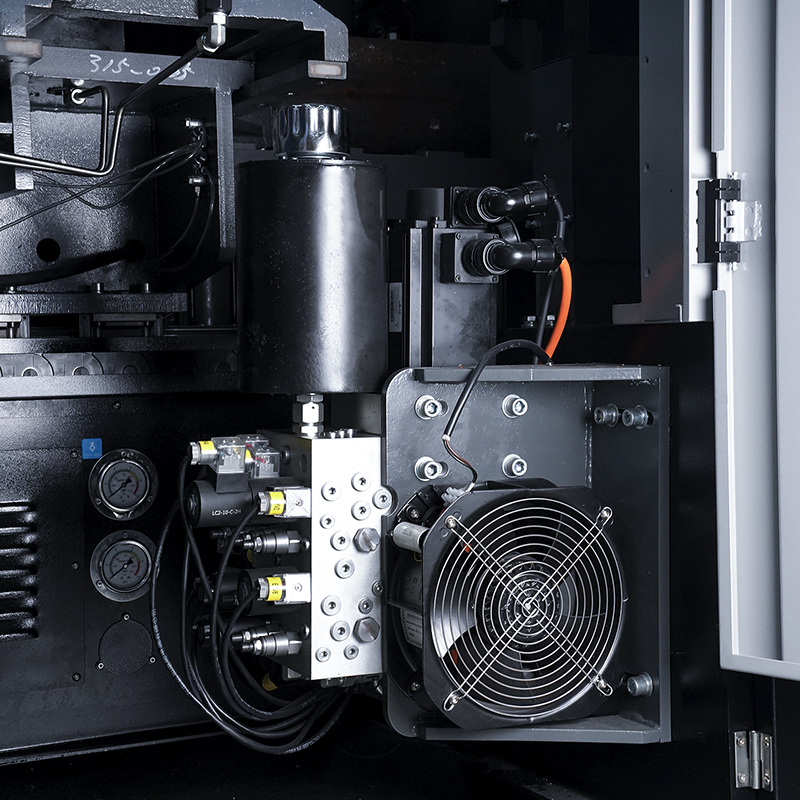

- Hydraulic blade tension for fast cutting
- Automatic guide arm on linear rails
Optional Features
- X-450 Heavy Duty Roller Conveyors
JLH H-420PRO Plus Technical Specifications
| Manufacturer | JLH |
|---|---|
| Machine Type | Bandsaw |
| Operation Type | Automatic |
| Material Types | Aluminium, Ferrous, Nickel Alloys, Solids |
| Material | Solid |
| Blade Size | 5156 × 41 × 1.3 mm |
| Blade Speed | 20 - 90 m/min |
| Power Input | 7.5 kW (Total connected load) |
| Table Height | 863 mm |
| Motor | 7.5 kW |
| Feeding Stroke | 500 mm |
| Weight | 3000 |
| Machine Dimensions | 3050 × 2350 × 2260 mm |
| Capacity Solid 90 Round | 420 mm | ||||
| Capacity Solid 90 Rec | 420 x 420 mm | ||||
| Capacity Solid 90 Square | 420 x 420 mm | ||||
