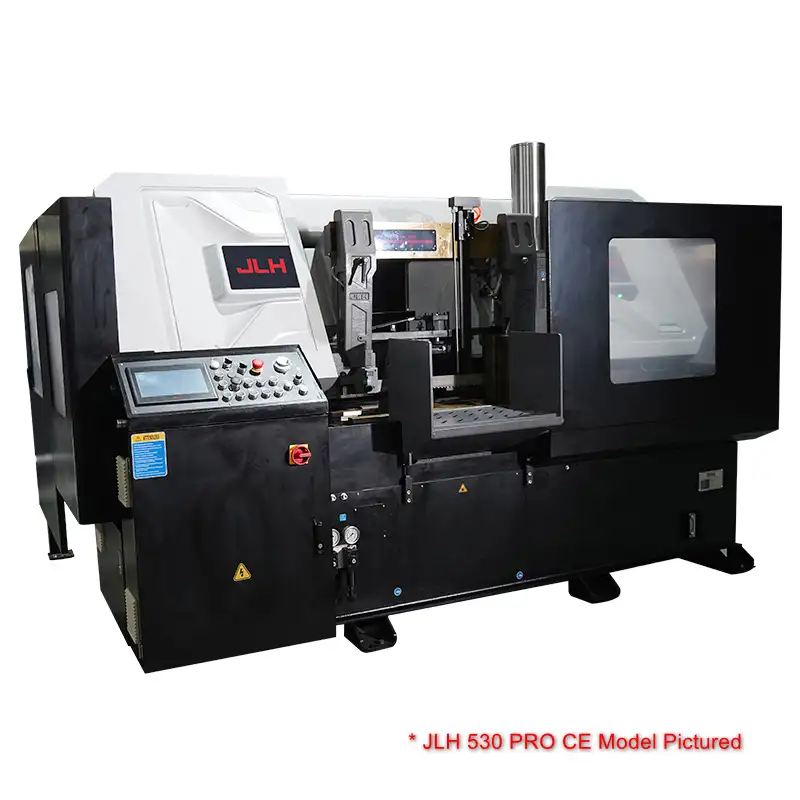

JLH H320 PRO CE
Machine Subcategory
Automatic Bandsaw
Overview
High specification, vice feed automatic bandsaw, with touch screen NC control console, swarf conveyor and bundle clamps as standard.
Standard Specification
- N.C controls for cutting length via 10” touch screen HMI, up to 100 programs can be saved
- Preprogrammed feed and pressure controls relative to the grade of the material.
- Multi pass to facilitate the cutting of components that are longer than the 500mm material feed stroke
- Split front vice to minimise burr by securing both sides of the material either side of the blade
- Servo electric feed rate feed pressure controls
- Automatic swarf conveyor
- 34mm wide blade
- Vice pressure regulation
- LED worklamp
- Blade deviation monitor
- Hydraulic blade tension for fast cutting
JLH H320 PRO CE Technical Specifications
| Manufacturer | JLH |
|---|---|
| Machine Type | Bandsaw |
| Operation Type | Automatic |
| Material Types | Aluminium, Ferrous, Nickel Alloys, Non-Ferrous, Solids |
| Material | Solid |
| Blade Size | 4115mm × 34mm × 1.1mm |
| Blade Speed | 20 - 80 m/min |
| Power Input | 8.2 kW (Total connected load) |
| Table Height | 750 mm |
| Motor | 5 kW |
| Feeding Stroke | 500 mm |
| Weight | 1800 |
| Machine Dimensions | 2320 x 2600 x 1750 |
| Capacity Solid 90 Round | 320mm | ||||
| Capacity Solid 90 Rec | 320x320mm | ||||
| Capacity Solid 90 Square | 320x320mm | ||||
