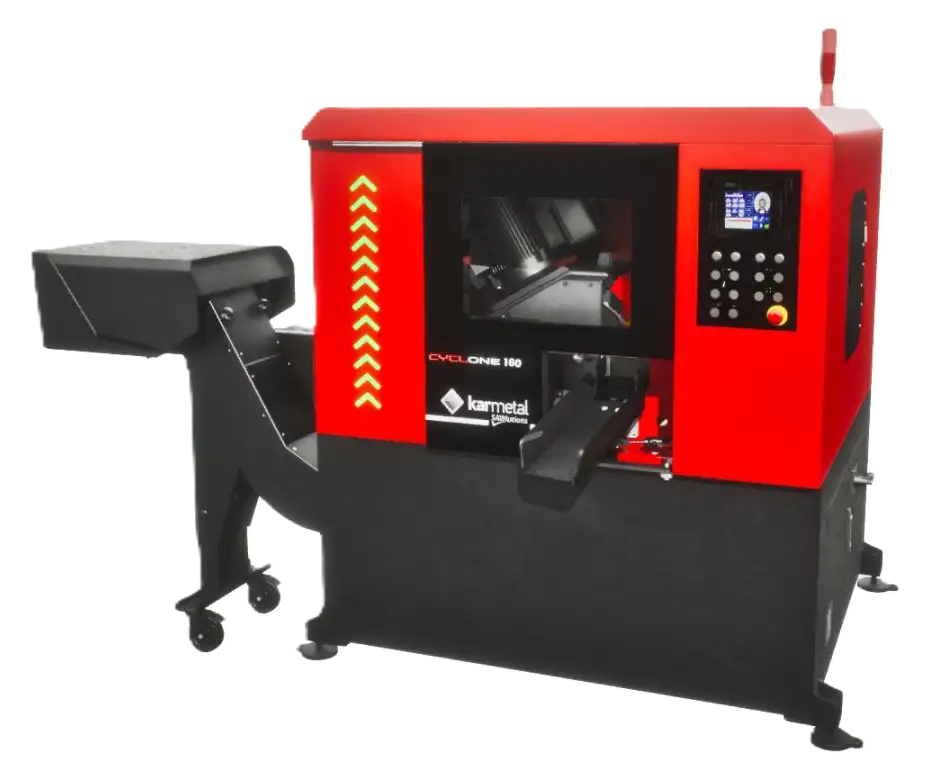

Karmetal Cyclone 100
Machine Subcategory
Automatic Carbide Circular Saw
Overview
NC High Speed Automatic Carbide Circular Sawing machine, complete with 6m magazine loader. Designed for very fast cutting of solid bar providing a clean, swarf free billet
Standard Specification
- 6m Magazine loader
- HMI Touch Control Panel
- Servo-controlled body movement.
- Servo-controlled rear clamp
- Hydraulic Front and Rear Vises
- Adjustable Vise Pressure
- Tracked Type Chip Conveyor
- Blade Cleaning Brush System
- Micromolecular Cooling System
- Automatic Slide Lubrication Unit
- Automatic Cutting Separation Slide
Get in touch +44 (0)1536 410999
Karmetal Cyclone 100 Technical Specifications
| Manufacturer | Karmetal |
|---|---|
| Machine Type | Circular |
| Blade Size | Ø360 |
| Blade Speed | 40-210 m/min |
| Motor | 15 kW |
| Motor | 1.5 kW |
| Feeding Stroke | Front - 20mm / Rear |
| Weight | 3600 |
| Material Type(s) | Solid |
| 90° | 45° Left | 45° Right | 60° Left | 60° Right | |
|---|---|---|---|---|---|
| Solid Round 90 | 15-100mm | ||||
| Solid Square 90 | 15-90mm | ||||
