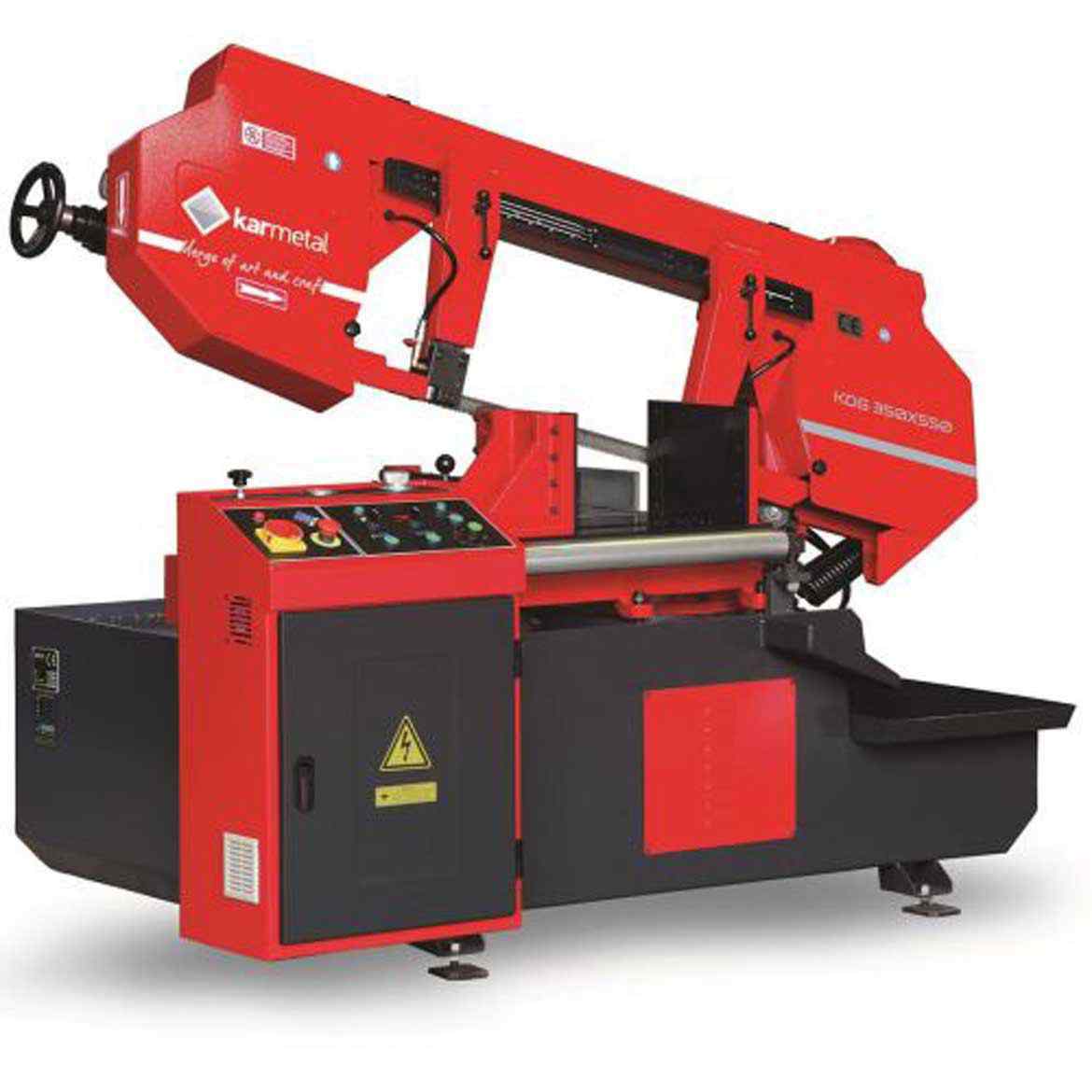

KARMETAL KDG 350×570
Machine Subcategory
Semi Automatic Horizontal Bandsaw
Overview
Semi Automatic Mitre Cutting Bandsaw with Turntable Bed
Standard Specification
- Hydraulic vice for fast clamping
- Heavy duty blade tensioning unit with indicator
- Inverter controlled variable blade speed from 25 to 100 m/min
- Bow swivels up to 60° with easy mitre
- Precision control hydraulic downfeed
- Heavy duty one-piece cast bow
- Turntable bed with easy to read mitre scale
- Roller blade guides and carbide pads ensure accurate, straight cuts
- Adjustable guide arm
- Re-circulating coolant pump
- Simple, robust controls
- Blade guard with electrical cut-out switch
- Heavy, stable machine base
Get in touch +44 (0)1536 410999
KARMETAL KDG 350x570 Technical Specifications
| Machine Type | Bandsaw |
|---|---|
| Blade Size | 4350mm × 34mm × 1.1mm |
| Blade Speed | Inverter controlled varaible speed 25 ~ 100 m/min |
| Table Height | 750mm |
| Motor | 4kW |
| Coolant Motor | 0.12kW |
| Weight | 1140 |
| 90° | 45° Left | 45° Right | 60° Left | 60° Right | |
|---|---|---|---|---|---|
| Round Section (mm) | 350mm | 350mm | 240mm | ||
| Rectangular Section Horizontal (mm) | 330x530mm | 300x350mm | 200x270mm | ||
| Square Section (mm) | 330mm | 330mm | 220mm |
