KARMETAL KDG 560×1050 DM
Machine Subcategory
Semi Automatic Horizontal Bandsaw
Overview

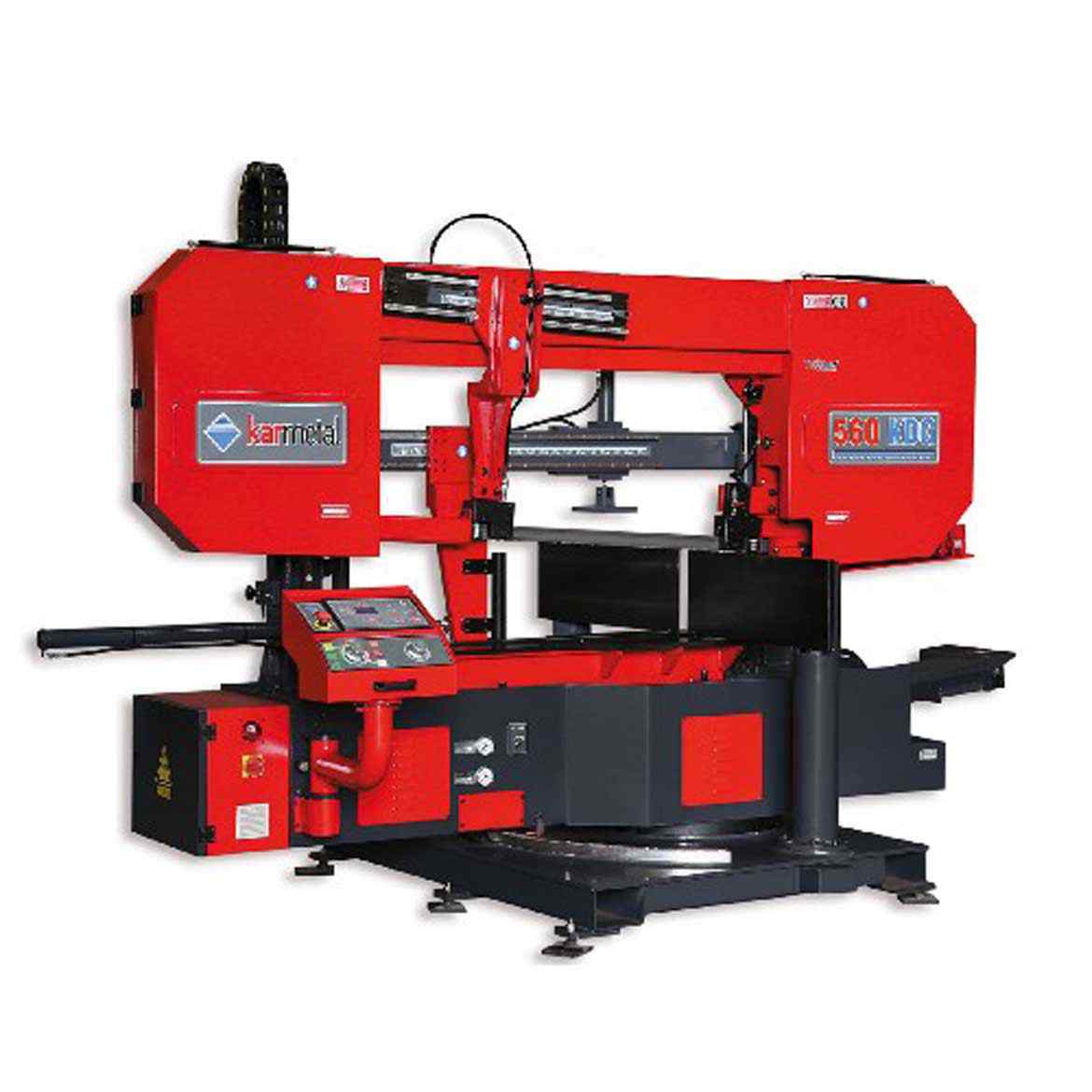

The Karmetal KMT 560 KDG is a semi-automatic twin column band saw for cutting section material with Turntable Bed.
Standard Specification
- Hydraulic vice for fast clamping
- Hydraulic top clamp

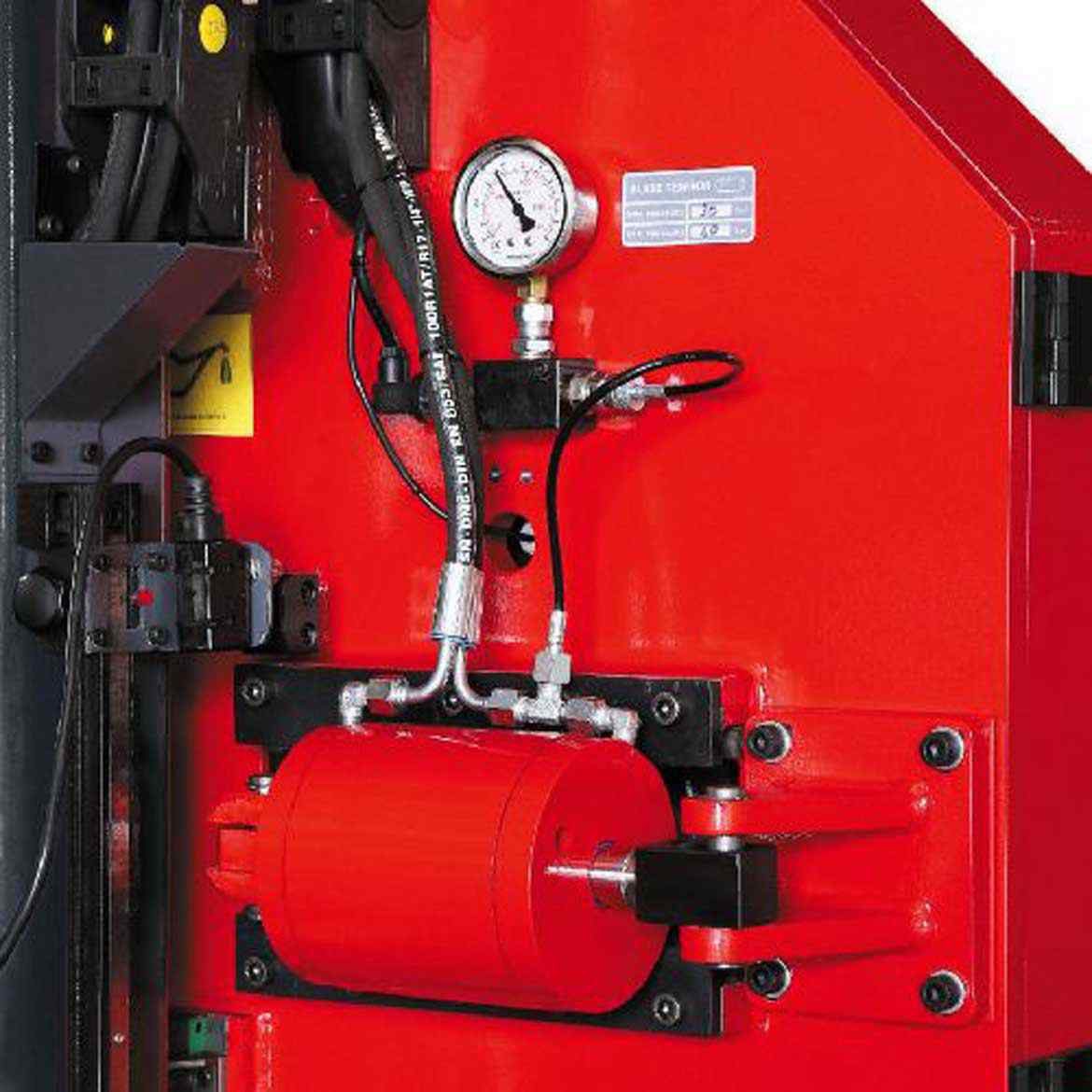

- Heavy duty Hydraulic blade tensioning unit
- Inverter controlled variable blade speed from 25 to 100 m/min
- Bow swivels up to 45° left & 60° right with easy mitre
- Precision control hydraulic downfeed
- Turntable bed with easy to read mitre scale
- Roller blade guides and carbide pads ensure accurate, straight cuts

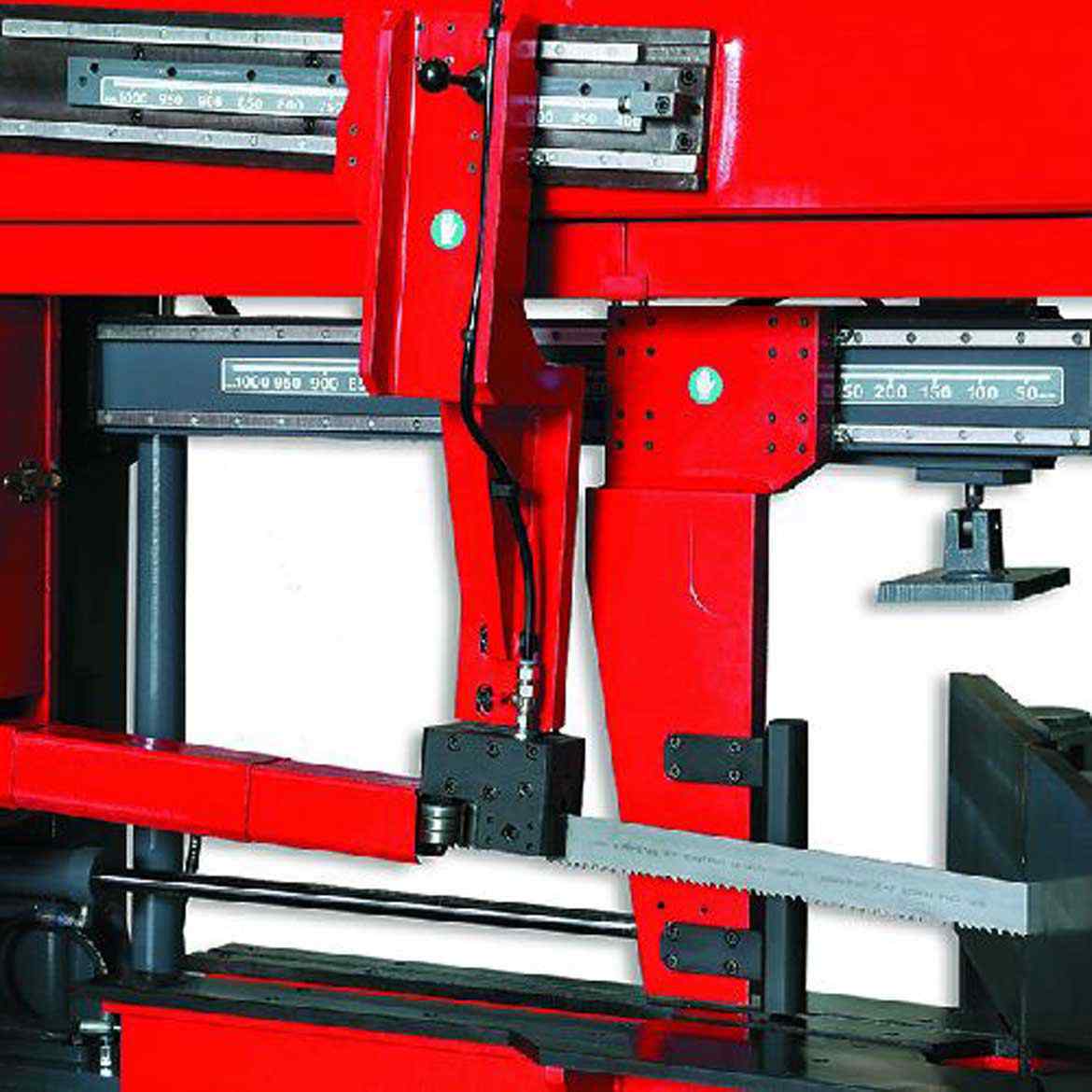

- Adjustable guide arm mounted on linear bearings
- Re-circulating coolant pump
- Motorised swarf brush

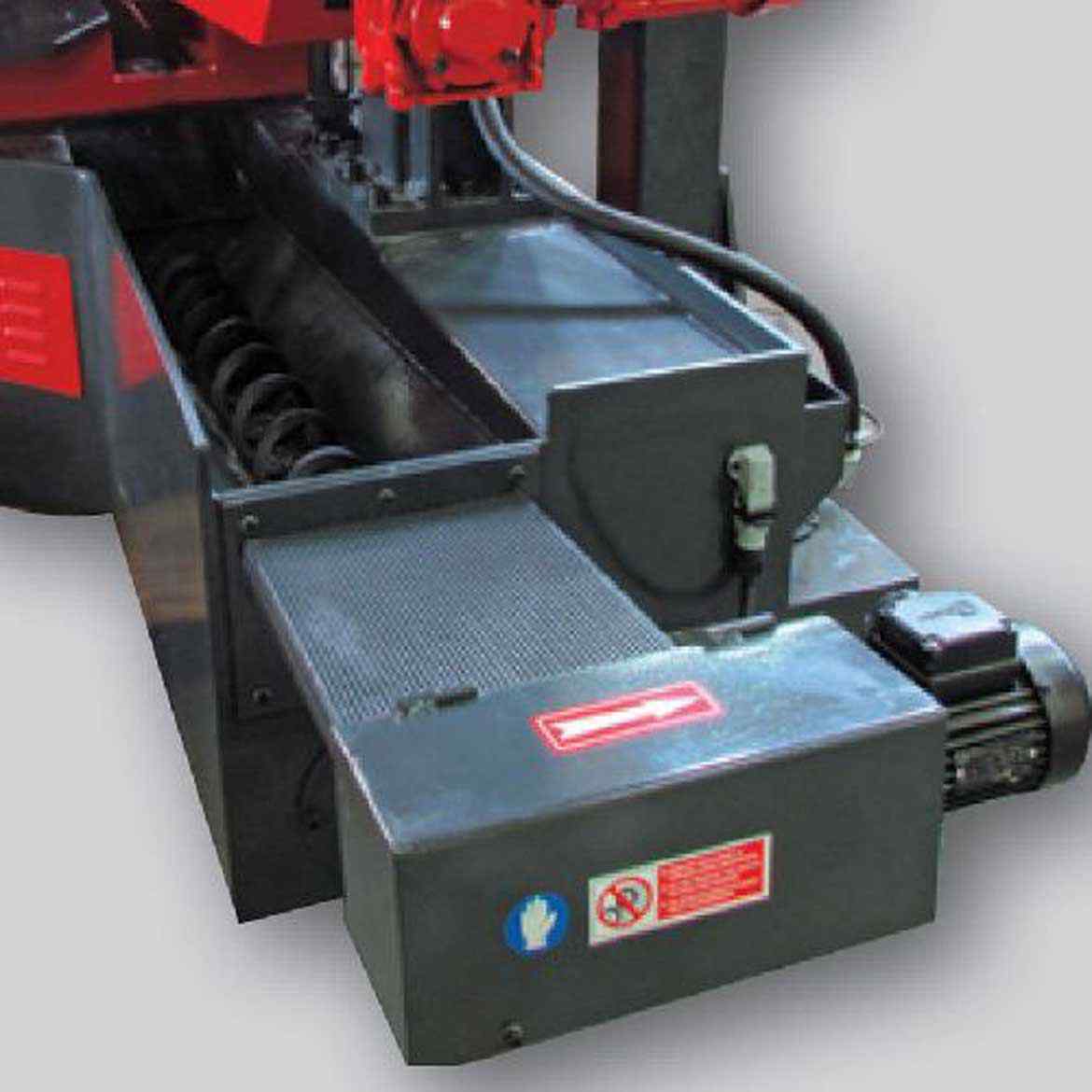

- Chip Conveyor

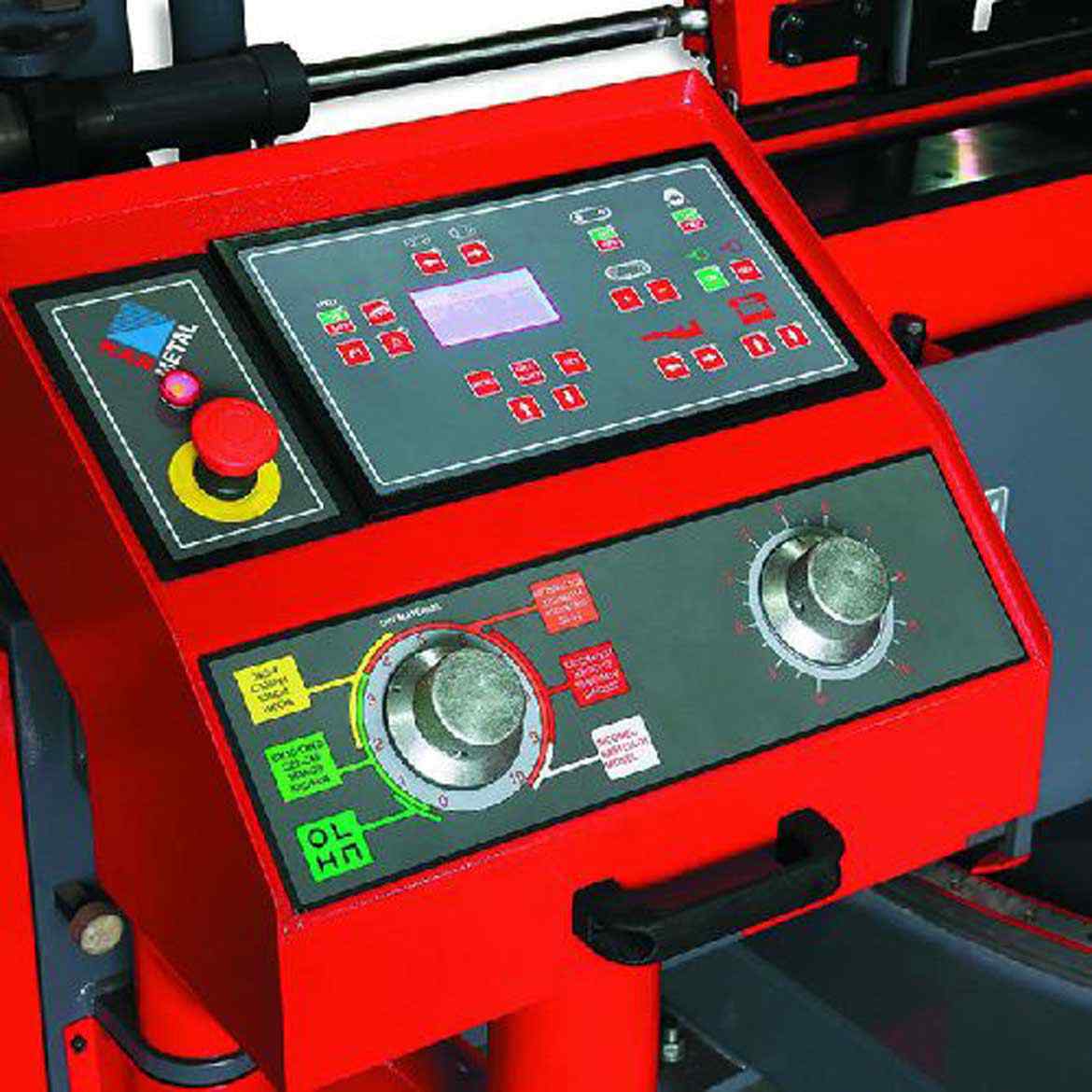

- Dıgıtal Control Panel
- Controls for sensitive downfeed pressure, inverter and hydraulic brake
- Blade guard with electrical cut-out switch
- Heavy, stable machine base
Get in touch +44 (0)1536 410999
KARMETAL KDG 560x1050 DM Technical Specifications
| Machine Type | Bandsaw |
|---|---|
| Blade Size | 7140mm × 54mm × 1.6mm |
| Blade Speed | Inverter controlled varaible speed 25 ~ 100 m/min |
| Table Height | 885mm |
| Motor | 5.5kW |
| Motor | 1.5kW |
| Hydraulic Tank | 1.5kW |
| Coolant Motor | 0.2kW |
| Weight | 3500 |
| 90° | 45° Left | 45° Right | 60° Left | 60° Right | |
|---|---|---|---|---|---|
| Round Section (mm) | 560mm | 560mm | 500mm | 380mm | |
| Rectangular Section Horizontal (mm) | 560x1050mm | 560x800mm | 560x680mm | 380x560mm | |
| Square Section (mm) | 560mm | 560mm | 500mm | 380mm |
