KARMETAL KDG 700×1250 DM
Machine Subcategory
Semi-Automatic Horizontal Bandsaw
Overview

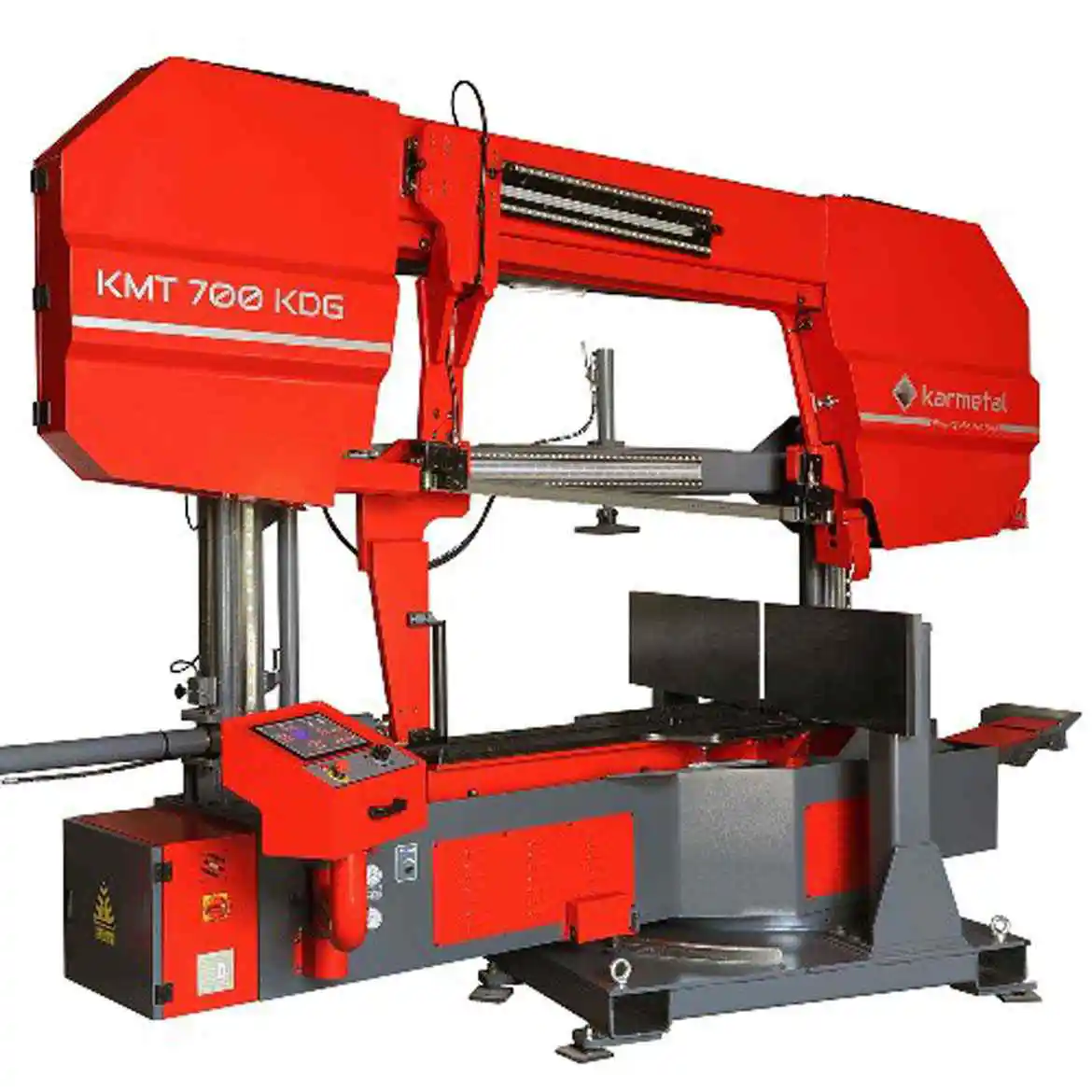

Karmetal KDG 700x1250 DM is a Large capacity Twin Column Semi Automatic Structural Mitre Cutting Bandsaw with Turntable Bed
Standard Specification
- Hydraulic vice for fast clamping
- Hydraulic top clamp

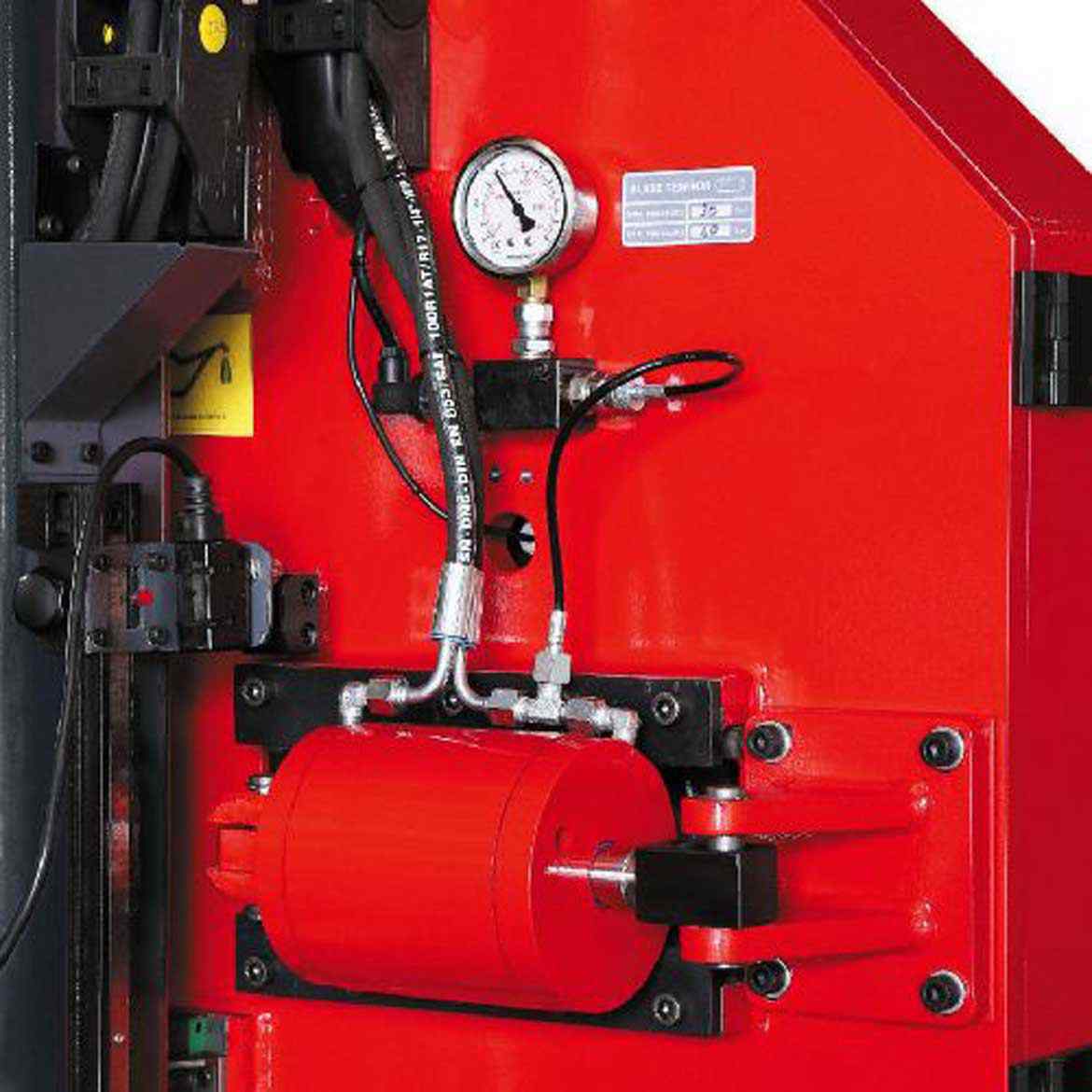

- Heavy duty Hydraulic blade tensioning unit
- Inverter controlled variable blade speed from 25 to 100 m/min
- Bow swivels up to 45° left & 60° right with easy mitre
- Precision control hydraulic downfeed
- Turntable bed with easy to read mitre scale

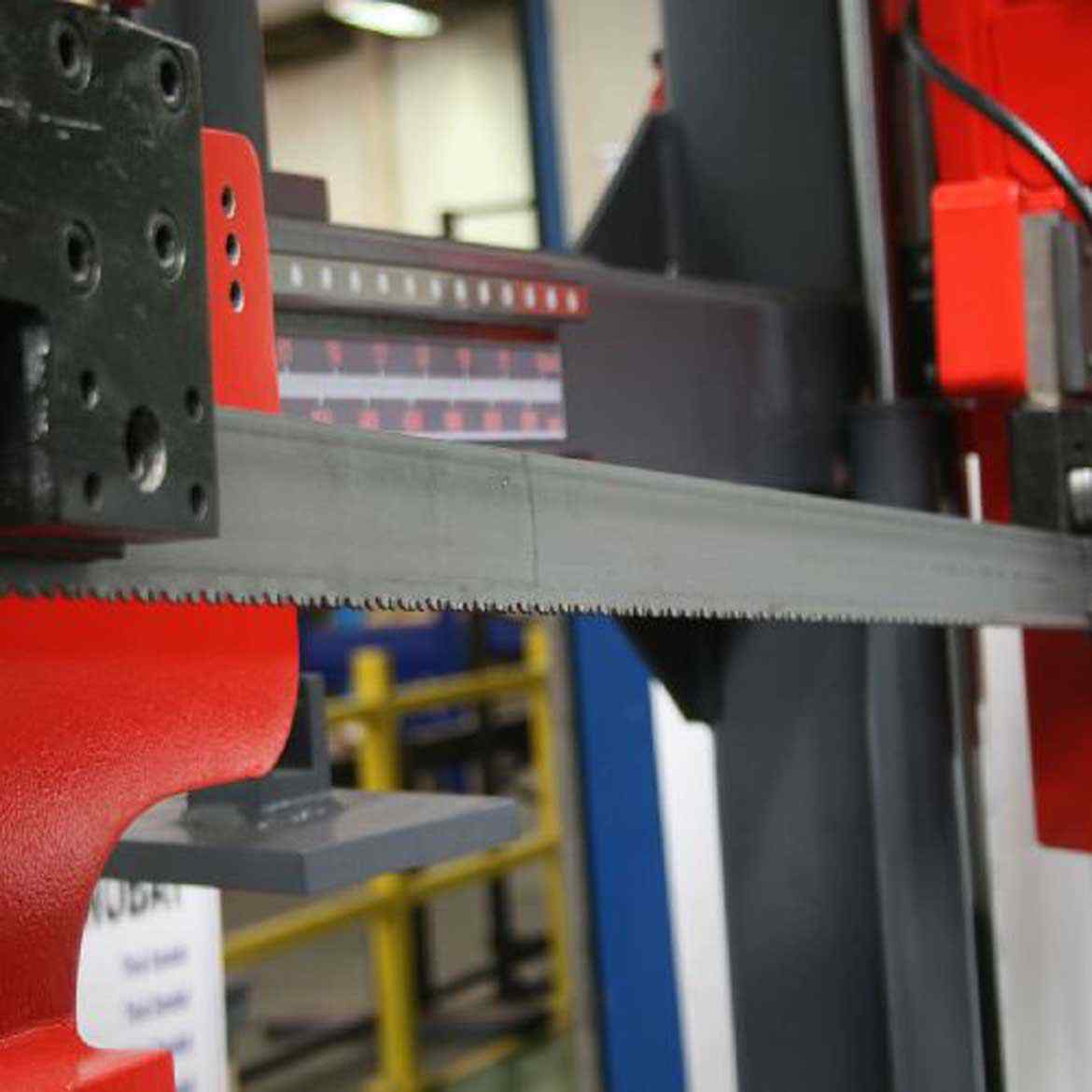

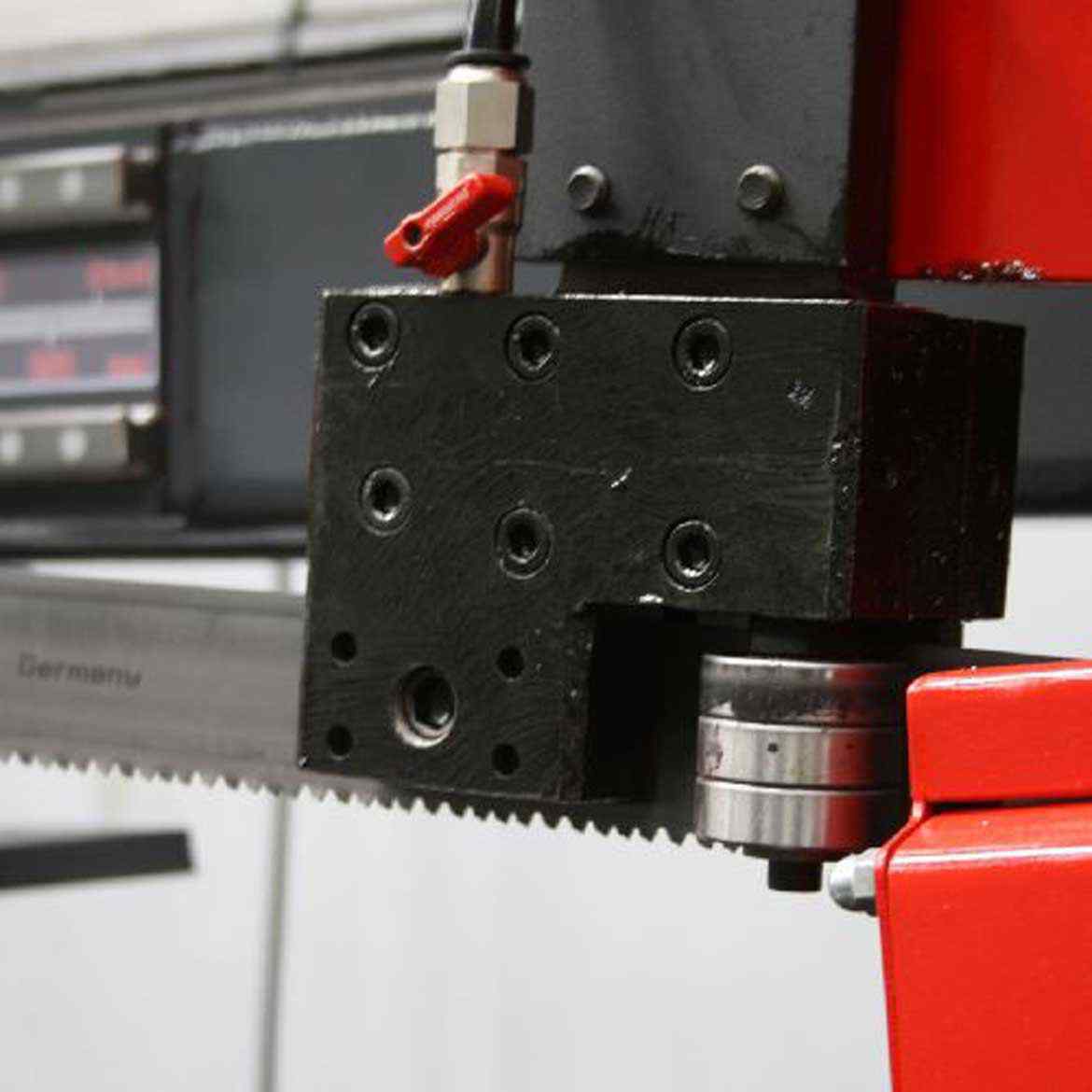

- Roller blade guides and carbide pads ensure accurate, straight cuts
- Adjustable guide arm mounted on linear bearings
- Re-circulating coolant pump
- Motorised swarf brush

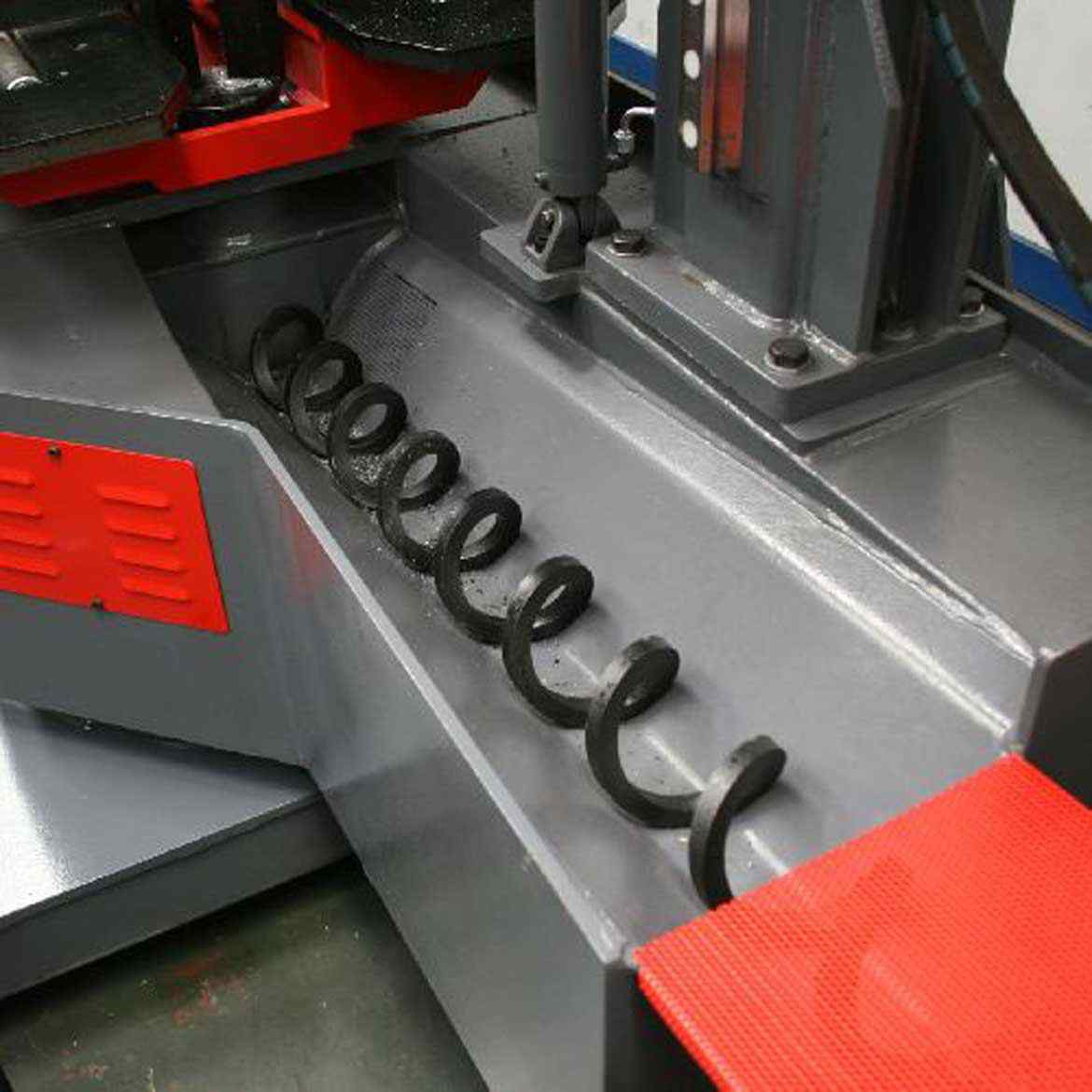

- Chip Conveyor

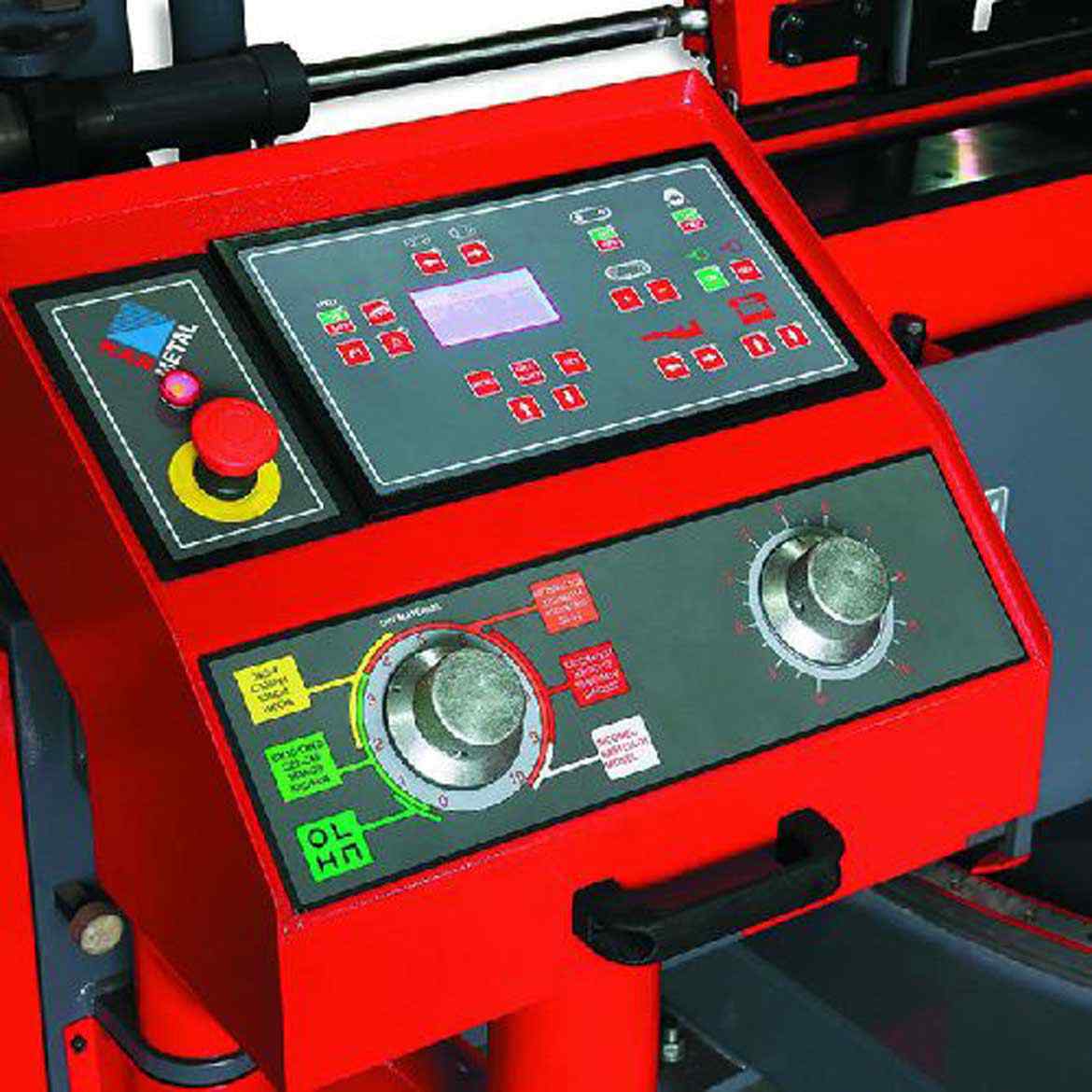

- Dıgıtal Control Panel
- Controls for sensitive downfeed pressure, inverter and hydraulic brake
- Blade guard with electrical cut-out switch
- Heavy, stable machine base
- Laser guide
KARMETAL KDG 700x1250 DM Technical Specifications
| Manufacturer | Karmetal |
|---|---|
| Machine Type | Bandsaw |
| Operation Type | Semi-Automatic |
| Material Type | Sections |
| Material | Section |
| Blade Size | 8520 × 54 × 1.6 mm |
| Blade Speed | Inverter controlled varaible speed 25 ~ 100 m/min |
| Table Height | 870 mm |
| Motor | 7.5 kW |
| Coolant Motor | 0.2 kW |
| Weight | 5500 |
| 90° | 45° Left | 45° Right | 60° Left | 60° Right | |
| Round Section (mm) | 700 mm | 700 mm | 700 mm | 520 mm | |
| Rectangular Section Horizontal (mm) | 700 x 1250 mm | 700 x 950 mm | 700 x 800 mm | 520 x 700 mm | |
| Rectangular Section Vertical (mm) | |||||
| Square Section (mm) | 700 mm | 700 mm | 700 mm | 520 mm |
