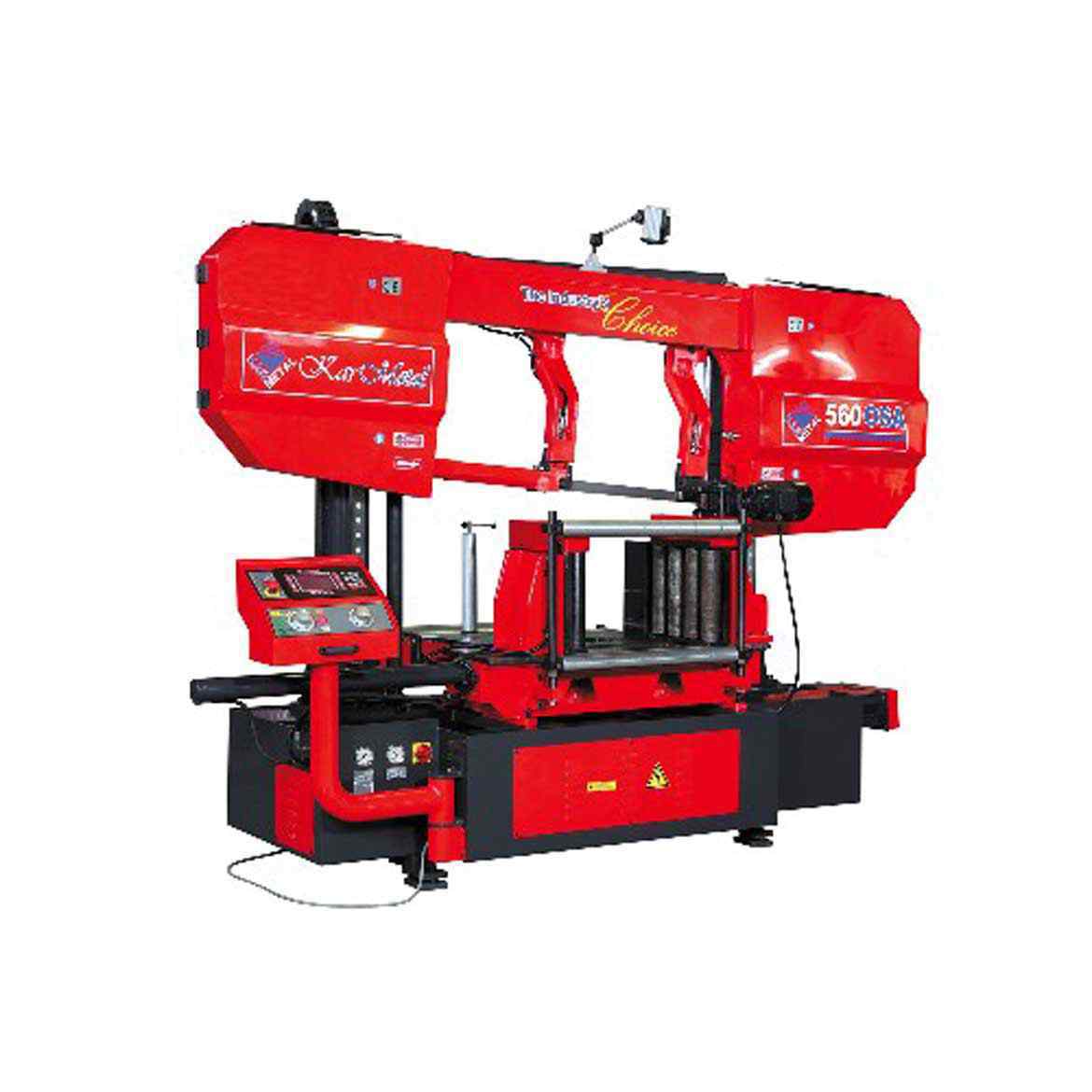

KARMETAL KMT 560 OSA
Machine Subcategory
Automatic Horizontal Bandsaw
Overview
Twin Column Roller Feed Automatic Bandsaw with Hydraulic Vice & Pressure Reduction, PLC Digital Control panel and Roller Stand as Standard.
Standard Specification
- Heavy duty Twin Column construction
- Hydraulic vice
- Variable blade speed 25~100m/min
- Variable Vice pressure
- Powered swarf conveyor
- Adjustable manual top roller
- Digital Control Panel
- Robust, simple to use controls
- Rotary encoder for material component length
- Hydraulic band tension
- Precise, adjustable hydraulic regulation of the bow descent
- Material support conveyor with adjustable vertical rollers
Get in touch +44 (0)1536 410999
KARMETAL KMT 560 OSA Technical Specifications
| Machine Type | Bandsaw |
|---|---|
| Blade Size | 6580mm × 54mm × 1.6mm |
| Blade Speed | Inverter controlled variable speed 25 ~ 100 m/min |
| Table Height | 730mm |
| Motor | 5.5kW |
| Coolant Motor | 0.12kW |
| Weight | 2800 |
| 90° | 45° Left | 45° Right | 60° Left | 60° Right | |
|---|---|---|---|---|---|
| Round Section (mm) | 560mm | ||||
| Rectangular Section Horizontal (mm) | 560x650mm | ||||
| Square Section (mm) | 560mm |
