KARMETAL KMT CRAFT 220×250
Machine Subcategory
Manual Horizontal Bandsaw
Overview

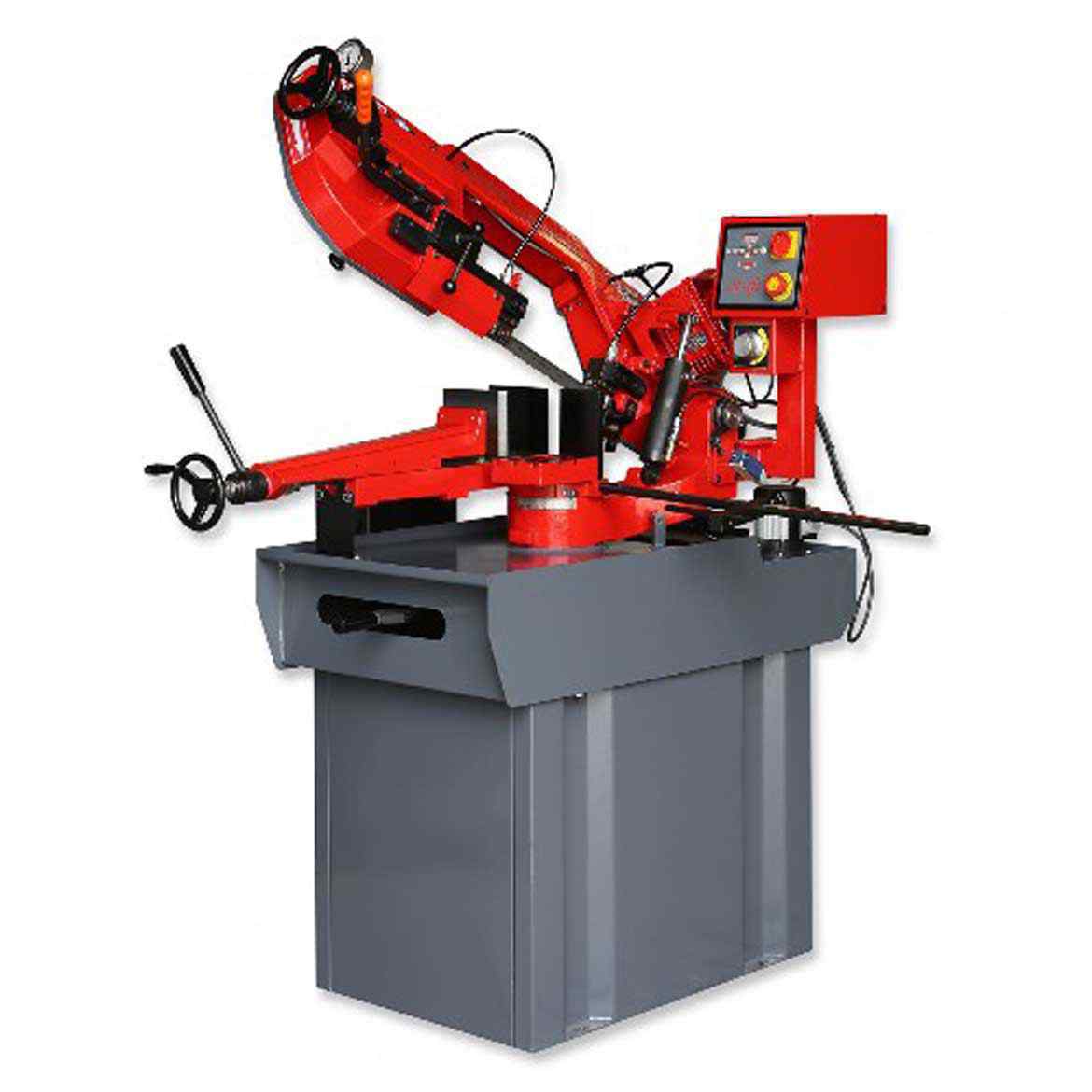

Compact Manual Mitre Cutting Bandsaw with Turntable Bed - Single Phase
Standard Specification
- Adjustable 500mm Length Setting Bar
- Adjustable Tension Band Wheel

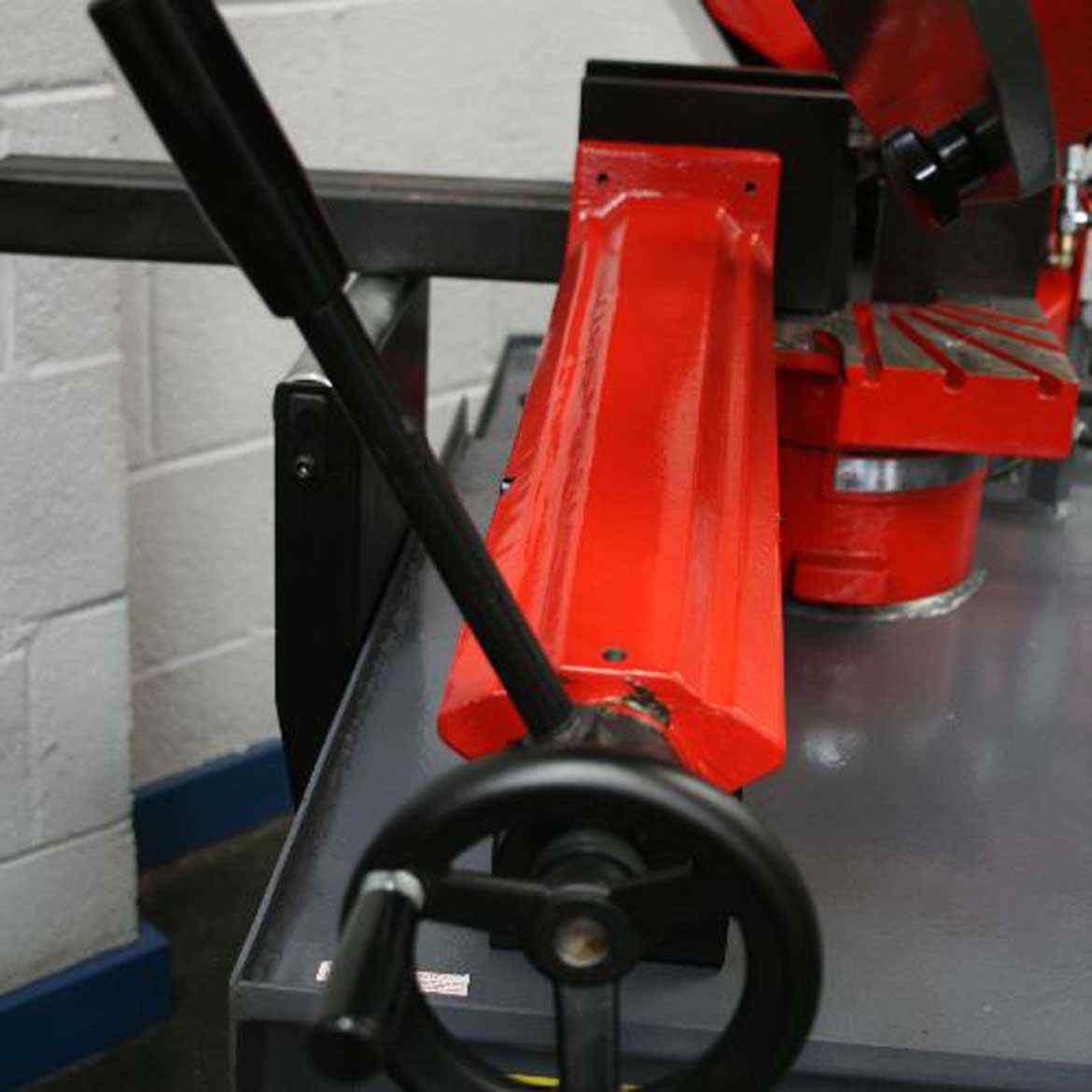

- Quick action vice for fast clamping

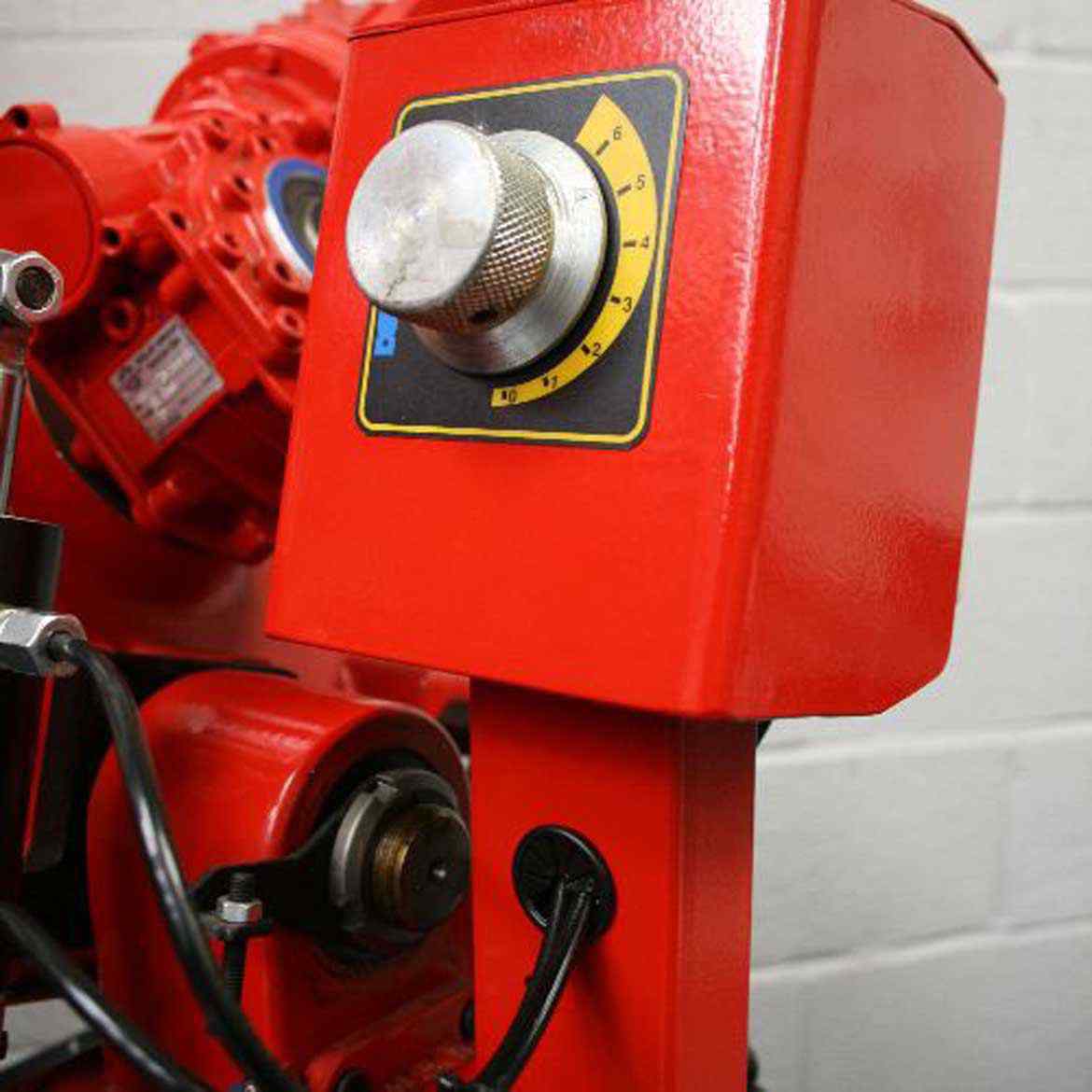

- Heavy duty blade tensioning unit with indicator
- Inverter controlled variable blade speed from 25 to 100 m/min
- Bow swivels up to 60° with easy mitre

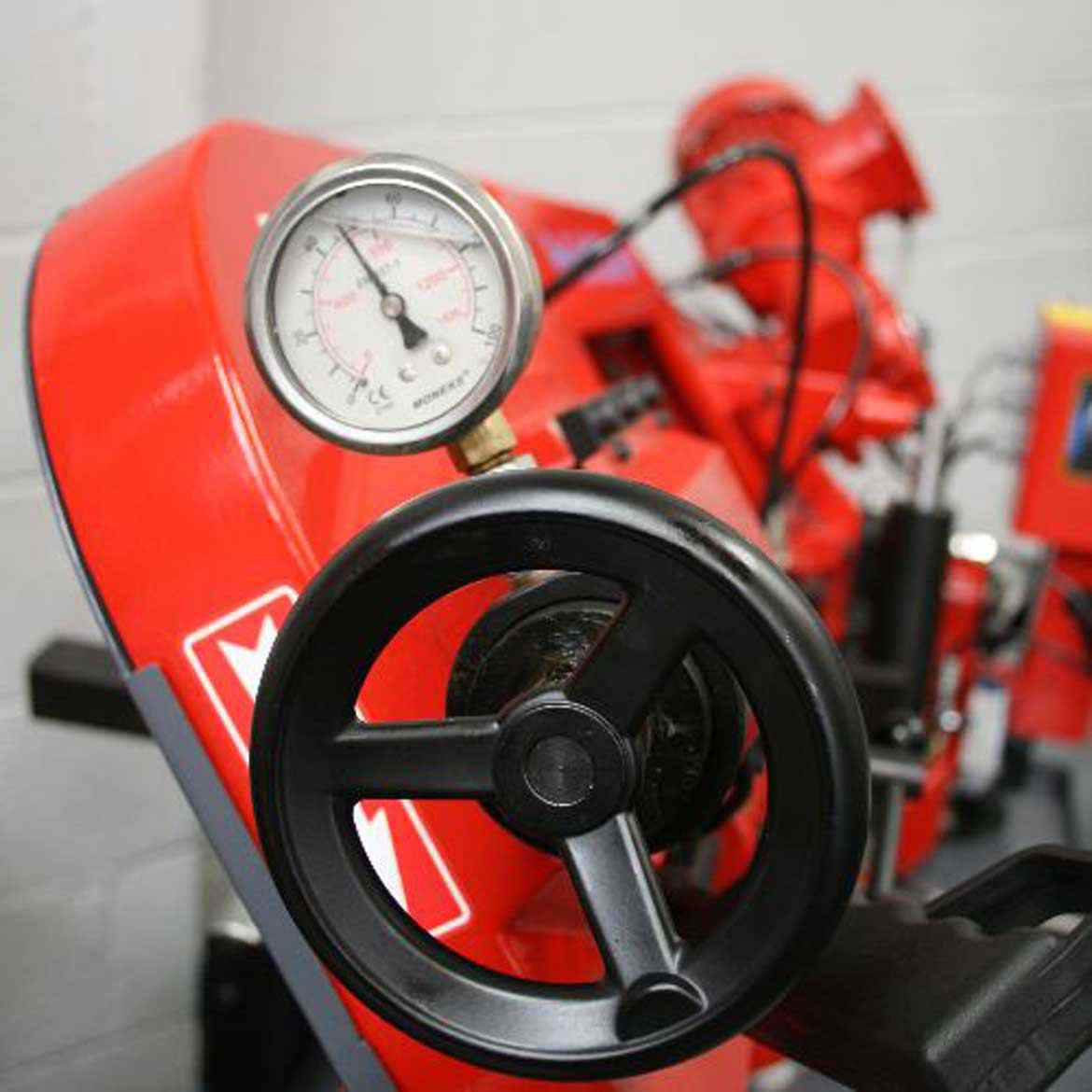

- Precision control hydraulic downfeed
- Heavy duty one-piece cast bow

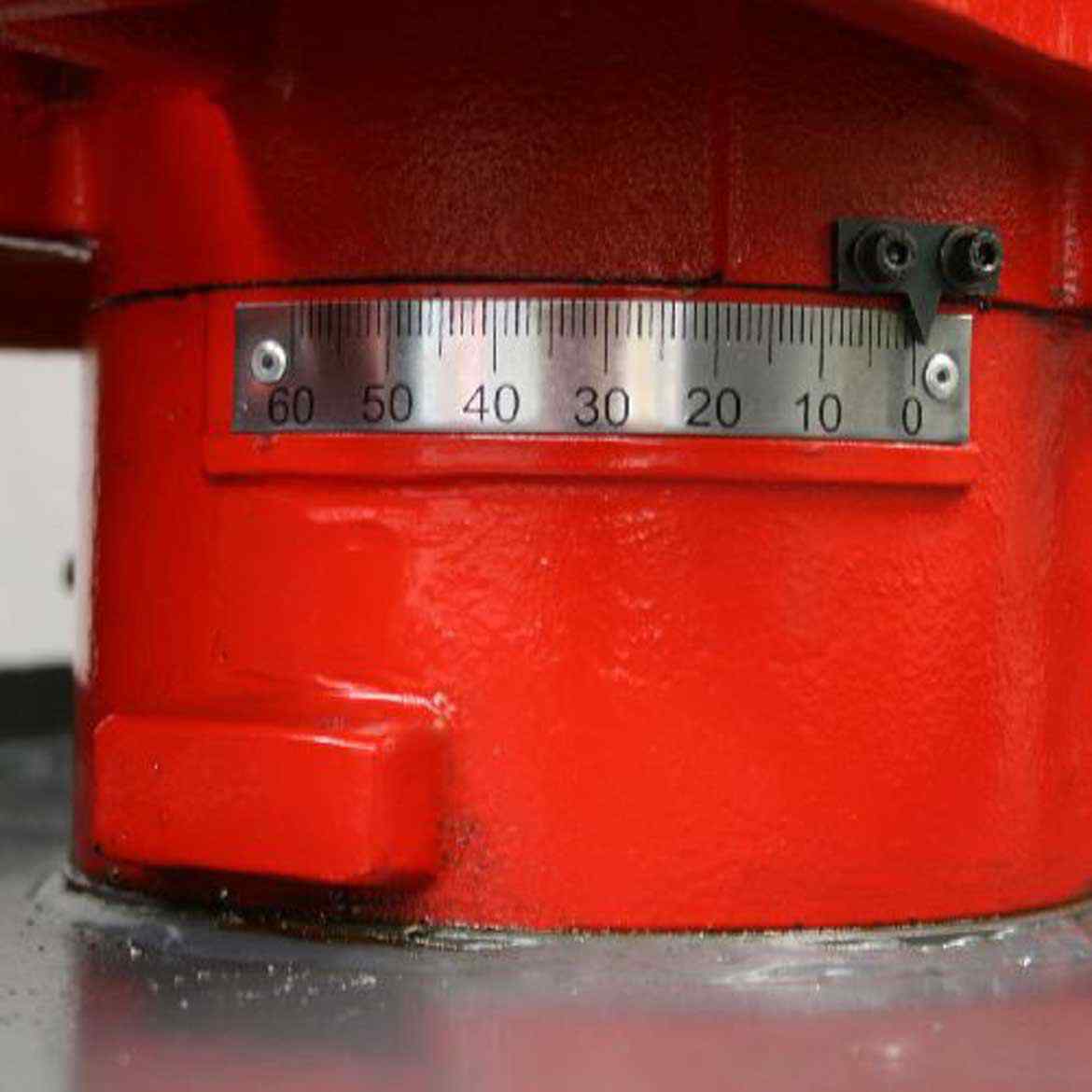

- Turntable bed with easy to read mitre scale
- Substantial vices, quick set lever operation

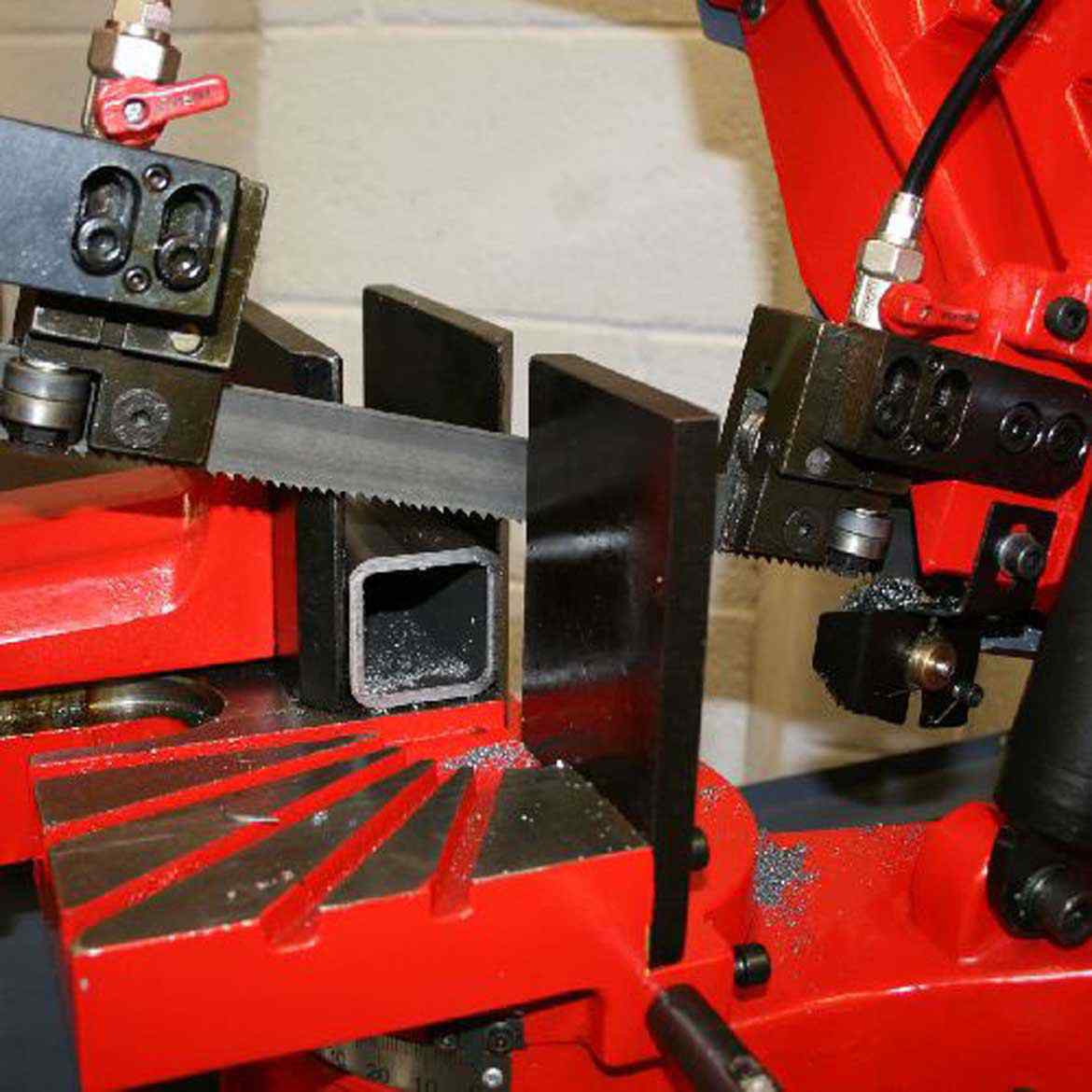

- Roller blade guides and carbide pads ensure accurate, straight cuts
- Adjustable guide arm
- Re-circulating coolant pump

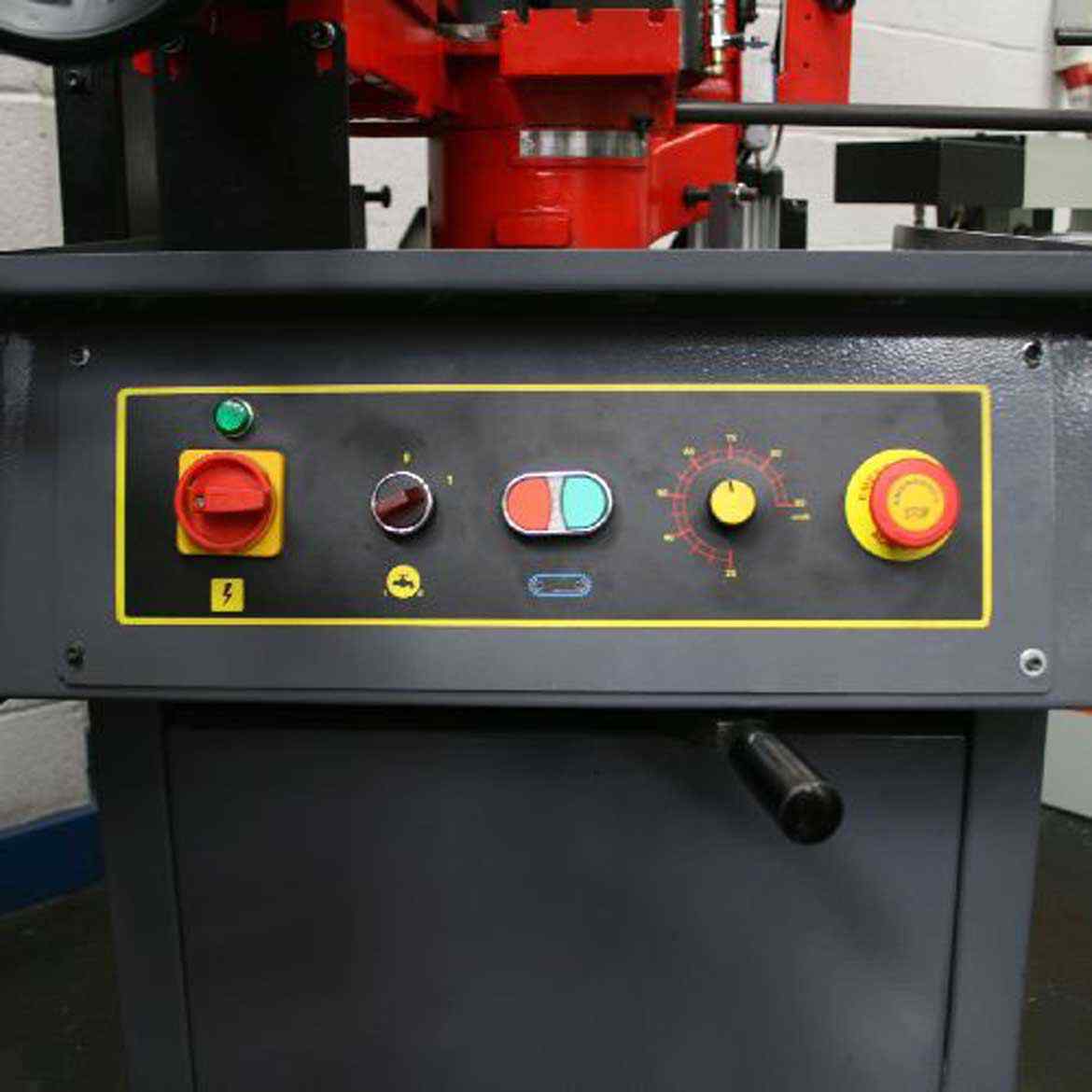

- Simple, robust controls
- Blade guard with electrical cut-out switch
- Heavy, stable machine base
Get in touch +44 (0)1536 410999
KARMETAL KMT CRAFT 220x250 Technical Specifications
| Machine Type | Bandsaw |
|---|---|
| Blade Size | 2500mm × 27mm × 0.9mm |
| Blade Speed | Inverter controlled variable speed 25 ~ 100 m/min |
| Table Height | 915mm |
| Motor | 1.1kW |
| Weight | 250 |
| 90° | 45° Left | 45° Right | 60° Left | 60° Right | |
|---|---|---|---|---|---|
| Round Section (mm) | 220mm | 160mm | 95mm | ||
| Rectangular Section Horizontal (mm) | 180x250mm | 140x150mm | 75x95mm | ||
| Square Section (mm) | 200mm | 140mm | 75mm |
