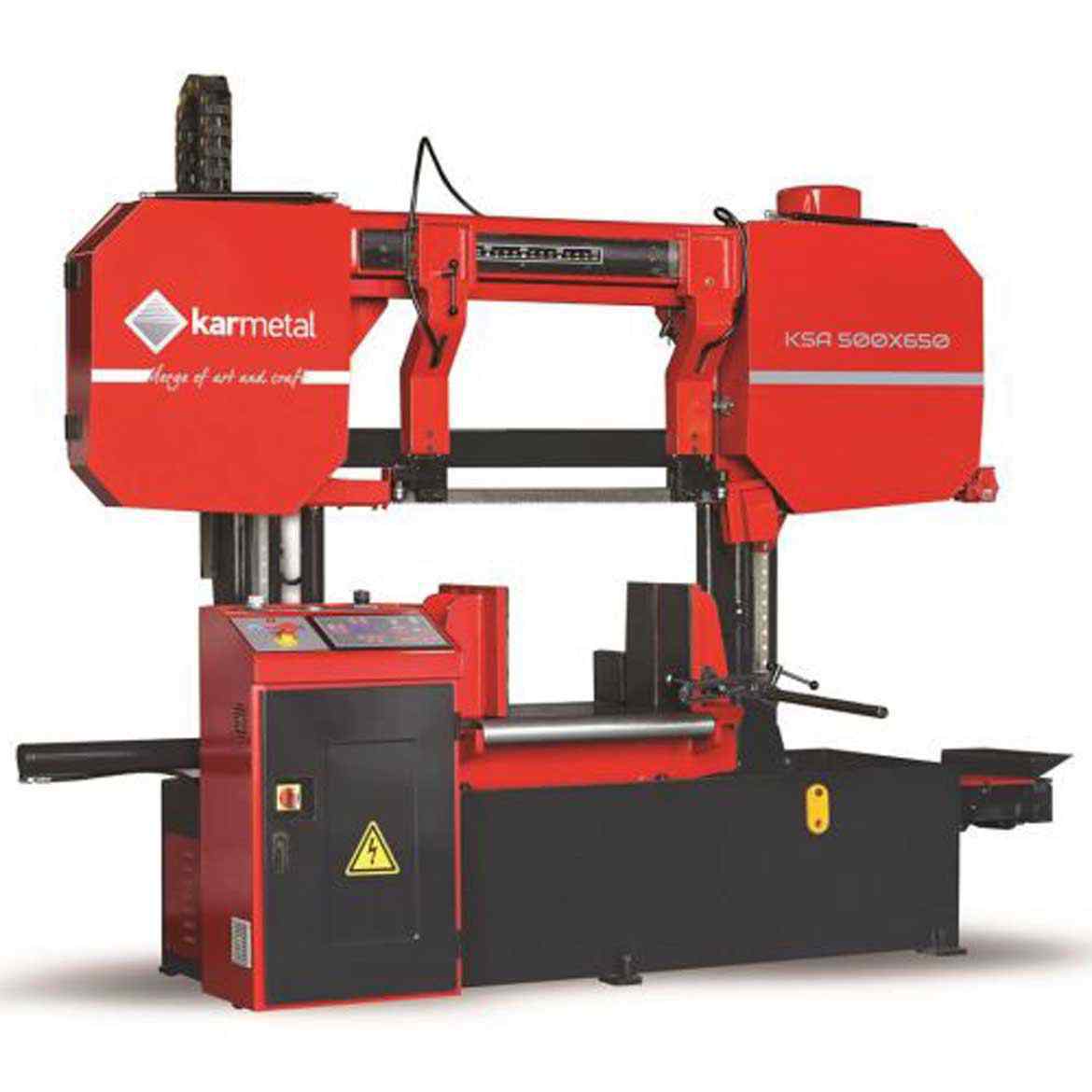

KARMETAL KSA 500×650
Machine Subcategory
Semi Automatic Horizontal Bandsaw
Overview
Twin Column Semi-Automatic bandsaw designed for straight cutting sections and solid materials
Standard Specification
- Heavy duty twin column construction
- Hydraulic vice for fast clamping
- Heavy duty hydraulic blade tensioning unit
- Powerful 5.5kW drive motor
- Inverter controlled variable blade speed from 25 to 90 m/min
- Precision control hydraulic downfeed
- Control for sensitive downfeed pressure
- Roller blade guides and carbide pads ensure accurate, straight cuts
- Adjustable guide arm
- Re-circulating coolant pump
- Powered Swarf Brush
- Powered Swarf Conveyor
- Simple, robust controls with Digital Control Panel
- Blade guard with electrical cut-out switch
- Heavy, stable machine base
- Material Infeed Table
Get in touch +44 (0)1536 410999
KARMETAL KSA 500x650 Technical Specifications
| Machine Type | Bandsaw |
|---|---|
| Blade Size | 5420mm × 41mm × 1.3mm |
| Blade Speed | Inverter controlled variable speed 25 ~ 90 m/min |
| Table Height | 700mm |
| Motor | 5.5kW |
| Coolant Motor | 0.2kW |
| Weight | 2250 |
| 90° | 45° Left | 45° Right | 60° Left | 60° Right | |
|---|---|---|---|---|---|
| Round Section (mm) | 500mm | ||||
| Rectangular Section Horizontal (mm) | 500x650mm | ||||
| Square Section (mm) | 500mm |
