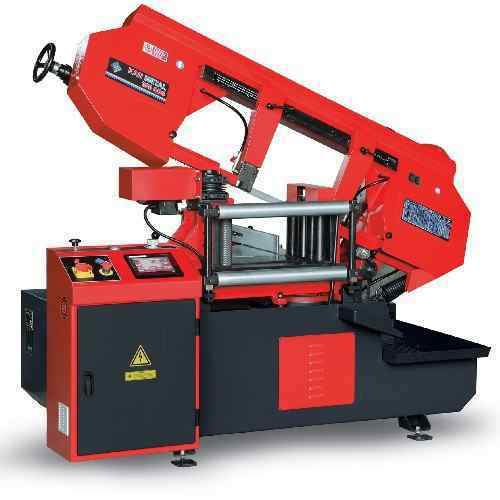

KARMETAL ODG 350×400 PLC
Machine Subcategory
Automatic Horizontal Bandsaw
Overview
Roller Feed Automatic Bandsaw with One-Way Mitre. Vice Pressure Reduction, Touch Screen Controls and Roller Stand as Standard.
Standard Specification
- Heavy duty construction
- One way mitre

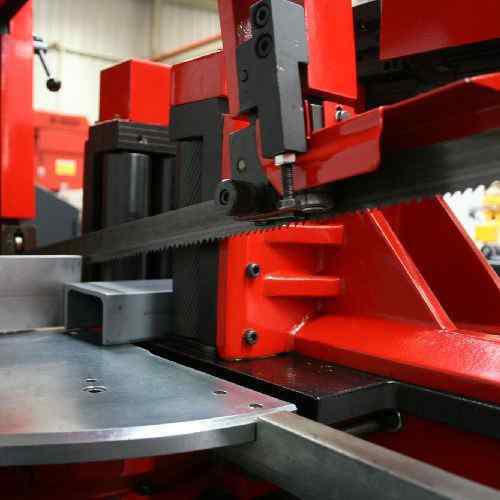

- Hydraulic vice
- Variable blade speed 25~90m/min
- Powerful 4.0kW drive motor

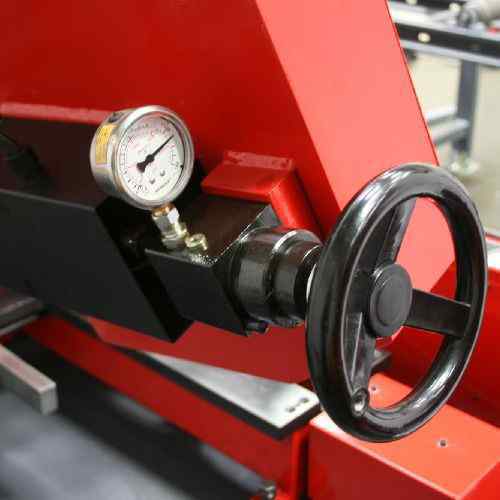

- Variable Vice pressure

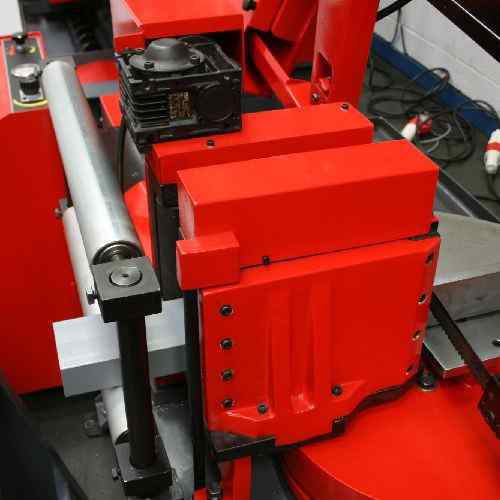

- Adjustable manual top roller

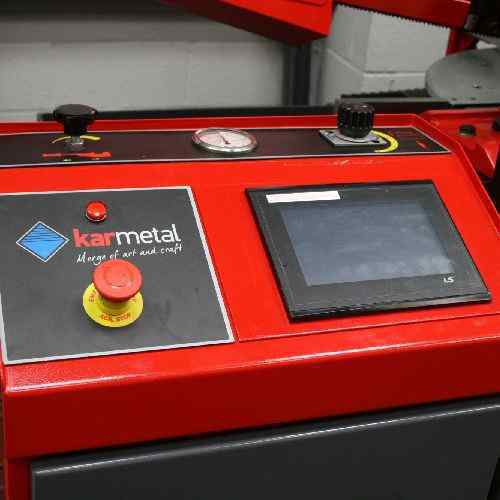

- PLC Control
- Robust, simple to use controls
- Powered swarf conveyor
- Rotary encoder for material component length
- Hydromechanical band tension
- Precise, adjustable hydraulic regulation of the bow descent

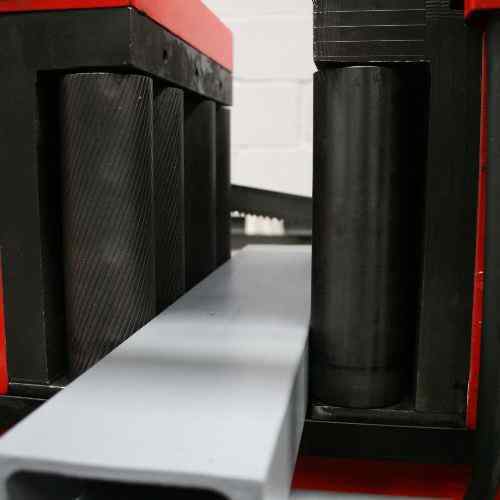

- Material support conveyor with adjustable vertical rollers
KARMETAL ODG 350x400 PLC Technical Specifications
| Blade Size | 4350 x 34 x 1.1 |
|---|---|
| Blade Speed | Inverter controlled variable speed 25 ~ 90 m/min |
| Table Height | 750mm |
| Motor | 4Kw |
| Coolant Motor | 0.12kW |
| Weight | 1350 |
| 90° | 45° Left | 45° Right | 60° Left | 60° Right | |
| Round Section (mm) | 350 | 300 | 180 | ||
| Rectangular Section Horizontal (mm) | 330 x 400 | 270 x 300 | 150 x 180 | ||
| Rectangular Section Vertical (mm) |
|||||
| Square Section (mm) | 330 | 280 | 160 |
