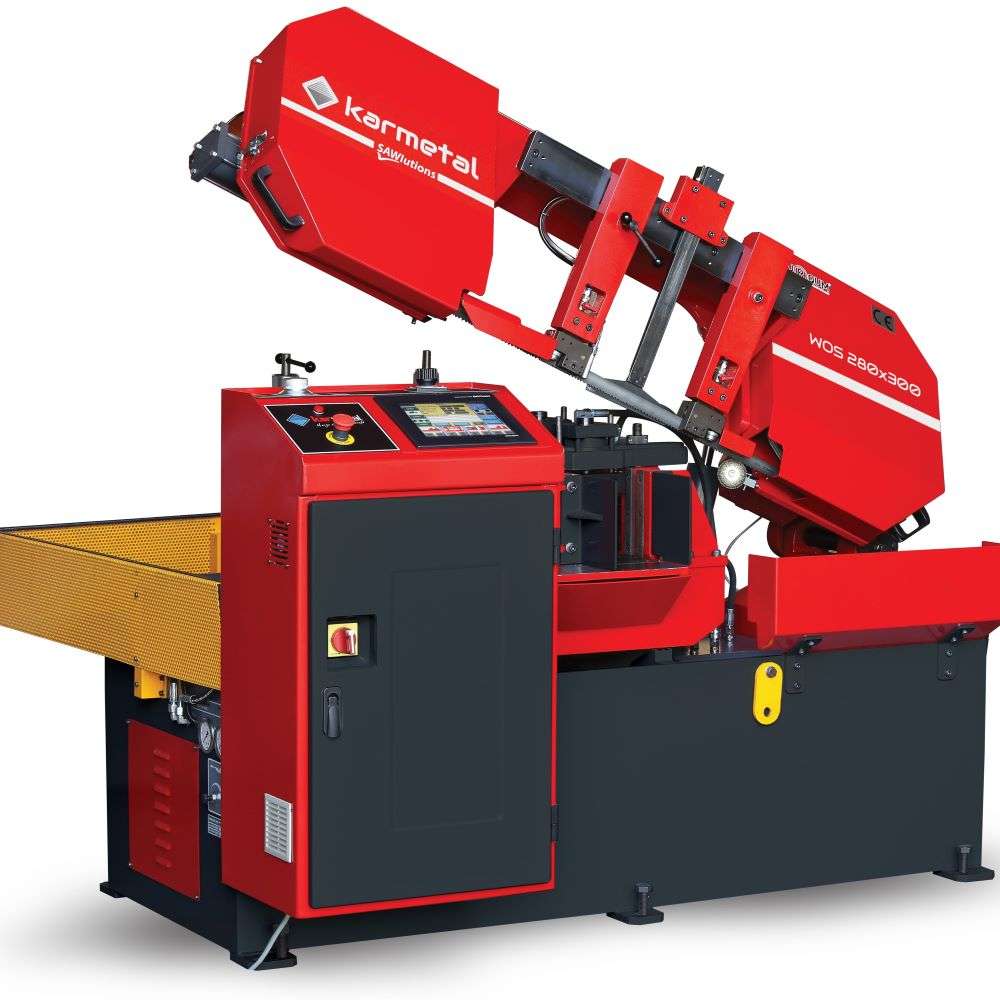

KARMETAL WOS 280×300
Machine Subcategory
Automatic Horizontal Bandsaw
Overview
Heavy duty Vice Feed Automatic Bandsaw with bundle clamps. Touch Screen Controls and Roller table as Standard.
Standard Specification
- Heavy duty construction
- Split full stroke hydraulic vices, clamps material on either side of cut
- Variable blade speed 22~90m/min
- Powerful 2.2kW drive motor
- 500mm material feed stroke
- Variable Vice pressure
- Hydraulic bundle clamps
- PLC control unit, programmable controls
- Robust, simple to use controls
- Material specification compensation valve
- Powered swarf brush
- Powered swarf conveyor
- Rotary encoder for material component length
- Hydraulic blade tension
- Precise, adjustable hydraulic regulation of the bow descent
- Material support conveyor with adjustable vertical rollers
Get in touch +44 (0)1536 410999
KARMETAL WOS 280x300 Technical Specifications
| Machine Type | Automatic Horizontal Bandsaw |
|---|---|
| Blade Size | 3660mm × 27mm × 0.9mm |
| Blade Speed | Inverter controlled variable speed 22 ~ 90 m/min |
| Table Height | 715mm |
| Motor | 2.2kW |
| Coolant Motor | 0.12kW |
| Feeding Stroke | 500mm |
| Weight | 1175 |
