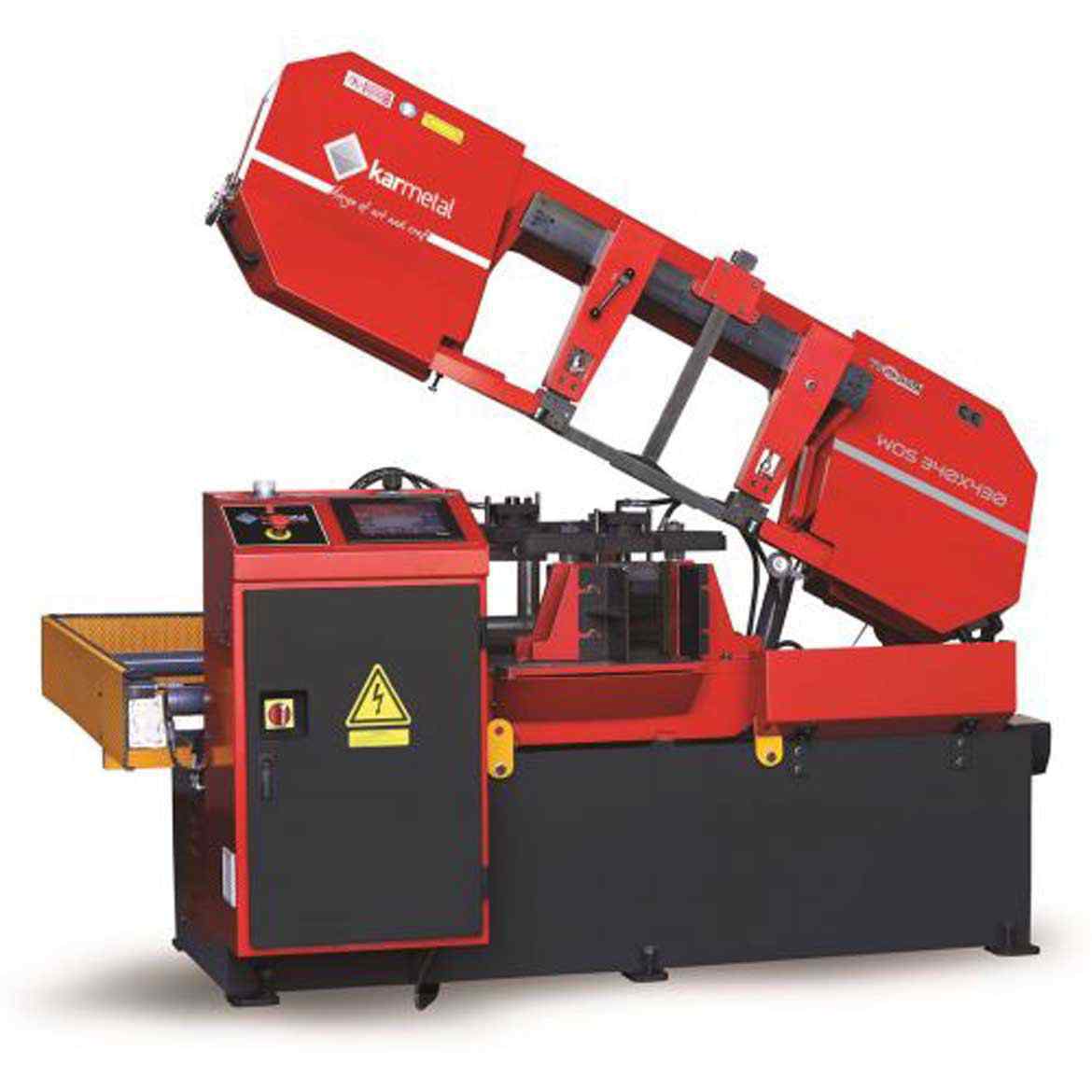

KARMETAL WOS 340×400
Machine Subcategory
Automatic Horizontal Bandsaw
Overview
Heavy duty Vice Feed Automatic Bandsaw with bundle clamps. Touch Screen Controls and Roller table as Standard.
Standard Specification
- Heavy duty construction
- Split full stroke hydraulic vices, clamps material on either side of cut
- Variable blade speed 25~100m/min
- Powerful 4kW drive motor
- 500mm material feed stroke
- Variable Vice pressure
- Hydraulic bundle clamps
- PLC control unit, programmable controls
- Robust, simple to use controls
- Material specification compensation valve
- Powered swarf brush
- Powered swarf conveyor
- Rotary encoder for material component length
- Hydraulic blade tension
- Precise, adjustable hydraulic regulation of the bow descent
- Material support conveyor with adjustable vertical rollers
Get in touch +44 (0)1536 410999
KARMETAL WOS 340x400 Technical Specifications
| Machine Type | Bandsaw |
|---|---|
| Blade Size | 4300mm × 34mm × 1.1mm |
| Blade Speed | Inverter controlled variable speed 25 ~ 100 m/min |
| Table Height | 700mm |
| Motor | 4kW |
| Coolant Motor | 0.12kW |
| Feeding Stroke | 500mm |
| Weight | 1500 |
| 90° | 45° Left | 45° Right | 60° Left | 60° Right | |
|---|---|---|---|---|---|
| Round Section (mm) | 340mm | ||||
| Rectangular Section Horizontal (mm) | 340x400mm | ||||
| Square Section (mm) | 340mm |
