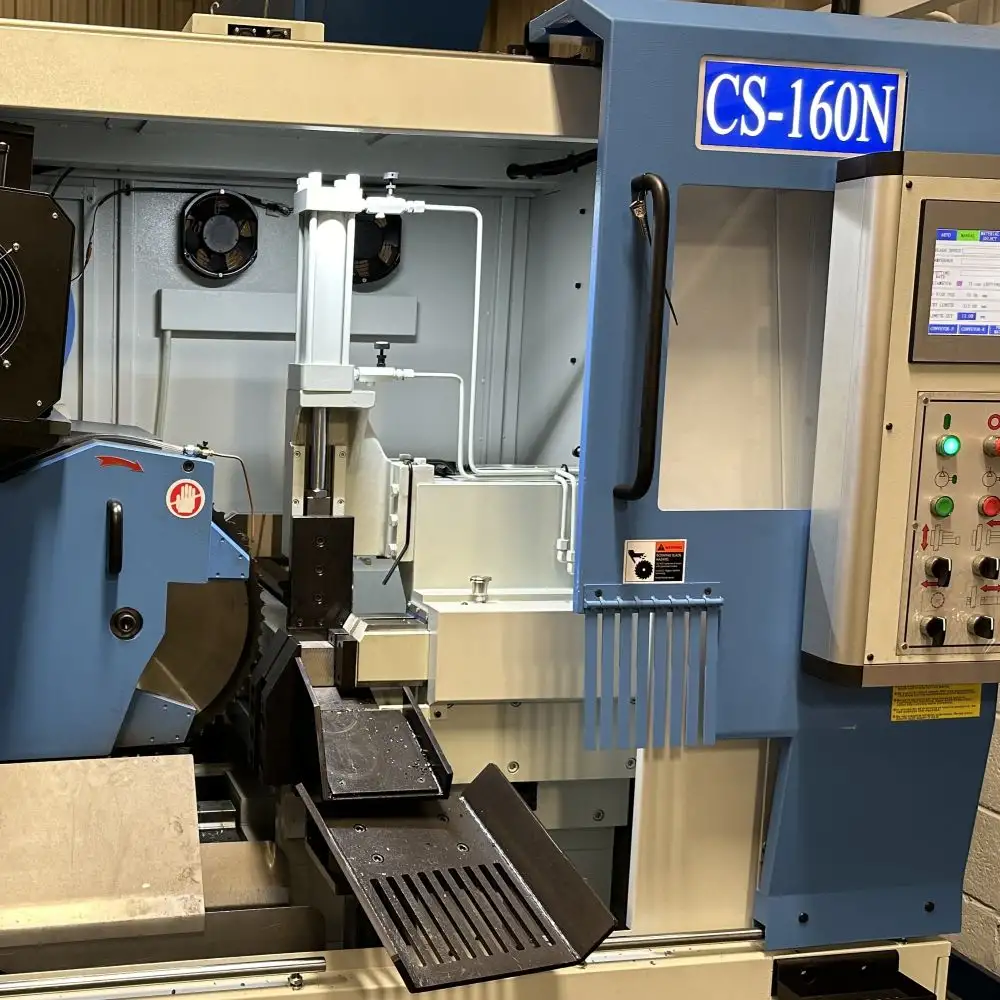

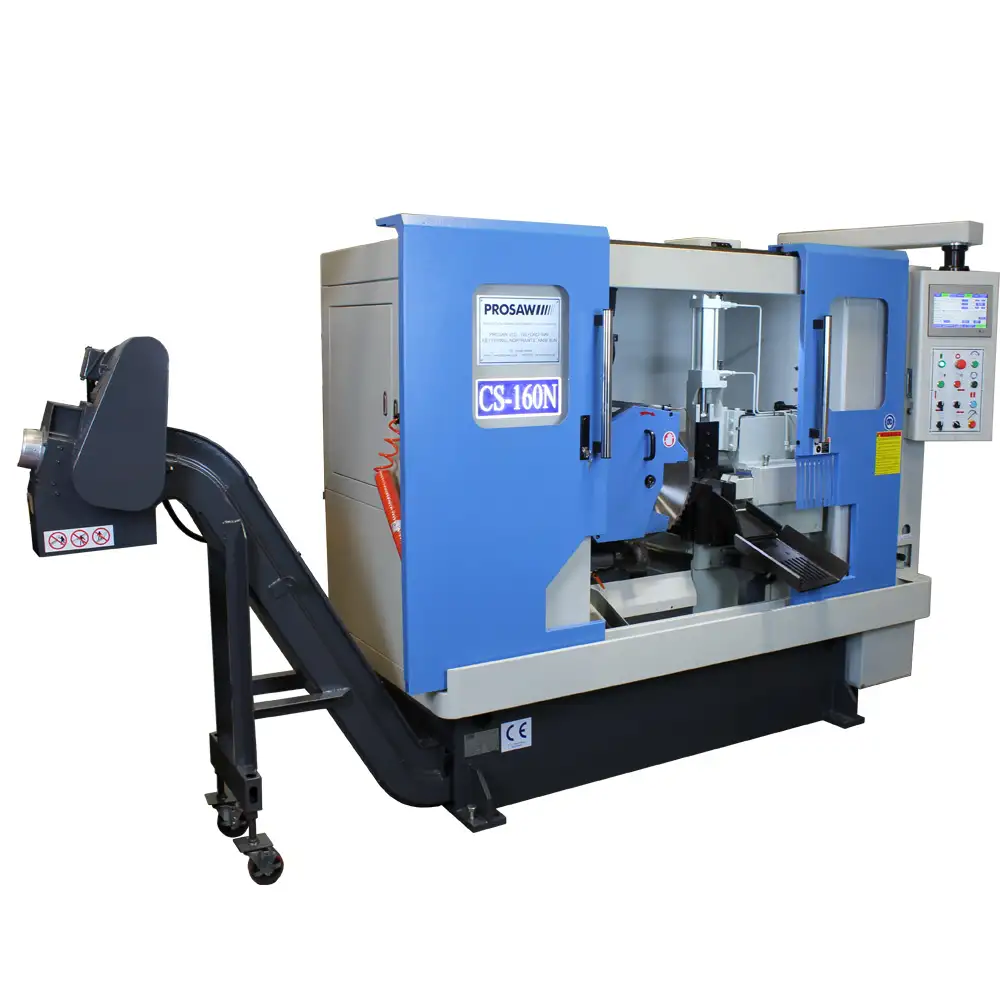

The ‘NEW’ Mega CS-160N is a extra heavy duty powerful precision cutting machine with excellent repeatability by means of an NC controlled servo motor.
Designed for fast cutting of solid bar and tube, providing a clean, swarf free billets.

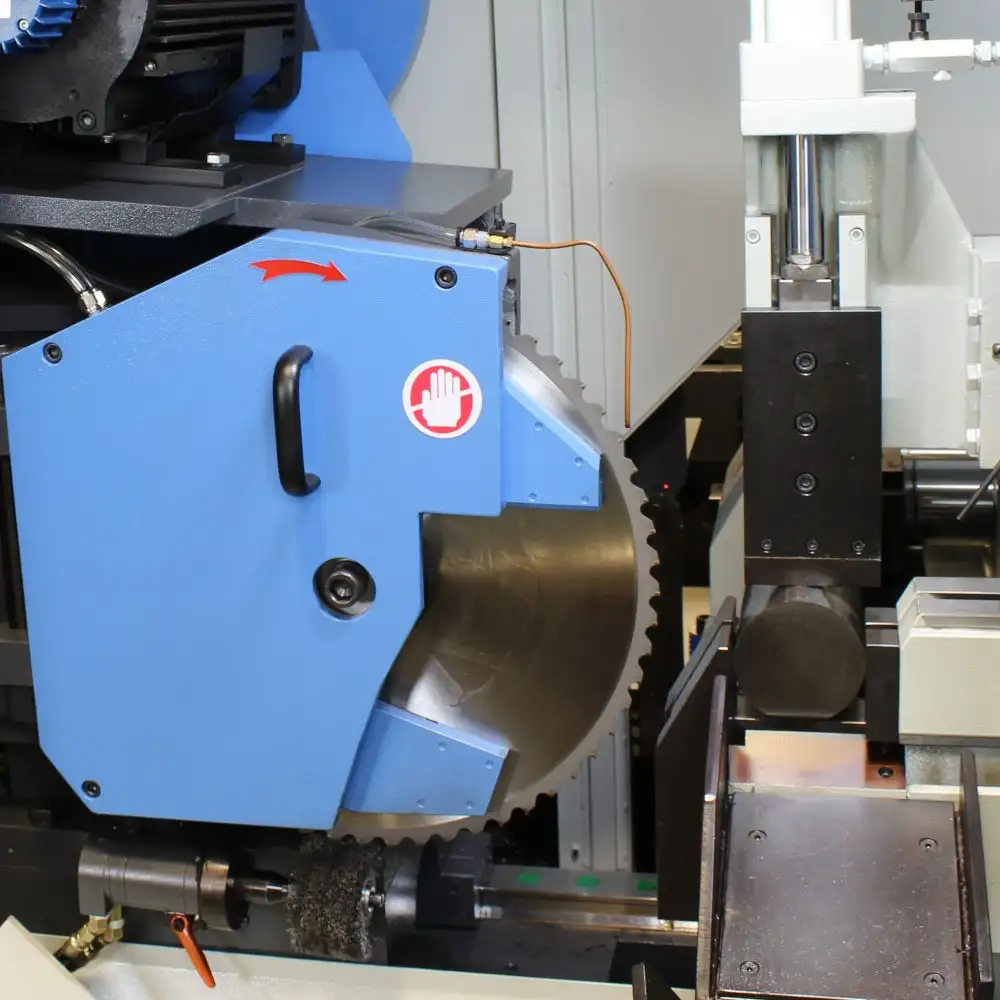

• Heavy duty gear transmission designed for high speed carbide blade sawing
• Anti backlash gearbox specifically designed for carbide sawing to minimize vibration for optimum cut quality and blade life
• NC servo motor and ball screw feeder for precision accuracy and quick set up
• Integrated magazine feeder with easy adjustment of material size
• Oil mist spray for virtually dry cut and superb finish
• Automatic trim cut separation chute
• Top clamp to enable 2 bar cuttting and reduce vibration

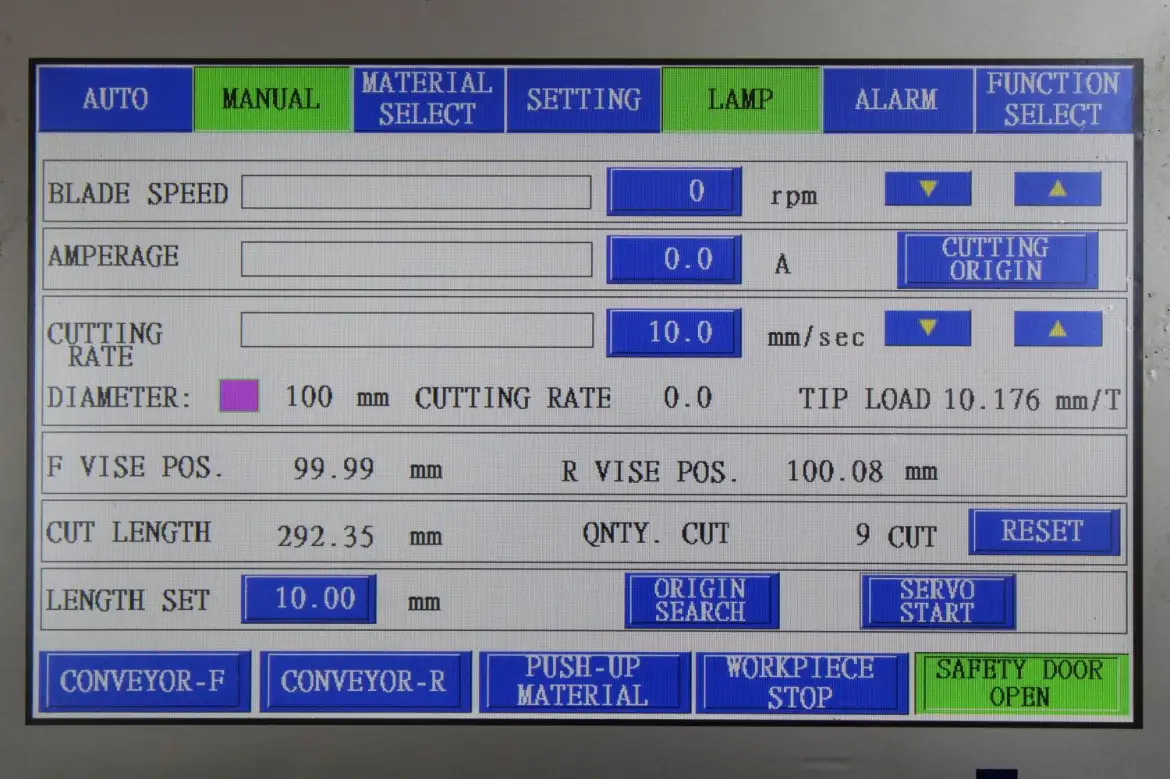

• Colour touch screen control with preset material library
• Hydraulic rear vice assembly mounted on chrome rails.
  NC servo motor and ball screw feeder for precision & accuracy

• Long cut-off pieces unloading table
• Chain belt magazine table for flat work-piece
