MEP Tiger 352 NC 5.0

Machine Subcategory

Automatic Circular Saw

Overview

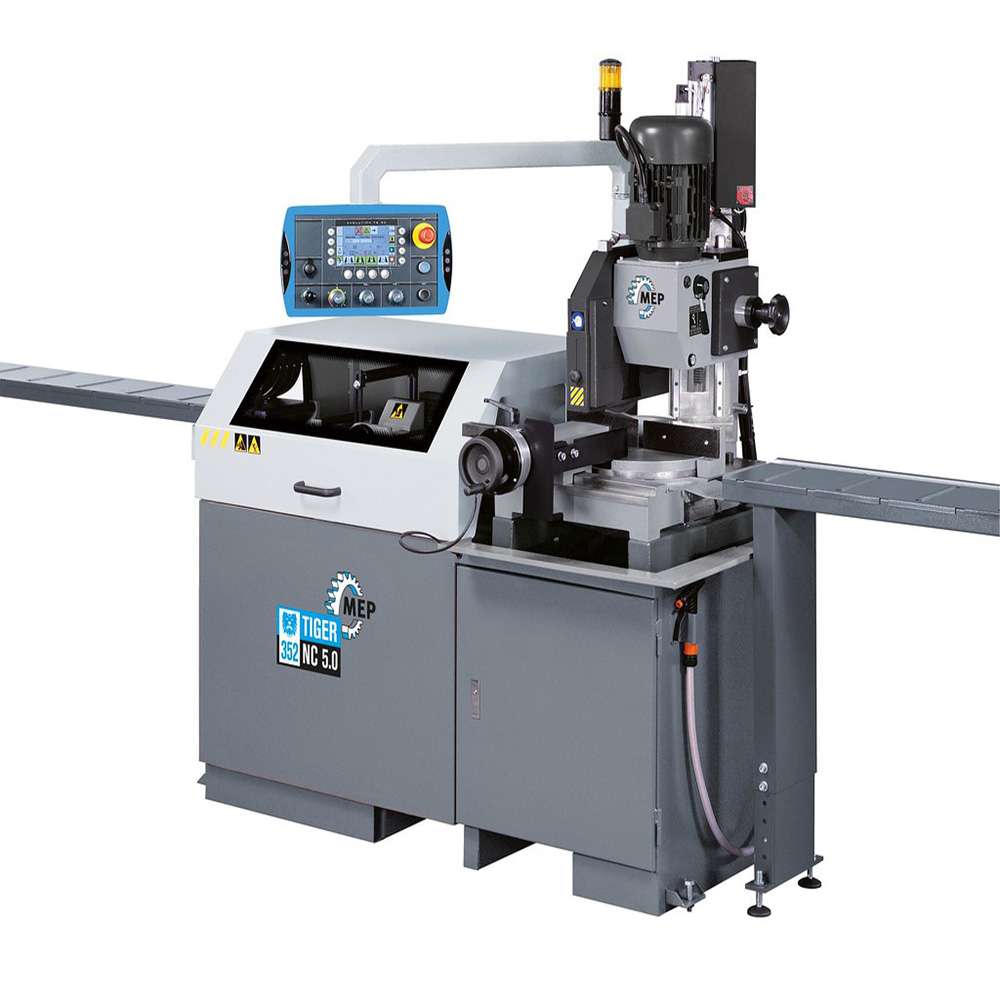

The MEP TIGER 352 NC 5.0 is a heavy duty vertical column action automatic circular saw designed for high-volume straight and mitre cutting, sections & solids.

The hydro-pneumatic operation of the saw head provides a smooth vertical downfeed rate for fast cutting and optimum blade life. It has mitre cutting capabilities in both directions and has speed optimization for best torque with invertor & mechanical gear change

Standard Specification

Designed for high-volume straight and mitre cutting, sections & solids.

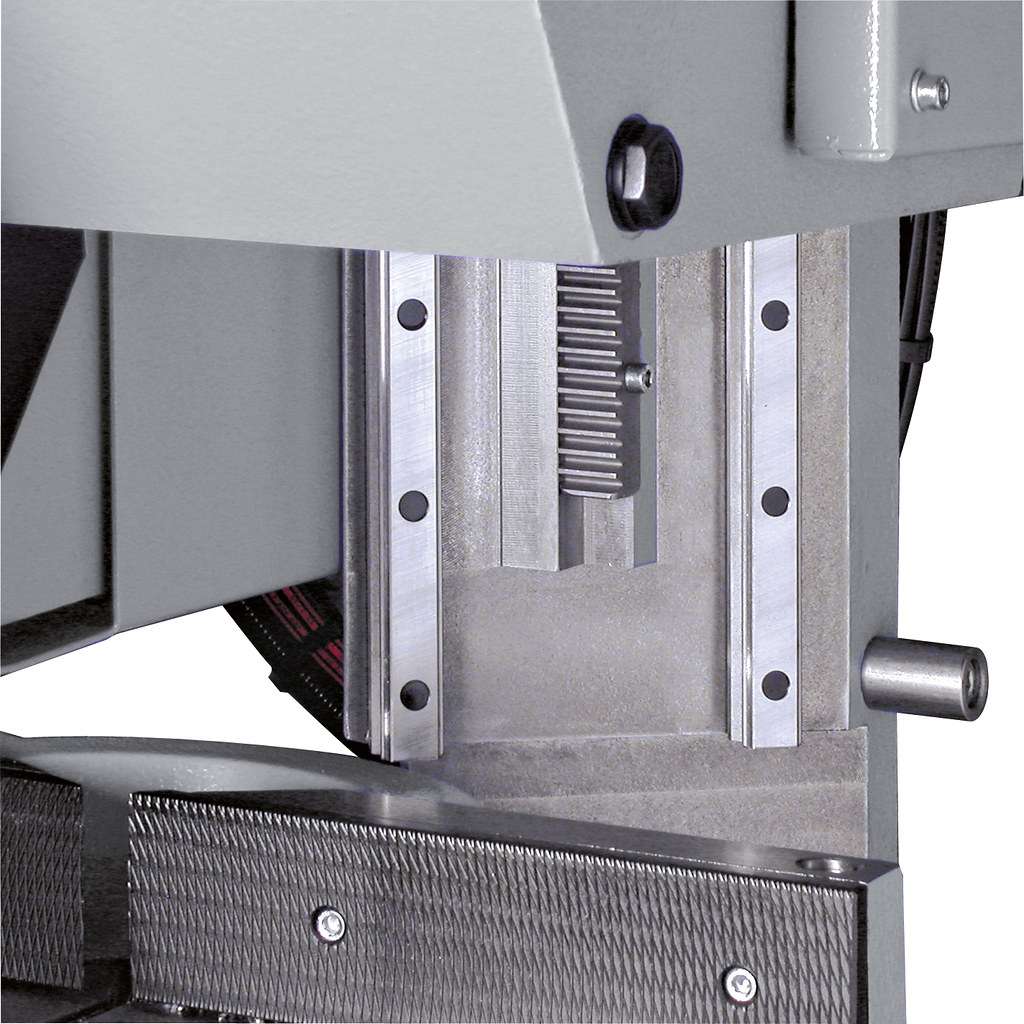

Column action cutting on linear guides
Operates in automatic and semi-automatic modes
-45° to +60° range.
350mm HSS blade with 3.0 kW motor
Horizontal and vertical pneumatic clamping of the workpiece for precise cutting
600mm Bar feeder with ball screw and stepper motor
Speed optimization for best torque with invertor & mechanical gear change

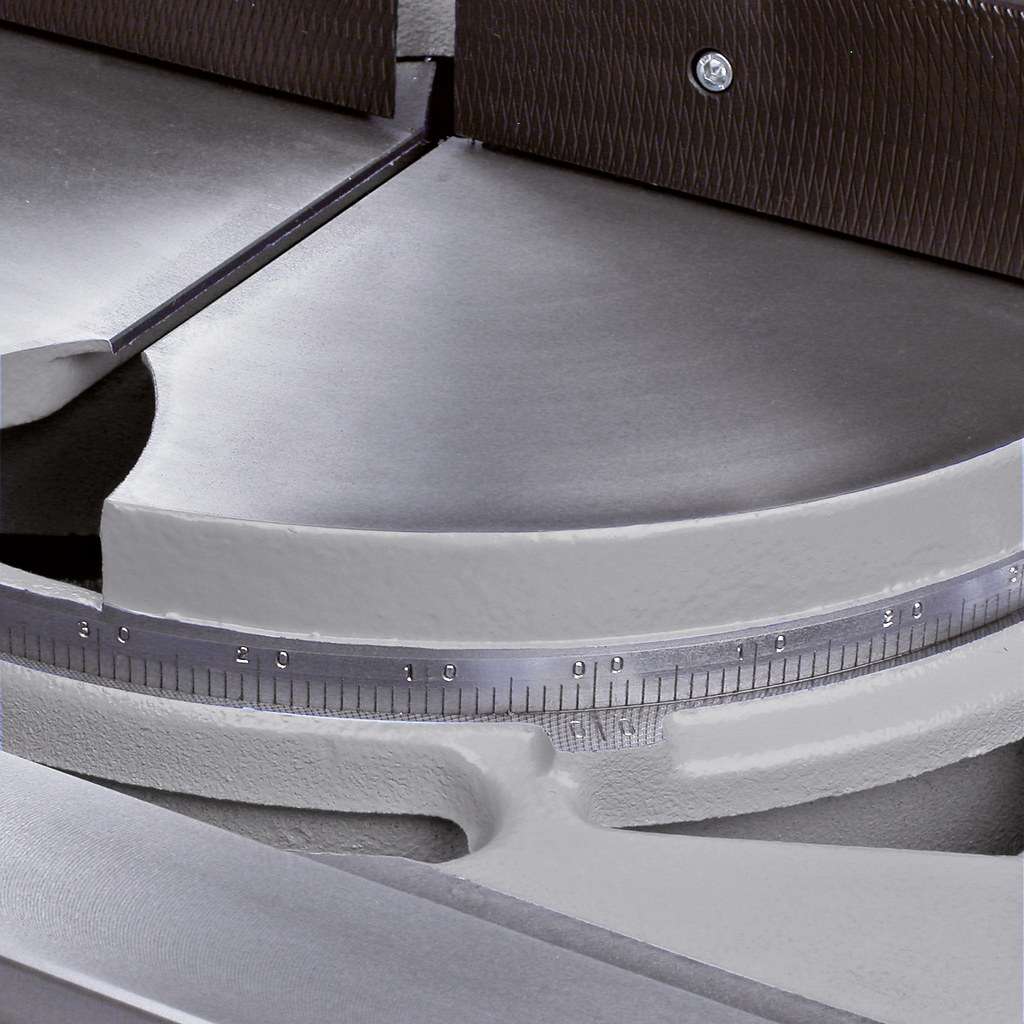

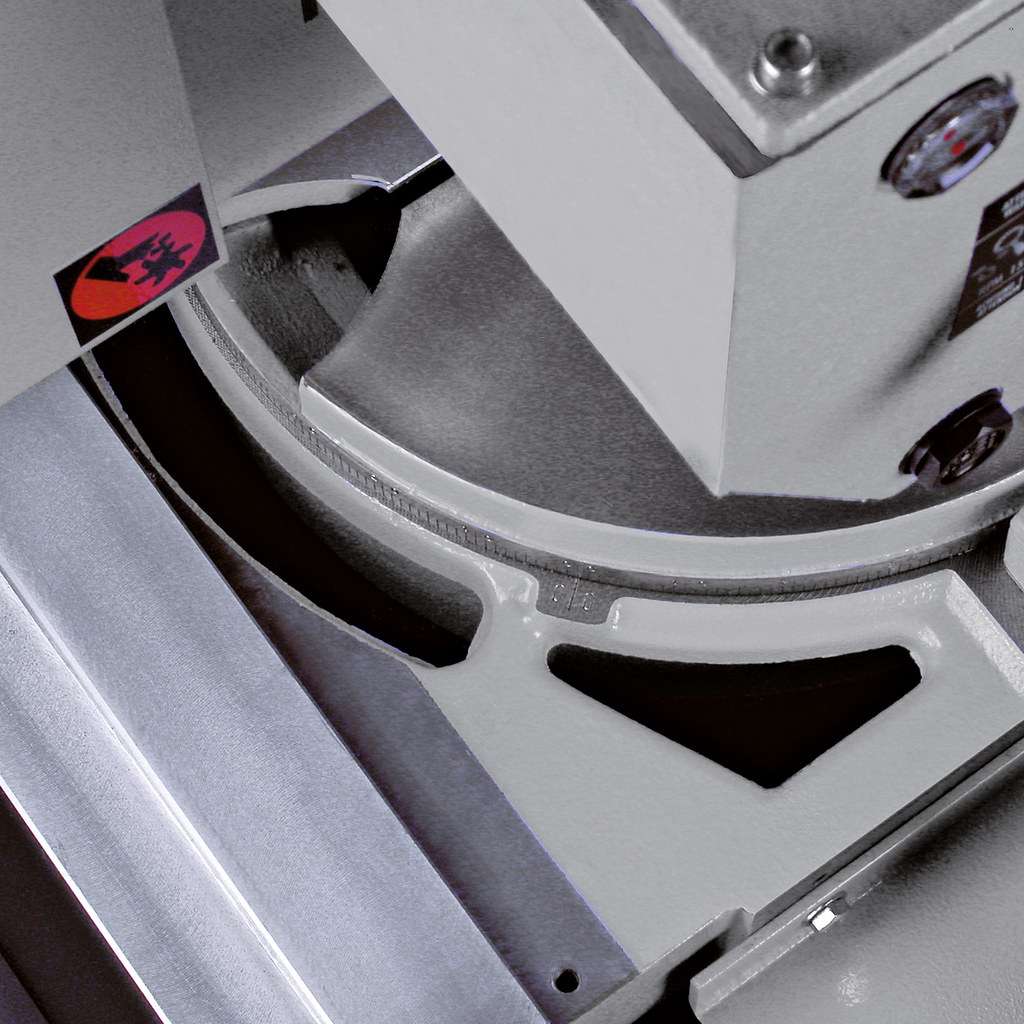

Rotating table on a center pin with axial bearing
which allows high precision on the angle set
Interlocked safety guards
Windows-based industrial PC with 7’’ LCD colour touch screen HMI mounted on articulated arm

Optional Features

Swarf extraction
Mist spray lubrication
Roller tables

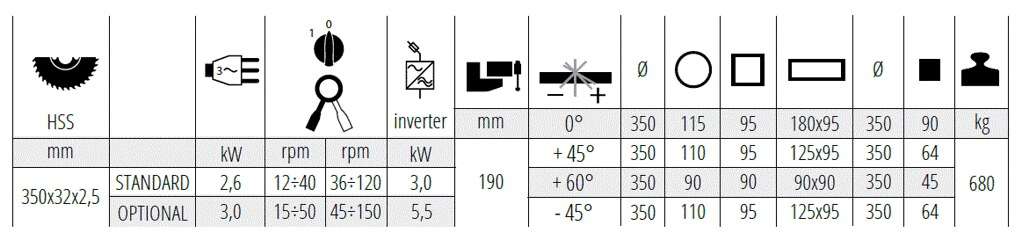

MEP Tiger 352 NC 5.0 Technical Specifications

Machine Type	Circular Saw
Blade Size	350 x 32 x 2.5
Blade Speed	Low 12~40, High 36~120

	90°	45° Left	45° Right	60° Left	60° Right
Round Section (mm)	115	110	110		90
Rectangular Section Horizontal (mm)	180 x 95	125 x 95	125 x 95
Rectangular Section Vertical (mm)
Square Section (mm)	95	95	95		90
