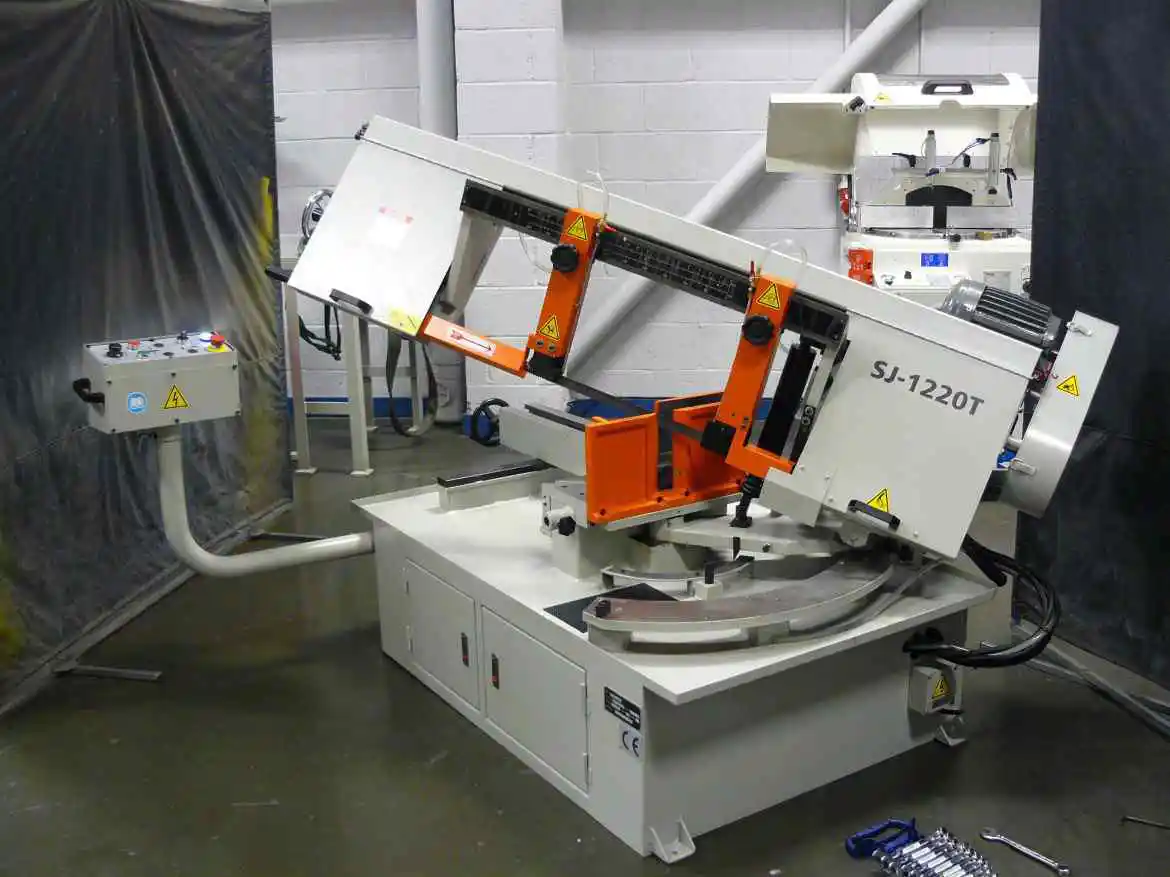

PROSAW SJ1220T
Machine Subcategory
Manual Horizontal Bandsaw
Overview
Heavy duty manual horizontal bandsaw with mitre cutting 45°left, 60° right with 500mm maximum capacity.
Standard Specification
- Heavy duty construction - one piece bow
- Precision controlled hydraulic downfeed

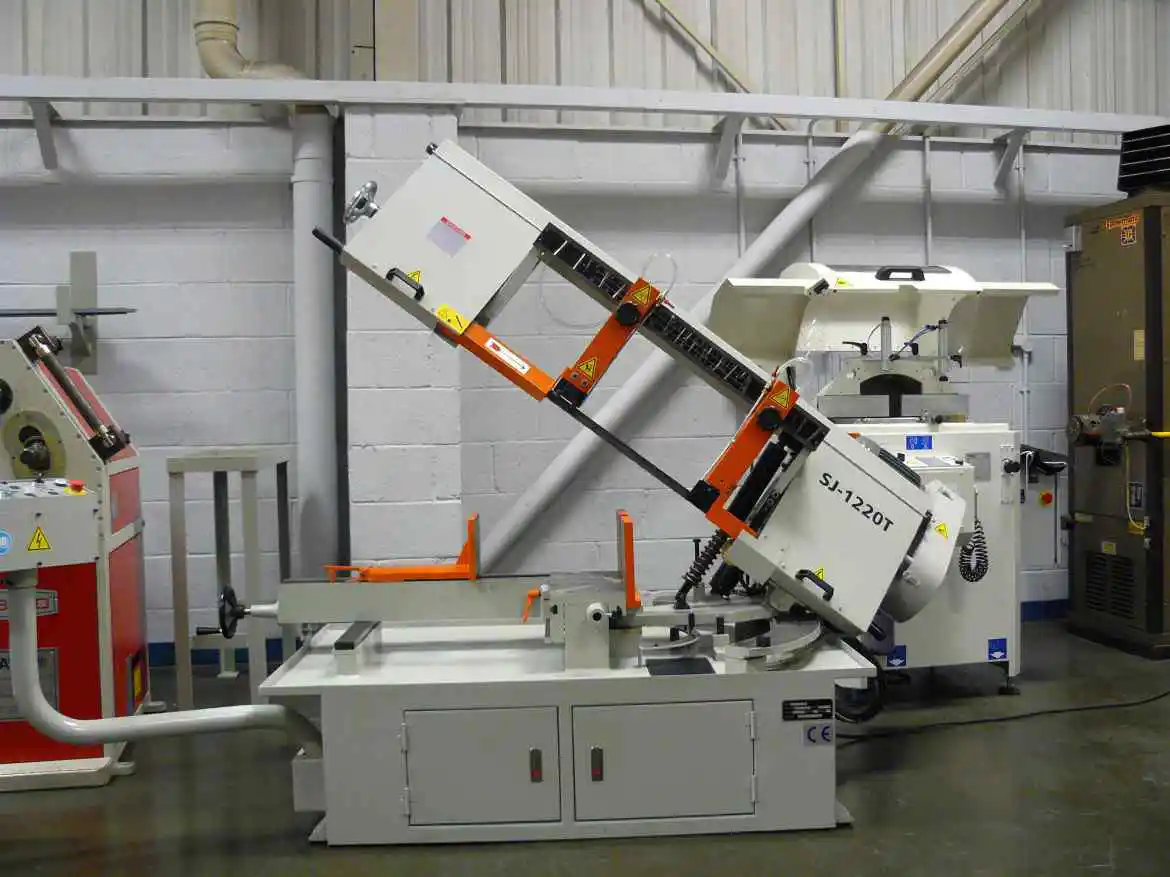

- Bow rotates, material remains stationary
- Double mitres, 45°left, 60° right
- Easy to read mitre scale

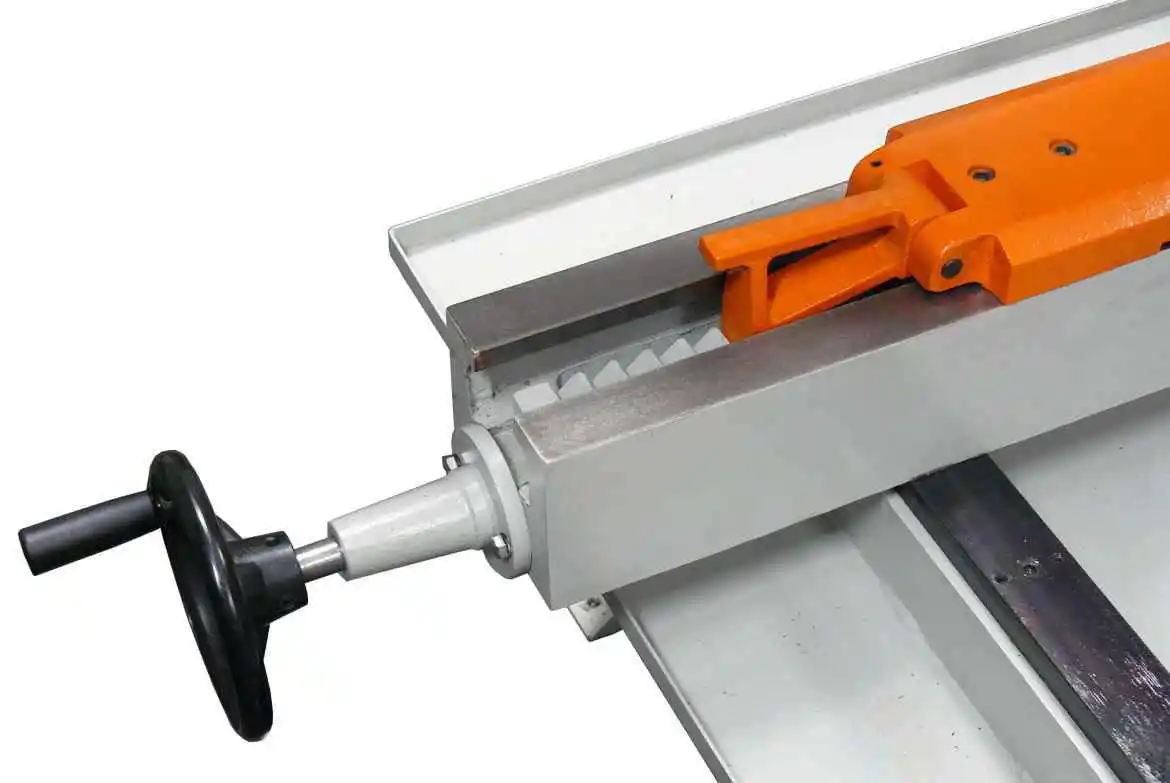

- Quick set vice operation

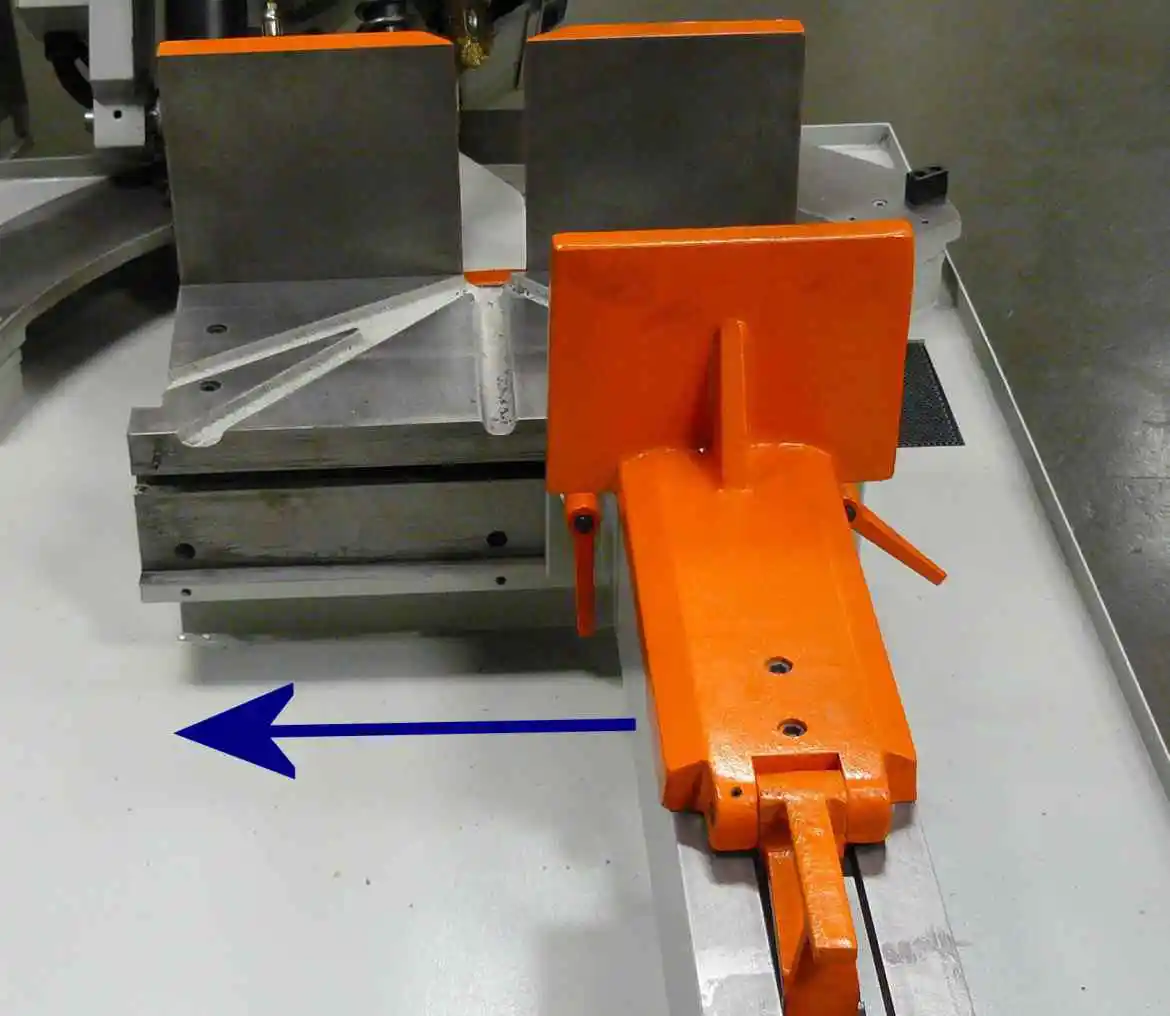

- Dovetail sliding vice for left & right mitres
- Blade guide pads and roller bearings
- Recirculating coolant pump
- Swarf brush assembly for cleaning blade

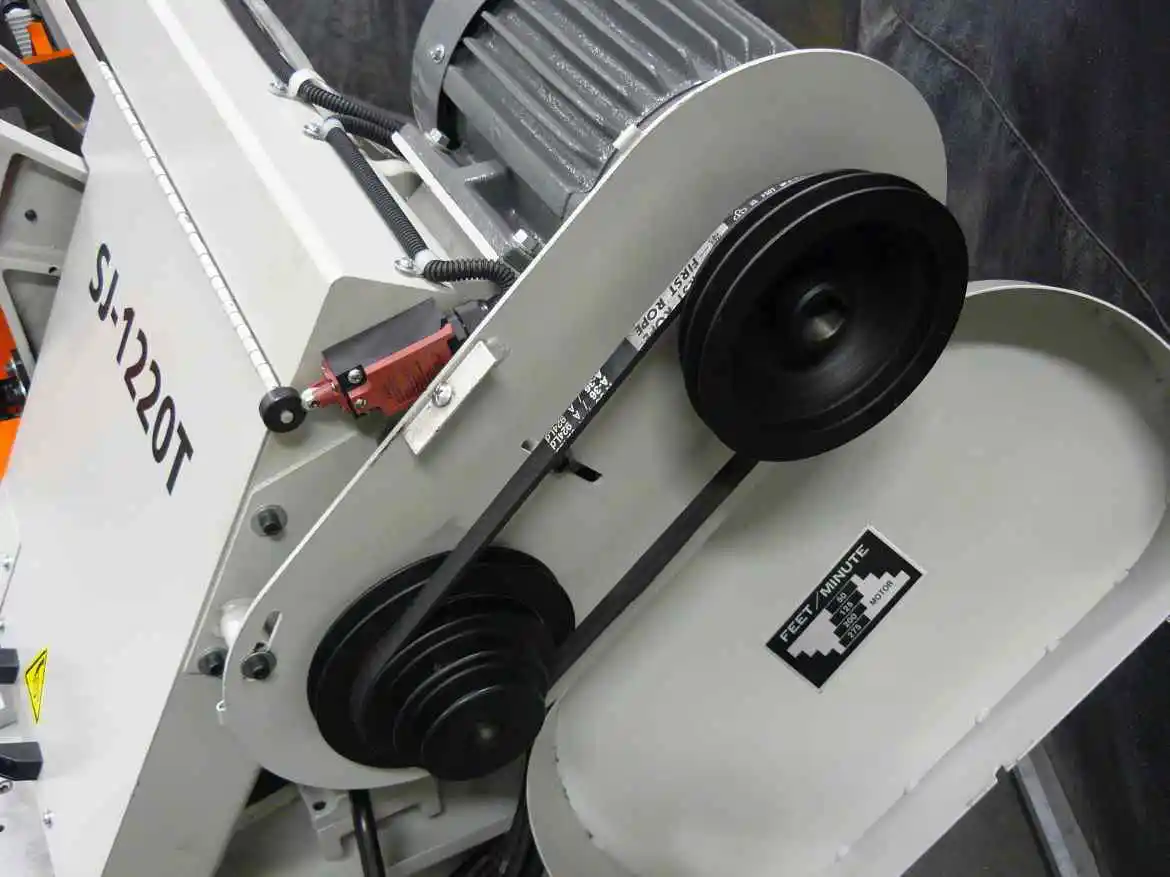

- Heavy duty gearbox
- Selectable speeds of 15, 38, 61 & 84m/min
- Length stop included
Get in touch +44 (0)1536 410999
PROSAW SJ1220T Technical Specifications
| Manufacturer | Prosaw |
|---|---|
| Machine Type | Bandsaw |
| Blade Size | 3820mm × 27mm × 0.9mm |
| Blade Speed | 4 speeds 15/38/61/84 m/min |
| Table Height | 575mm |
| Weight | 540 |
| Material Type(s) | Section |
| Material(s) | Sections |
| 90° | 45° Left | 45° Right | 60° Left | 60° Right | |
|---|---|---|---|---|---|
| Round Section (mm) | 305mm | 305mm | 200mm | ||
| Rectangular Section Horizontal (mm) | 500x305mm | 305x305mm | 200x160mm | ||
| Square Section (mm) | 305mm | 305mm | 185mm |
