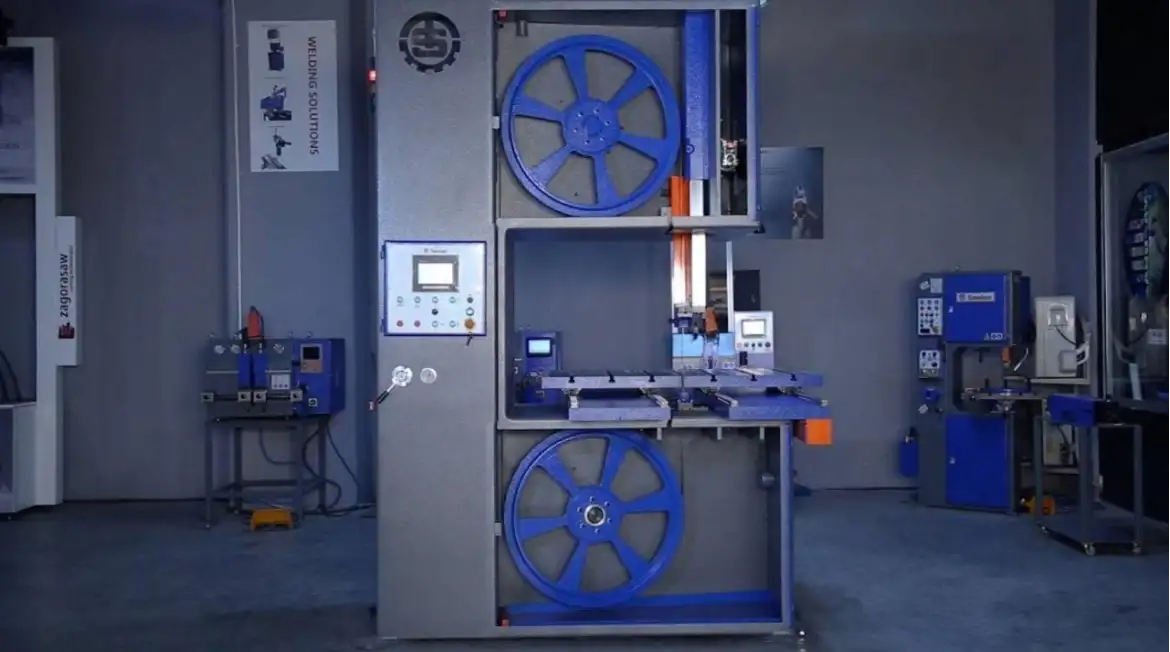

DK 1000 XL Block Plate Metal Cutting Bandsaw with Hydraulic Powered Table for heavy duty industrial use.

This machine was designed for high capacity cutting with minimal floor area.

This machine can be used for mulitple applications from slicing blocks of material through to processing of large castings.

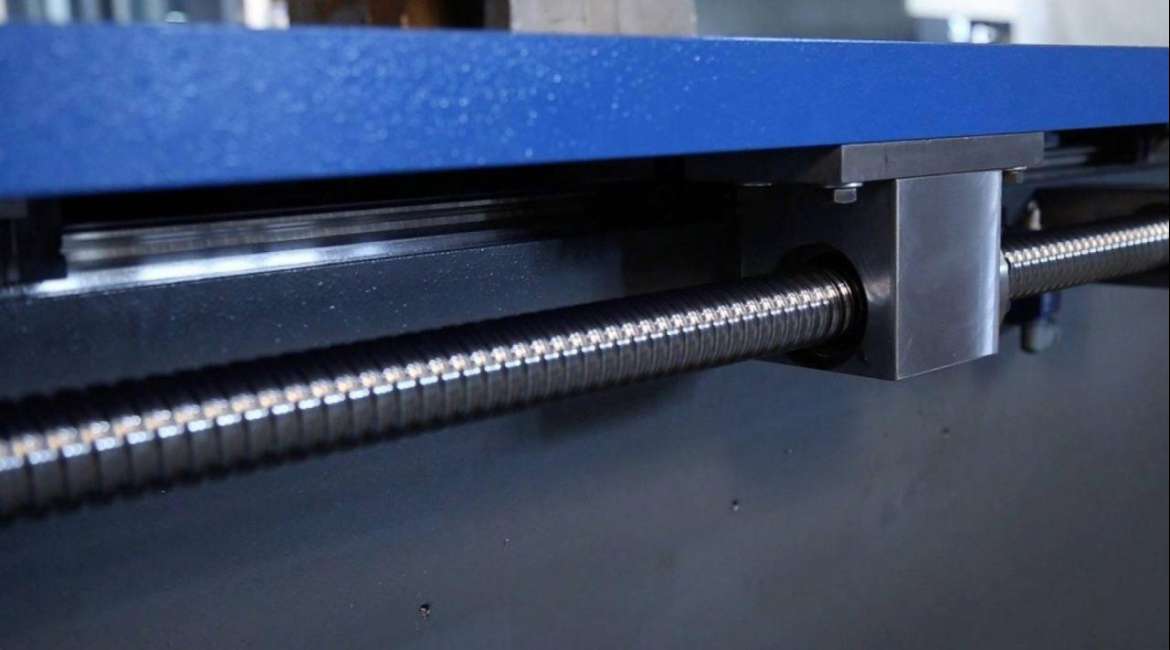

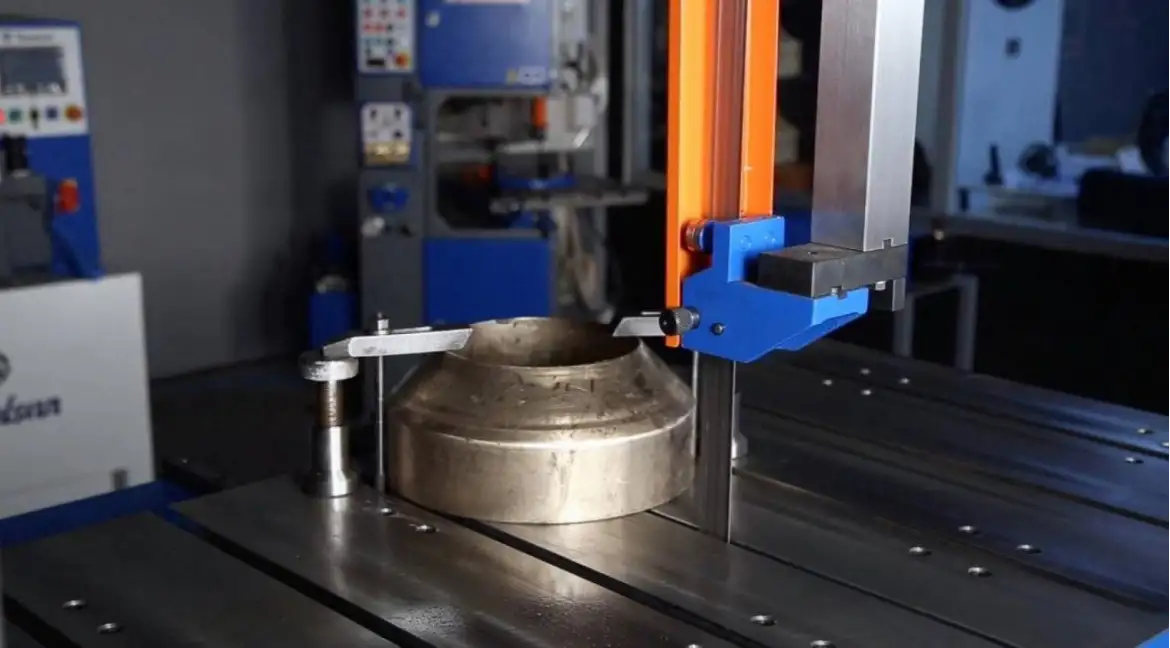

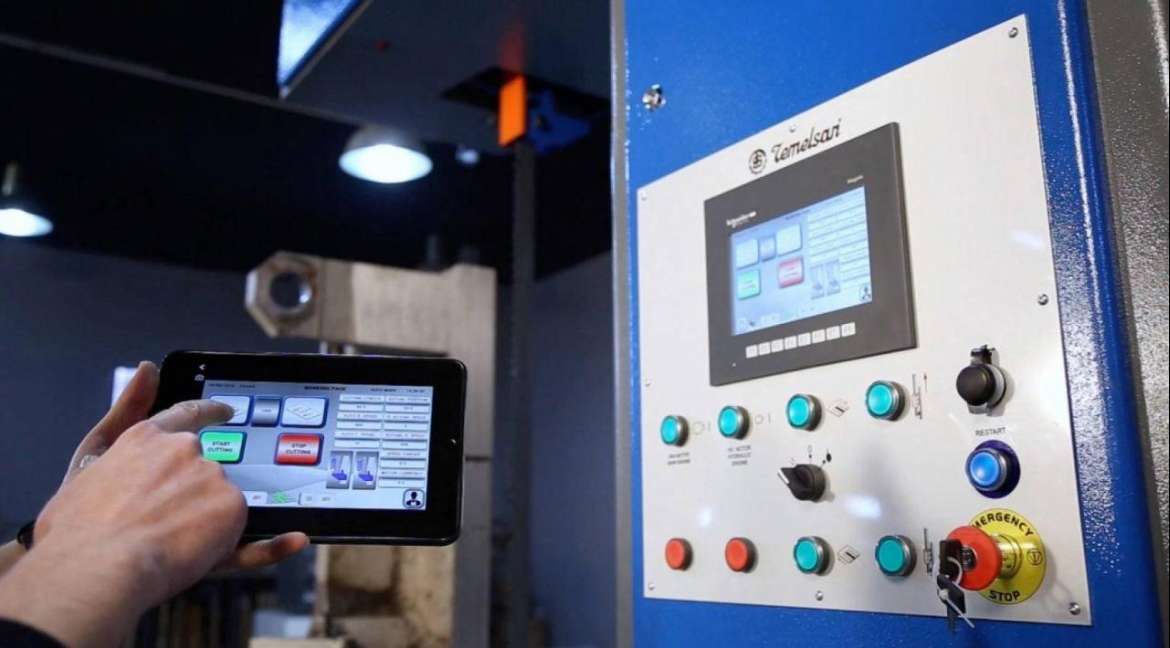

The material 'T' Slot table is mounted on linear guides and is positioned using a ball-screw and touch screen program. The operator is able to select blades speed and table feed speeds from a user friendly HMI.

• Bandsaw Tension Unit: Hydraulic
• Table Stroke: 1000mm ( 40" ) (Hydraulic)
• Band Driving Type: Frequance | Inverter
• Max. Cutting Height: 1000 mm ( 40" )
• Throat size: 600 mm ( 24" )
• Table Dimensions: 1400mm x 1000mm ( 55" x 40" )
• Table Height: 1177 mm
• Motor Power: 5 kW
• Bandsaw Speed: Can be arranged upon request
• Max. Load Capacity: 5000 kg ( 11023 lbs )
• Blade Length: 6150 mm ( 242" )
• Blade Width: 41mm ( 1 1/2" )
• Floor Space: 2000mm x 1780mm ( 79" x 70" )
• Overall Height: 2850 mm ( 112" )
• Weight: 2850 kg ( 6283 lbs )

• Hydraulic Bandsaw Tension Unit
• PLC Control Unit
• Servo Motion (Ballscrew) Table
• Proximity Sensor
• Band Mist coolant system
• Liquid Wet Cutting System
• Pilz Door Safety System up to 4 Doors
• Workpiece Hydraulic Clamping Vice Set ( 2 PCS)
• Laser for Cutting Line
• Different Motor Power Applications
