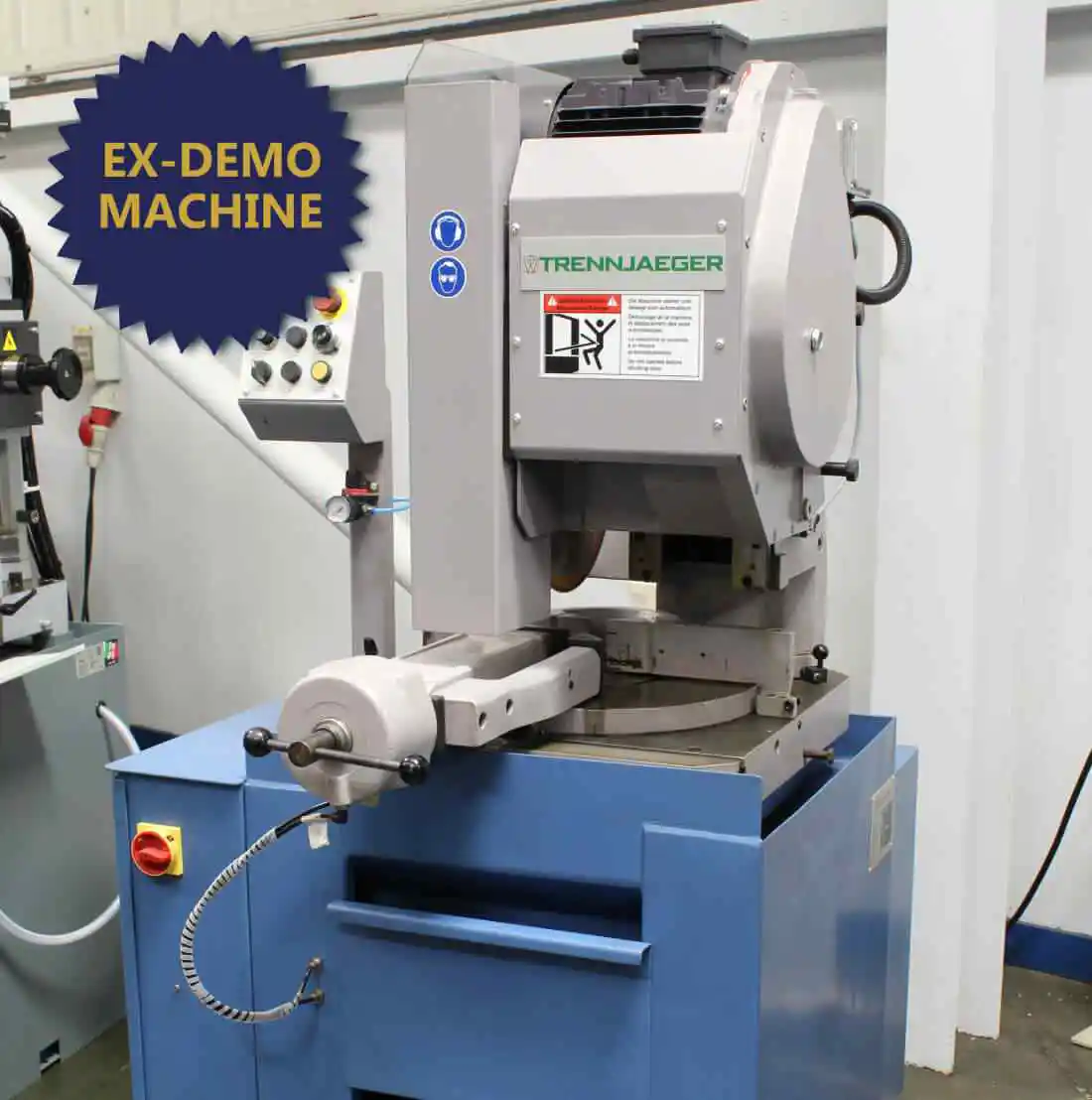

Trennjaeger VCT400HA
Overview
The Heavy Duty Trennjaeger Circular Saws have a deep history in building machines to last!
The VCT 400 HA uses helical-toothed and hardened spur gears which have been proven thousand of times over for 30+ years.
The benefit of such strength is much higher efficiency and performance. These machines with this gearbox are especially suitable for stainless steels, corrosion-resistant or solid materials and thick-walled materials.
Get in touch +44 (0)1536 410999
Trennjaeger VCT400HA Technical Specifications
| Manufacturer | Trennjaeger |
|---|---|
| Machine Type | Circular |
| Operation Type | Semi Automatic |
| Material Type | Steels |
| Materials | Solid & Section |
| Blade Size | 400mm |
| Blade Speed | 10~80 RPM |
| Weight | 500 |
| Machine Dimensions | 1150x1000x1900mm |
| 90° | 45° Left | 45° Right | 60° Left | 60° Right | |
|---|---|---|---|---|---|
| Round Section (mm) | 140mm | 120mm | 120mm | 105mm | |
| Rectangular Section Horizontal (mm) | 210x120mm | 145x120mm | 145x120mm | 105x105mm | |
| Square Section (mm) | 140mm | 120mm | 120mm | 105mm | |
| Solid Round 90 | 140mm | ||||
