WAYTRAIN UE250A
Machine Subcategory
Manual Horizontal Bandsaw
Overview

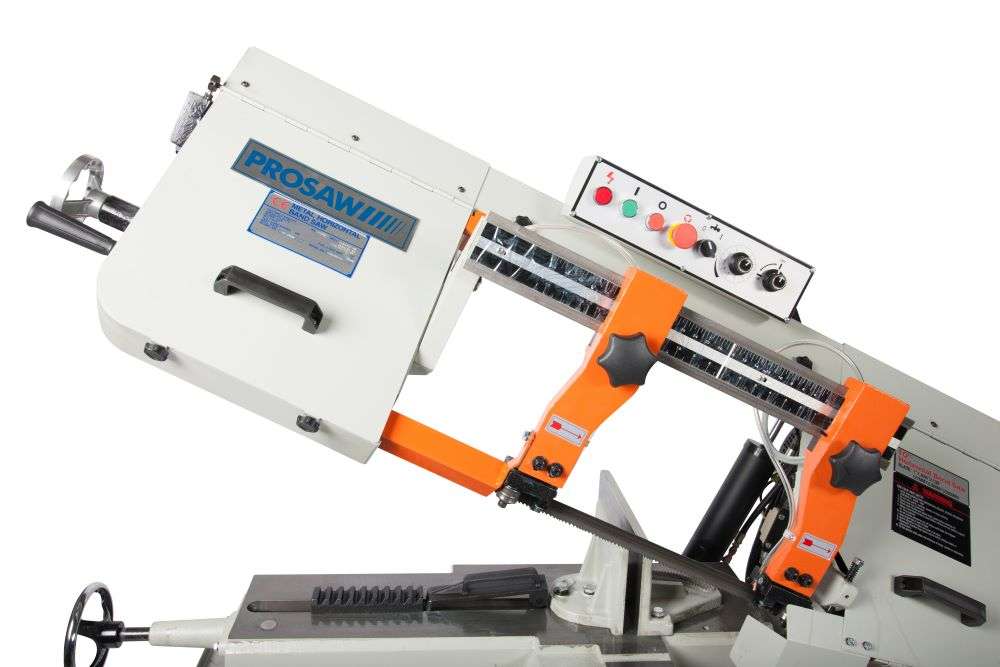

Heavy duty horizontal bandsaw with mitre cutting
Standard Specification
- Rigid heavy bow assists smooth descent
- Strong, cast guide arms – both adjustable according to material size
- Quick action vice with rack & pawl system for fast clamping
- Roller bearings and carbide pads ensure accurate straight cuts
- Vices swivel to 45° mitre
- Large downfeed control cylinder for precise cutting control
- Heavy duty blade tension assembly, with marker for correct setting
- Blade speeds: 21, 33, 43 & 59m/min

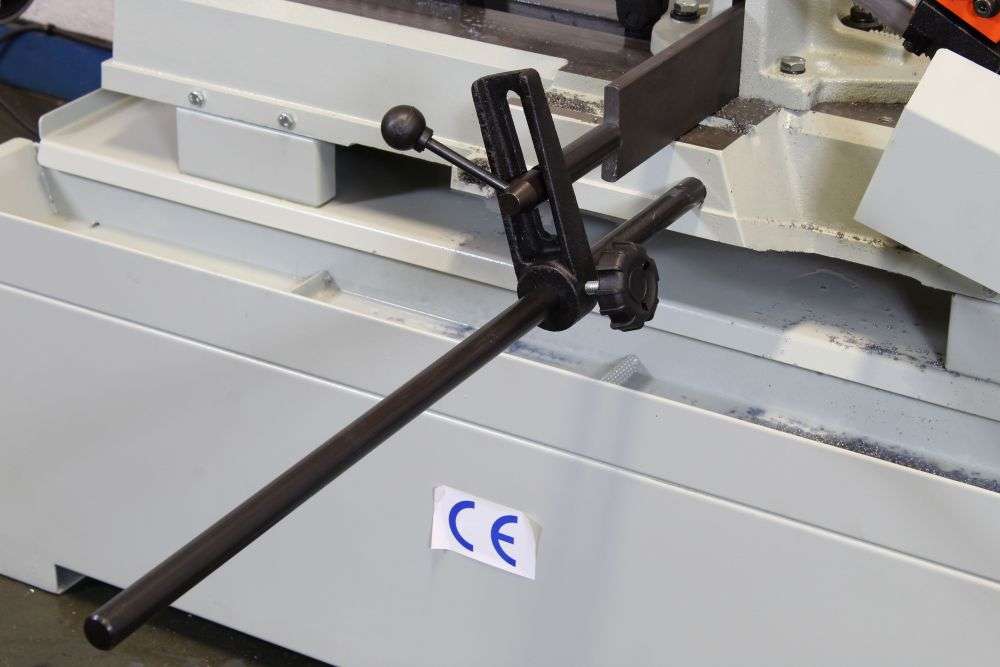

- Material length stop
- Electrically interlocked blade guards
WAYTRAIN UE250A Technical Specifications
| Manufacturer | Waytrain |
|---|---|
| Machine Type | Bandsaw |
| Operation Type | Manual |
| Material Types | Sections, Solids |
| Materials | Section, Solid |
| Blade Size | 3300 x 27 x 0.9 |

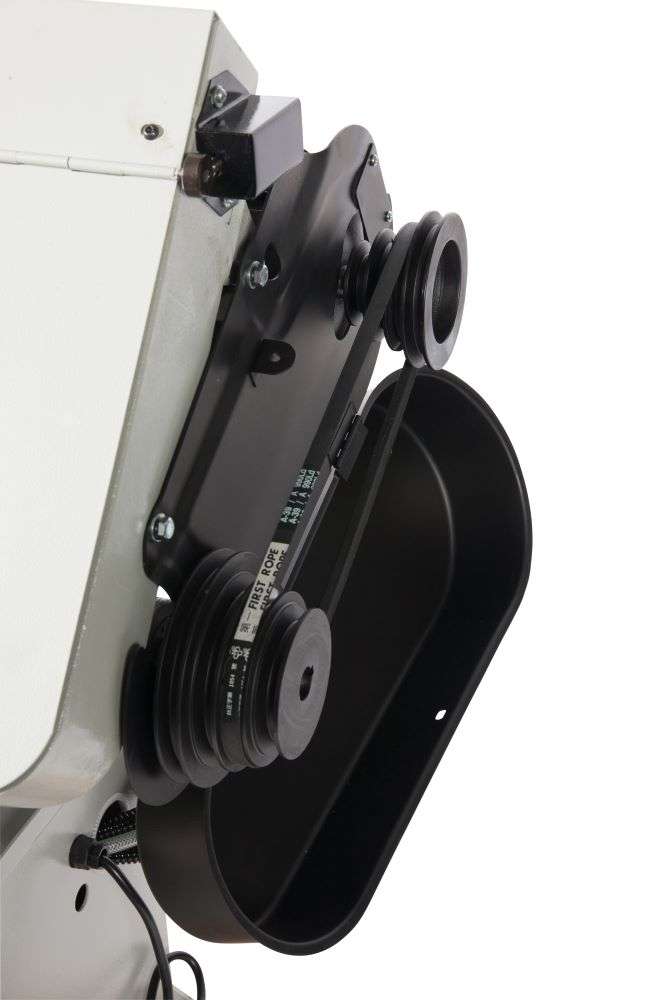

| Blade Speed | 4 speeds pulley - 21/33/43/59 m/min |
| Table Height | 600mm |
| Motor | 2hp |
| Weight | 320 |
| Machine Dimensions | 1750 x 570 x 1080 |
| 90° | 45° Left | 45° Right | 60° Left | 60° Right | |
| Round Section (mm) | 250 | 190 | |||
| Rectangular Section Horizontal (mm) | 450 x 200 | 250 x 190 | |||
| Rectangular Section Vertical (mm) |
415 x 250 | ||||
| Square Section (mm) |
