Overview

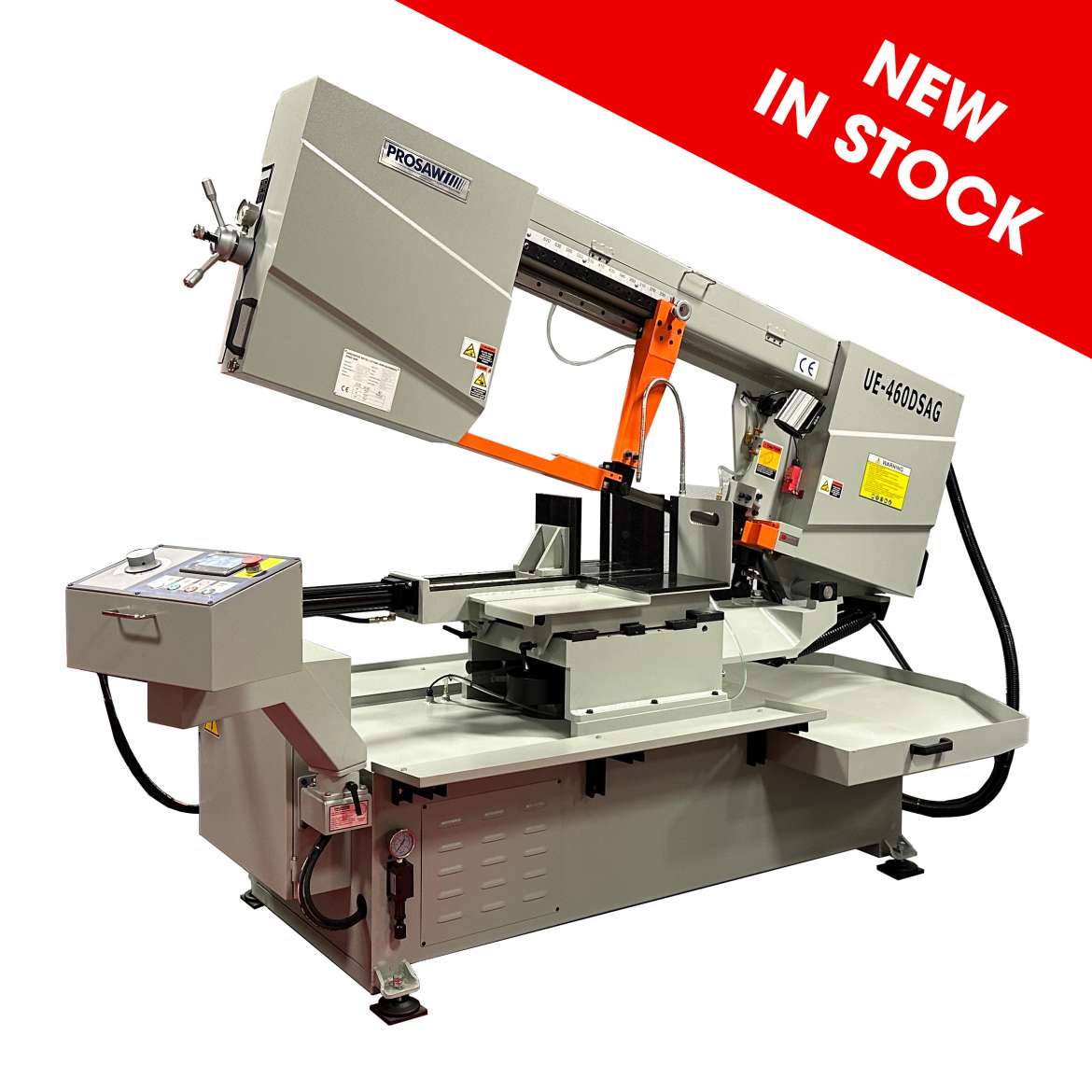

Semi-Automatic bandaw with two way mitre up to 60 degrees. Variable speed, Hydraulic Vices and Powered Bow raise all as standard.
Waytrain UE460 DSAG Technical Specifications
|
Machine Type |
Bandsaw |
|
Operation Type |
Semi Automatic |
|
Material Type |
Sections |
|
Blade Size |
5600mm × 41mm × 1.3mm |
|
Blade Speed |

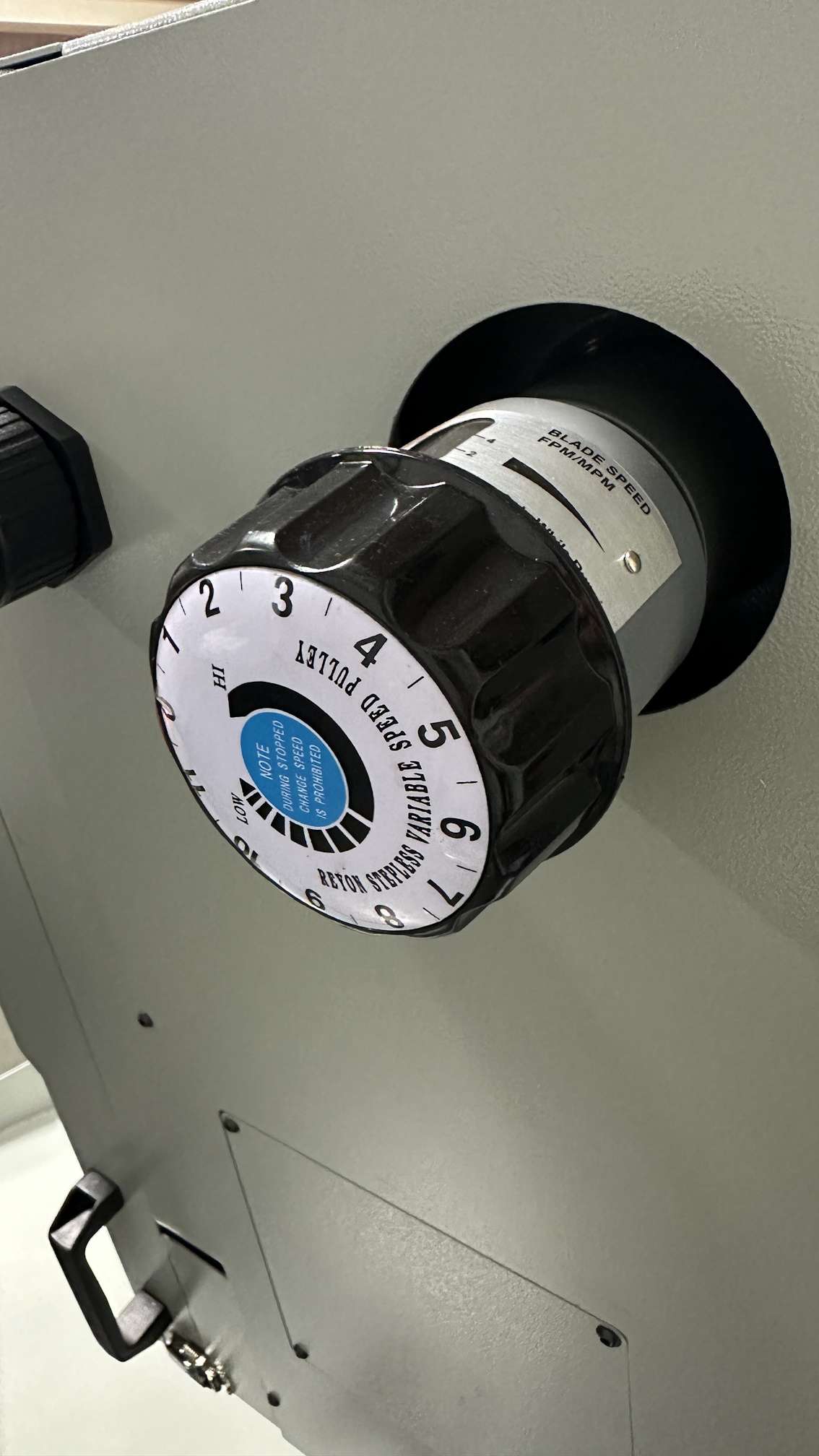

Variable Speed - 32~96 m/min |
|
Table Height |
922mm |
|
Motor |
3.7kW |
|

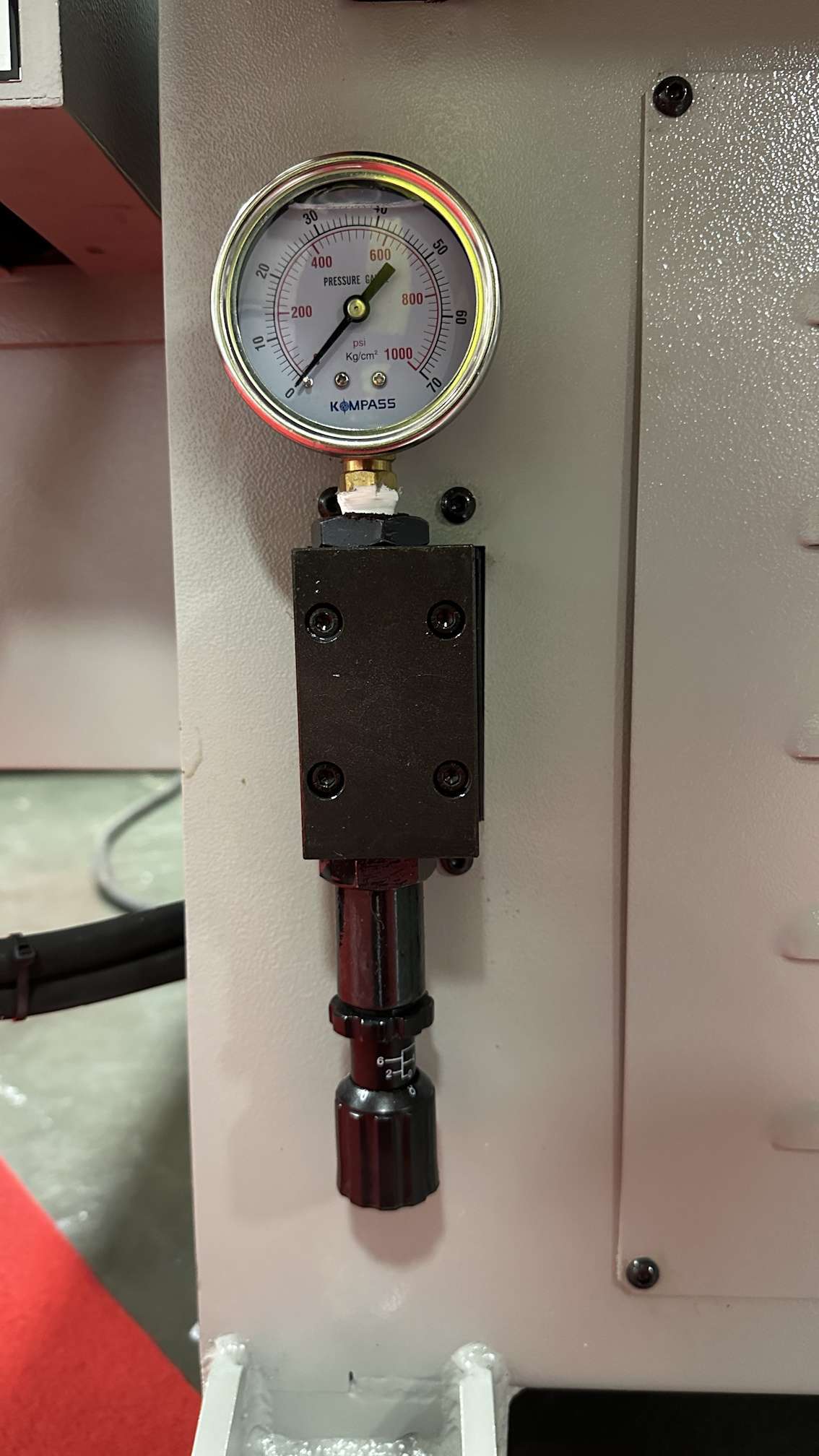

Hydraulic Tank |
55 Litres |
|
90° |
45° Left |
45° Right |
60° Left |
60° Right |
|
Round Section (mm) |
460mm |
445mm |
445mm |
295mm |
295mm |
|
Rectangular Section Horizontal (mm) |
600x440mm |
|
|
|
|
|
Square Section (mm) |
460x460mm |
460x460mm |
|
|
|
