WAYTRAIN WE270DS
Machine Subcategory
Manual Horizontal Bandsaw
Overview

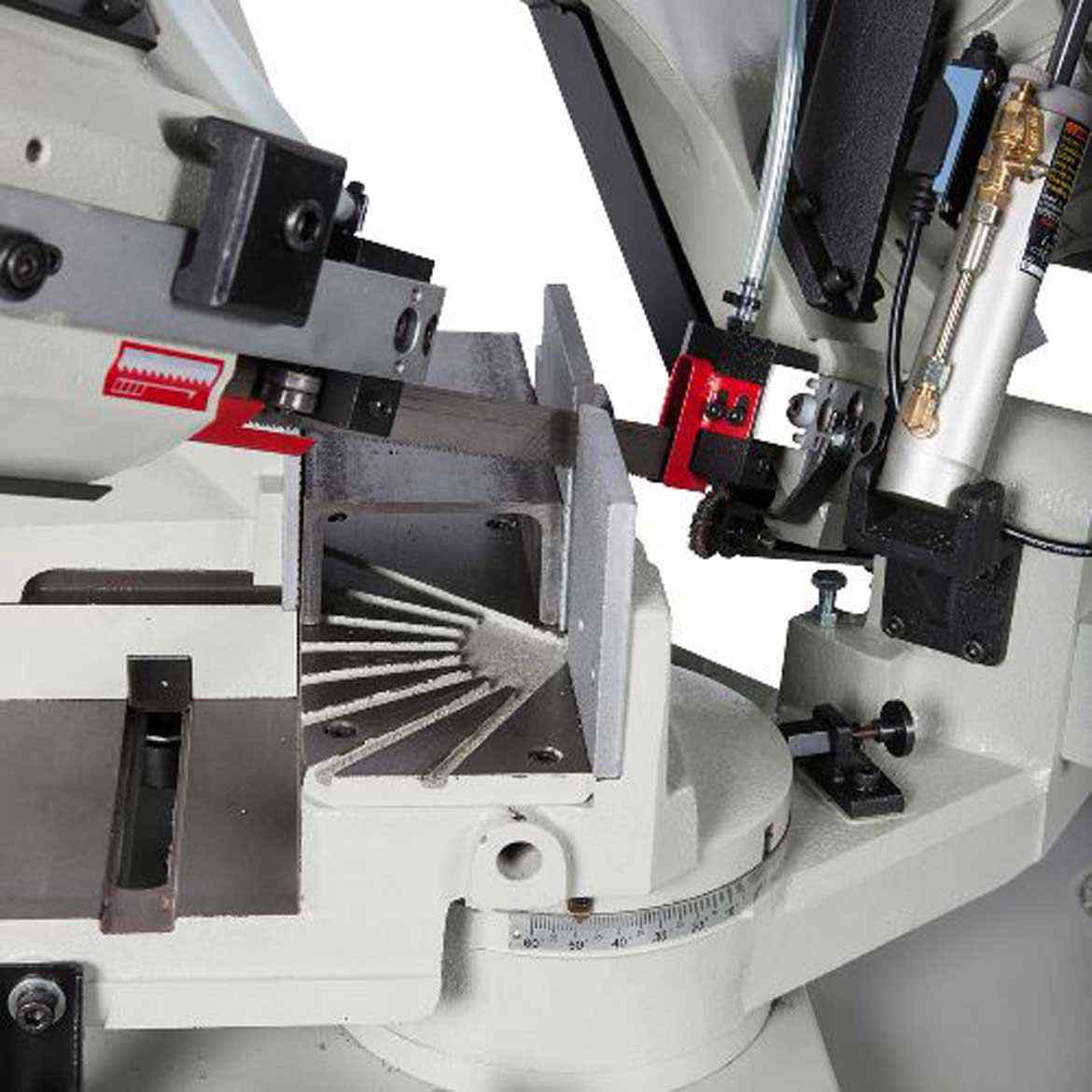

Dual operation mitre cutting bandsaw. Can be used either as a gravity feed machine or in pulldown mode.
Standard Specification
- Manual operation to cut light sections quickly
- When cutting larger sections and solids, can be left cutting unattended
- Variable control of bow feed when in automatic feed mode
- Easy mitre bow rotates to 60° right, 45° left
- Quick action vice for high production
- Blade broken detection
- Blade tension indicator
Get in touch +44 (0)1536 410999
WAYTRAIN WE270DS Technical Specifications
| Manufacturer | Waytrain |
|---|---|
| Machine Type | Bandsaw |
| Blade Size | 2460mm × 27mm × 0.9mm |
| Blade Speed | 2 speeds - 36m/min & 72m/min |
| Motor | 1.1kW |
| Coolant Motor | 0.38kW |
| Weight | 280 |
| Material Type(s) | Section |
| Material(s) | Sections |
| 90° | 45° Left | 45° Right | 60° Left | 60° Right | |
|---|---|---|---|---|---|
| Round Section (mm) | 220mm | 135mm | 150mm | 90mm | |
| Rectangular Section Horizontal (mm) | 260x105mm | 160x45mm | 155x70mm | 90x85mm | |
| Square Section (mm) | 215mm | 110mm | 145mm | 85mm |
