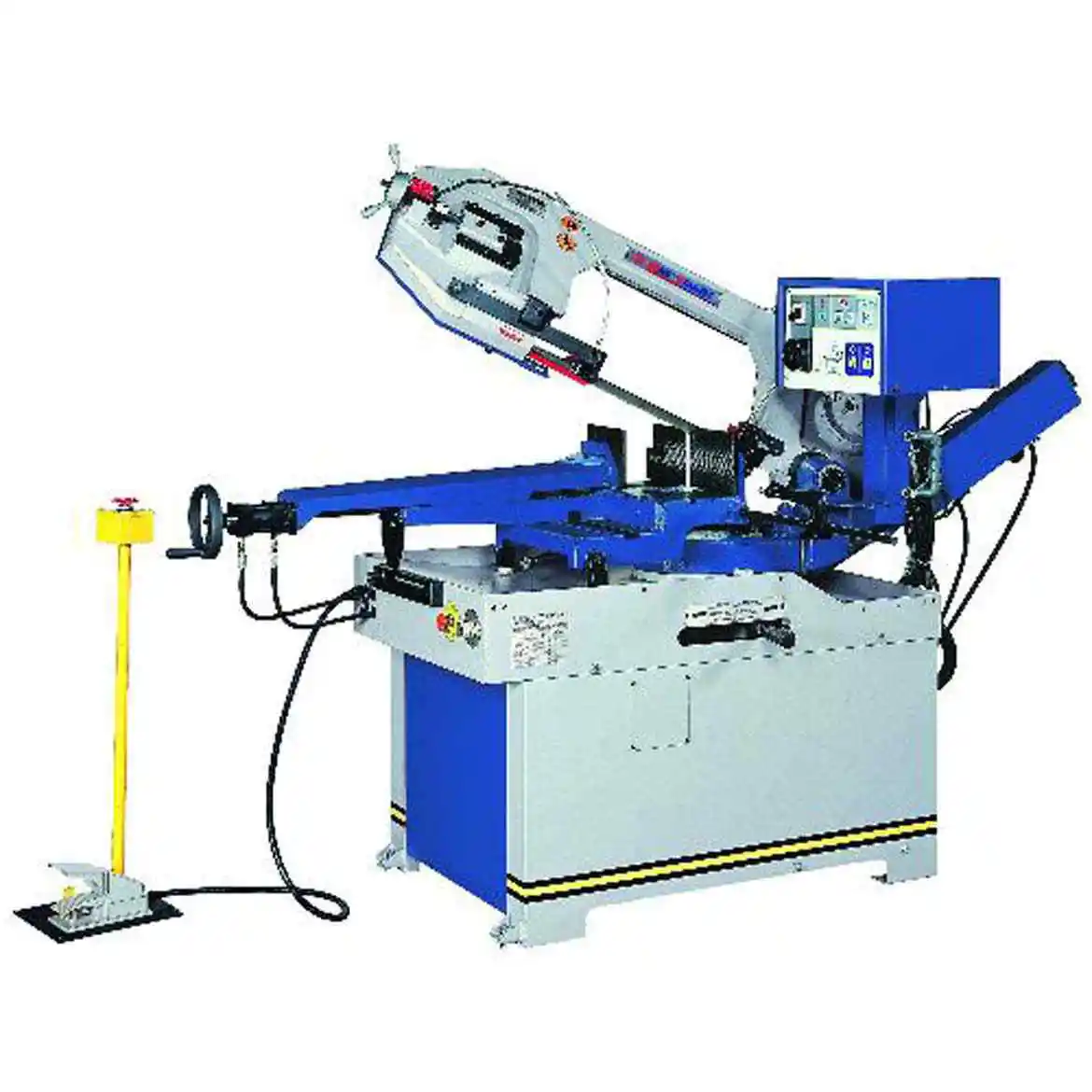

WAYTRAIN WE350DSA
Machine Subcategory
Semi-Automatic Horizontal Bandsaw
Overview
Verstile semi-automatic bandsaw designed for easy accurate cutting of general steel sections and small solid bar
Standard Specification
- Single button operation cycle; vice clamps, bow descends to perform cut, at finish of cut bow returns then vices unclamp
- Hydraulic variable control of saw bow feed through material
- Hydraulic vice clamping
- Easy mitre, bow rotates to 60° right, 45° left
- Electronic control panel with troubleshooting display
- Two speed motor for cutting mild steel and stainless steel
- Blade broken detection
- Blade tension indicator
Get in touch +44 (0)1536 410999
WAYTRAIN WE350DSA Technical Specifications
| Manufacturer | Waytrain |
|---|---|
| Machine Type | Bandsaw |
| Blade Size | 3160mm × 27mm × 0.9mm |
| Blade Speed | 34 & 68 m/min |
| Motor | 1.5kW |
| Coolant Motor | 0.38kW |
| Weight | 460 |
| Material Type(s) | Section |
| Material(s) | Sections |
| 90° | 45° Left | 45° Right | 60° Left | 60° Right | |
|---|---|---|---|---|---|
| Round Section (mm) | 270mm | 210mm | 240mm | 160mm | |
| Rectangular Section Horizontal (mm) | 350x220mm | 240x160mm | |||
| Square Section (mm) | 270mm | 180mm | 220mm | 150mm |
