YILMAZ ACK550
Machine Subcategory
Semi-Auto Circular Saws
Overview
ACK 550 is designed for the straight or angular cutting operations of large size aluminum profile materials by means of Ø 550mm diameter saw blade.
Standard Specification
- Two-hand run safety operation
- Location points at 75°,60°,45°,30°,22.5°,15°,0° both left and right
- Pivoting range from -75° left to +75° right infinitely adjustable
- Hydro-pneumatic saw feed
- Adjustable saw blade feeding speed
- Interior LED lighting
- Pneumatically opening safety guard
STANDARD ACCESSORIES
- Equipped with saw blade Ø 550 mm
- Spray saw blade lubrication system

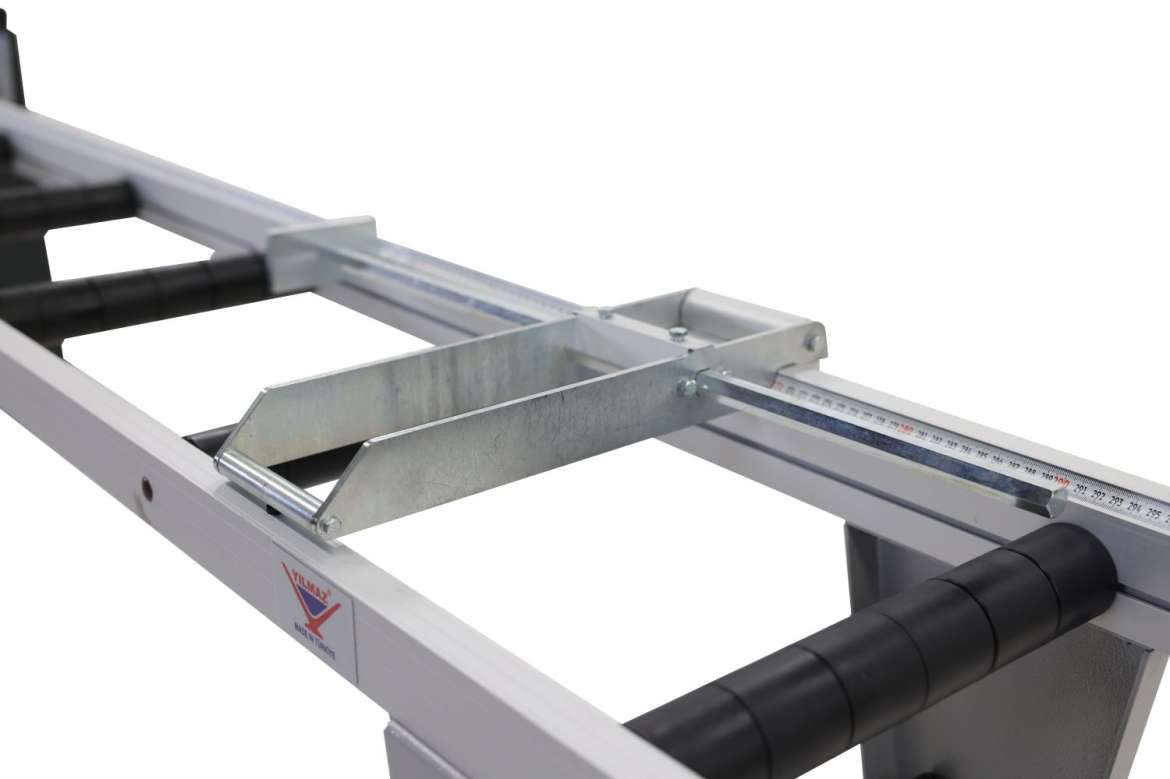

- MKN 301 roller conveyor (3 m)

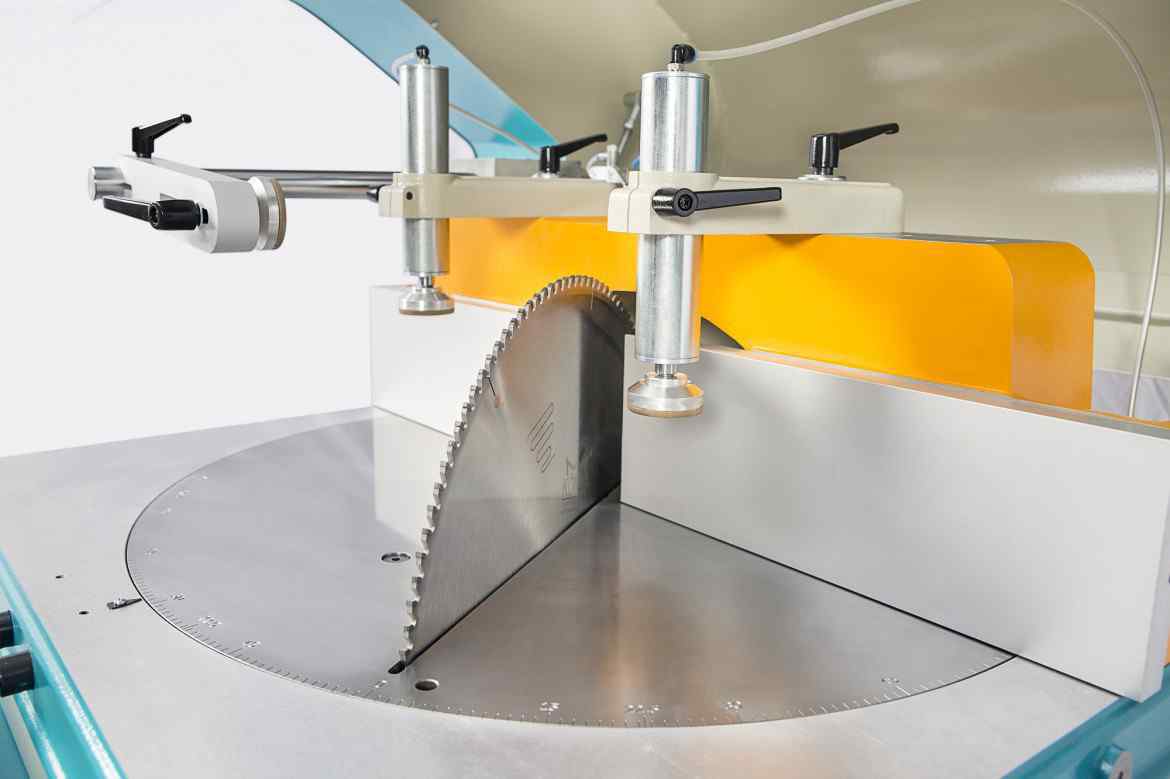

- 2 x vertical and 2 x horizontal clamps
- Air gun
Get in touch +44 (0)1536 410999
YILMAZ ACK550 Technical Specifications
| Manufacturer | Yilmaz |
|---|---|
| Machine Type | Aluminium |
| Blade Size | 550mm × 30mm bore |
| Blade Speed | 2400 rpm |
| Motor | 4kW |
| Weight | 373 |
| Material Type(s) | Section |
