Yilmaz KD350D
Machine Subcategory
Manual Circular Saws
Overview
The YILMAZ KD 350D is designed for the straight or angular cutting operations of aluminum and PVC materials by means of Ø 350mm diameter saw blade.
Standard Specification
- Ø 350 mm saw blade running at 3,000 rpm
- 2.2 kW motor
- Location points at 45°-30°-22.5°-15°-0° both left and right
- Pivoting range from 45° left to 45° right infinitely adjustable
- Aluminium saw body with stand made of Sheet steel
- Solid construction allows for ease of adjustment to the required cutting angles
- 2 x manual horizontal clamps as standard
Get in touch +44 (0)1536 410999

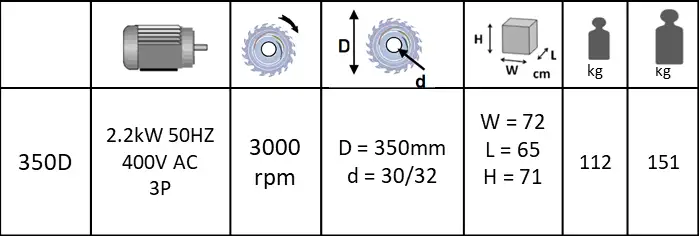

Yilmaz KD350D Technical Specifications
| Manufacturer | Yilmaz |
|---|---|
| Machine Type | Circular |
| Operation Type | Manual |
| Material Type | Section |
| Materials | Aluminium |
| Blade Size | 350mm × 30/32mm |
| Blade Speed | 3000rpm |
| Motor | 2.2 kW |
| Material Type(s) | Section |
| Material(s) | Non-Ferrous |
