YILMAZ KD 400 PS
Machine Subcategory
Manual Circular Saws
Overview
The YILMAZ KD 400 PS is designed for the straight or angular cutting operations of aluminum and PVC materials by means of Ø 400mm diameter saw blade.
Standard Specification
- 400 mm saw blade running at 3,000 rpm
- Location points at 45°-30°-22.5°-15°-0° both left and right
- 2 x pneumatic clamps
- Mist spray blade lubrication system
STANDARD ACCESSORIES
- Supplied complete with blade
Optional Features
- Additional saw blade Ø 400 mm
- Vertical pneumatic clamps
- Swarf Extractor
- Rollerways
- Measure stop

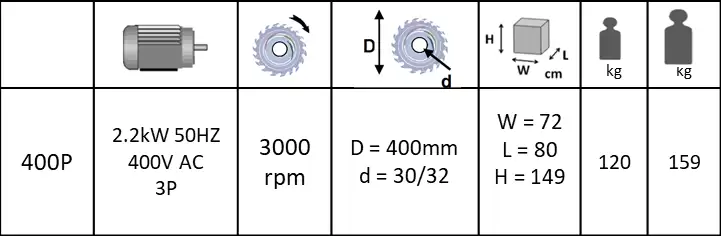

YILMAZ KD 400 PS Technical Specifications
| Manufacturer | Yilmaz |
|---|---|
| Machine Type | Circular Saw |
| Operation Type | Manual |
| Material Type | Aluminium |
| Material | Section |
| Blade Size | 400 |
| Blade Speed | 3,000 RPM |
| Motor | 2.2 kW |
| Weight | 159 |
| Machine Dimensions | 720 x 800X1490 |

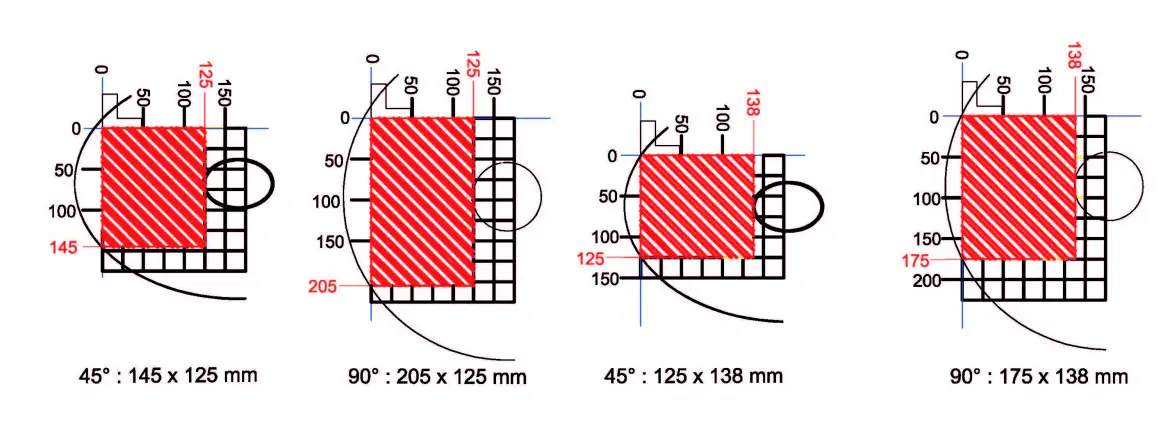

| 90° | 45° Left | 45° Right | 60° Left | 60° Right | |
| Round Section (mm) | 138 | 125 | 125 | ||
| Rectangular Section Horizontal (mm) | 205 x 125 | 145 x 125 | |||
| Rectangular Section Vertical (mm) |
|||||
| Square Section (mm) | 130 x 130 | 125 x 125 |
