Yilmaz SKN600 Automatic NC Length Stop 6m
Machine Subcategory

CNC Measuring Stop

Overview

*1 off Ex showroom model available- reduced to clear. call for details*

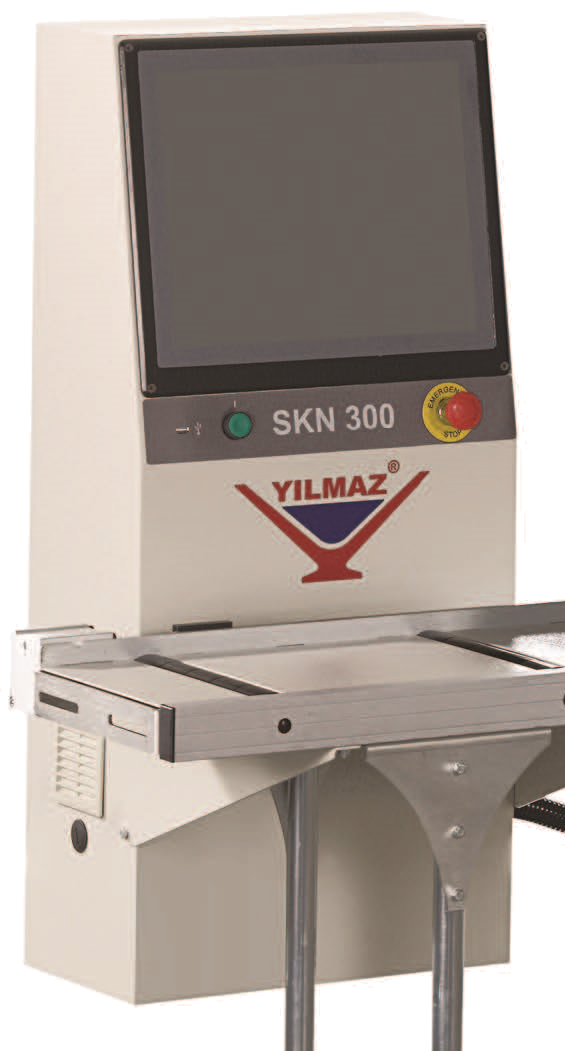

Note: 300mm Model Pictured

Roller conveyor with CNC Length Stop

Standard Specification
  • Automatic or manual operation possible
  • Useful conveyor width 250mm
  • Weight capacity 9kg/m
  • Minimum cutting length 5mm
  • Windows based PLC with 15” touch screen monitor
  • Cutting lists can be produced at the conveyor or remotely on a PC
  • Easy program transfer from PC or between conveyors via USB memory stick
  • Input cutting lists can be modified via the touch screen
  • Positioning accurate to ±0.2 mm
  • Integration between the saw and the conveyor is possible, depending on specific make & model. Additional charges would apply



Get in touch +44 (0)1536 410999
Yilmaz SKN600 Automatic NC Length Stop 6m Technical Specifications
Manufacturer Yilmaz
Machine Type Material Handling
Length (mm)
Width (mm) 250mm
SKU: 367 Category:
