METLSAW CC510 Circle Cutting Saw

Machine Subcategory

Automatic Vertical Bandsaw

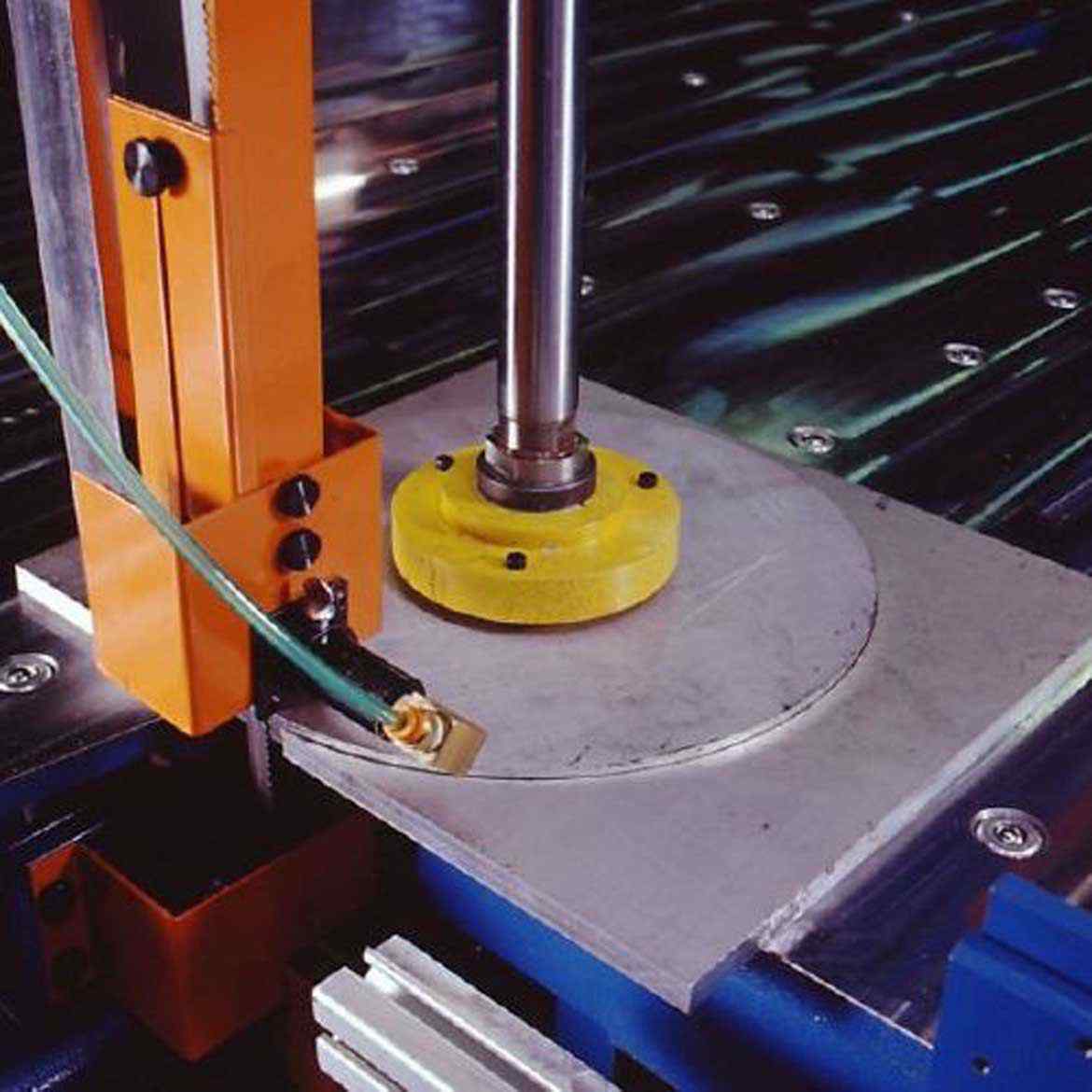

MetlSaw’s CC Series is the safest and most productive equipment on the market for cutting circles and rings from non-ferrous plate materials. Three saw models are available to handle materials from 8” to 12” thick, and to cut circles from 10” to 5’ in outside diameter.

The CC Series system contributes to profitability improvements in two ways: First, by increasing production capacity, and second by decreasing the required labour per part. The saw increases output when cutting rounds, as the system doesn’t require active operator supervision once the sawing starts. When square plate is mounted on MetlSaw’s drop- down hydraulic turntable, accuracy is repeatable with tight precision tolerances to ±.007”, and a single operator can easily manage two to three circle cutters at the same time.

Standard Specification

  • Utilizes a vertical bandsaw with automatic turntable
  • Fully automatic metal cutting saw system
  • 13mm to 300mm thick material
  • High production sawing rates
  • Precision tolerances to +/- 0.075mm (For O.D. Circles)

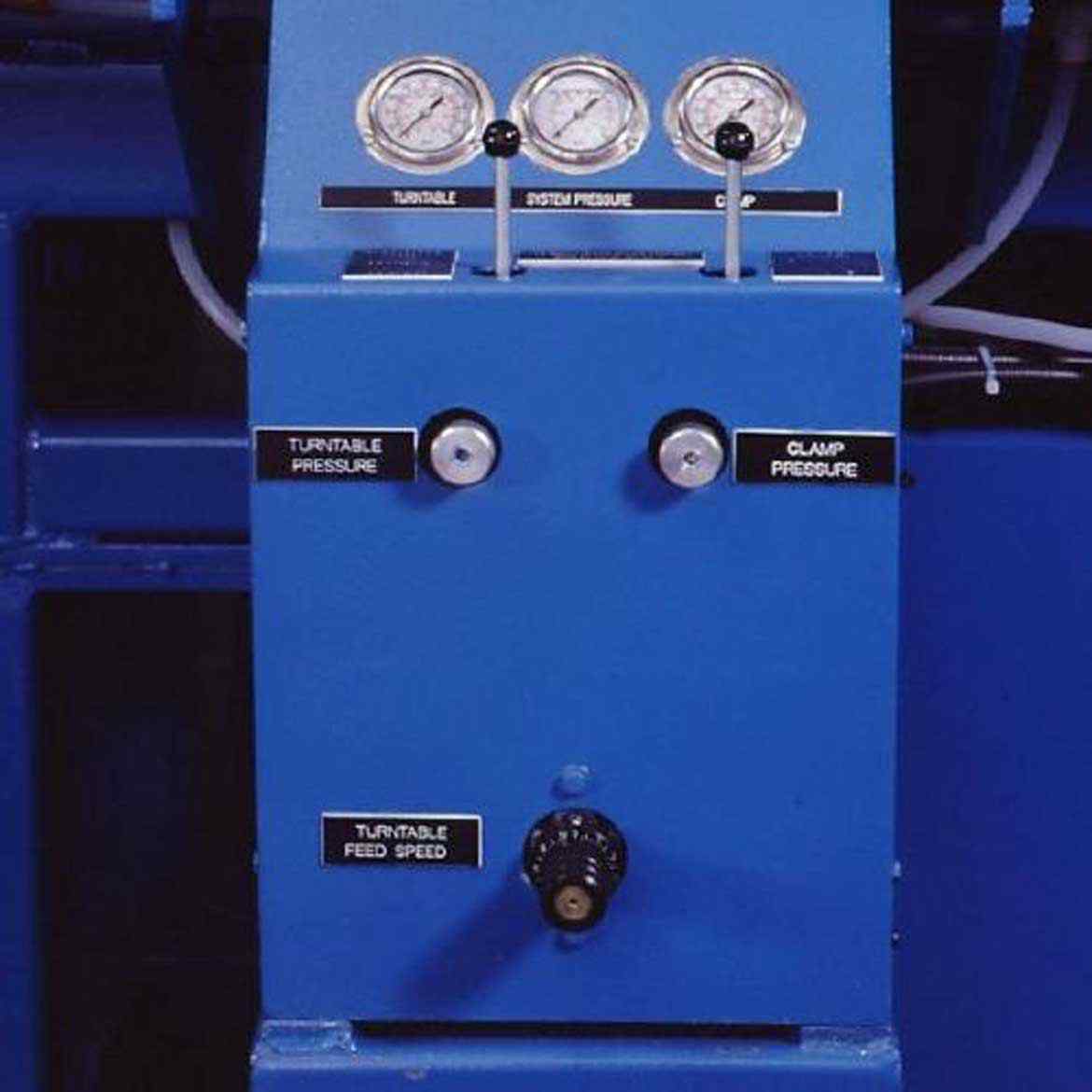

  • Drop down hydraulic turntable
  • Material handling options for loading and unloading
  • Eliminates scribing
  • Fully automatic circle cutting

Get in touch +44 (0)1536 410999

protected by reCAPTCHA

METLSAW CC510 Circle Cutting Saw Technical Specifications

Manufacturer Metlsaw
Machine Type Aluminium
